Door closer with scissor or slide arm DC340 - ASSA ABLOY - Silver gray

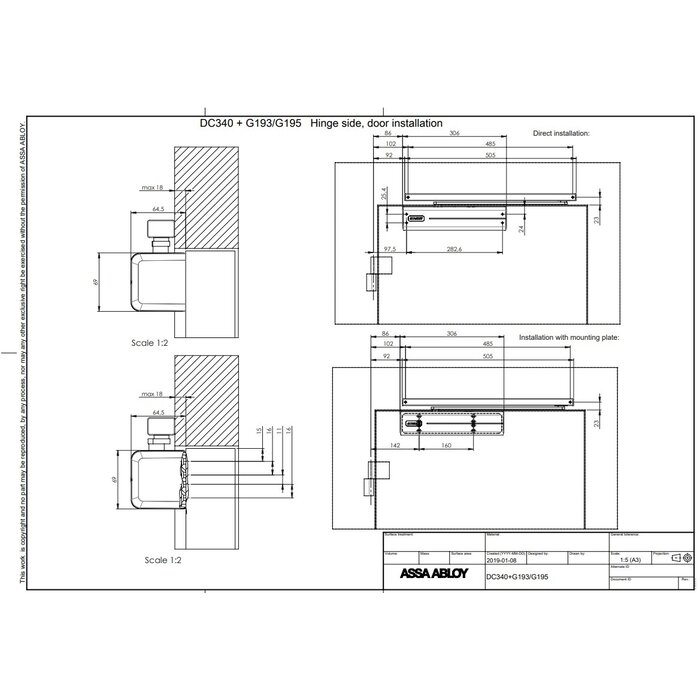

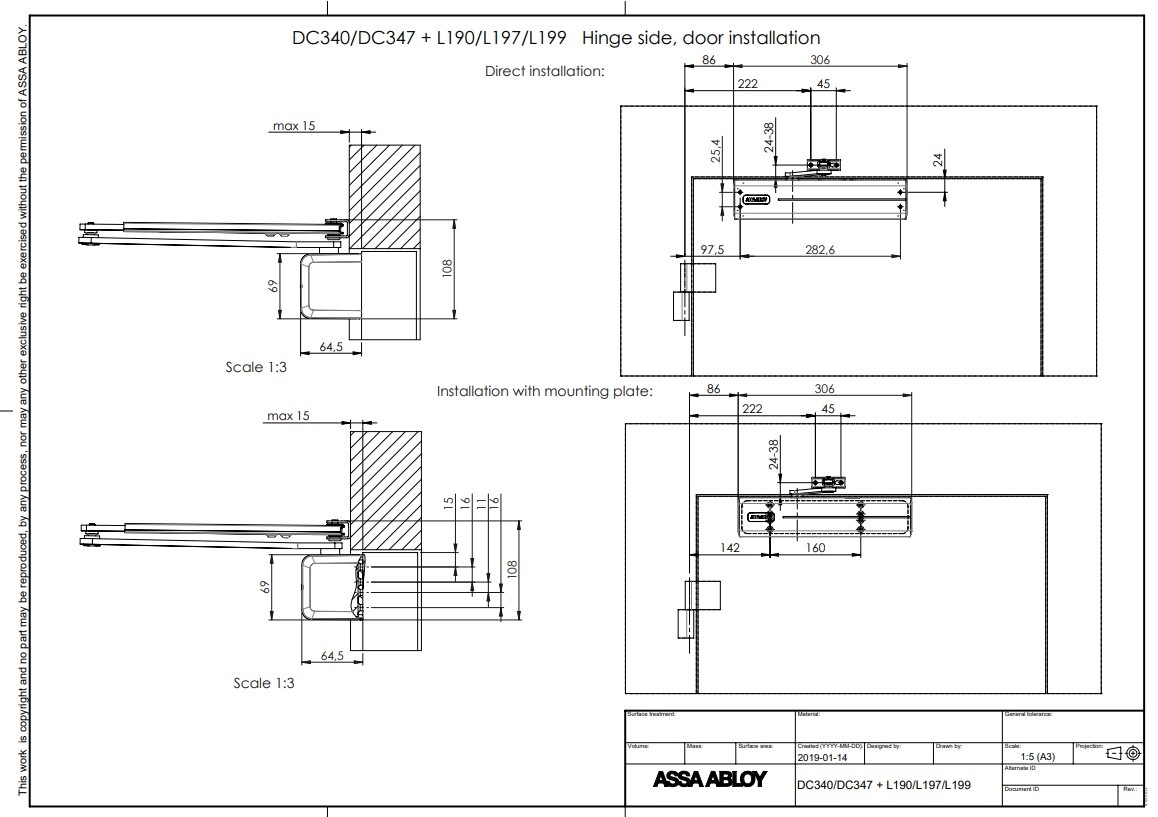

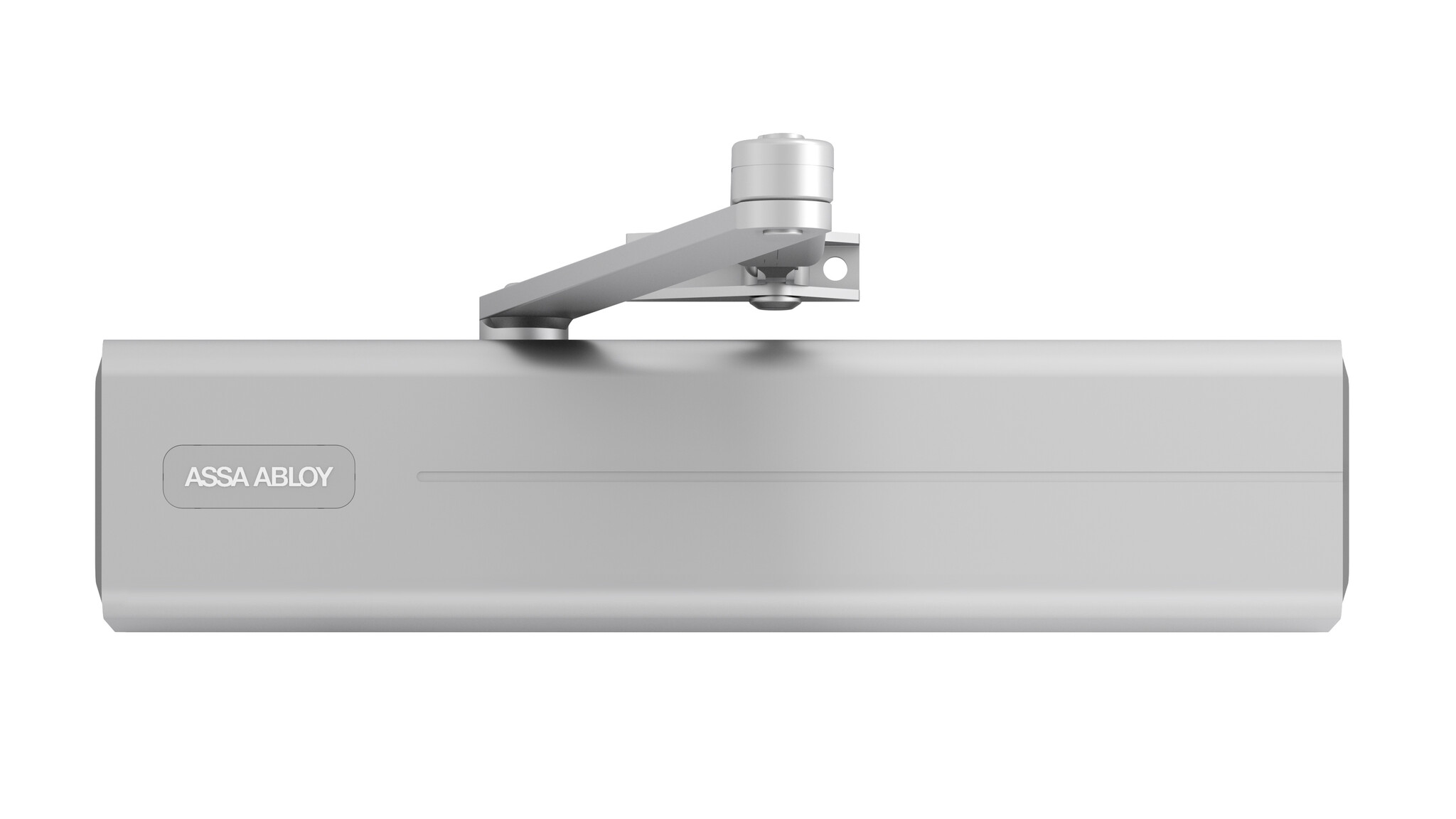

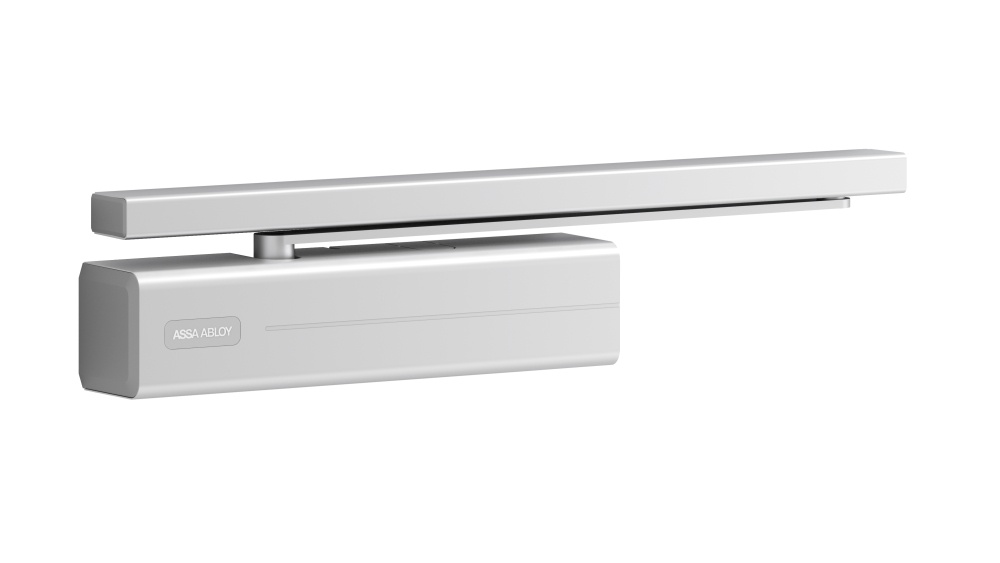

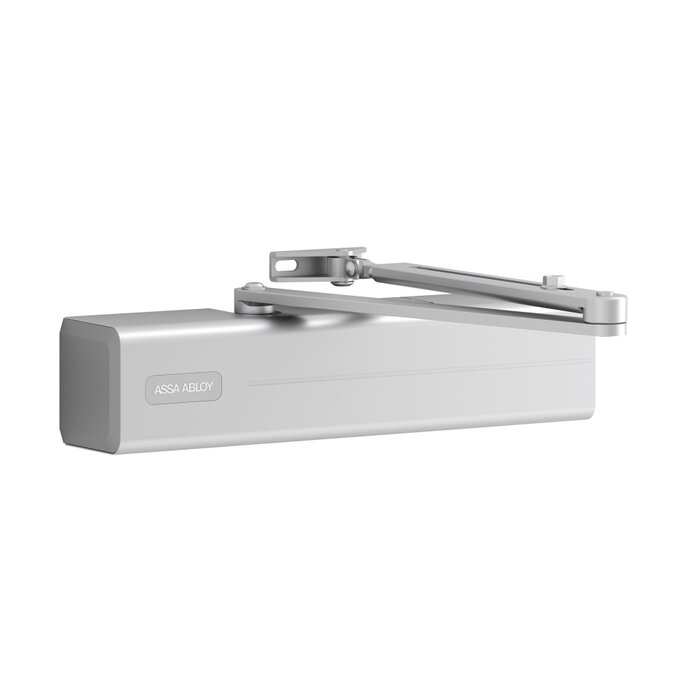

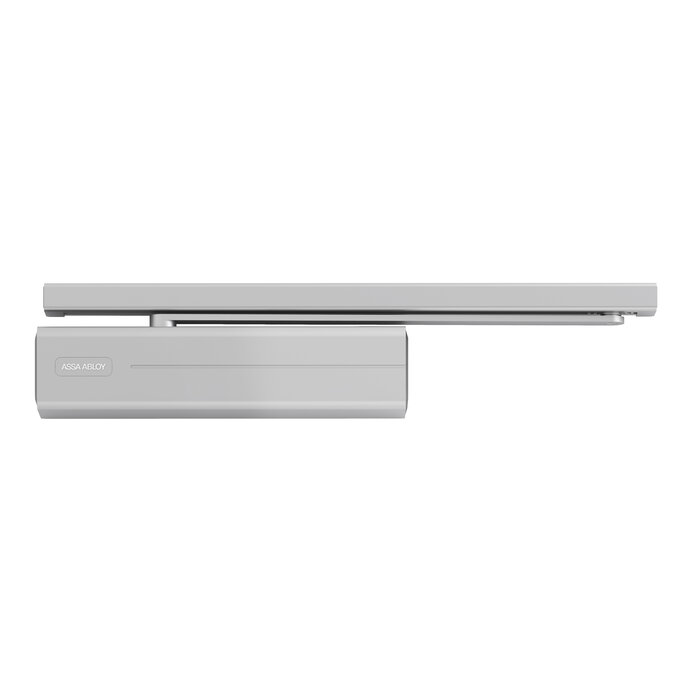

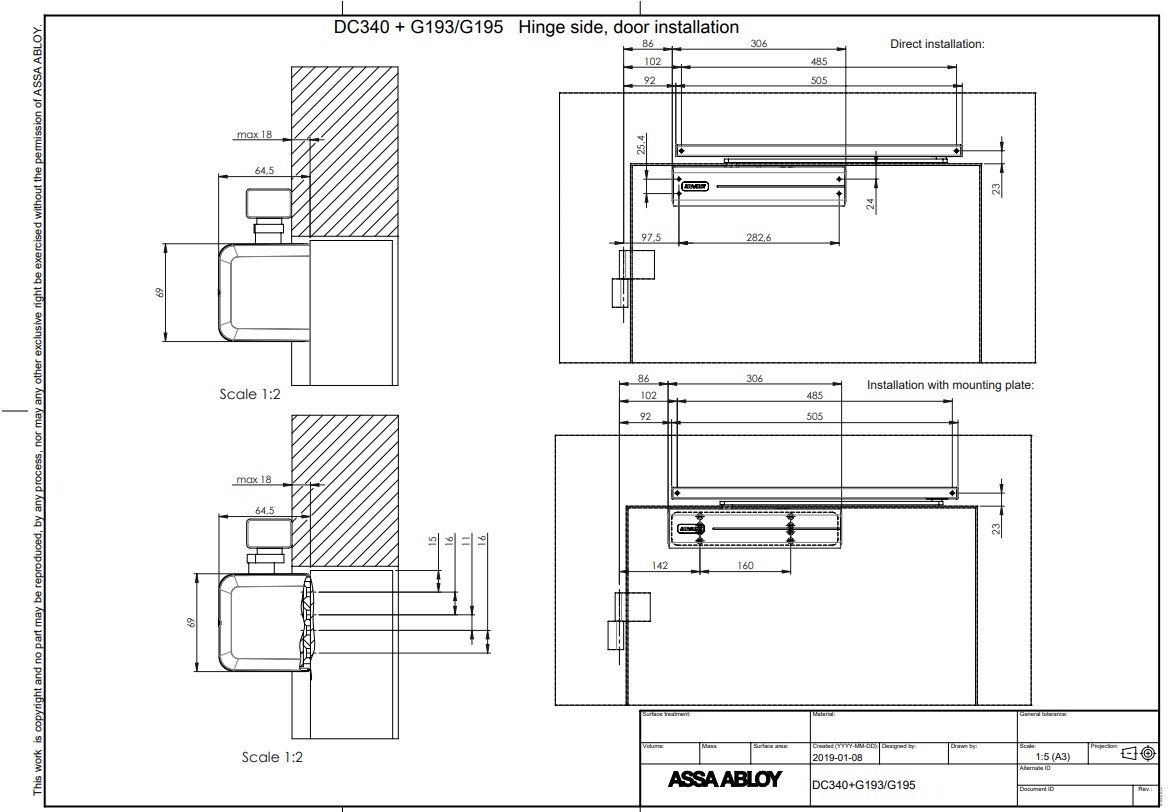

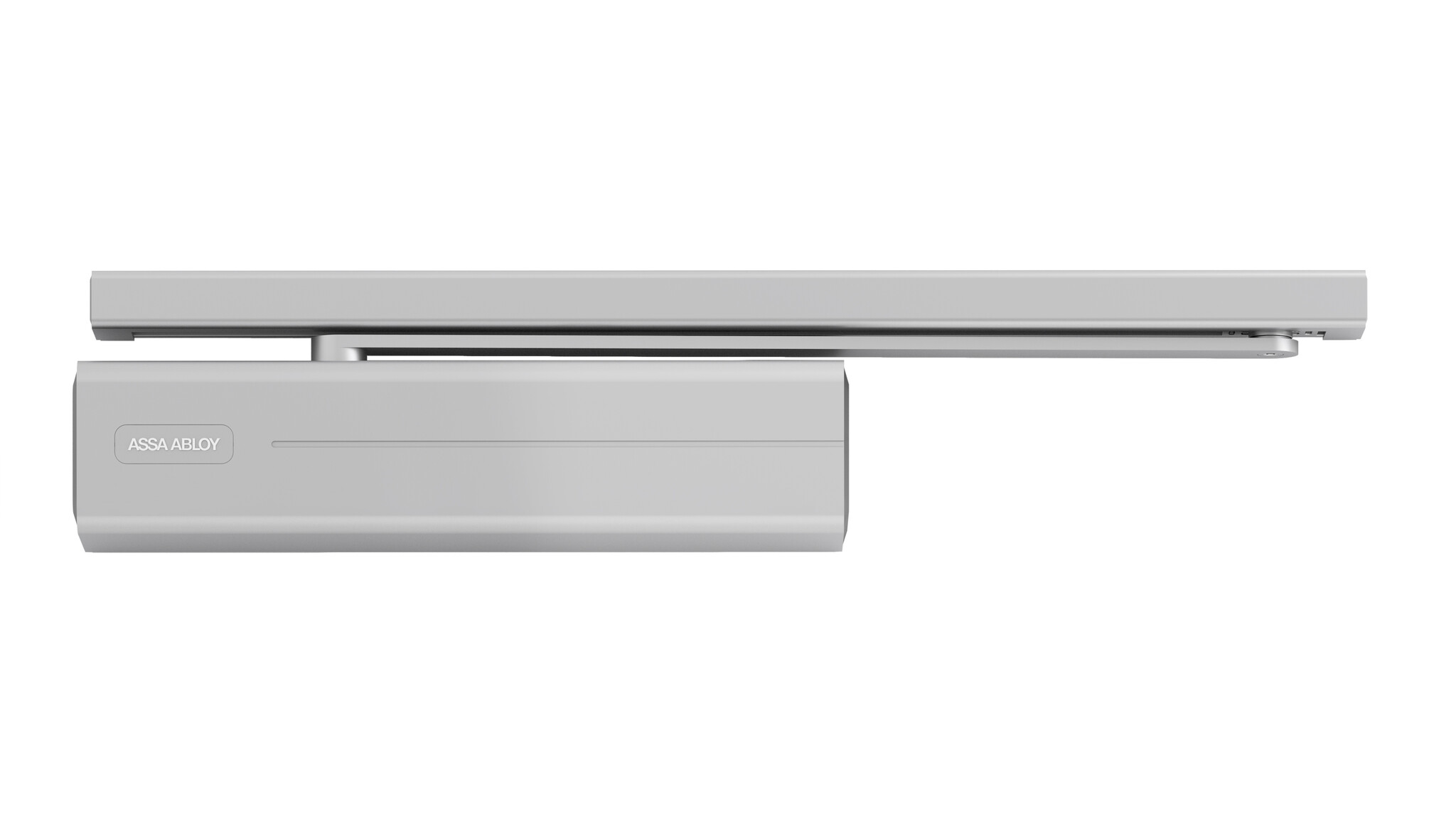

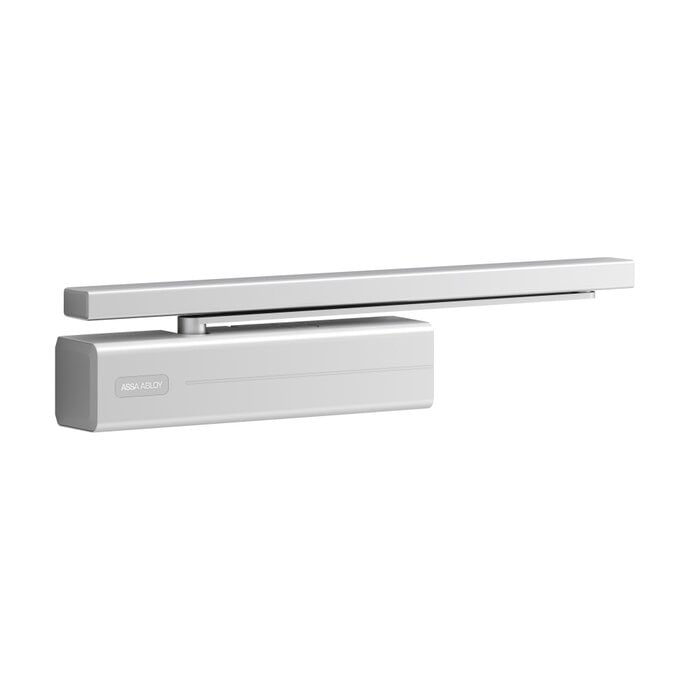

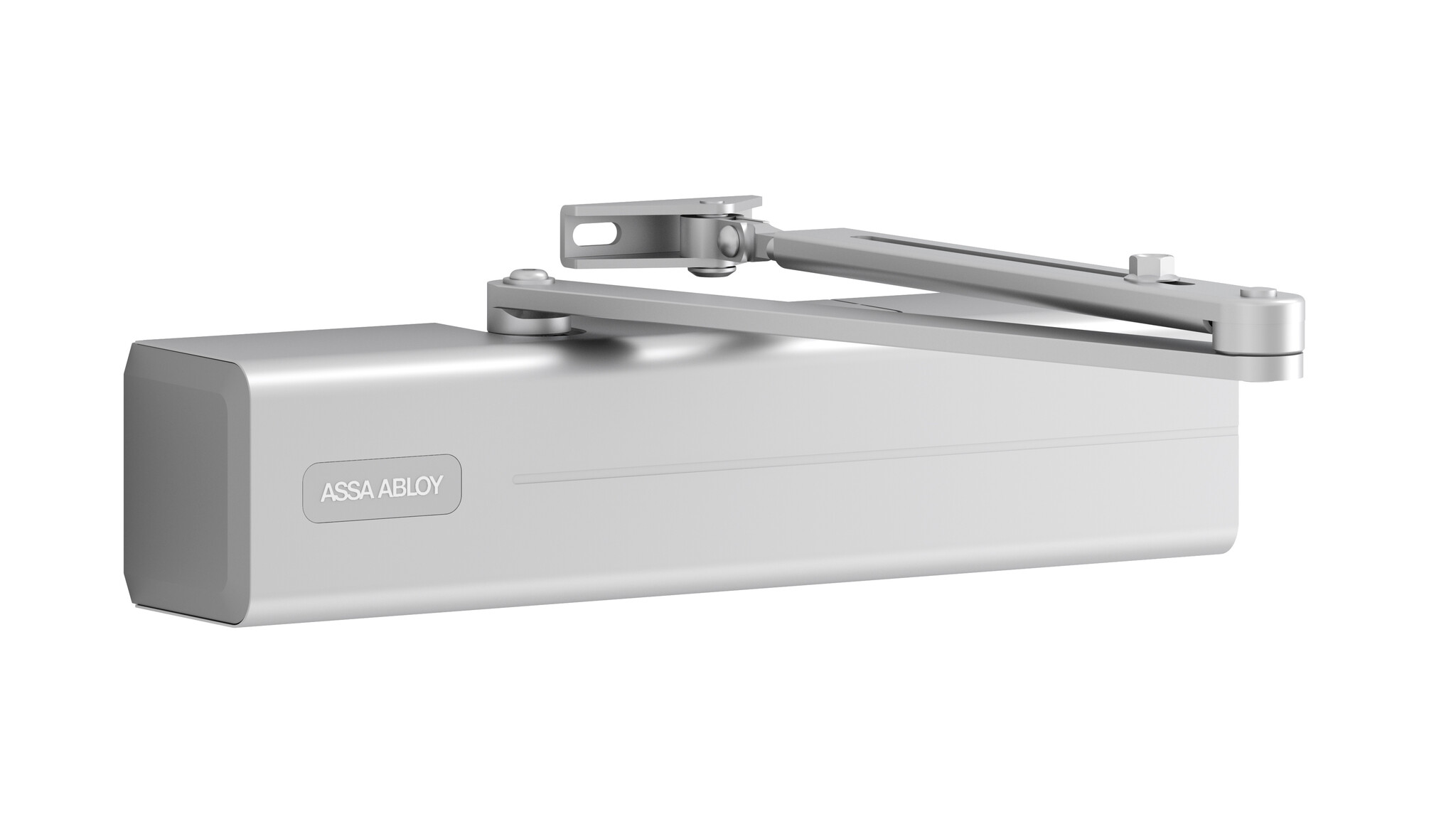

The ASSA ABLOY DC340 is a high-quality and versatile door closer that stands for quality, reliability, and ease of use. Equipped with durable rack and pinion technology, this closer offers a choice of the height-adjustable G195 slide arm or the robust L190 scissor arm. This ensures the right solution for every situation.

The DC340 is certified to EN1154: sizes 2-6 with the scissor arm and sizes 1-4 with the slide arm. It is also suitable for fire- and smoke-resistant doors, providing additional safety and peace of mind. Suitable for single-action doors up to 1100 mm wide with a slide arm and up to 1400 mm wide with a scissor arm.

Thanks to its flexibility, long lifespan, and sleek finish, the DC340 is the perfect choice for homes, offices, and commercial buildings. A universal door closer that seamlessly combines performance, reliability, and safety.

In the menu at the top right, you can choose between a door closer with a sliding arm or a scissor arm!

First, carefully watch the assembly video and the included assembly instructions.

• Suitable for mounting with invisible flat mounting plate, suitable for smoke and fire resistant doors
• Suitable for left and right turning doors
• Up to 14 height-adjustable axles
• Closing speed, final action and opening damping adjustable by means of control valves behind the cover
• Thermodynamic valves for consistent operation
• Variably adjustable closing force
• Opening angle up to 180°
• Broad field of application
• Standard colours: silver, black (cf. RAL 9005)
• Other RAL colours available on request

Technical data

If you wish to use a mounting plate, you will find it in the related products.

Why choose ASSA ABLOY door pumps?
Assa Abloy is the global benchmark for door pumps. While many brands only allow installation in two positions, Assa Abloy door pumps can often be installed in all four positions of a door, making them suitable for virtually any situation. Moreover, they often open wider than the average door pump, providing additional ease of use and comfort. Because Assa Abloy develops and manufactures its door pumps entirely in-house, you can count on exceptional quality and reliability that far exceeds the competition.

ASSA ABLOY door springs offer unique advantages you won't find elsewhere. For example, the arms are height-adjustable up to 14 mm, guaranteeing perfect positioning. Two separate oil channels allow for precise adjustment of both the start and end positions. The serrated shaft ensures a secure connection. ASSA ABLOY was the first to introduce the double door spring. Furthermore, you can access the user manual directly online via the handy QR code. Reliable, innovative, and user-friendly.
