Formani lift-and-slide handle with sliding door handle RIVIO GL230 - Matt black PVD

When designing the "RIVIO" line, GENSLER design studio didn't forget the sliding door. They created the RIVIO GL230 lift-and-slide handle specifically for this purpose.

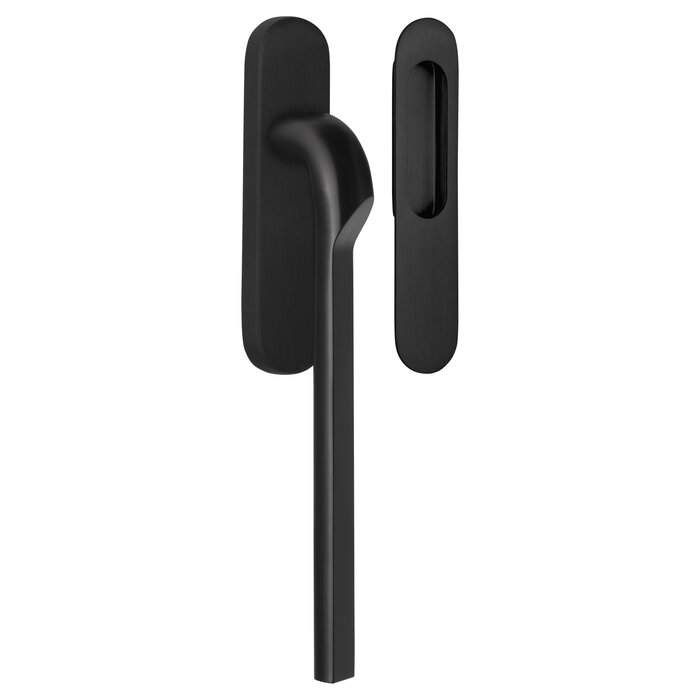

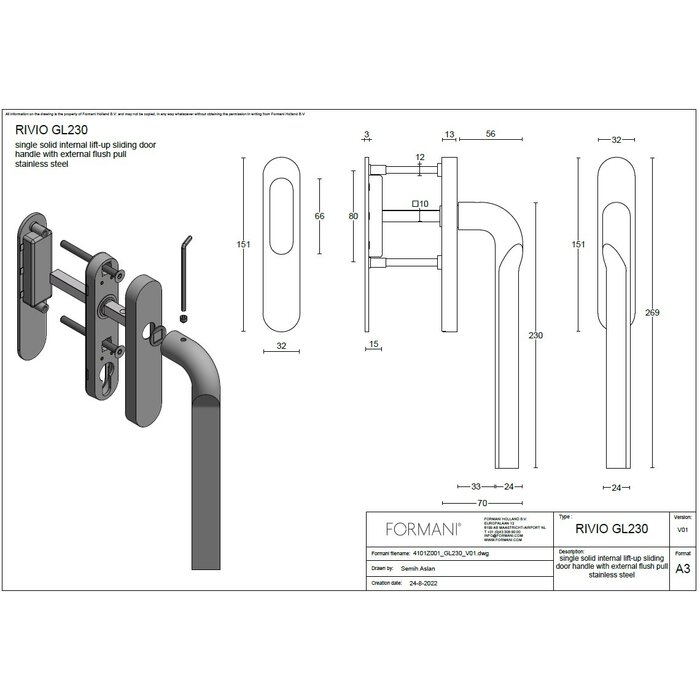

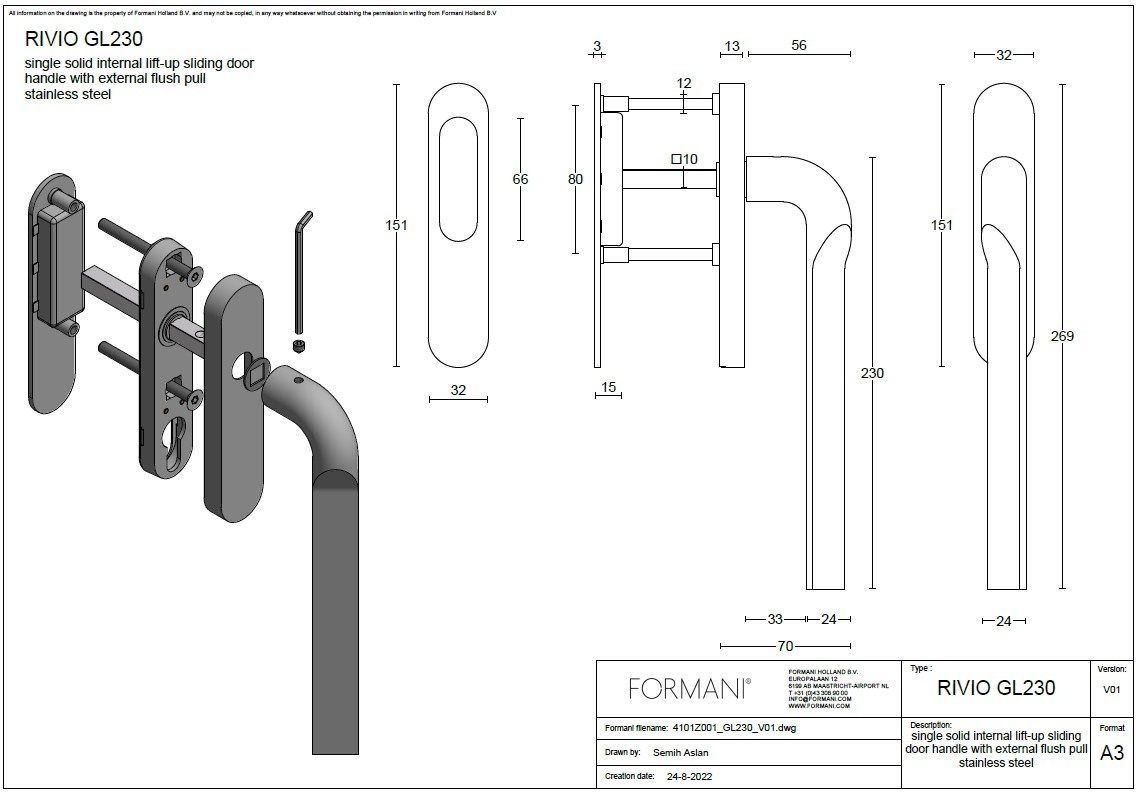

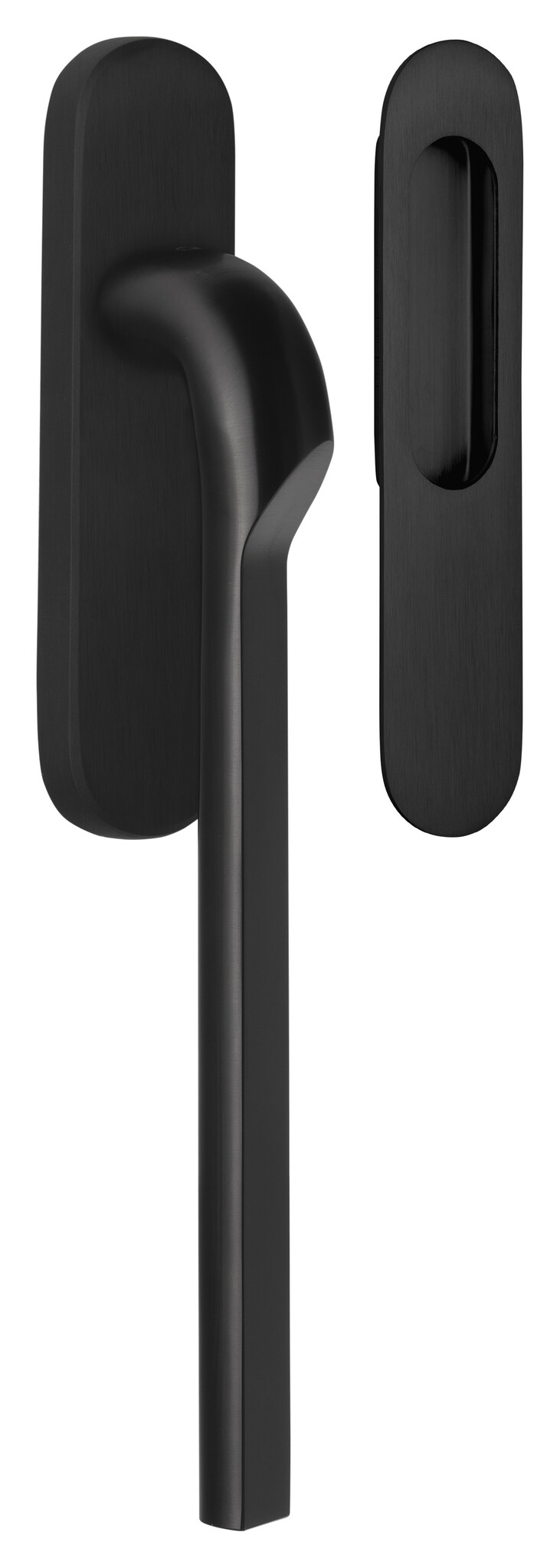

Inside, the PVD matte black L-shaped handle, 230 mm long and 24 mm in diameter, is mounted on an oval shield. This shield is 151 mm high, 32 mm wide, and extends 13 mm forward.

On the outside, the blind cup is placed, which is 151 mm x 32 mm with a thickness of 3 mm.

We offer this version in two versions: without a cylinder hole or with a cylinder hole and a 69 mm axle. Make the appropriate selection in the scrolling menu at the top right.

The matte black PVD lifting/sliding handle is made of stainless steel that is provided with an extra strong matte black PVD coating at the end.

These black sliding door handles are supplied as a set with a concealed sliding door handle and all mounting hardware, including the 10x10 mm square pin.

If the supplied bolts for continuous mounting are too long, they can be shortened.
