Description
The STILE window handle HIRA stands on a rectangular rosette with a wider thin handle.
Article code: ST O HIRA Q MSN-L

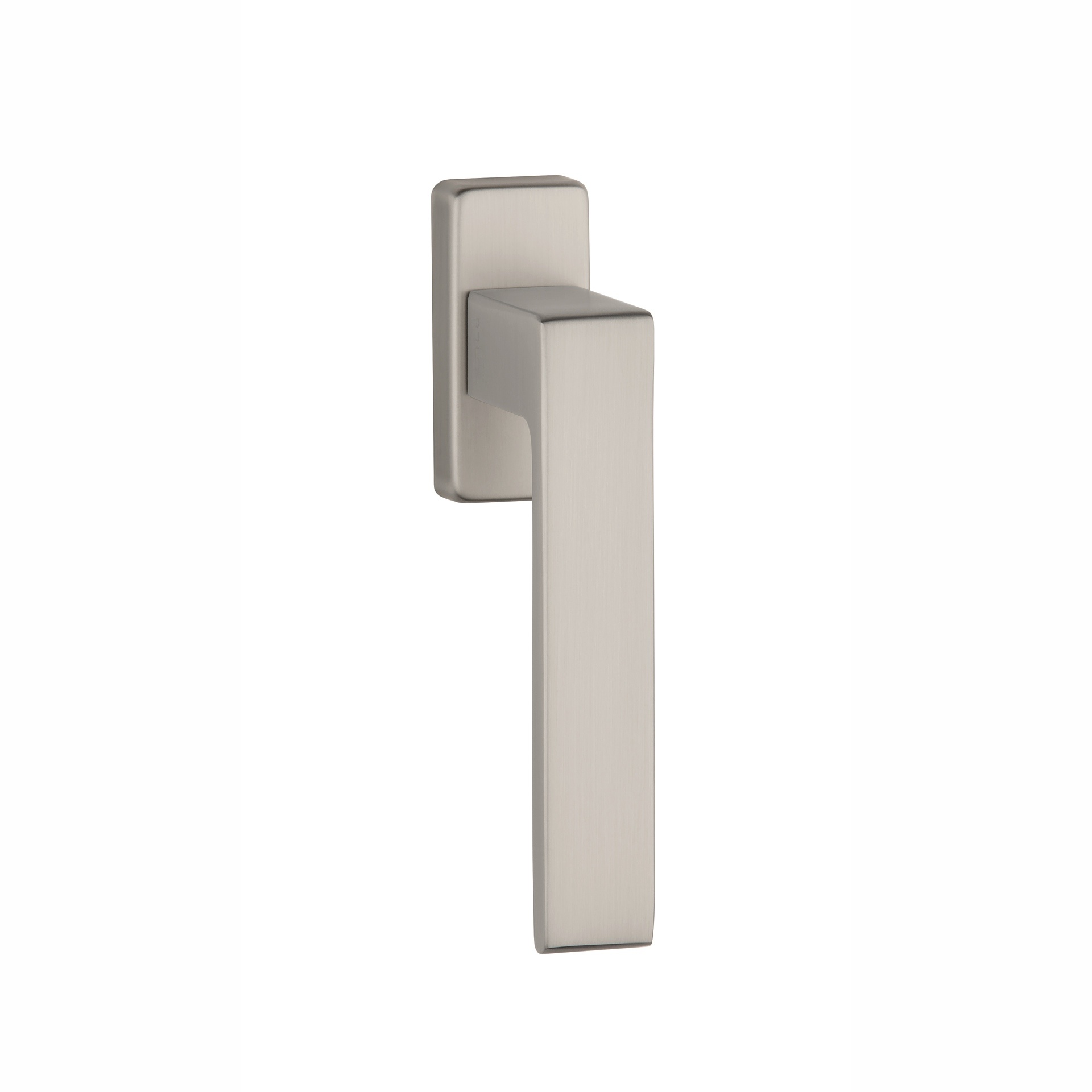

The matt nickel window handle 'HIRA' in turn-tilt design has a thin, somewhat wider handle that protrudes only 54 mm.
The window handles have an aluminum base. Aluminum is known for the fact that the applied coating adheres very well, so that these handles have an extra long color fastness

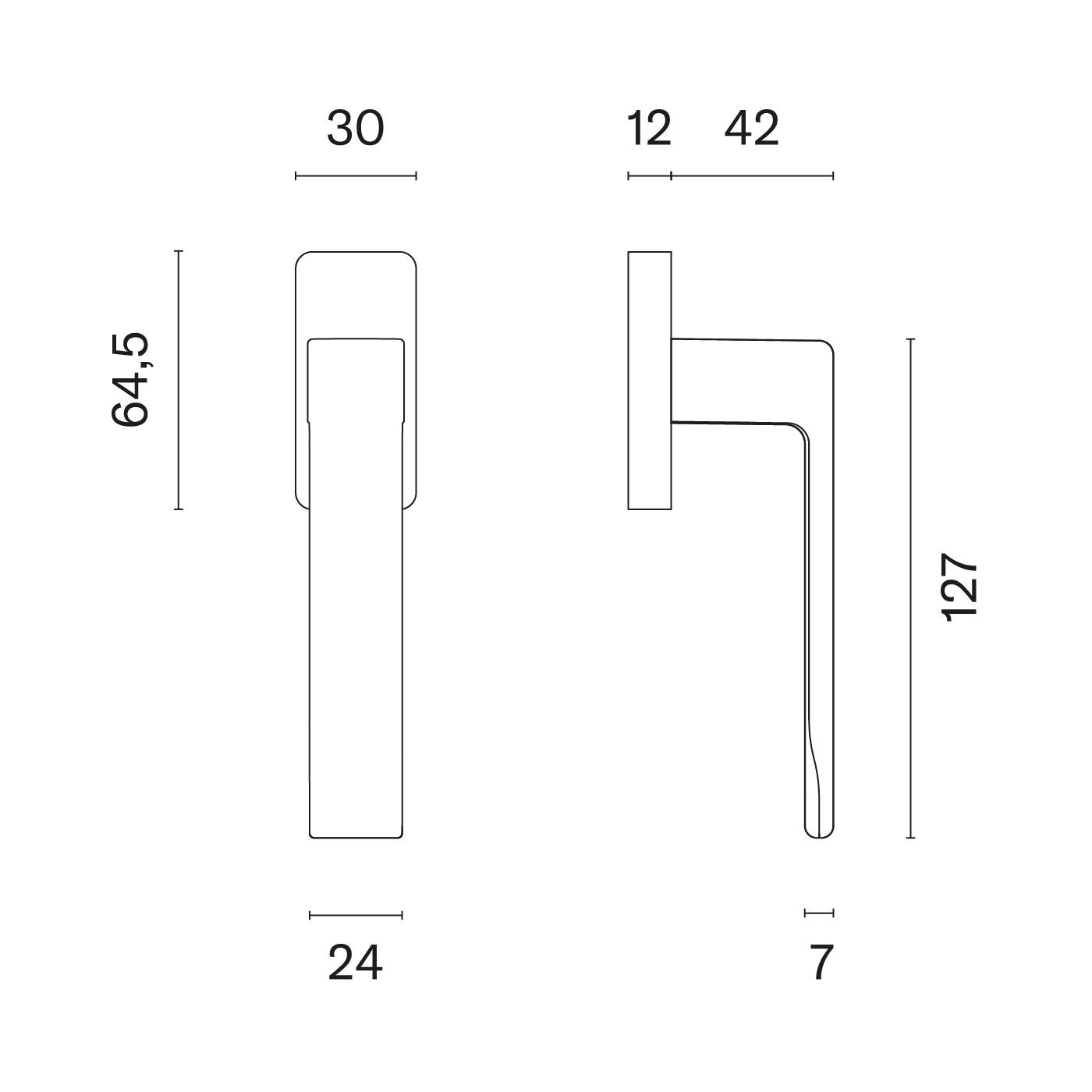

The handle of 24x7 mm stands on a rectangular rosette of 64.5x30x12 mm.
This window handle is provided with the STILE logo and is supplied per piece including mounting materials and a pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
Combine the sleek window handles with STILE door handles and you will be amazed at the beautiful result for your interior.
At the top of the scroll menu, choose between a left or right window handle!
Both window handles rotate 360°. The only difference is the location of the STILE logo.
With a left window handle the logo is on the left, with a right window handle the logo is on the right.
| base | aluminium |
| performance | turn-tilt function |
| colour | matte nickel |
| dimensions rosette | 64.5x30x12mm |
| depth | 54mm |
| drilling distance | 43mm |
| marker | 7x7x35mm |
| handle dimensions | 24x7mm |
| mounting material | 2 bolts M5 x 40 mm included |
