Description

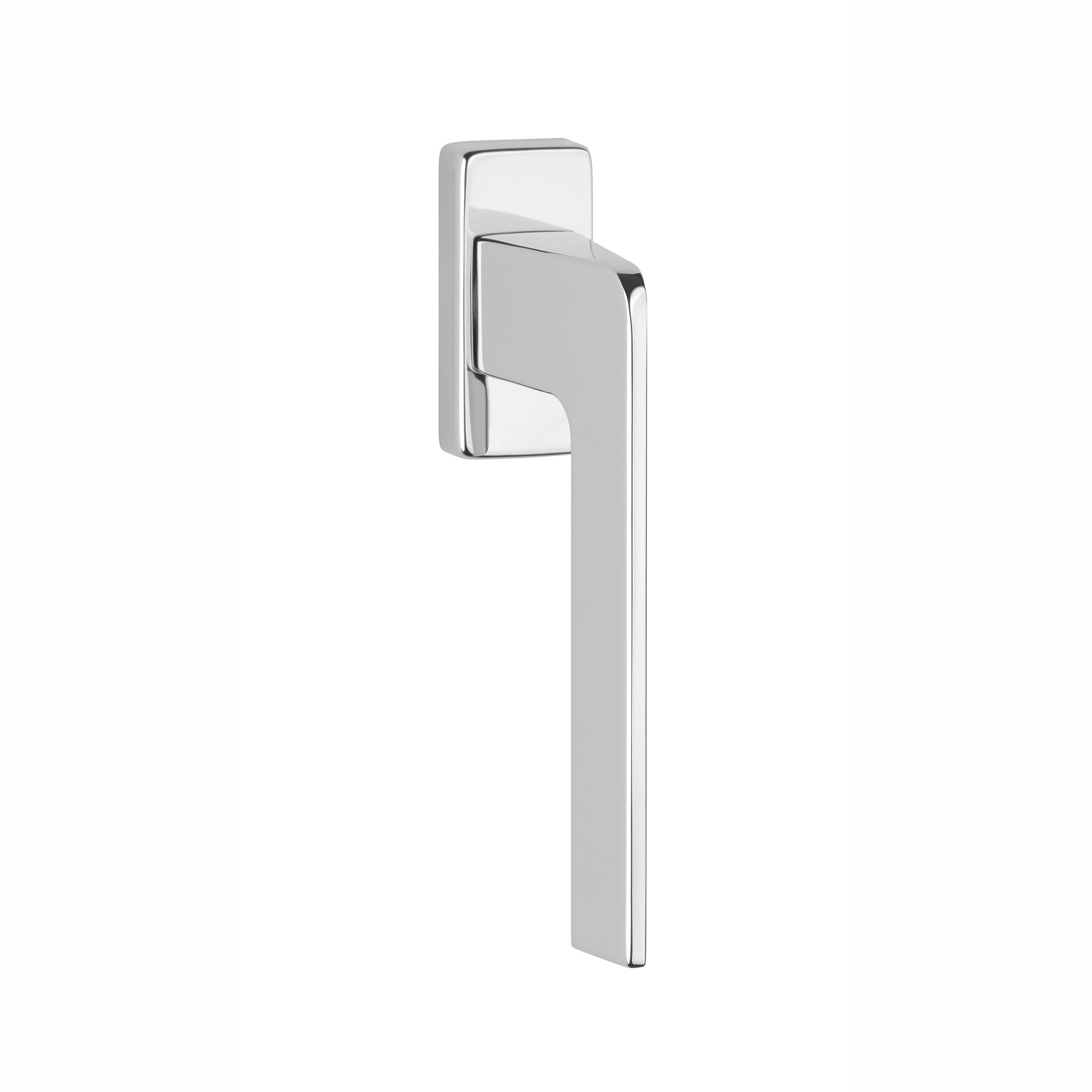

Window handle OMA on a rectangular rosette with a thin handle that flares out towards the front in polished chrome by STILE
Article code: ST O OMA Q CP-L
The glossy Chrome window handle 'OMA' from STILE is available in a tilt-turn version. The window handle has a narrow handle that flares out towards the front.
These window handles have aluminum as a basis, which is known to give a very good adhesion to the applied coating.

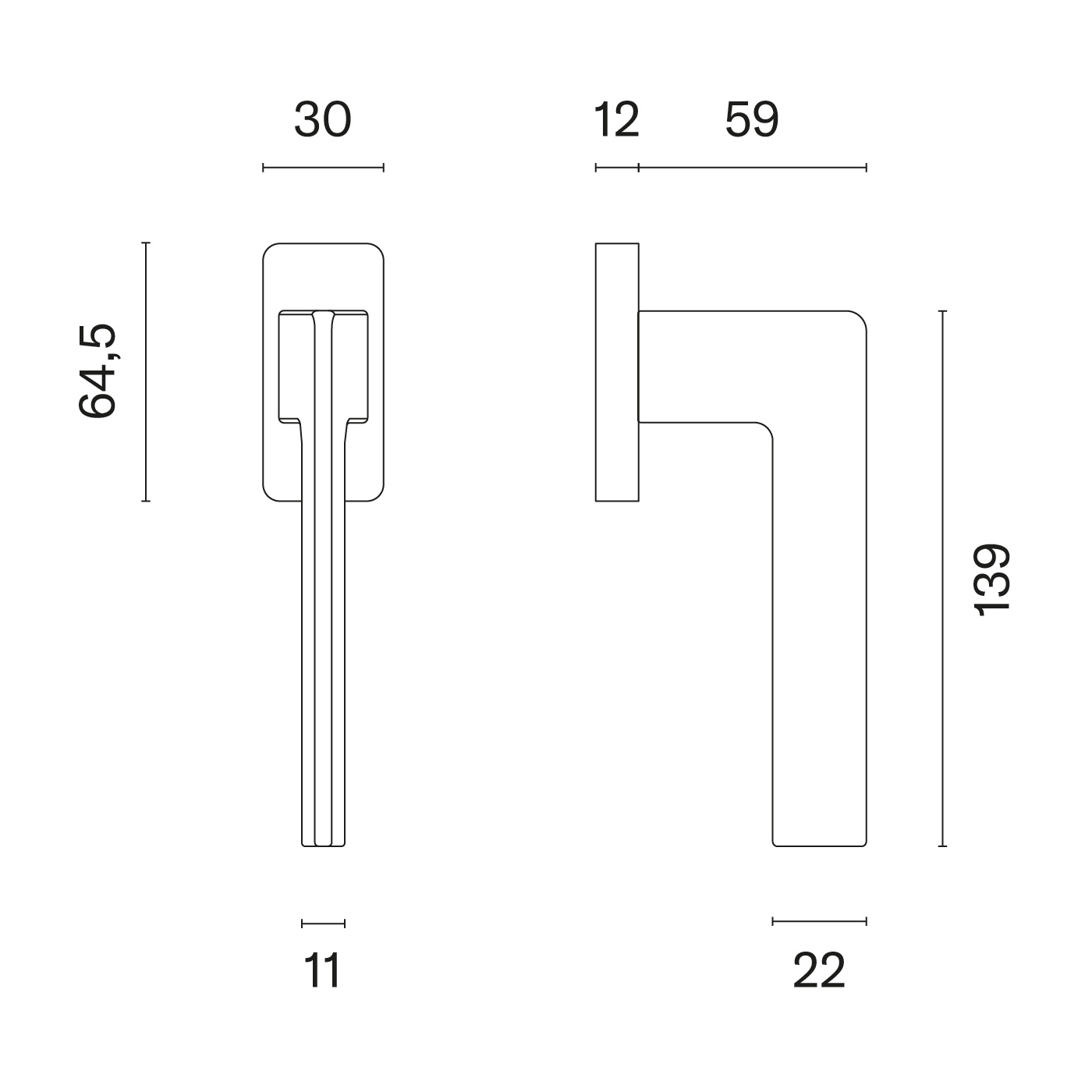

The handle stands on a rectangular rosette of 64.5x30x12 mm. The forward flared handle is 22 mm wide.
This chrome polished window handle is supplied per piece including mounting materials and pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
Combine the shiny window handles with the matching door handles from STILE and you get a beautiful result.
Above in the scroll menu you can choose between a left or right window handle.
Both window handles rotate 360°. The only difference is the location of the STILE logo.
With a left window handle, the logo is on the left and you open the window handle from the left, with a right window handle, the logo is on the right and you open it from the right.
| base | aluminium |
| performance | turn-tilt function |
| colour | Chrome polished |
| dimensions rosette | 64.5x30x12mm |
| depth | 59mm |
| drilling distance | 43mm |
| marker | 7x7x35mm |
| handle dimensions | 22x11mm |
| mounting material | 2 bolts M5 x 40 mm included |
