Description

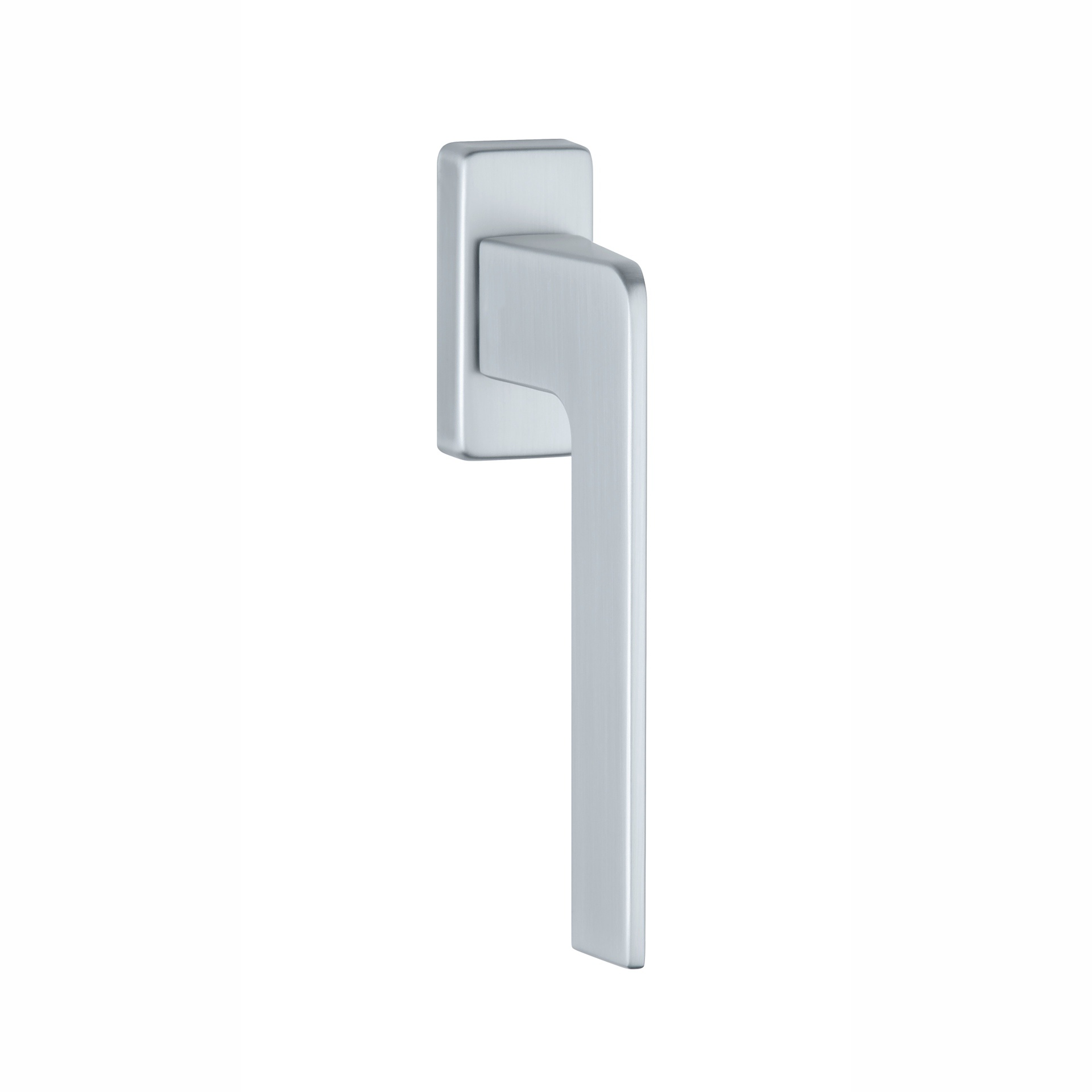

Window handle OMA on a rectangular rosette with a thin handle that flares forward in matt chrome by STILE
Article code: ST O OMA Q PSC-L
The matt Chrome window handle 'OMA' from STILE is available in a tilt-turn version. The window handle has a narrow handle that flares out towards the front.
The basis of this window handle is aluminum, after which they are anodized in matt chrome.

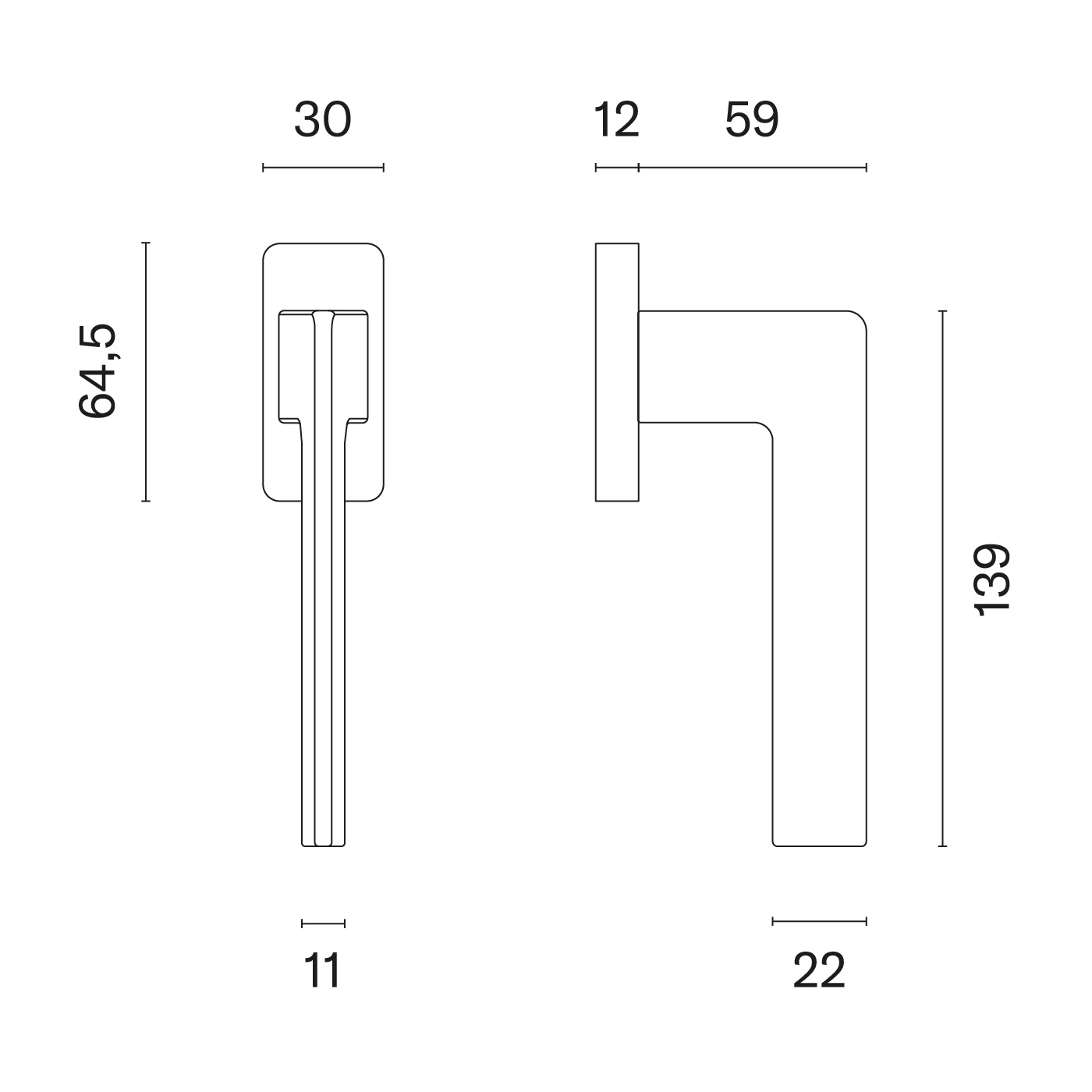

The handle stands on a rectangular rosette of 64.5x30x12 mm. The forward flared handle is 22 mm wide.
This matte Chrome window handle is supplied per piece including mounting materials and a pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
Combine the matte window handles with the matching OMA door handles from STILE and create a beautiful result.
Above in the scroll menu you can choose between a left or right window handle.
Both window handles rotate 360°. The only difference is the location of the STILE logo.
With a left window handle, the logo is on the left and you open the window handle from the left, with a right window handle, the logo is on the right and you open the window handle from the right.
| base | aluminium |
| performance | turn-tilt function |
| colour | matte chrome |
| dimensions rosette | 64.5x30x12mm |
| depth | 59+mm |
| drilling distance | 43mm |
| marker | 7x7x35mm |
| handle dimensions | 22x11mm |
| mounting material | 2 bolts M5 x 40 mm included |
