JNF FLAT customizable recessed door handle with mortise lock – 120 x 120 mm – Titanium Chocolate PVD

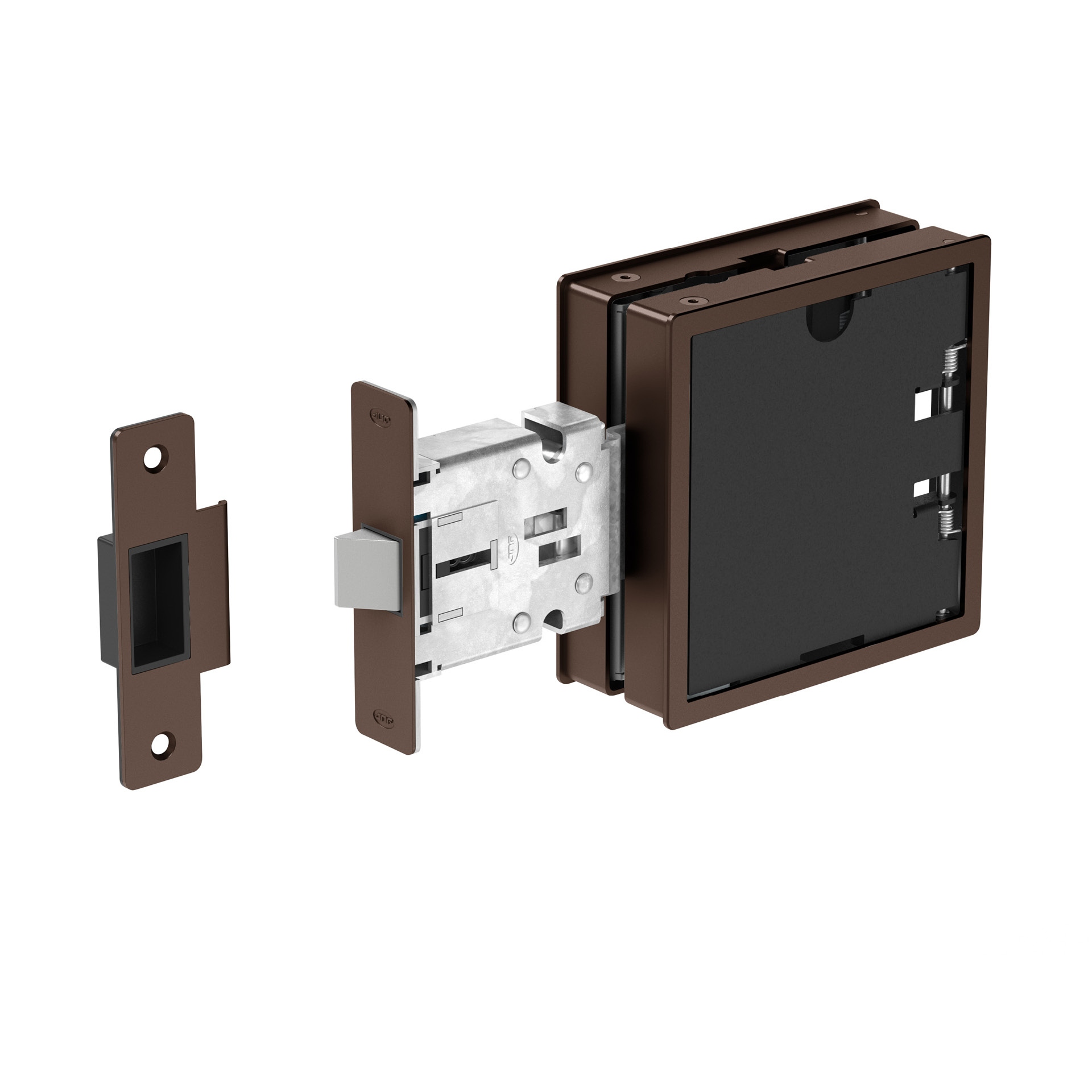

The JNF FLAT IN.20.226.TCH from the 200 Series is an integrated mortise lock with a virtually flush-mounted door handle. The special feature of this version is that the visible side of the handle can be personalized with a custom finish material .

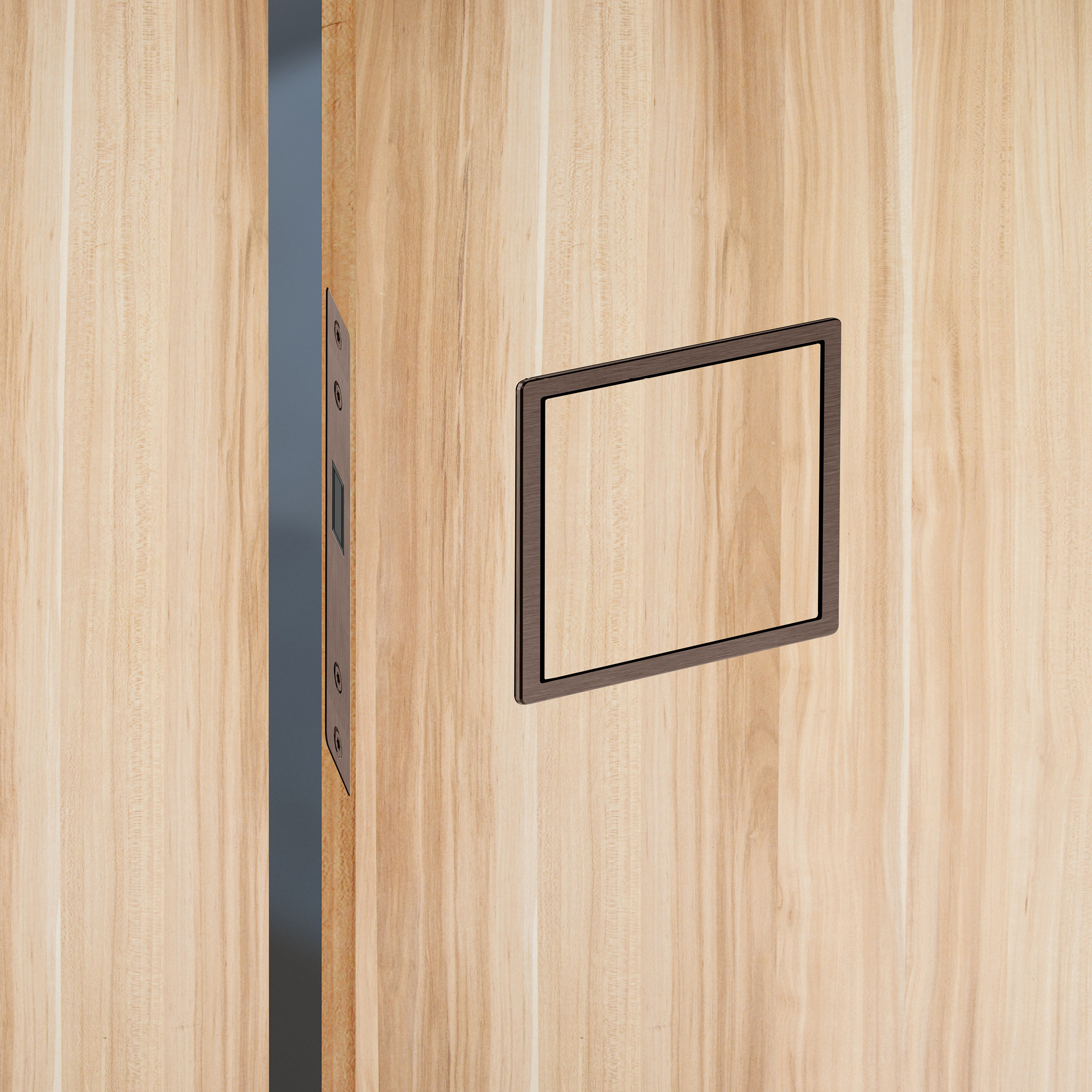

A base is supplied for this purpose, onto which a material of your choice can be glued. The material to be applied must have a thickness of 1 to 2 mm . For example, the same thin finishing material as on the door can be used, allowing the handle to blend beautifully into the door leaf visually. A contrasting material is, of course, also possible.

Operation is performed by pressing the recessed handle. This causes an element to extend that serves as a door handle , allowing the door to be pulled open. The mechanism is designed to allow the built-in handle to move as far inward as possible when not in use.

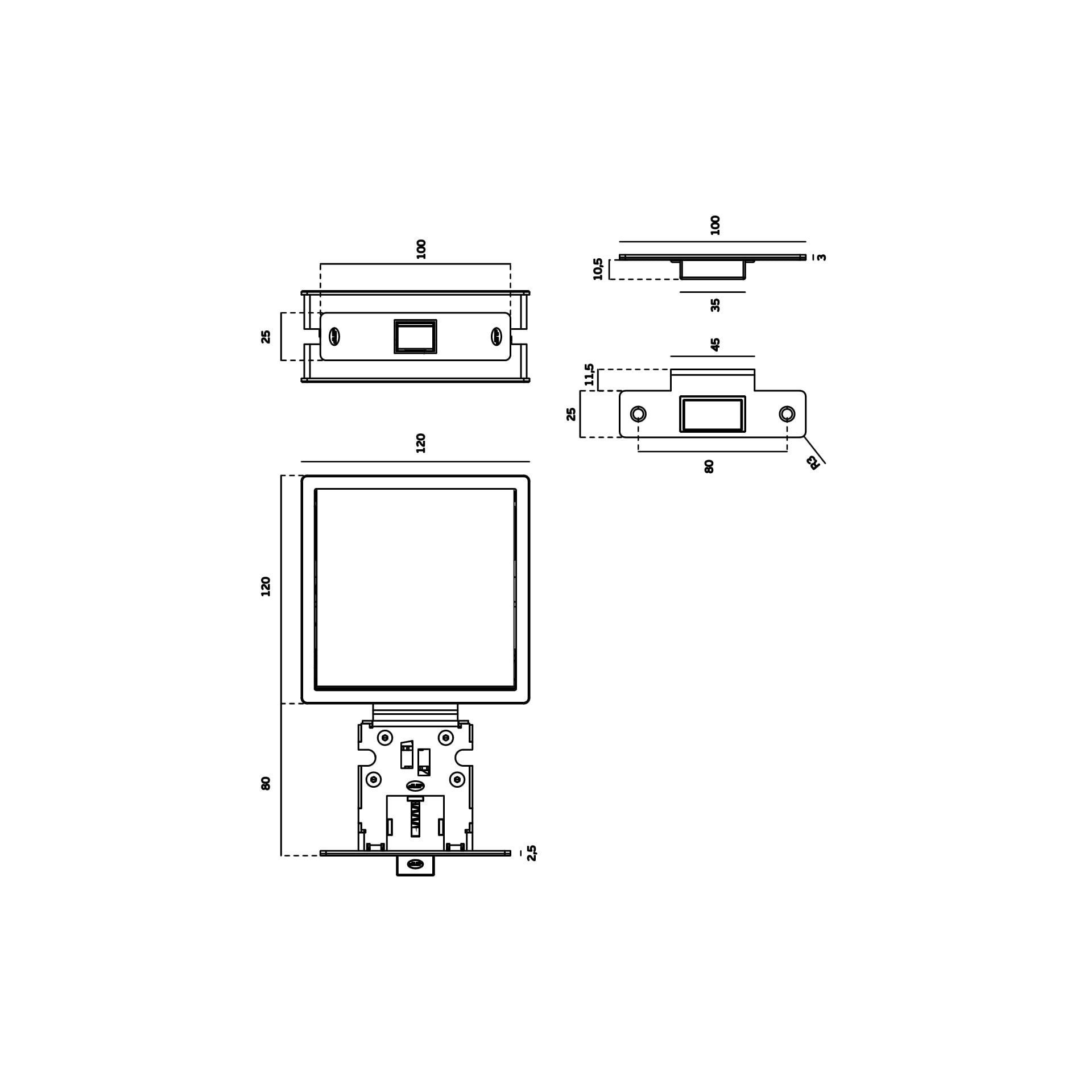

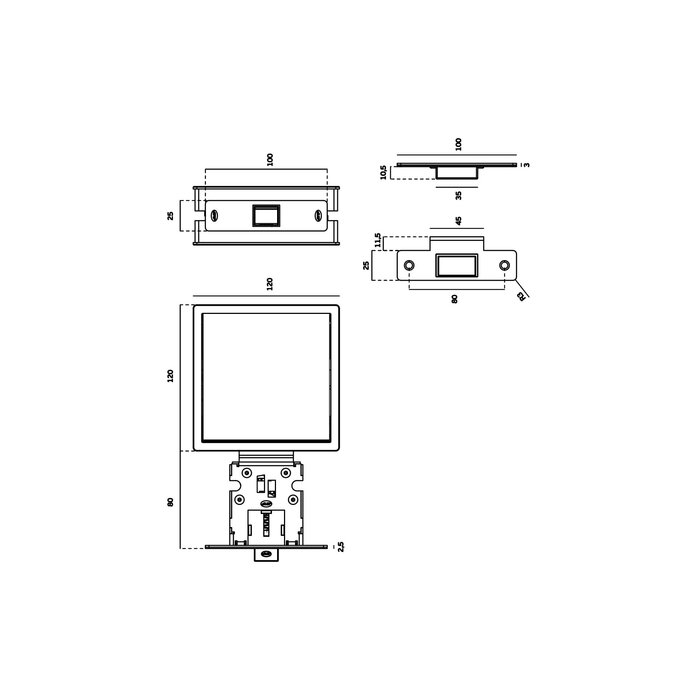

The square system measures 120 x 120 mm . The section for applying the custom finishing material measures 104 x 104 mm. As a result, a narrow visible edge in Titanium Chocolate PVD remains all around.

The system is manufactured from EN 1.4301 (AISI 304) stainless steel and the visible metal parts are finished in PVD Titanium Chocolate. The lock has a Grade 2 classification.

Technical specifications
