JNF Architectural Hardware

JNF WC bolt lock 60 mm for WC set – Gold PVD

Add to wishlist

€16,30 €19,72 Incl. tax per piece

Delivered in: 10-12 Weeks

Europe-wide shipping

Money back guarantee

For private and professional customers

Become a business customer and take advantage of special purchase prices! Click here to request an account.

Description JNF flush-mounted WC bolt lock with backset 60 mm for operation with a JNF WC fitting, including adjustable strike plate

Article code: IN.20.167.TG

JNF WC bolt lock 60 mm for WC set – Gold PVD

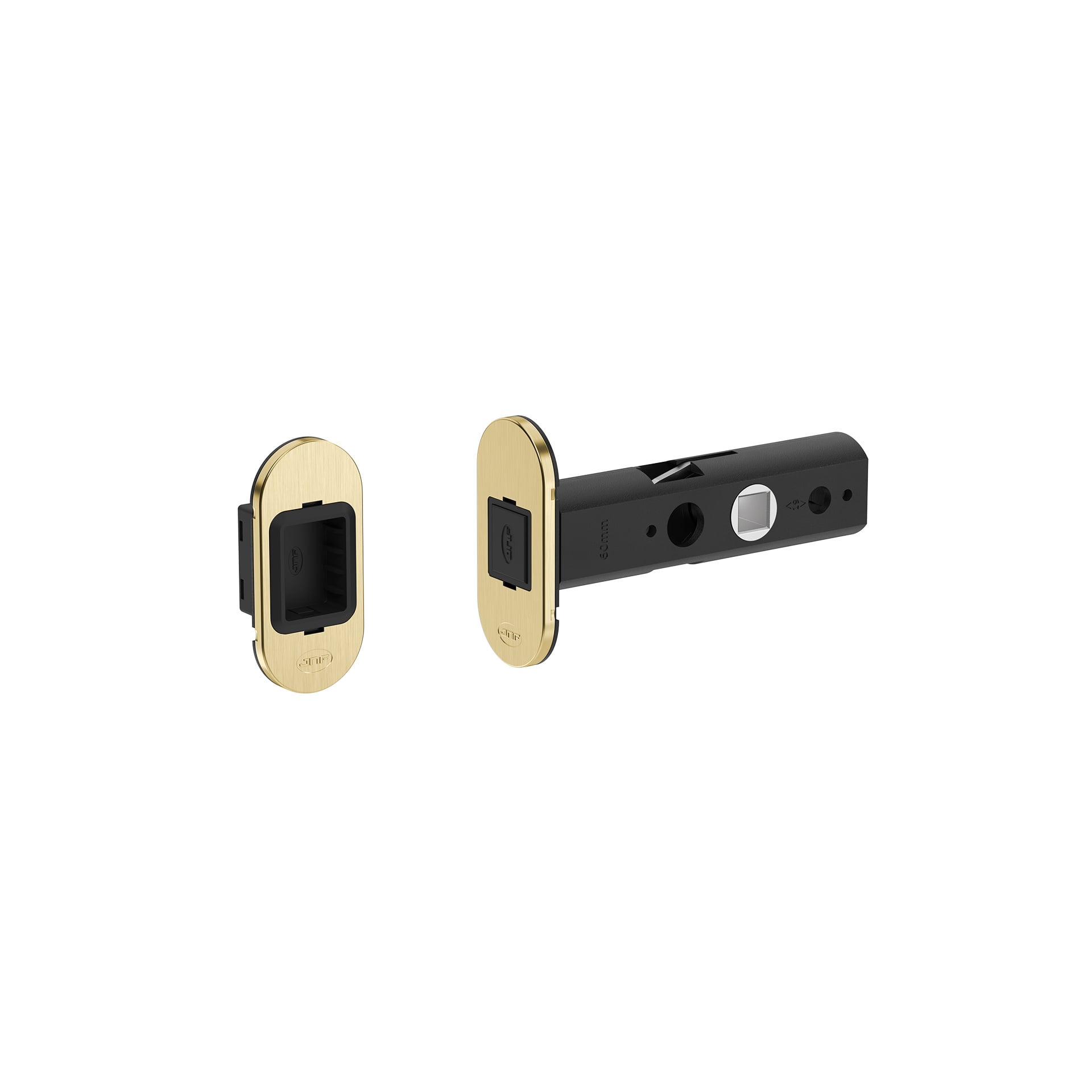

This JNF WC bolt lock is a compact mortise lock for locking bathroom and toilet doors. The lock is operated with a JNF WC fitting and locks or unlocks the door with a 90° turn.

According to JNF, the bolt lock is compatible with the entire range of JNF bathroom locks and can therefore be used in combination with various JNF toilet solutions.

This WC bolt lock exclusively locks the door . For normal operation of the door with a door handle, it can be combined with a separate JNF latch lock. The door handle then operates the latch lock, while the WC fitting operates this separate bolt lock.

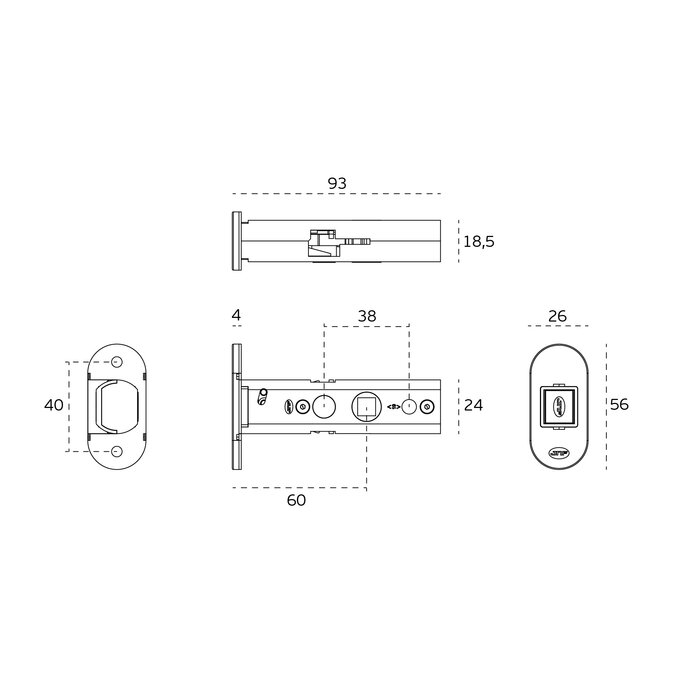

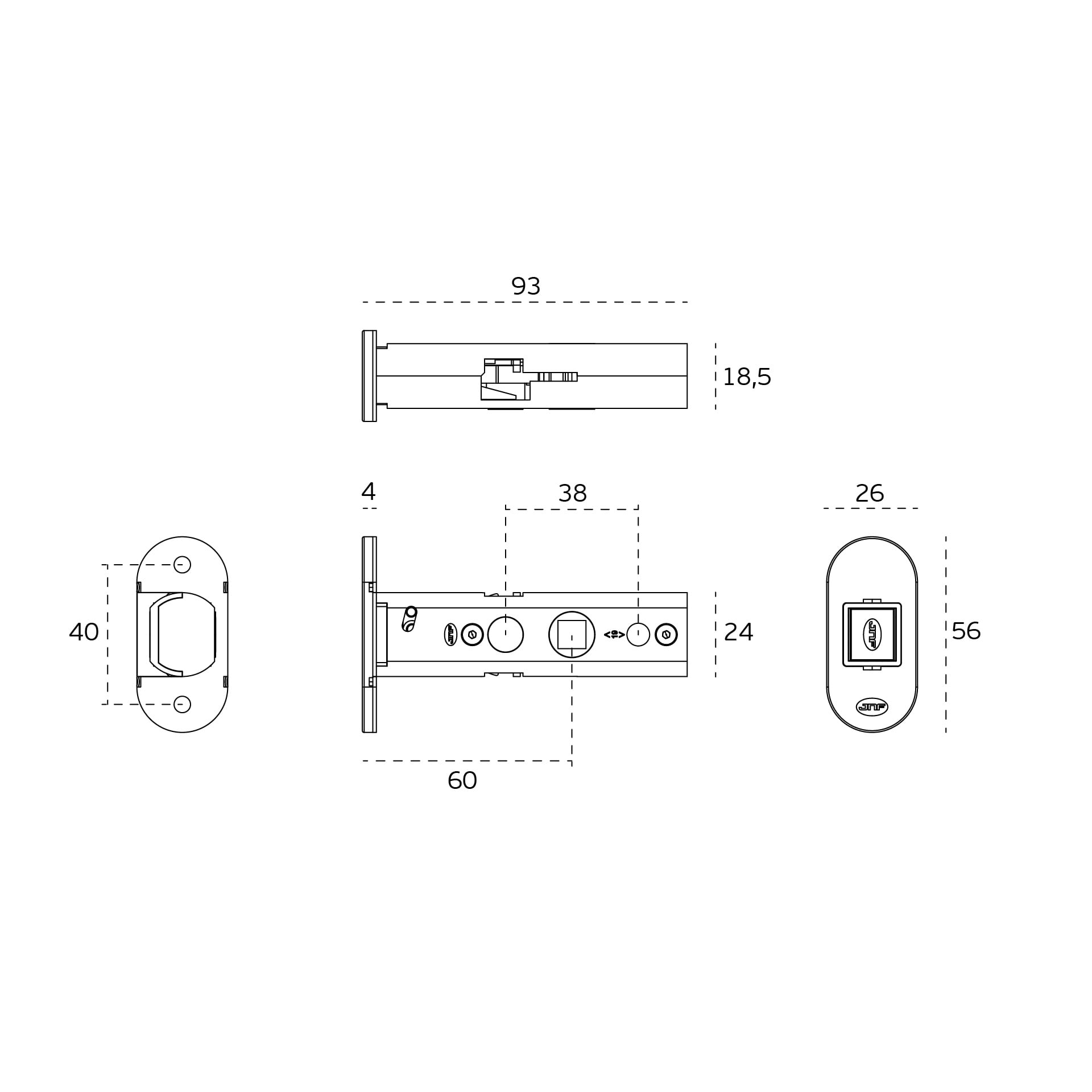

The lock has a backset of 60 mm and a total depth of 93 mm . The compact lock case is 24 mm high and 18.5 mm thick.

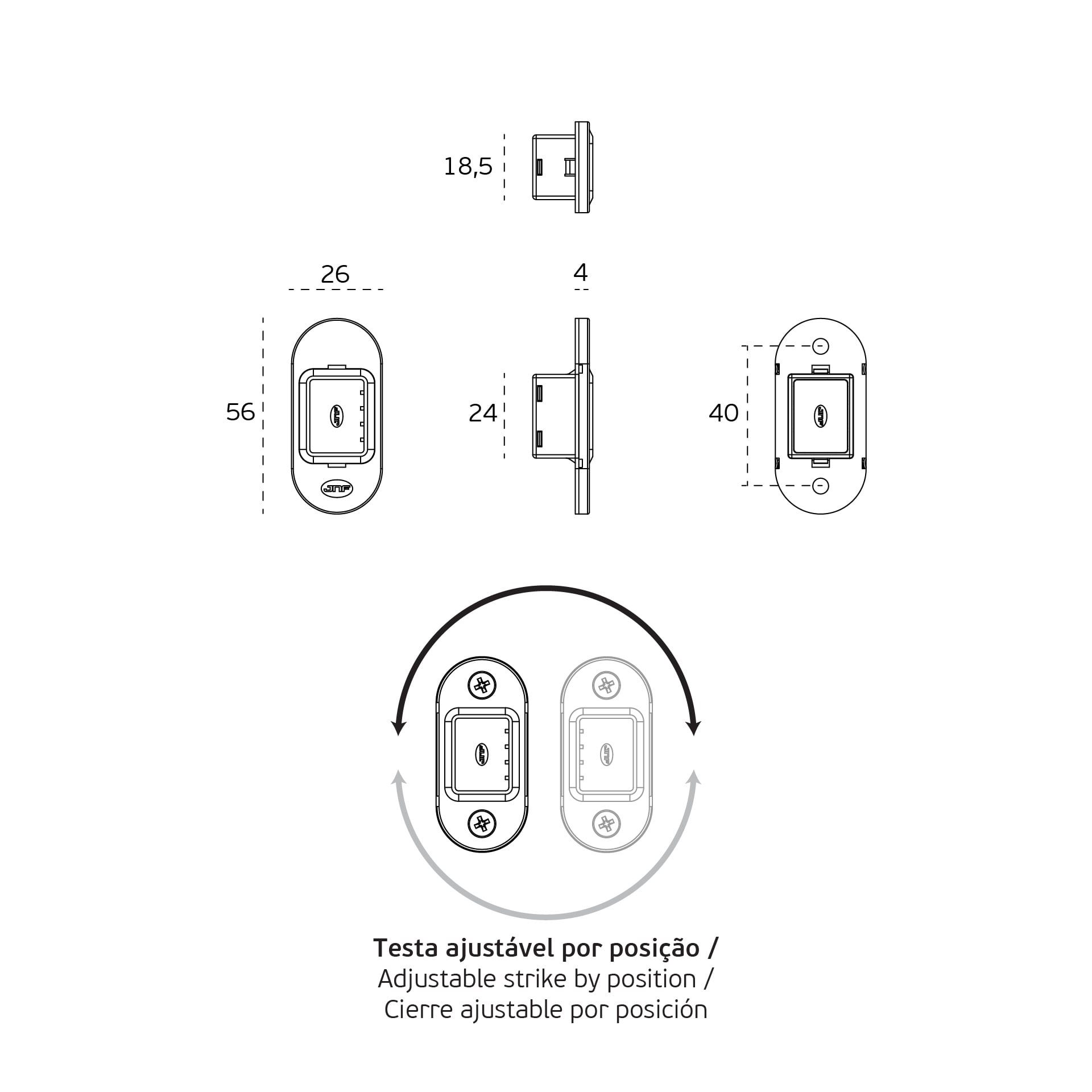

The corresponding strike plate is adjustable in position, allowing it to be accurately aligned during installation. The visible strike plate measures 56 x 26 mm and has an installation depth of 18.5 mm.

The lock is manufactured from EN 1.4301 (AISI 304) stainless steel and finished in Gold PVD. Thanks to the separate mounting, the WC lock can be combined with the desired door hardware and latch lock.

Technical specifications

Brand	JNF
Product type	toilet bolt lock
Application	Bathroom and toilet doors
Operation	JNF toilet set
Function	Locking and unlocking the door
Operating angle	90°
Doornmaat	60 mm
Total depth	93 mm
Lock case height	24 mm
Lock case thickness	18.5 mm
Material	EN 1.4301 (AISI 304) stainless steel
Finish	Gold PVD
Striker plate	Adjustable in position
Striker plate dimensions	56 x 26 mm
Installation depth of strike plate	18.5 mm
Mounting distance strike plate	40 mm
To be combined with	Separate JNF latch lock for operating the door handle
Sales unit	Per piece
