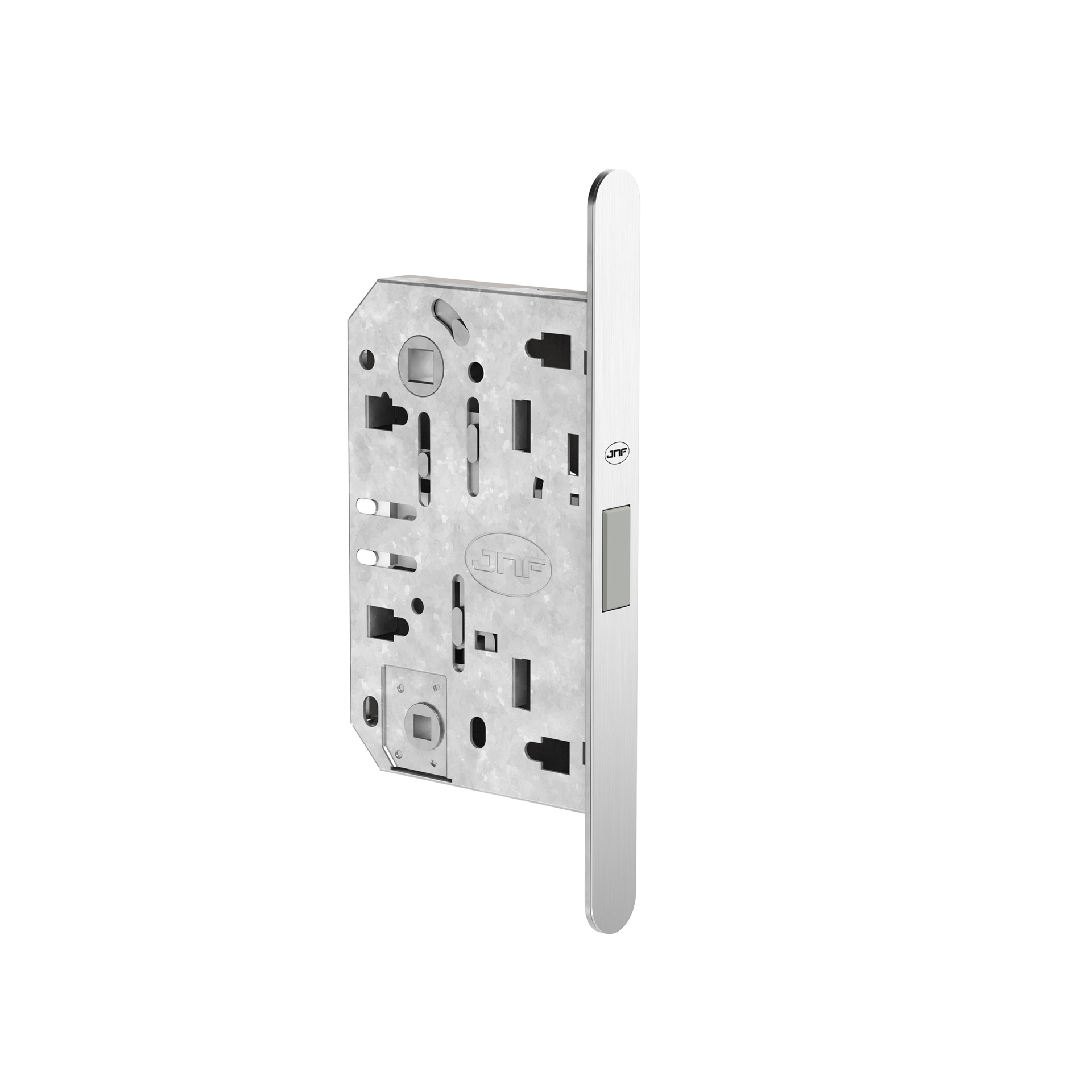

JNF MAGNALITE magnetic mortise lock – 90/50 mm – Stainless steel satin

The JNF MAGNALITE magnetic lock from the 870 Series is a magnetic mortise lock for interior doors. The magnetic latch ensures a smooth and neat closing and gives the lock a sleek, minimalist finish.

The MAGNALITE system is available with three different locking functions . You can choose from a magnetic lock with a standard key lock, a version for a Euro profile cylinder, or a version for a WC set. This allows the same type of magnetic lock to be used on different interior doors.

The door is machined in the same way for the different versions. Thanks to this uniform recess, three different lock functions can be used within the MAGNALITE 870 Series. Furthermore, the symmetrical construction makes the lock reversible.

The accompanying magnetic strike plate is reversible and adjustable in position. By rotating the strike plate 180°, the distance relative to the magnetic latch can be adjusted by +1 mm or -1 mm. This allows the lock to be precisely adjusted during installation.

The lock is equipped with concealed mounting screws . After installation, the screws are not visible, ensuring the faceplate maintains a particularly sleek finish.

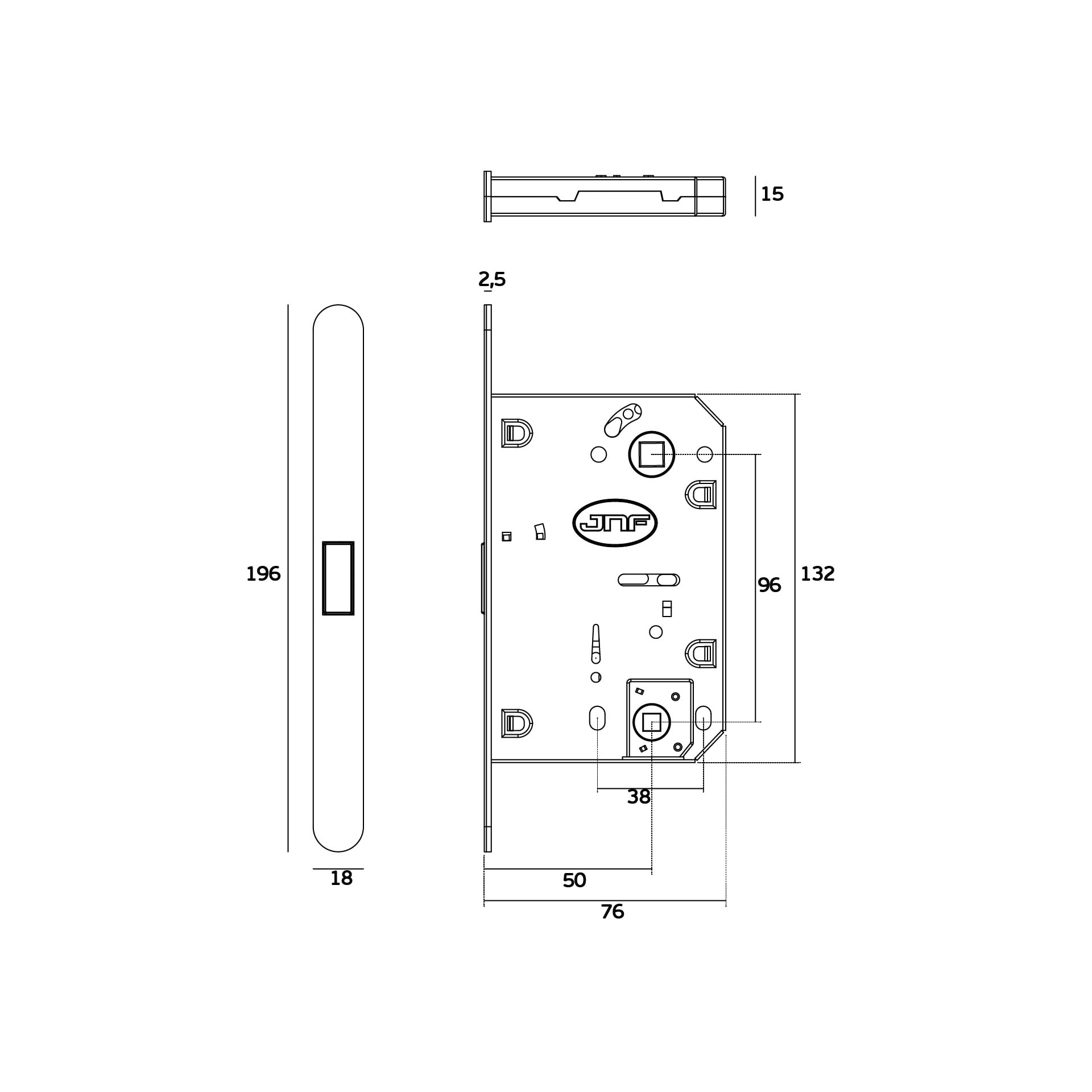

This version has a backset of 50 mm . The MAGNALITE magnetic lock is also available from us with a backset of 60 mm on order .

Select the desired lock function

The JNF MAGNALITE magnetic lock is available in three variations:

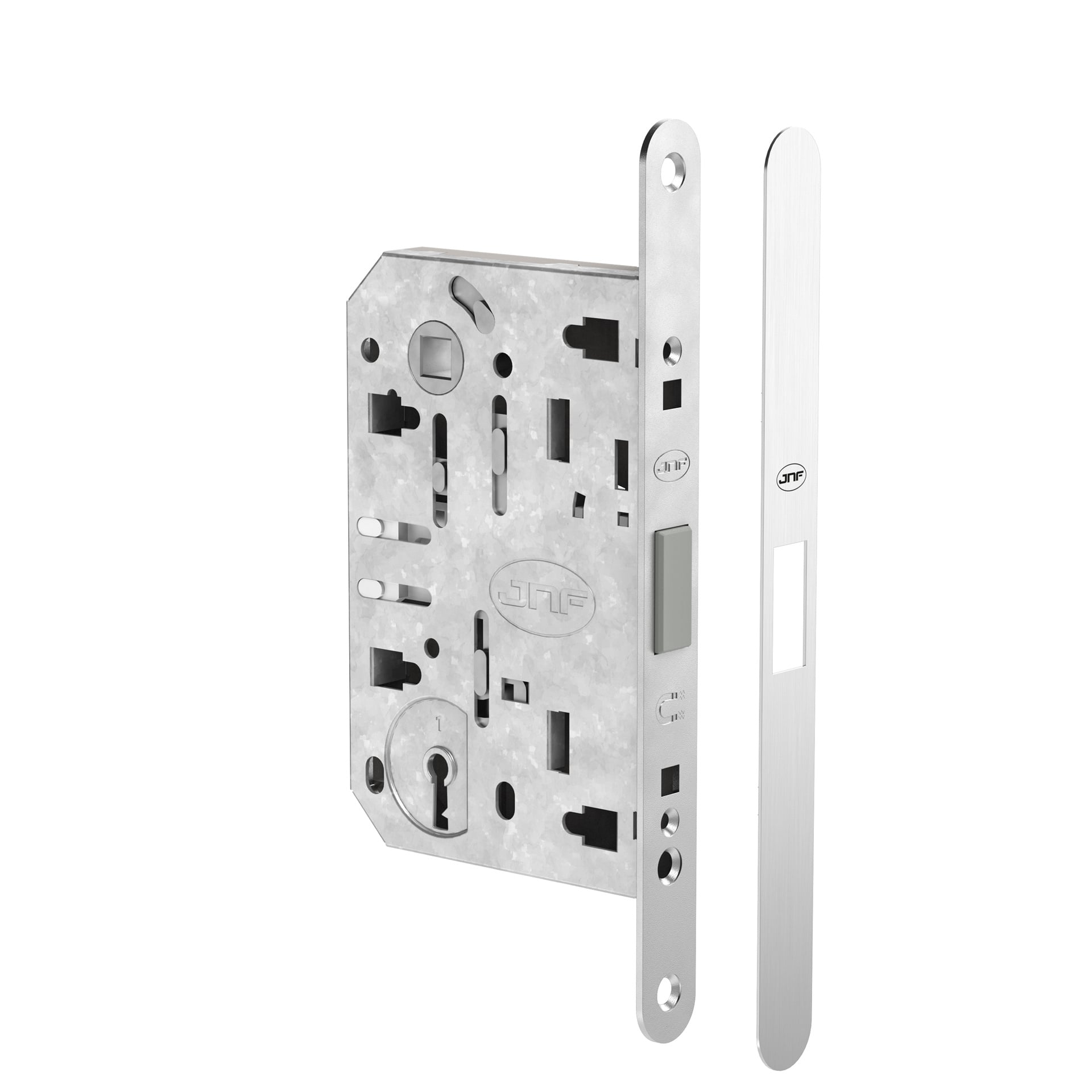

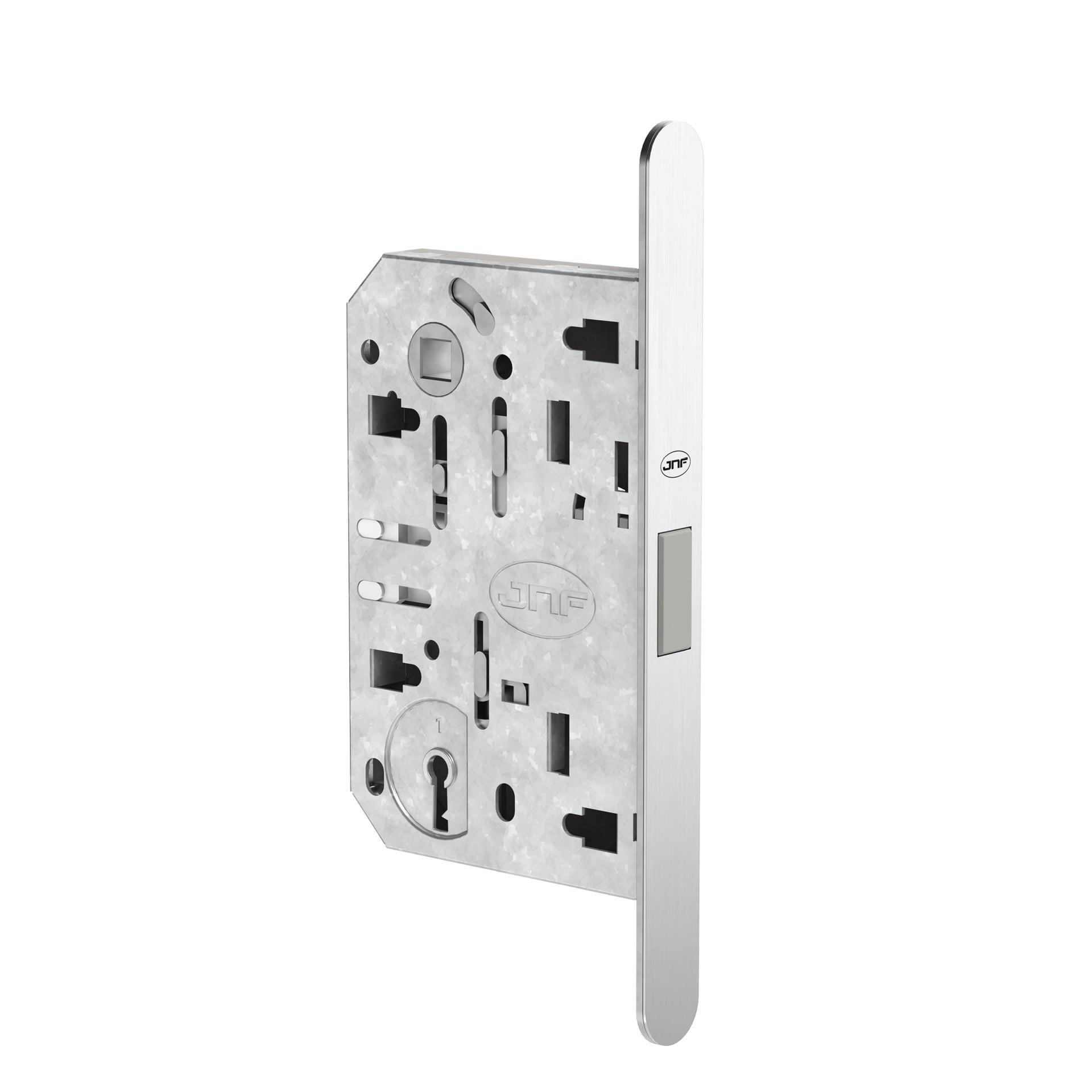

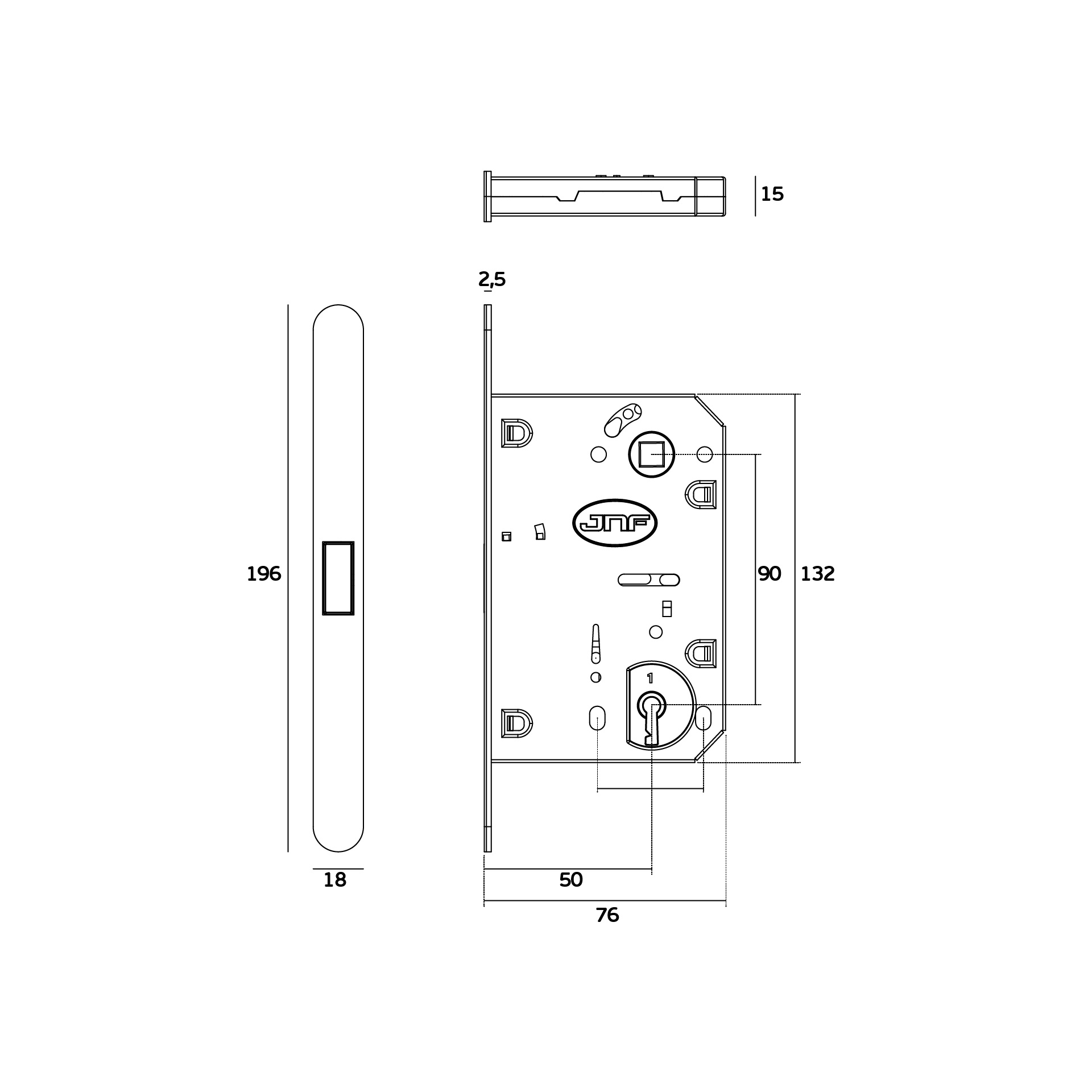

• Magnetic lock with key lock – for locking with a standard key

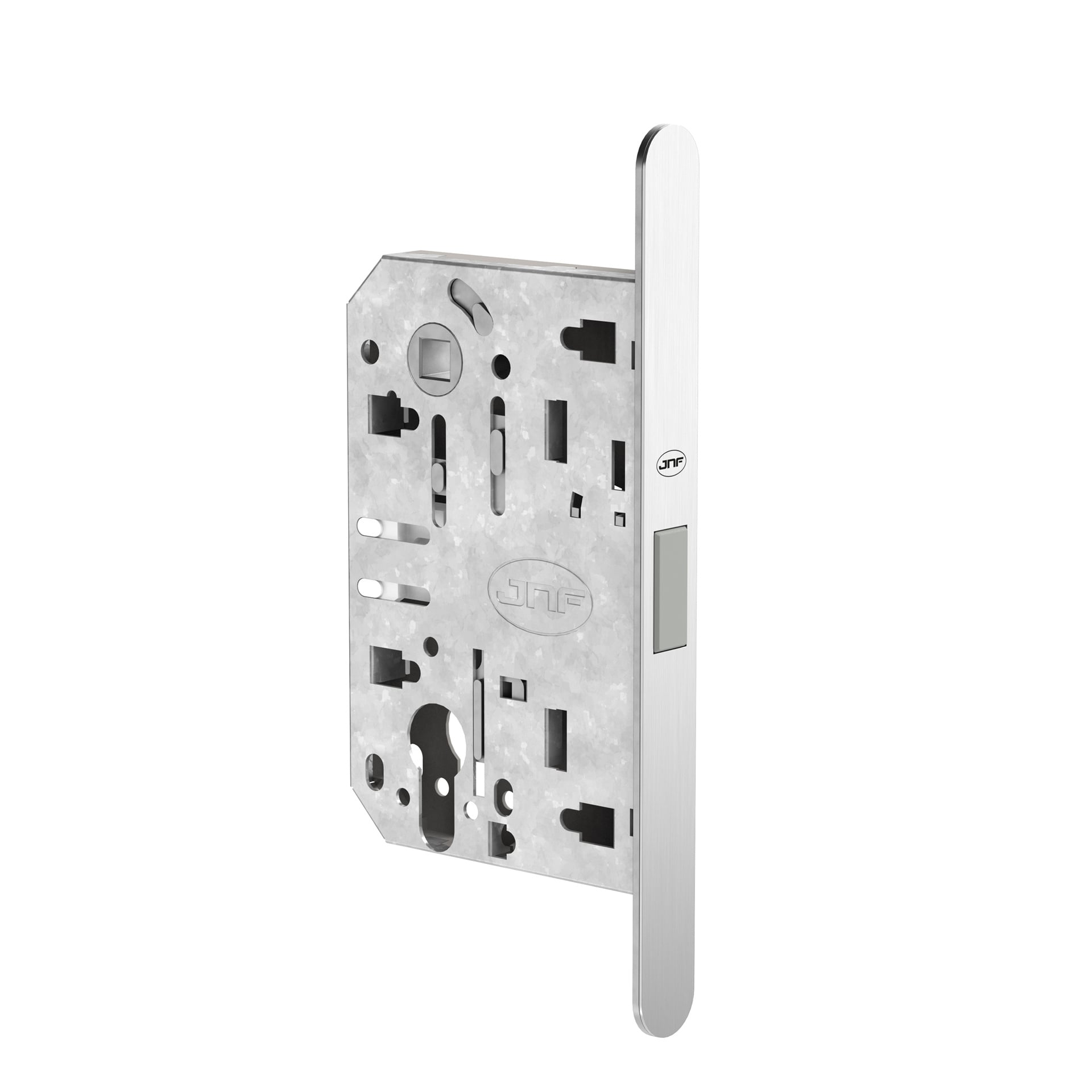

• Magnetic lock with cylinder lock – for use with a Euro profile cylinder
• Magnetic lock for toilet set – for bathroom and toilet doors with toilet flush

Select the desired lock function for your door above.

Technical specifications
