Description
Ball bearing hinge with rounded corners in PVD anthracite for interior doors, CE certified and includes matching screws
Article code: 0029.462540
Rounded ball joint 89x89x2.5 mm – PVD Anthracite

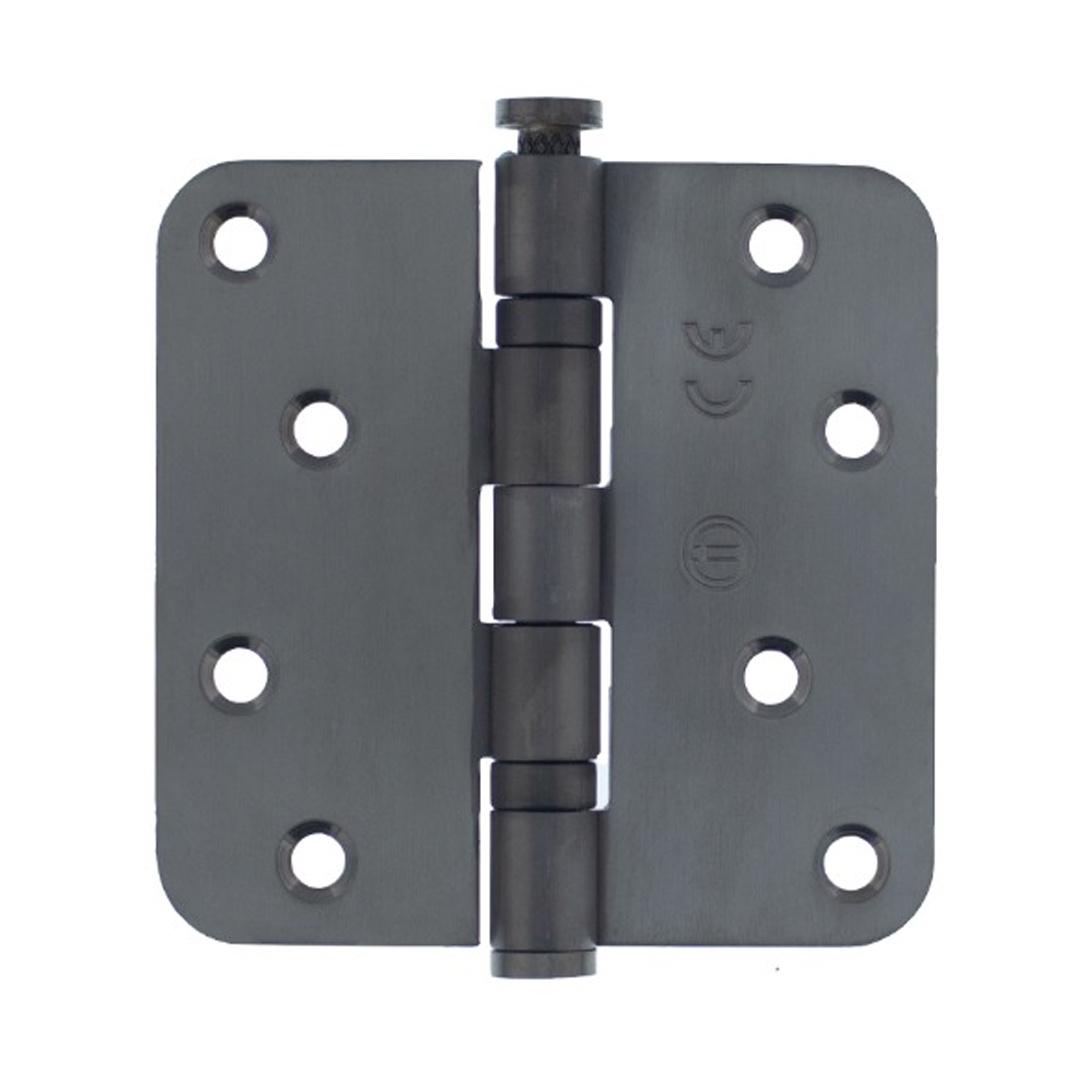

This ball bearing hinge from Intersteel with rounded corners is finished in PVD anthracite and has a dark, contemporary look. The hinge is manufactured from stainless steel and features a durable PVD coating, allowing it to be beautifully combined with other door hardware in the same finish.

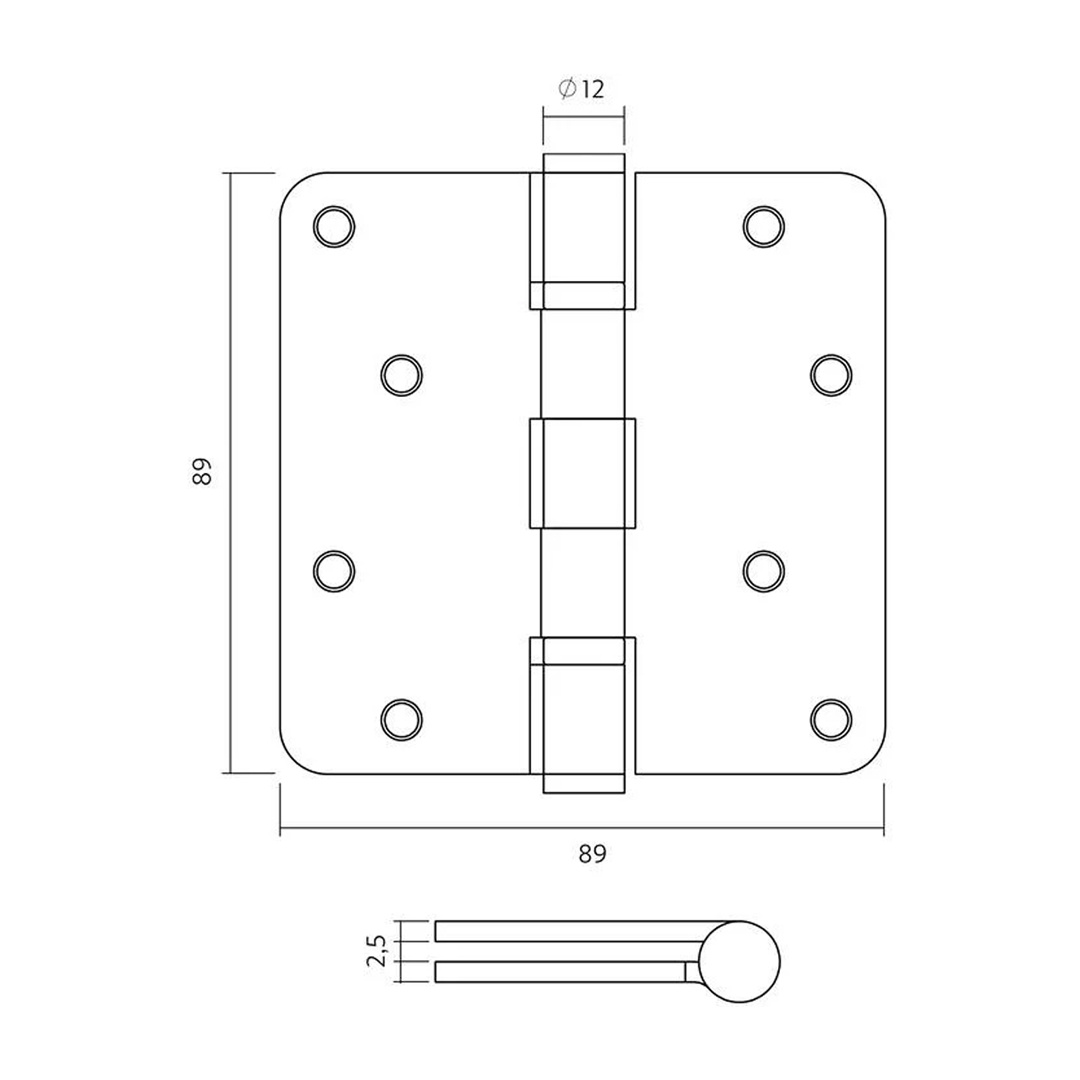

Thanks to the ball bearings, the door opens and closes smoothly and silently. The hinge has rounded corners, measures 89 x 89 mm when unfolded, and has a leaf thickness of 2.5 mm.
The ball bearing hinge is suitable for interior doors up to 70 kg and is CE certified. Matching screws in the same PVD anthracite finish are included. For good weight distribution and stable operation, a minimum of three hinges per door is recommended.
Technical specifications
| Brand | Intersteel |
| Product type | Ball joint |
| Angle shape | Rounded corners |
| Dimensions | 89 x 89 mm |
| Sheet thickness | 2.5 mm |
| Hinge pin diameter | Ø12 mm |
| Material | Stainless steel |
| Finish | PVD anthracite |
| Application | Interior doors |
| Maximum door weight | 70 kg |
| Quality mark | CE |
| Warranty | 10-year functionality guarantee |
| Sales unit | Per piece |
| Included | Matching screws |
