Description
Ball bearing hinge with right angles in matte PVD brass for interior doors, CE certified and includes matching screws
Article code: 0014.462510

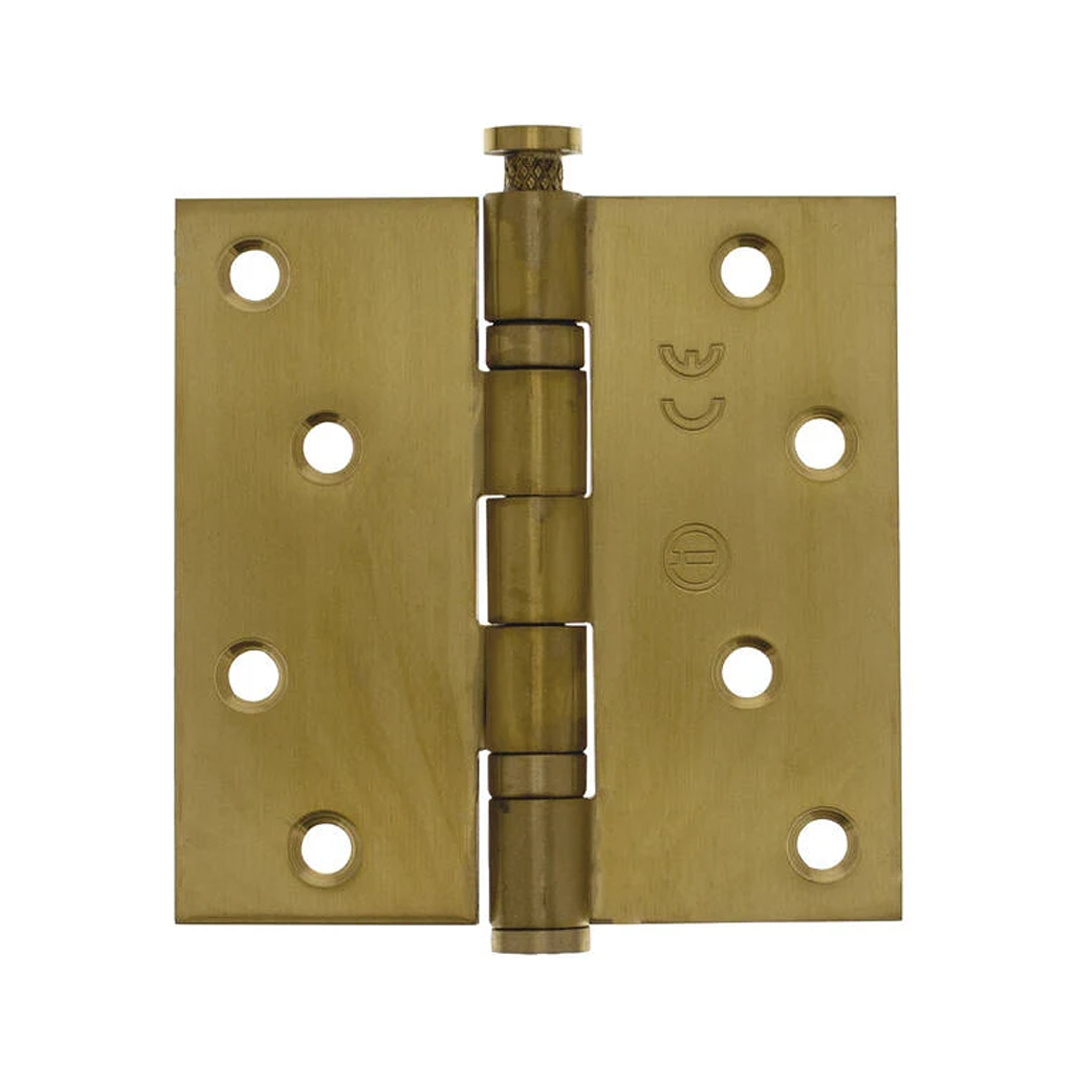

Straight ball joint 89x89x2.5 mm – PVD Matt Brass
This ball bearing hinge from Intersteel with right angles is finished in matte PVD brass and gives interior doors a warm and refined finish. The hinge is manufactured from stainless steel and features a durable PVD coating.
Thanks to the ball bearings, the door opens and closes smoothly and silently. The hinge has right angles, measures 89 x 89 mm when unfolded, and has a leaf thickness of 2.5 mm.
The ball bearing hinge is suitable for interior doors up to 70 kg and is CE certified. Matching screws in the same PVD matte brass finish are included. For good weight distribution and stable operation, a minimum of three hinges per door is recommended.
Technical specifications
| Brand | Intersteel |
| Product type | Ball joint |
| Angle shape | Right angles |

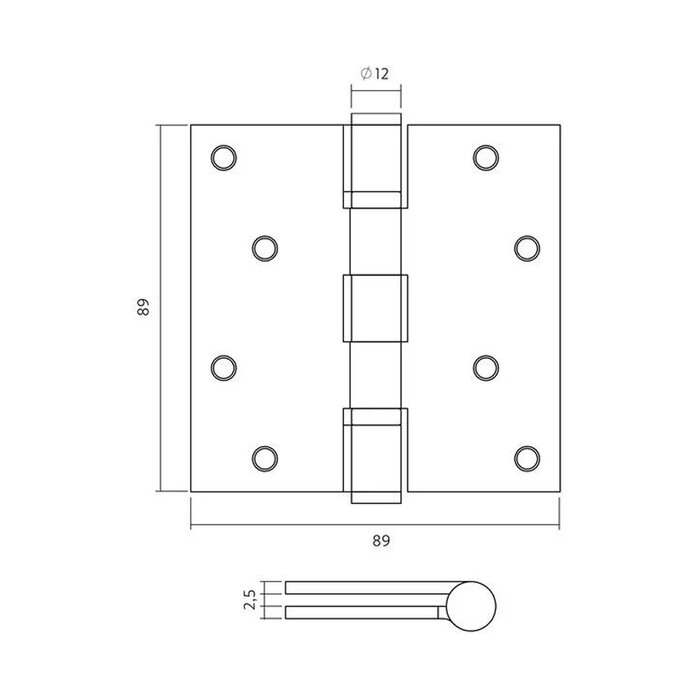

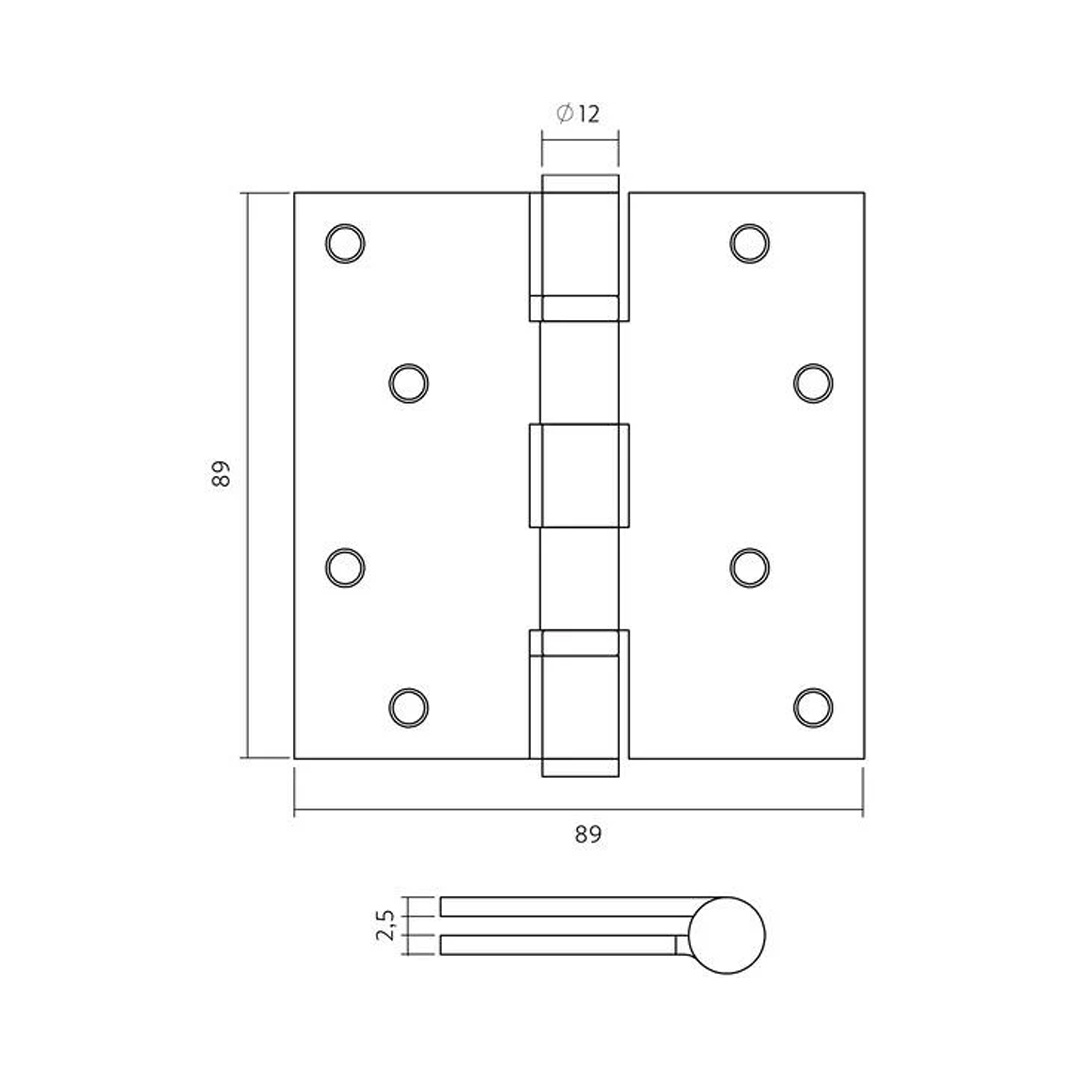

| Dimensions | 89 x 89 mm |
| Sheet thickness | 2.5 mm |
| Hinge pin diameter | Ø12 mm |
| Material | Stainless steel |
| Finish | PVD matte brass |
| Application | Interior doors |
| Maximum door weight | 70 kg |
| Quality mark | CE |
| Warranty | 10-year functionality guarantee |
| Sales unit | Per piece |
| Included | Matching screws |
