Description

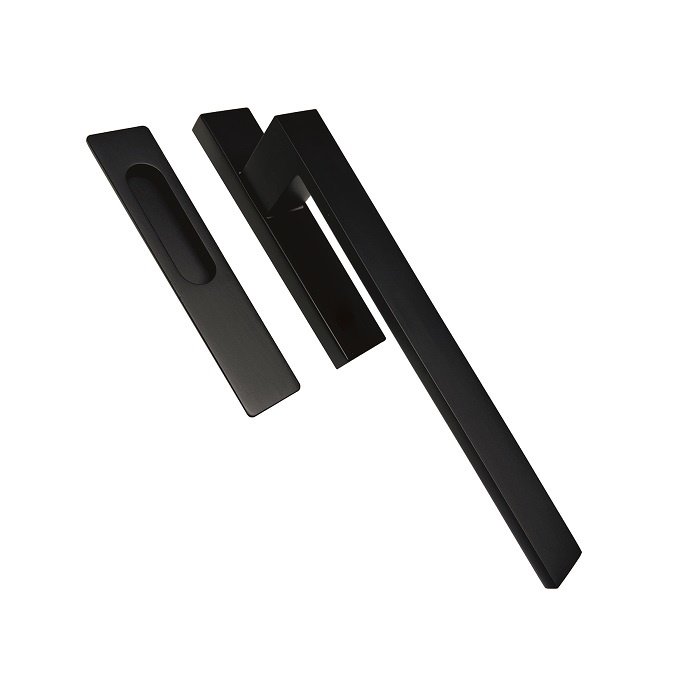

Lift/sliding door handles COSMIC in black with handle and sliding door bowl
Article code: 2352090
This combined lift/slide door system is specially designed for sliding doors. On one side there is the handle and on the other side a sliding door handle.

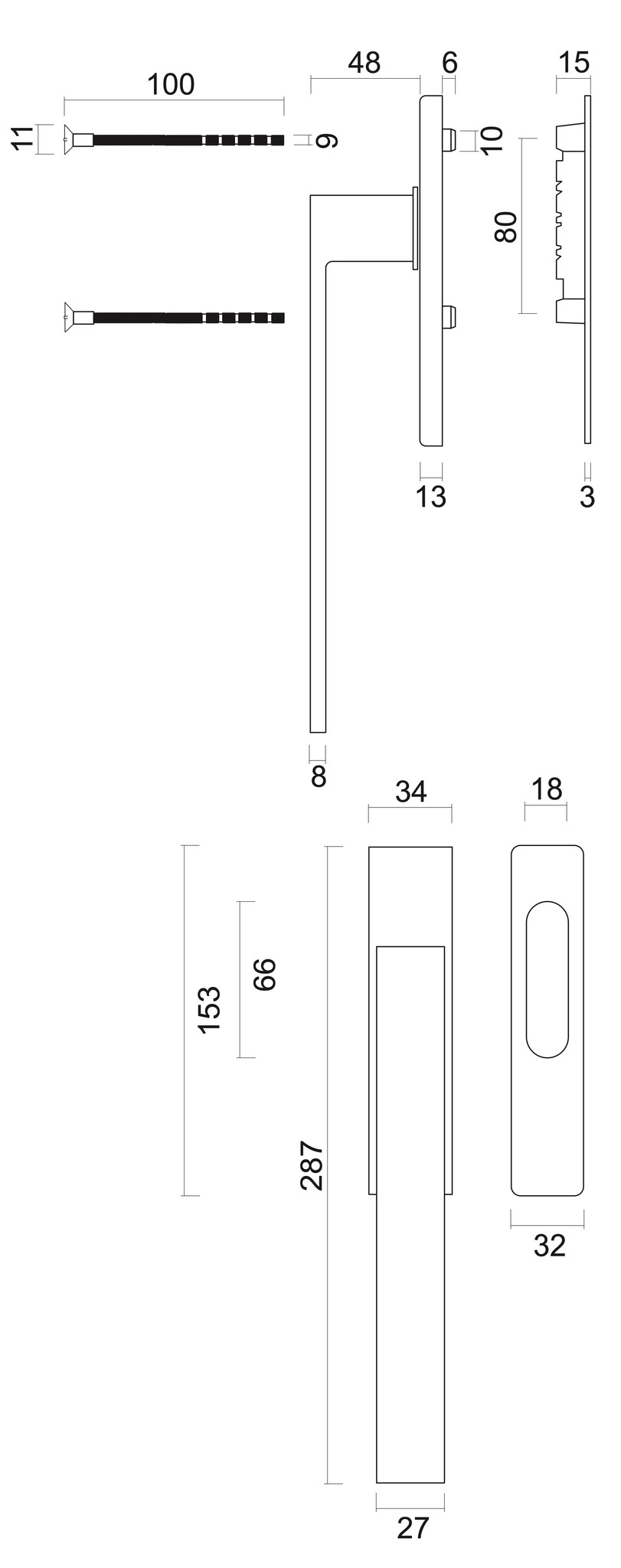

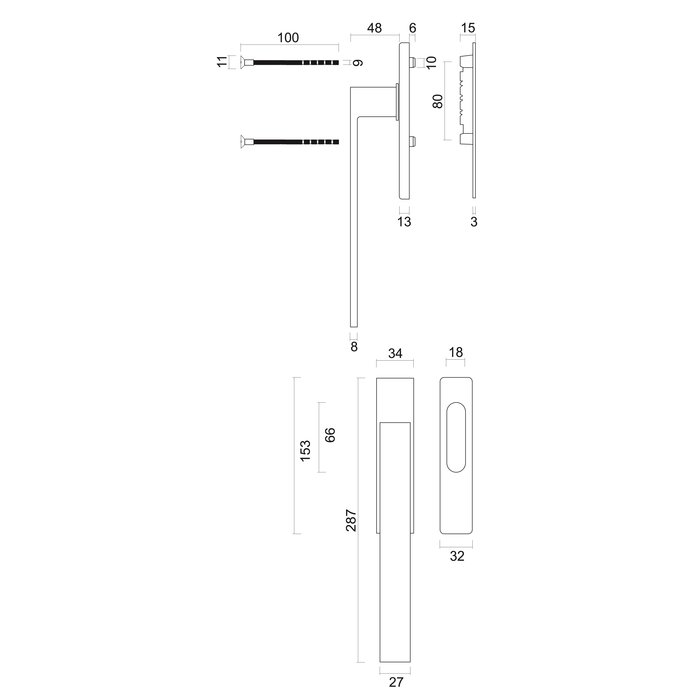

The black handle is slightly curved and 27 mm wide. The base of this set is brass, finished with a black coating. The dimensions of the handle and the bowl can be found on the attached technical drawing.
The lever system is supplied per set with mounting material for continuous mounting. If the supplied bolts are too long, you can shorten them. Supplied with 1 tig of 8x8mm
| unit | set (lever & bowl) |
| base | brass |
| colour | black |
| centre distance screw holes | 80 mm |
| shield dimensions | 153 x34x13 mm |
| dimensions bowl | 32x153x3 mm |
| mounting material | included (2x M6-100mm long) |
| door thickness | up to 90 mm |
