Description

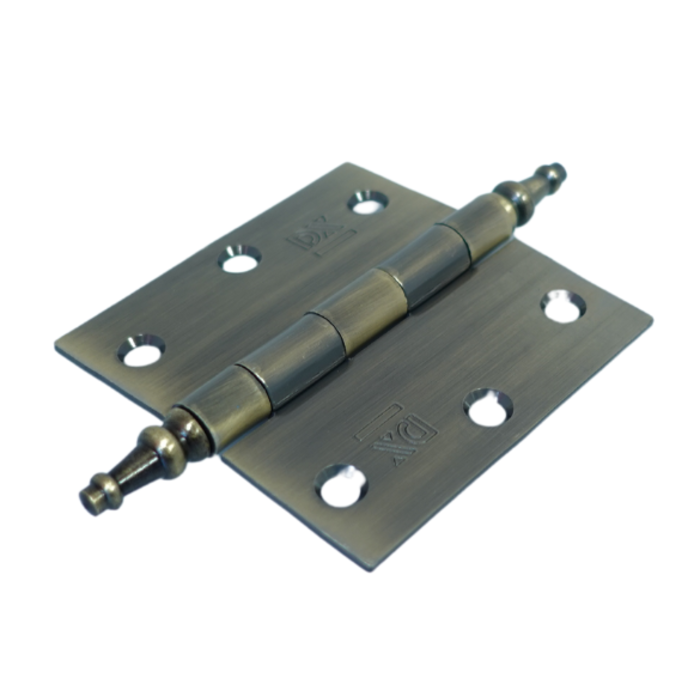

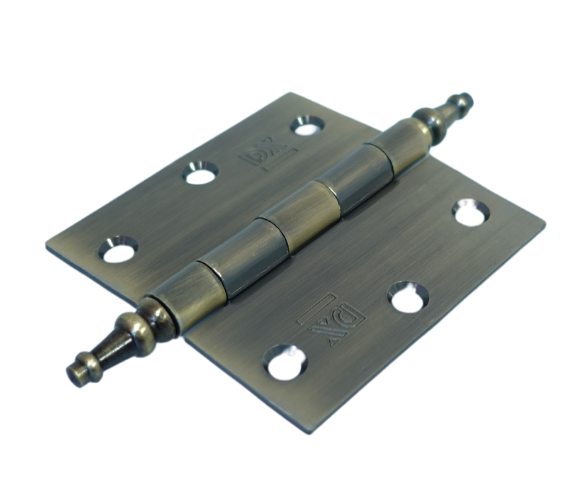

Vase head hinge 76 x 76 x 2.0 mm bronze with right angles
Article code: DS6310.014.7676
This DX vase top hinge has a classic look, which means it is mainly used for antique furniture, cupboard doors, interior doors or in projects where a classic look is desired.
The hinge has right angles, which makes it possible to work it in with a chisel if you don't have a router available.
This hinge is supplied per piece excluding mounting material .
| Material | Steel |
| Finish | bronze |
| Pin version | Loose steel pen with vase head |
| Finishing corner | Straight corners |
| Recommended Micrometer | 4.0 x 40mm |

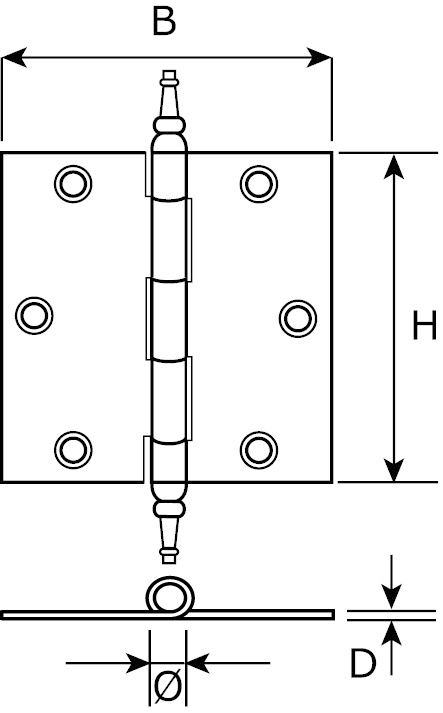

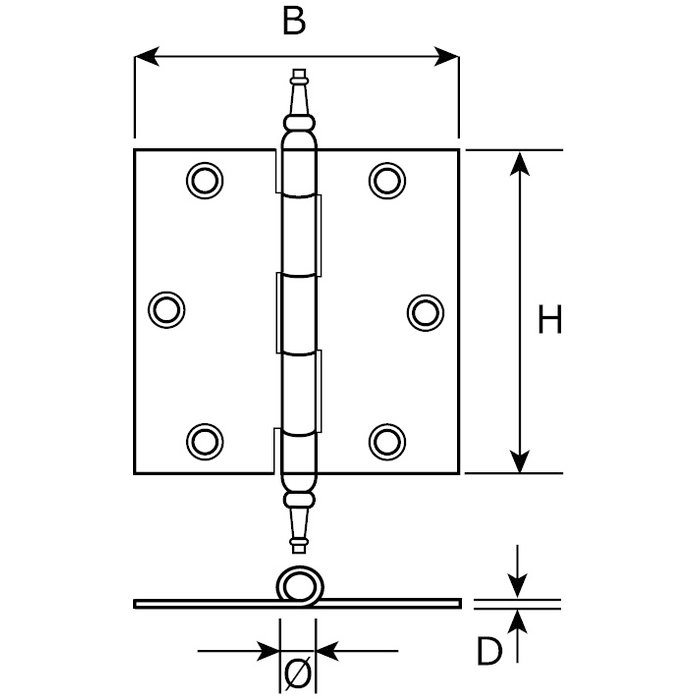

H (mm) |
76 |
B (mm) |
76 |
D (mm) |
2.0 |
Ø (mm) |
10 |
| Load capacity per 3 (Kg) | 30 |
| Load capacity per 4 (Kg) | 40 |
