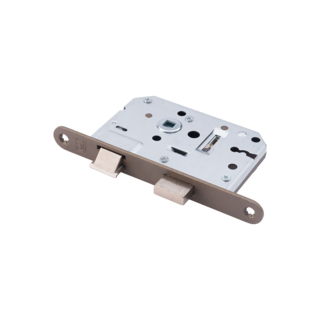

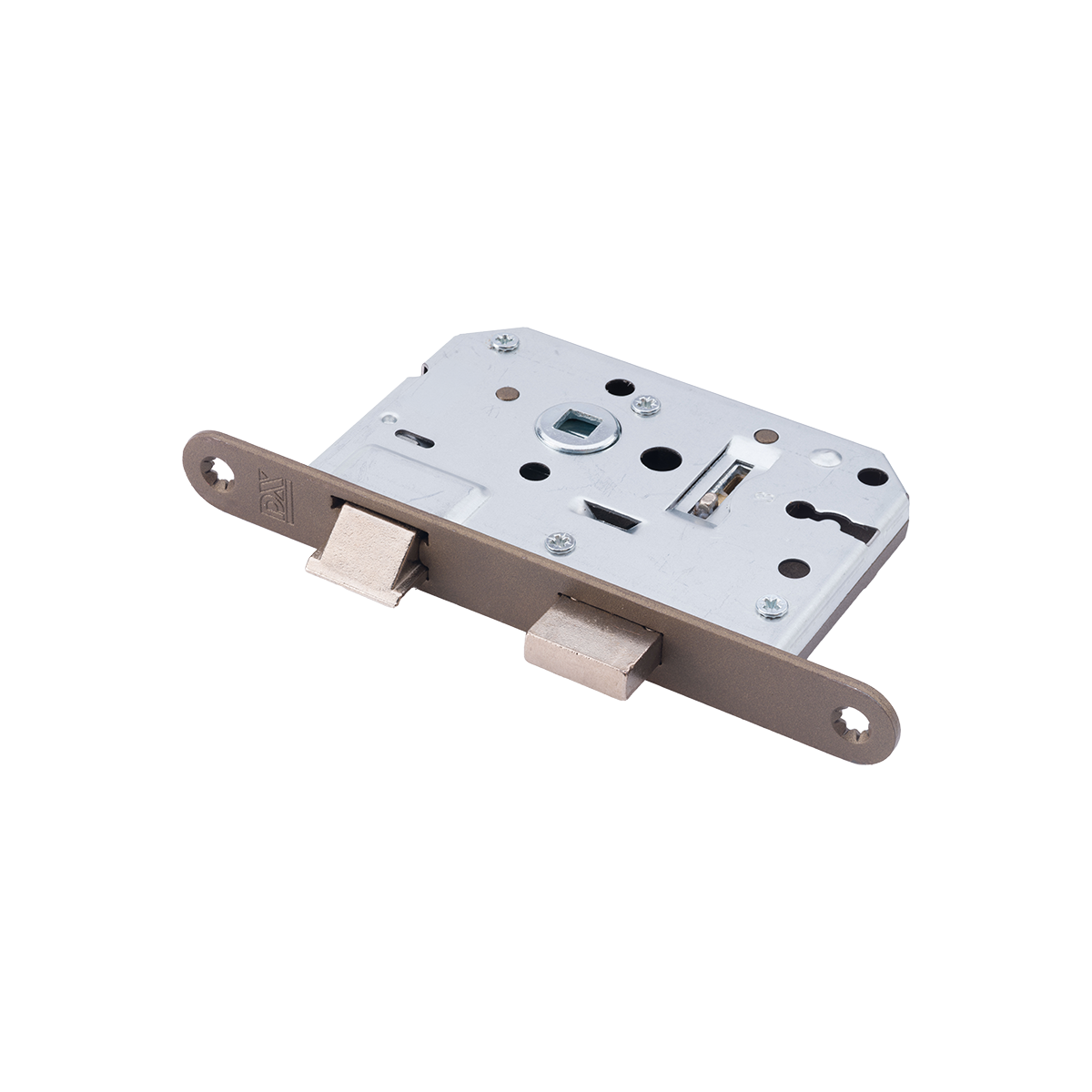

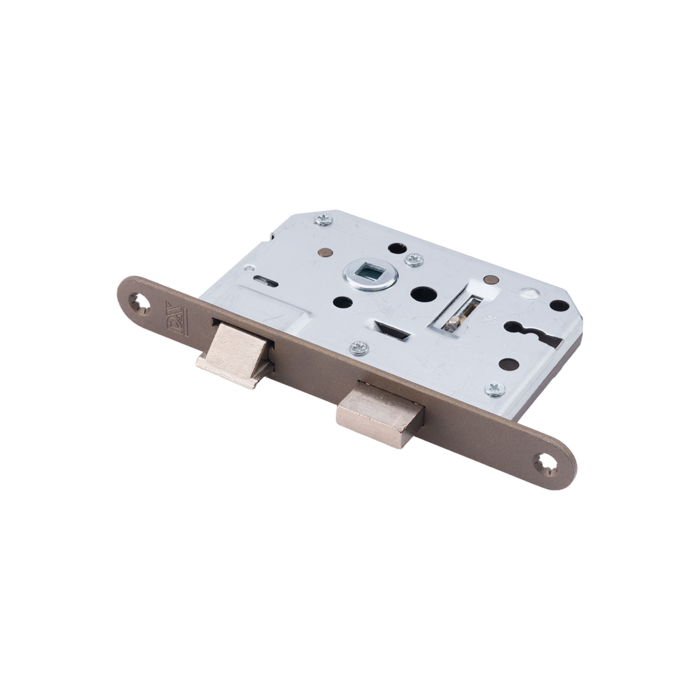

Day and night lock with rounded faceplate 174 × 20 mm – Bronze
This day and night lock is suitable for interior doors and features a rounded bronze faceplate measuring 174 × 20 mm . The lock has a backset of 50 mm and combines a practical locking function with a refined finish that complements other bronze door hardware.
The lock features a reversible latch and a deadbolt operated with a mortise key. This allows the door to be opened with a door handle and locked with a key.
Thanks to the reversible latch, the lock is suitable for both left- and right-opening interior doors . It can be used in new construction and renovation, provided the dimensions match the existing recess.
The day and night lock is supplied including 2 mortise keys and a rectangular steel strike plate with right angles .
Technical specifications
| Brand | Dulimex (DX) |
| Product type | Day and night lock |
| Application | Interior doors |
| Doornmaat | 50 mm |
| Axial distance | 55 mm |
| Front cover | Completed |
| Front plate dimensions | 174 × 20 mm |
| Front cover color | Bronze |
| Lock case material | Steel |
| Lap material | Nickel-plated zamac |
| Day lap | Reversible |
| Night latch | Nickel-plated zamac, single turn |
| Operation | Door handle and mortise key |
| Direction of rotation | Applicable on the left and right |
| Striker plate | Steel, rectangular with right angles |
| Delivery | 1 day and night lock, 2 mortise keys and 1 strike plate |
