Description

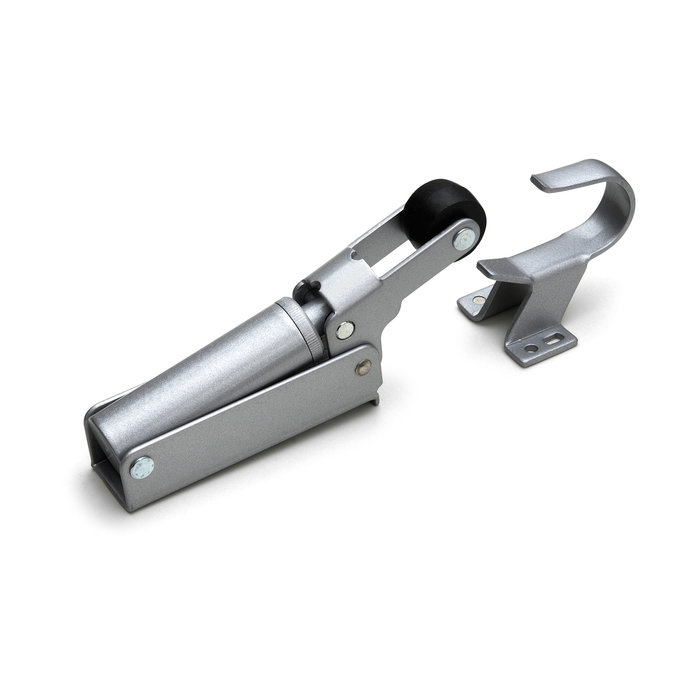

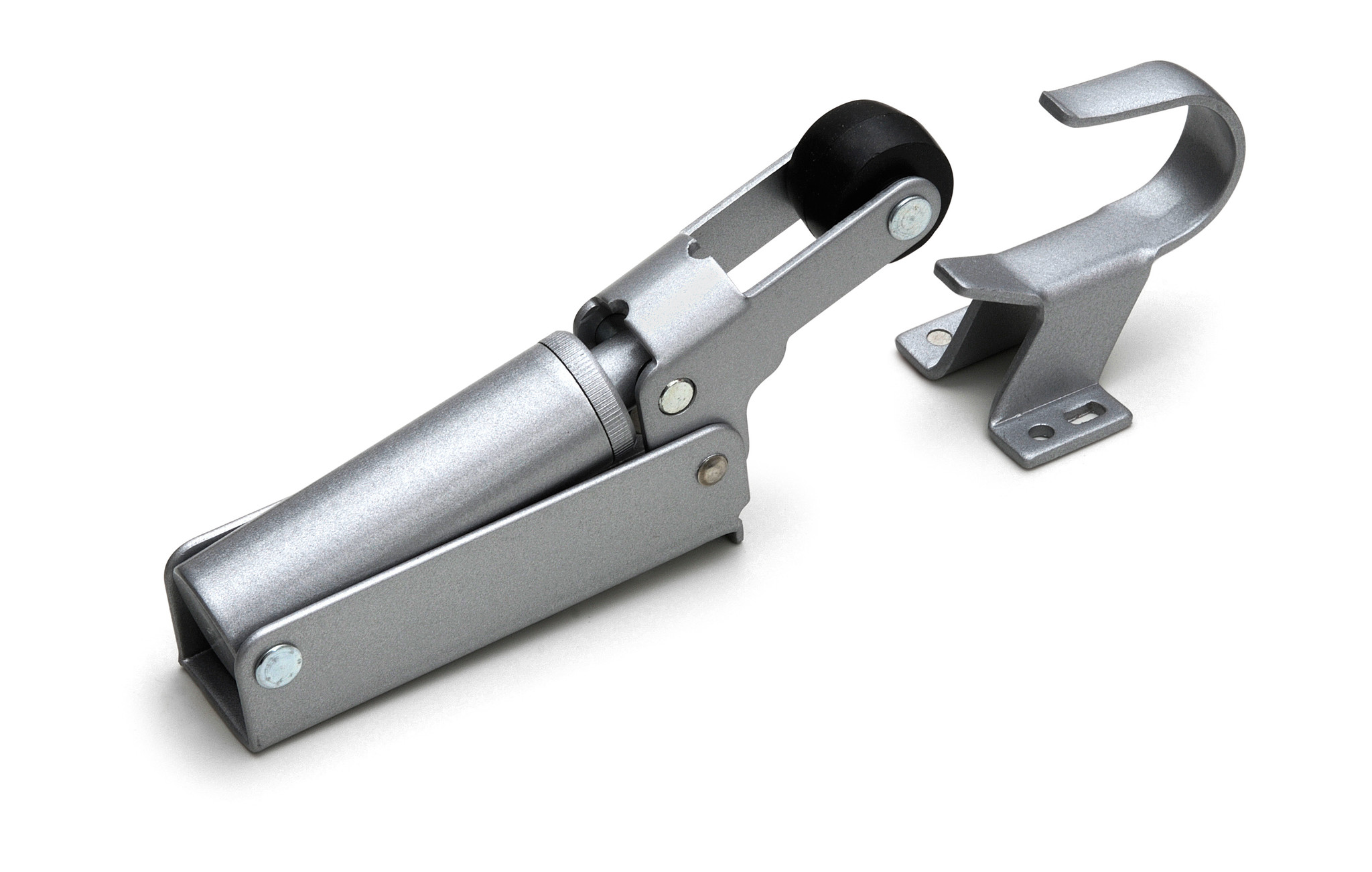

Door stop silver gray with fixed silent closing speed size 2
Article code: DS4003.312.2142
To prevent your doors from slamming shut, you can use a door catch.
The function of this silver-grey door catch is to catch the door for the last 10° and then close it silently. This according to a set or fixed speed. Sudden slamming or blowing open is therefore no longer possible.
This door stop is an ideal solution for places where rest is needed, but also for rooms where temperature is important, such as in cold stores, etc.
The door catch that you mount on top of your wooden interior door is supplied per piece, including a locking hook for flush and rebated doors up to 12 mm, but excluding mounting material.
| Material | Steel |
| Finish | Silver gray |
| accessories | Locking hook DRVH 2 E |
| Application | for wooden interior doors |
| Closing speed | Fixed |

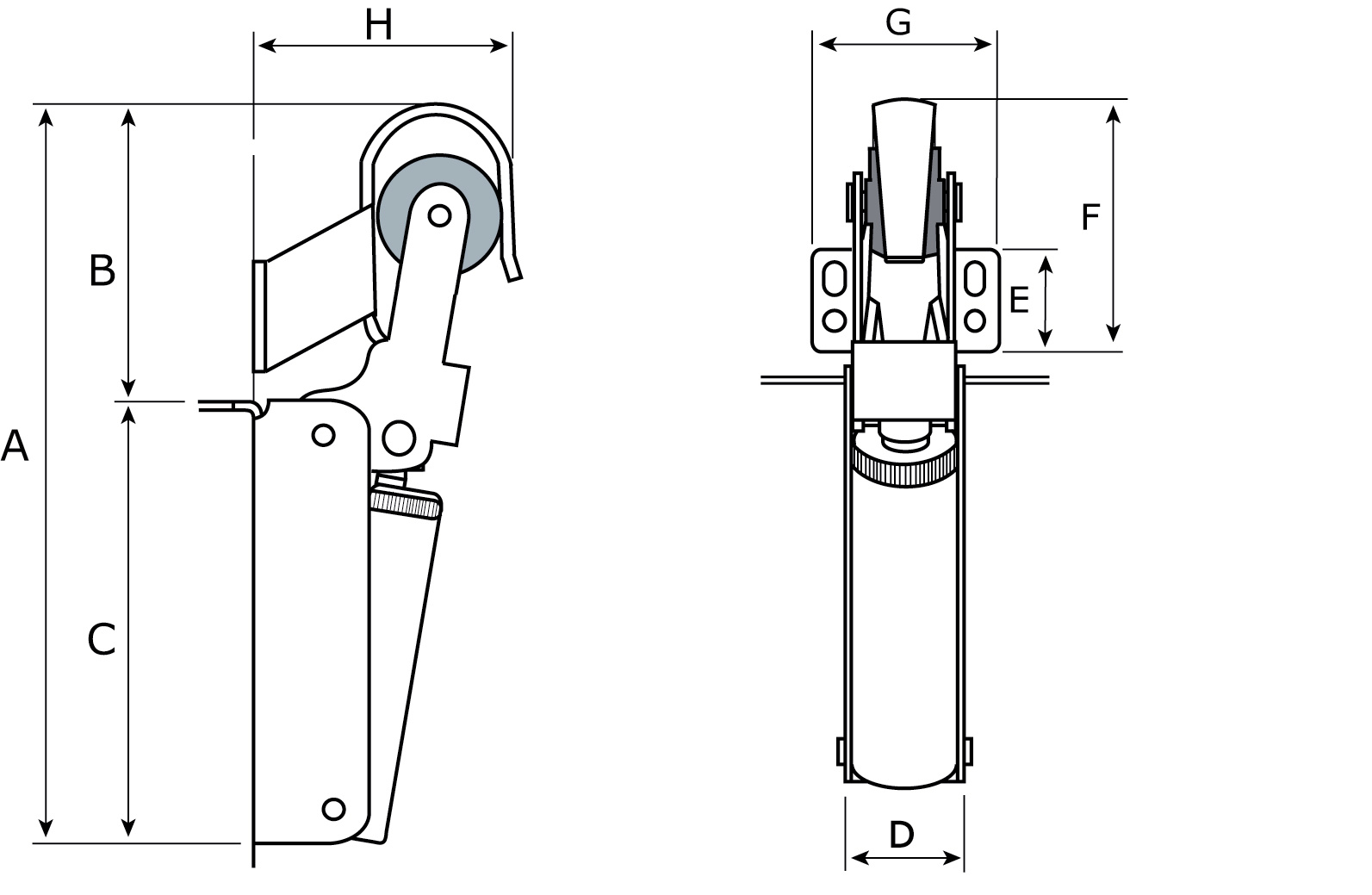

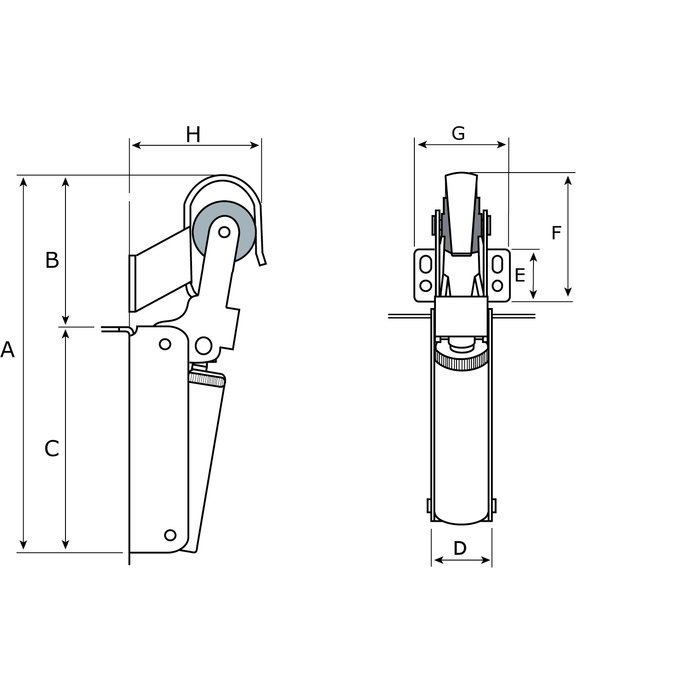

A (mm) |
183.5 |
B (mm) |
75 |
C (mm) |
108.5 |
D (mm) |
32 |
E (mm) |
27 |
F (mm) |
66.5 |
G en H (mm) |
49 and 64 |
| Gravity | 1 |
| Maximum door width (mm) | 1,100 |
| Maximum door weight | 80 |
Mounting instruction included
