Description

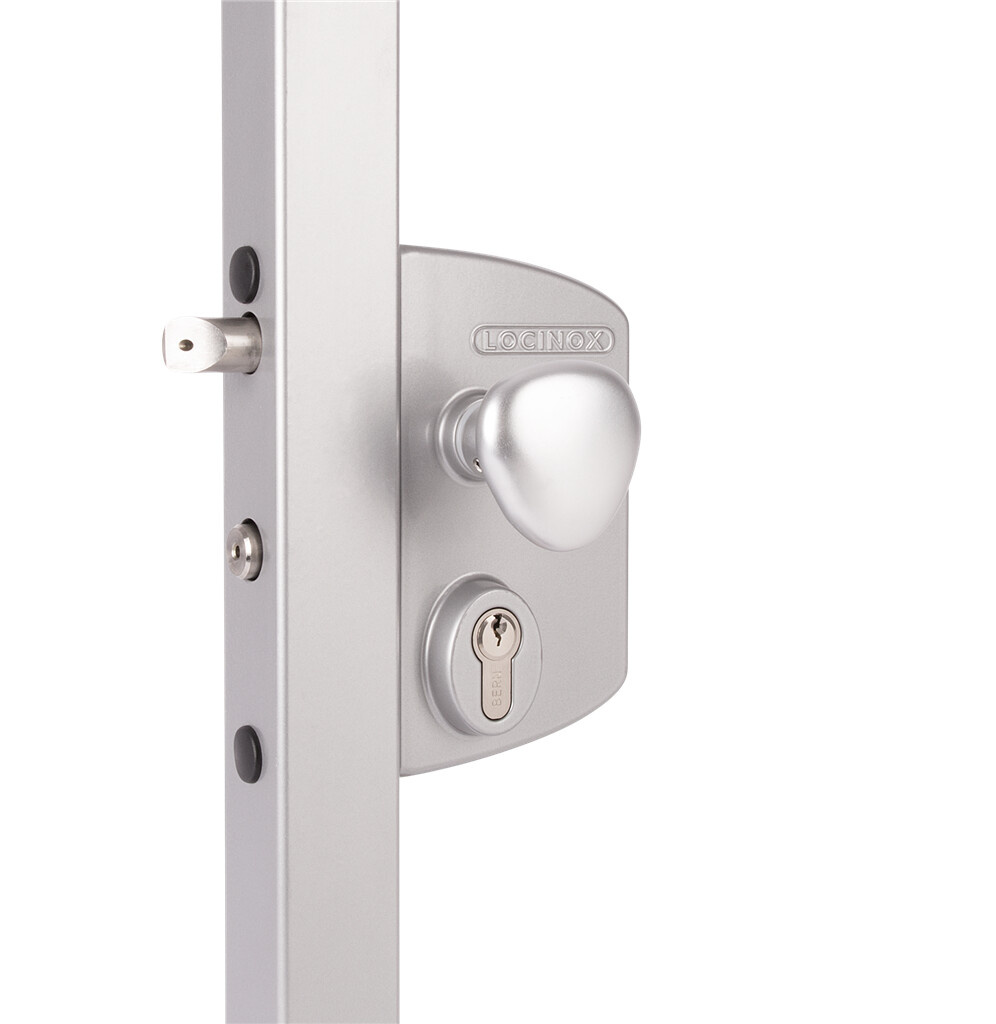

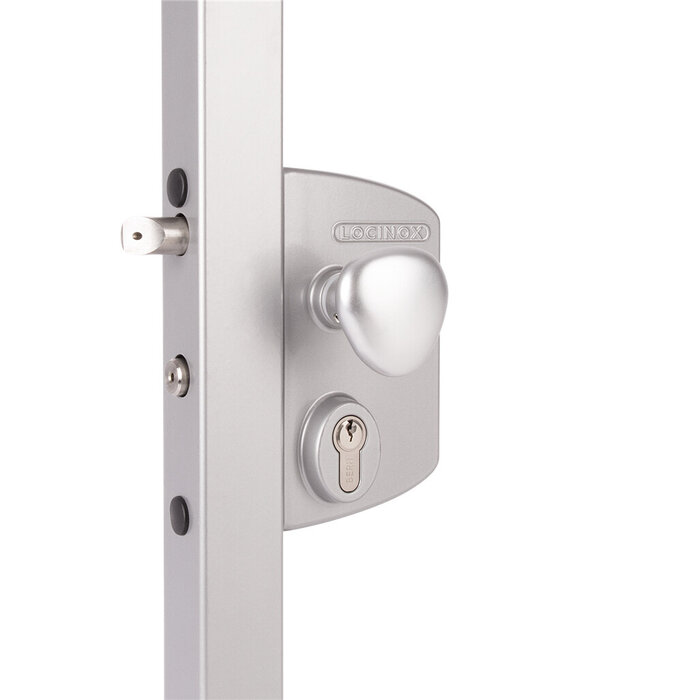

Locinox Electric surface-mounted gate lock LIRQ40U2LVSZR for round profile 40-60 mm available in several versions
Article code: DSP00014746-SILV
Discover the pinnacle of security with our high-quality electric gate lock, featuring an aluminum housing and stainless steel interior for maximum durability.
With 20mm of adjustability for both pins, you can fine-tune each gate for optimal locking. The solid stainless steel night pin with 23 mm depth lock provides a secure closure.
For a quick and precise installation, we recommend our Drill-Fix drilling jig.
This surface mounted electric lock with Normally Closed operation is perfect for round 40 to 60 mm profiles complete with the 3006R - Round aluminum handle & Cylinder: VSZ for different locks.
The lock is available in different colors that you can select from the scrolling menu at the top right.

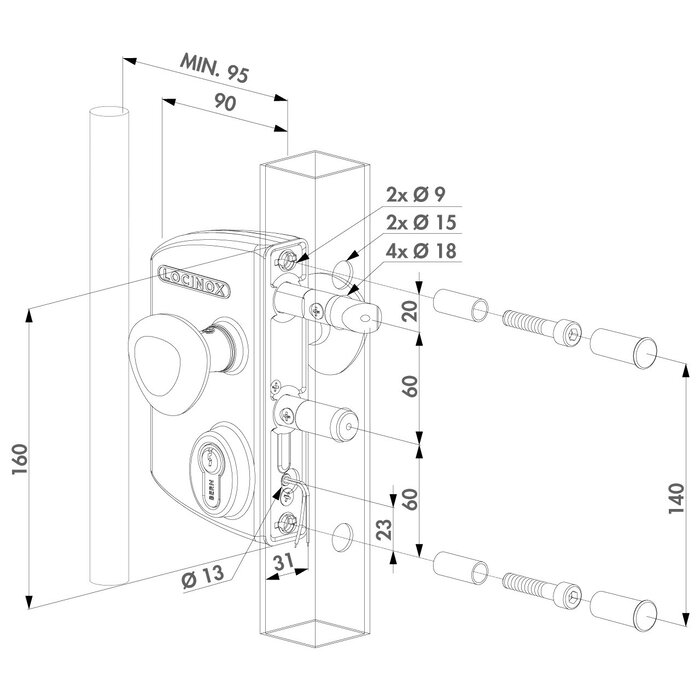

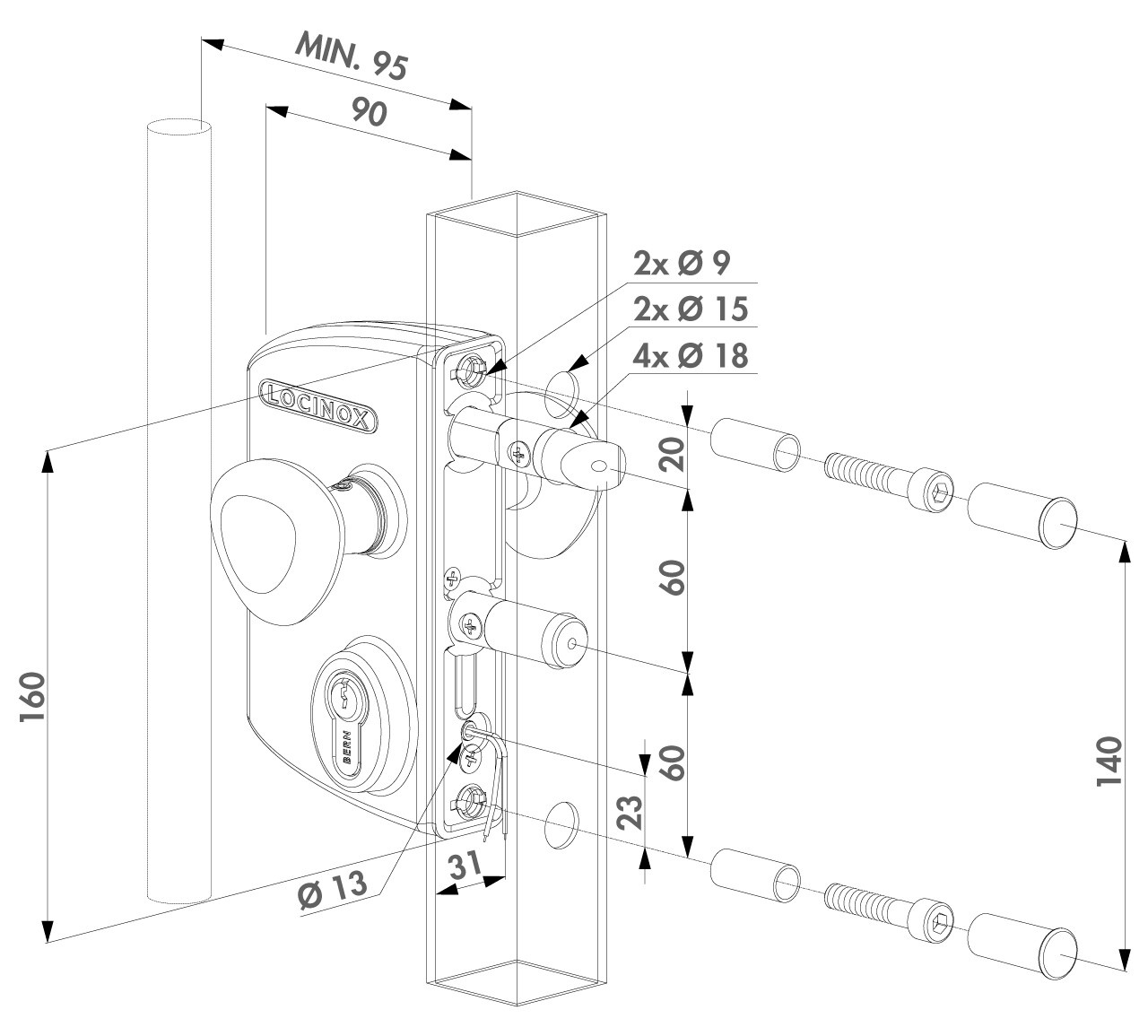

You will find all dimensions on the attached drawing.
Read the specific features here.
- ISO 9227 KTL / Electrostatic dip painted lock case withstands 1000 hours salt spray test
- Normally closed operation: Lock is closed when power is turned off
- Blocking and unblocking of the cranks
- Simple left and right conversion
- Depth locking of the night pin 23 mm with one turn of the key
- Key operation of the day pen
- Continuous adjustability up to 20 mm of both pins without dismantling the lock case
- 4-hole mounting with 2 hexagon socket screws
- Interchangeable with all Locinox swing gate locks
- Voltage: 12V AC/DC
- Consumption: 0.3A
- Different keys Z
