Description
Stainless steel hinge SKG***® 89x89x3.0 mm for indoor and outdoor use with rounded corners available in 2 versions: DIN right - Belgian left or DIN left - Belgian right
Article code: DS6937.133.8989
Due to its rounded corners, this stainless steel hinge is suitable for milling. This hinge, with its sleek design and beautifully finished buttons, fits perfectly into a modern interior.
The hinges can be used on interior and exterior doors .

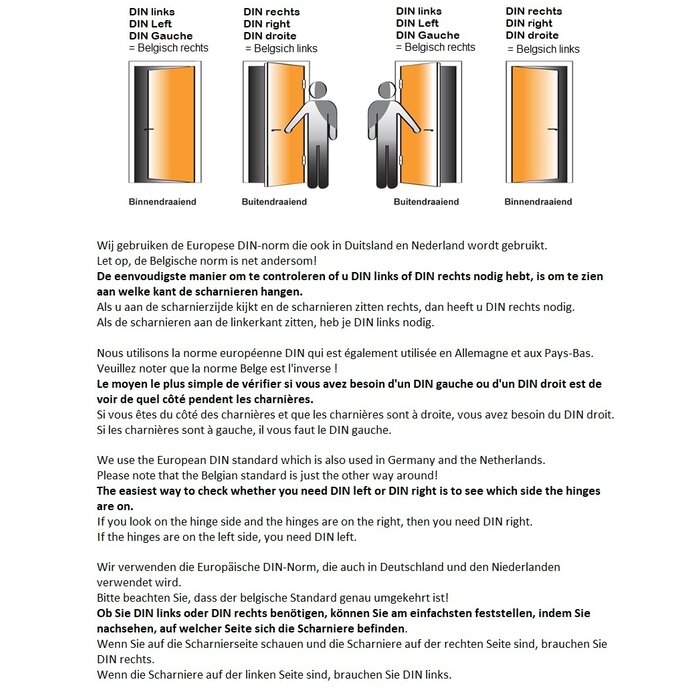

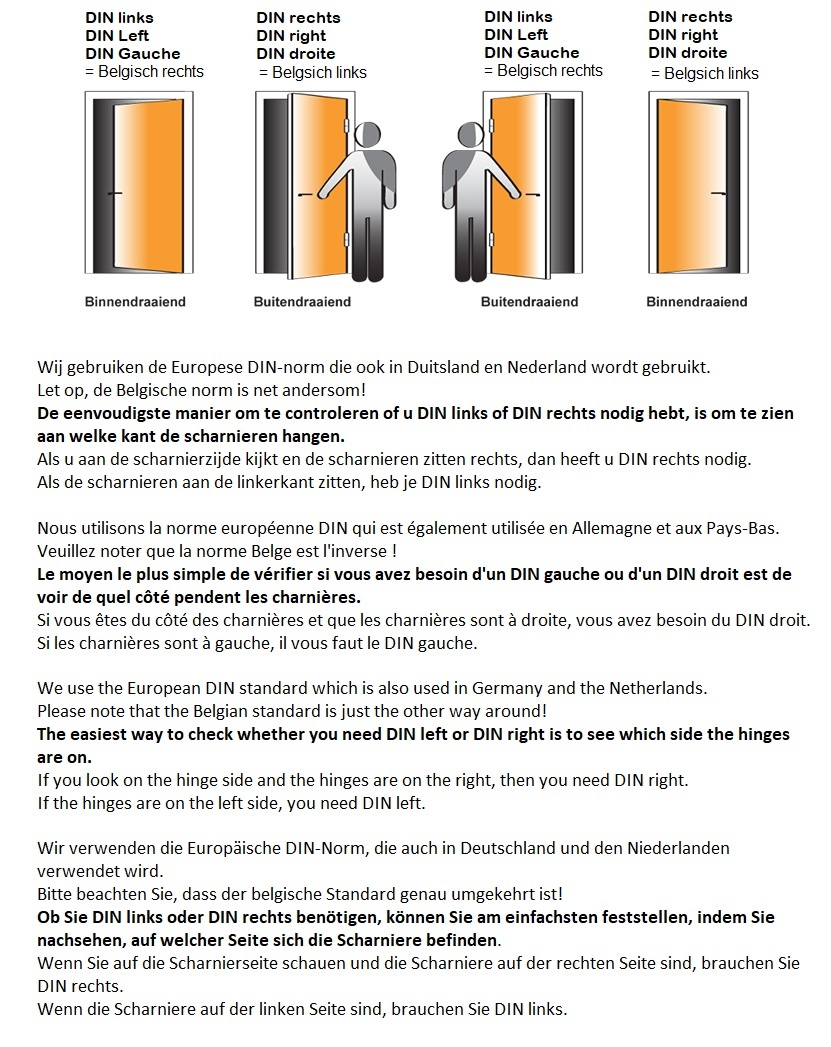

In the scroll menu at the top right, select a DIN left hinge (Belgian right) or a DIN right hinge (Belgian left)

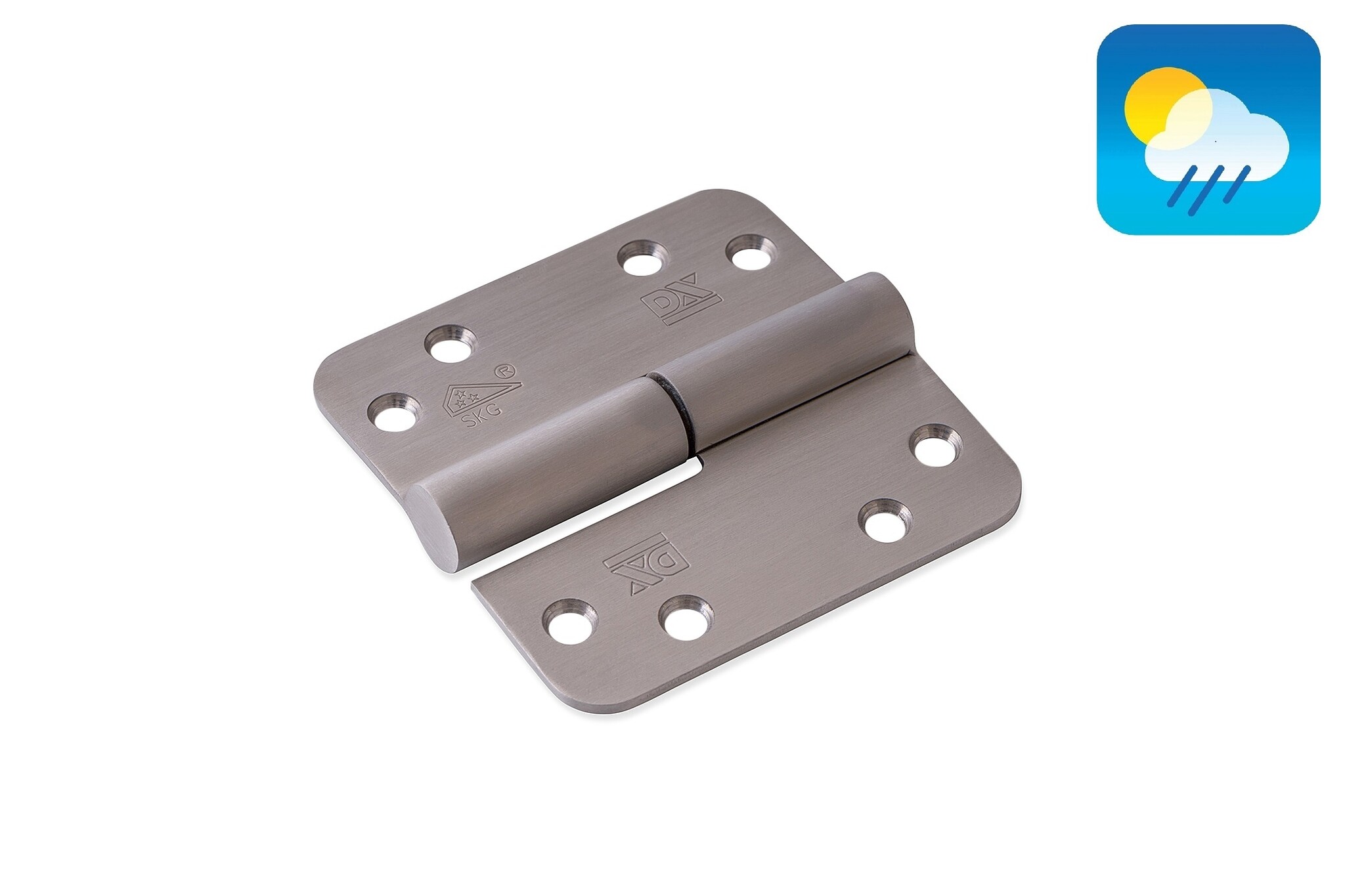

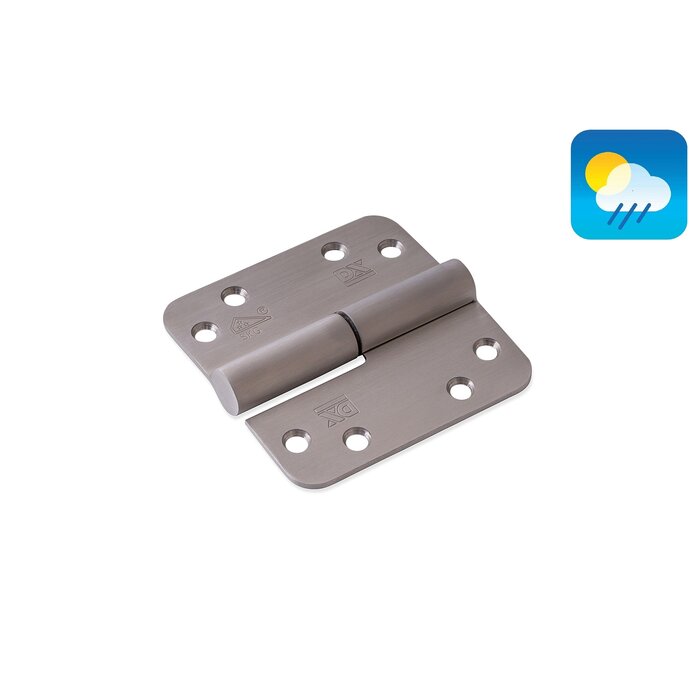

The attached image is of a DIN right - Belgian left hinge.

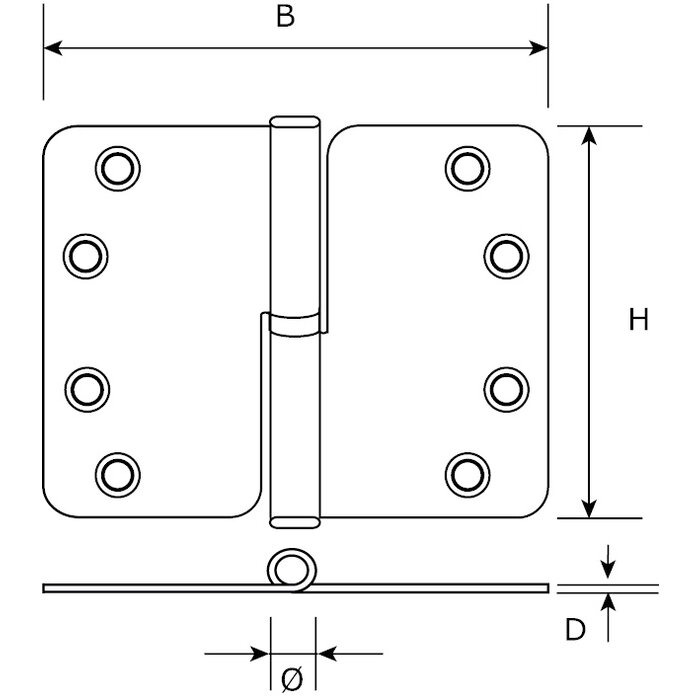

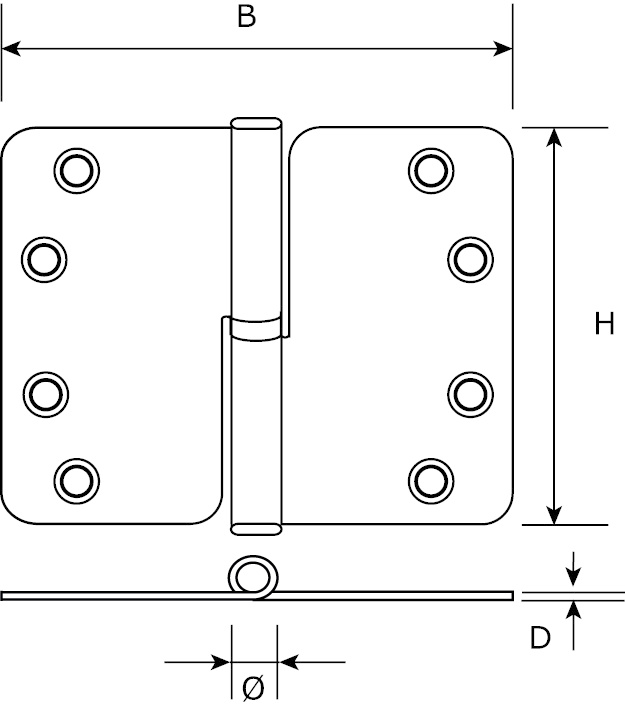

Please look carefully at the attached drawing to make sure you order the correct hinge.
This hinge is supplied per piece, excluding mounting material .
| Material | Stainless steel 304 |
| Finish | Brushed stainless steel |
| Finishing corner | Round corners |
| Standardization | SKG***® |
| Certification | CE / SKH |
H (mm) |
89 |
B (mm) |
89 |
D (mm) |
3.0 |
| Direction of rotation | see selection menu |
Ø (mm) |
16 |
| Load capacity per 3 (Kg) | 95 |
| Load capacity per 4 (Kg) | 120 |
| Mounting material | Not included |
| Application | Inside & outside |
