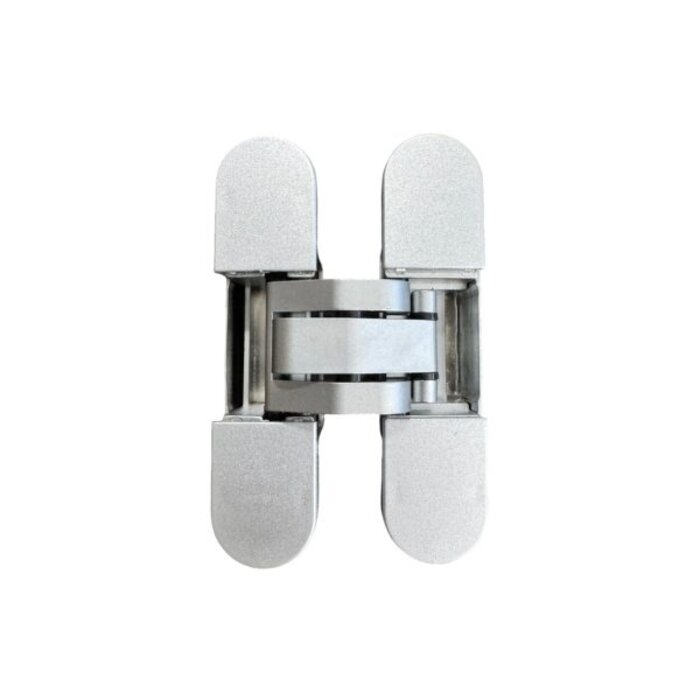

JAIROL Invisible hinge 3D 95x23 mm – 60 kg – Matte chrome

JAIROL Invisible hinge 3D 95x23 mm – 60 kg – Matte chrome

JAIROL Invisible hinge 3D 95x23 mm – 60 kg – Matte chrome

JAIROL Invisible hinge 3D 95x23 mm – 60 kg – Matte chrome

JAIROL Invisible hinge 3D 95x23 mm – 60 kg – Matte chrome

JAIROL Invisible hinge 3D 95x23 mm – 60 kg – Matte chrome

JAIROL

Invisible hinge 3D 95x23 mm – 60 kg – Matte chrome

Add to wishlist

€24,00 €14,88 €18,00 Incl. tax per piece

Delivered in: 3-5 days

Europe-wide shipping

Money back guarantee

For private and professional customers

Become a business customer and take advantage of special purchase prices! Click here to request an account.

Description Compact 3D adjustable invisible hinge for wooden and aluminium doors, with a load capacity of up to 60 kg

Article code: DS-J-95x23-ZIL

This invisible 3D hinge 95 x 23 mm from JAIROL is a compact solution for doors where the hinge needs to disappear completely from view. When closed, the hinge is not visible, allowing the door and frame to maintain a sleek and minimalist appearance.

The hinge is suitable for use in both wooden and aluminium doors and frames . Thanks to the three-dimensional mechanical adjustment, the position of the door can be precisely adjusted in height, depth, and lateral direction after installation. Only a single 4 mm Allen key is required for this.

With an opening angle of up to 180° and a specified load capacity of up to 60 kg , this hinge is suitable for a wide range of interior door applications. Furthermore, the hinge can be used in combination with a door closer.

The handles and scales are made of zamak. Plastic cover caps ensure that the adjustment screws disappear neatly from view after installation.

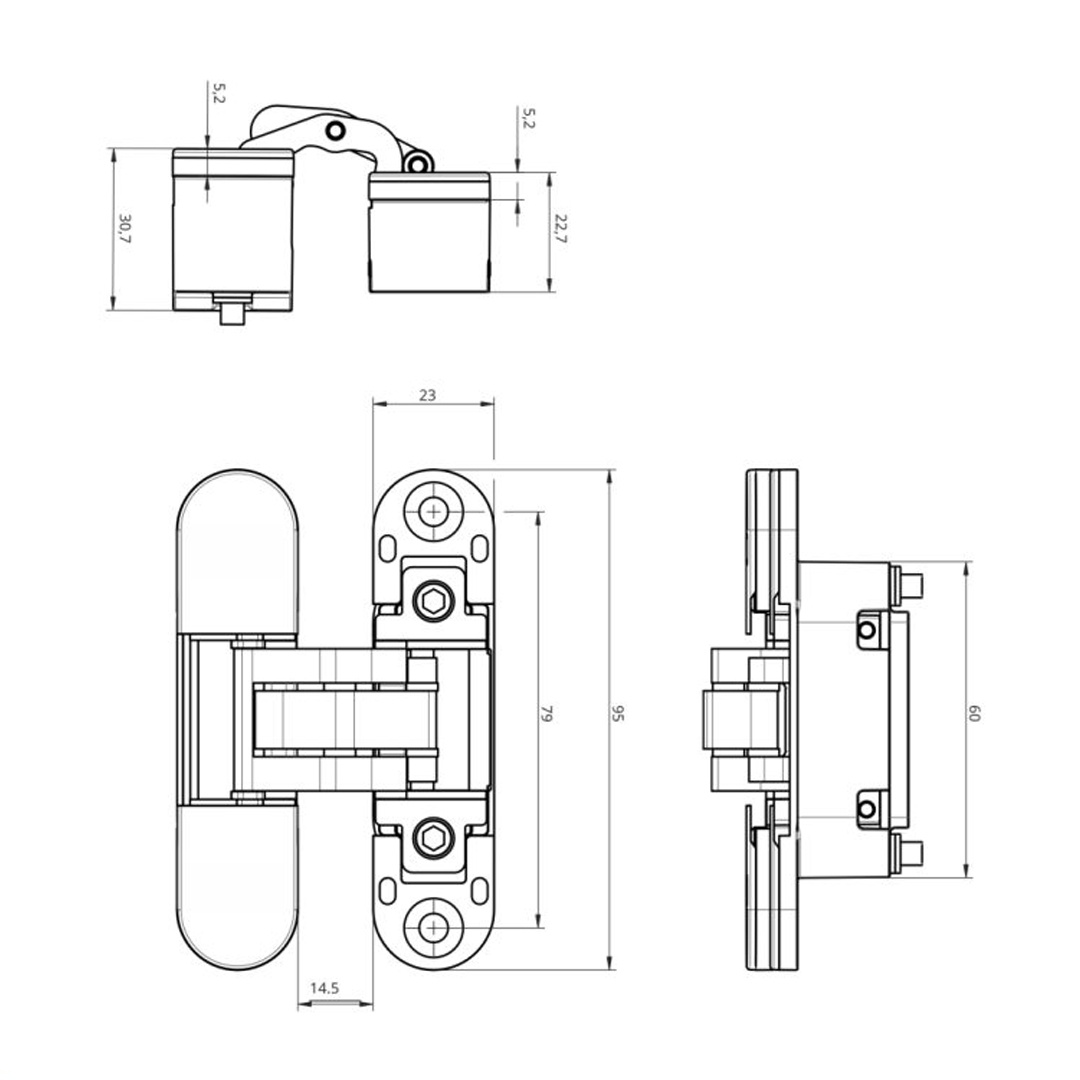

Technical specifications

Brand	JAIROL
Product type	Invisible 3D hinge
Model	J-95X23
Finish	Matte chrome
Material	Zamak
Hinge height	95 mm
Door side width	23 mm
Frame side width	23 mm
Installation depth door side	30 mm
Installation depth frame side	22 mm
Load capacity	Up to 60 kg*
Opening angle	Up to 180°
Lateral adjustment	+1 mm
Height adjustment	±2 mm
Depth adjustment	±2 mm
3D adjustable	Yes
Suitable for	Wooden and aluminium doors and frames
Suitable for door closer	Yes

The load capacity of 60 kg has been tested by the manufacturer on doors with dimensions of 900 x 2100 mm. The required number of hinges depends on, among other things, the weight and dimensions of the door.
