Back JNF electric strike plate 12V for IN.20.005.E security lock – Satin stainless steel
JNF Architectural Hardware JNF electric strike plate 12V for IN.20.005.E security lock – Satin stainless steel JNF Architectural Hardware JNF electric strike plate 12V for IN.20.005.E security lock – Satin stainless steel JNF Architectural Hardware JNF electric strike plate 12V for IN.20.005.E security lock – Satin stainless steel
JNF Architectural Hardware

JNF electric strike plate 12V for IN.20.005.E security lock – Satin stainless steel

0 Review(s)
Add to wishlist
€69,10 €83,61 Incl. tax per piece
- +
Delivered in: 10-12 Weeks
Europe-wide shipping
Money back guarantee
For private and professional customers
Become a business customer and take advantage of special purchase prices! Click here to request an account.

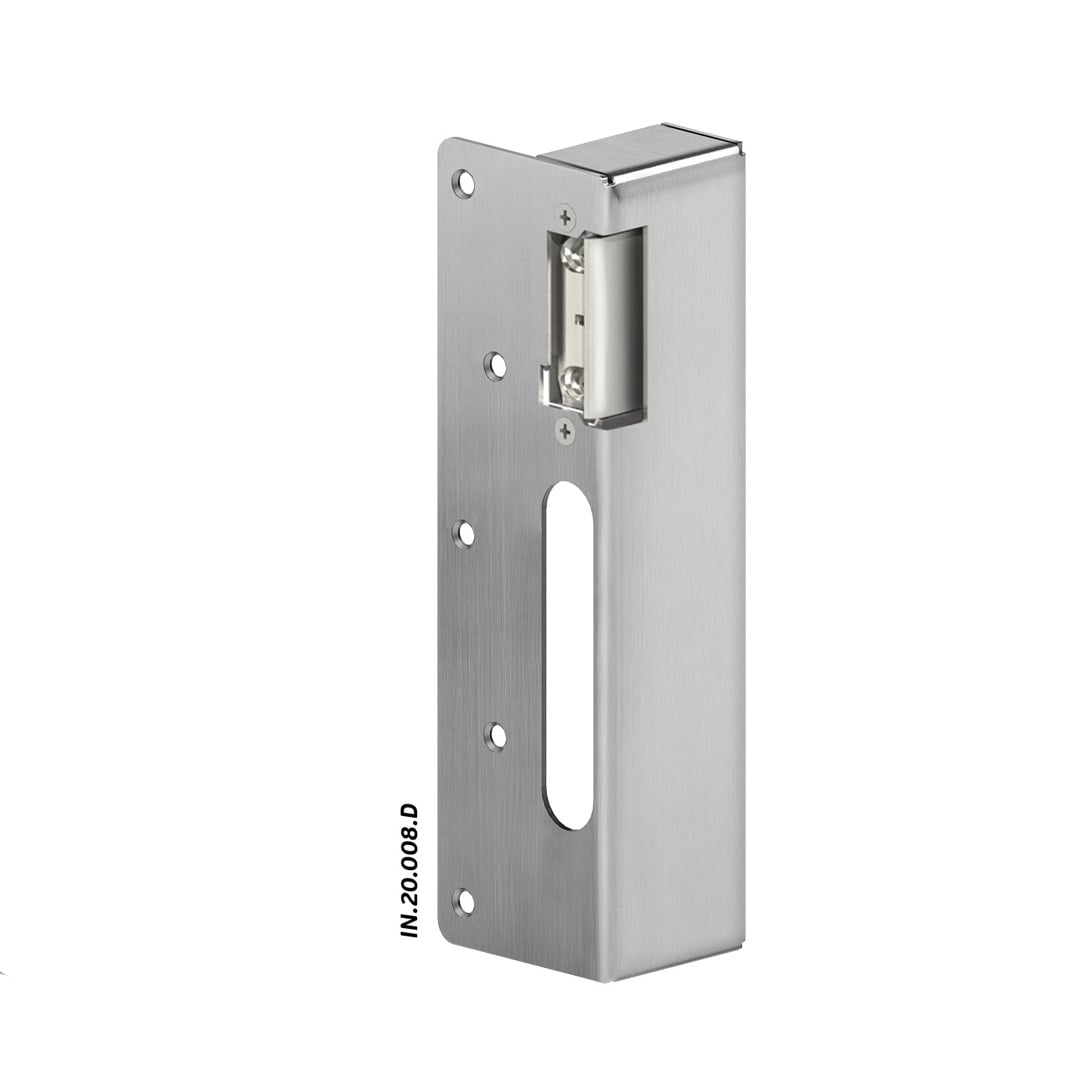

Description Electric JNF strike plate 12V AC/DC for the left-hand IN.20.005.E surface-mounted security lock, with 4 mm adjustable latch and passage function
Article code: IN.20.008.D

JNF electric strike plate 12V for IN.20.005.E security lock – Satin stainless steel

This JNF electric strike plate has been developed for use in combination with the left-hand JNF IN.20.005.E surface-mounted security lock . The strike plate is mounted to the door frame and can be used in place of the standard mechanical strike plate.

The integrated electric door opener operates on 12V AC/DC and allows the latch of the security lock to be electrically released. This enables the door to be unlocked, for example, via an access control system, push button, or other suitable 12V control.

The latch bolt of the electric strike plate is adjustable up to 4 mm . In addition, the strike plate features a passage function , allowing free passage when desired.

The strike plate is manufactured from EN 1.4301 (AISI 304) stainless steel and finished in satin stainless steel . The rounded corners match the design of the corresponding JNF security lock.

Please note: this concerns the IN.20.008.D electric strike plate and it is combined with the left IN.20.005.E surface-mounted security lock . The security lock itself is not included.

Technical specifications

Brand JNF
Product type Electric strike plate
Application For JNF surface-mounted safety lock IN.20.005.E
Strike plate version Right
Matching safety lock IN.20.005.E – Links
Supply voltage 12V AC/DC
Adjustable latch Yes, 4 mm
Passage function Yes
Material EN 1.4301 (AISI 304) stainless steel
Finish Satin stainless steel
Form Rounded corners

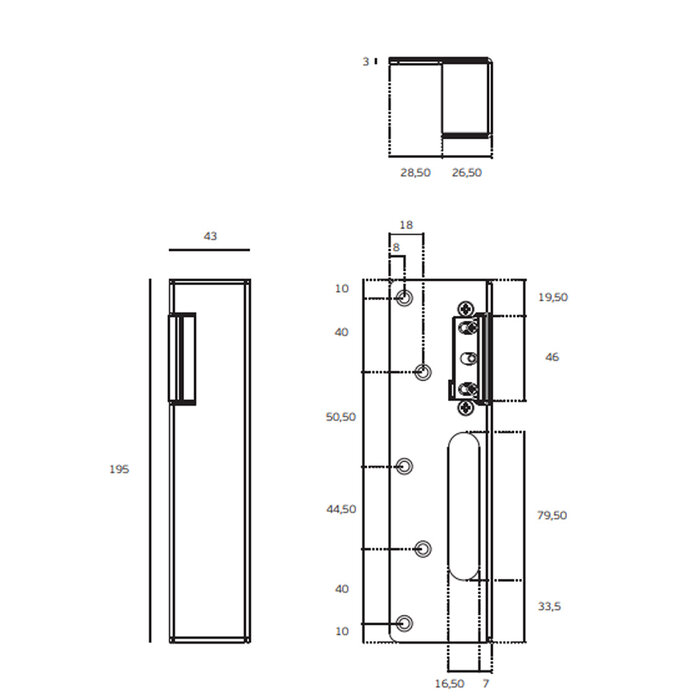

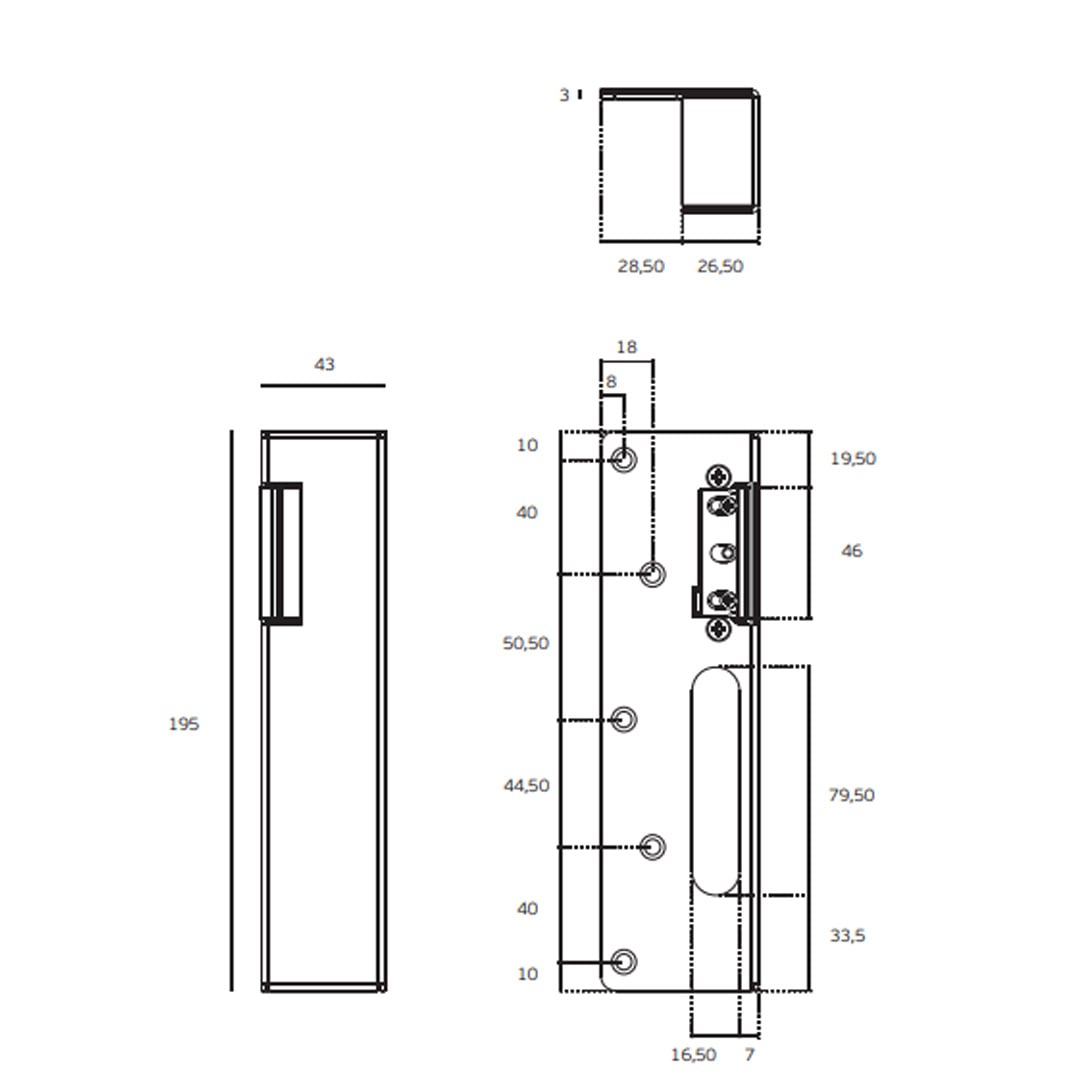

Height 195 mm
Width 55 mm
Depth 43 mm
Safety lock included No
Sales unit Per piece
