JNF Architectural Hardware

JNF narrow profile mortise lock - Center distance 92 mm - Backset 30 mm - Stainless steel satin

Add to wishlist

€17,86 €21,61 Incl. tax per piece

Delivered in: 1-2 Weeks

Europe-wide shipping

Money back guarantee

For private and professional customers

Become a business customer and take advantage of special purchase prices! Click here to request an account.

Description JNF narrow profile mortise lock in satin stainless steel for aluminium and metal doors, with spindle distance 92 mm and backset 30 mm

Article code: IN.20.402.30

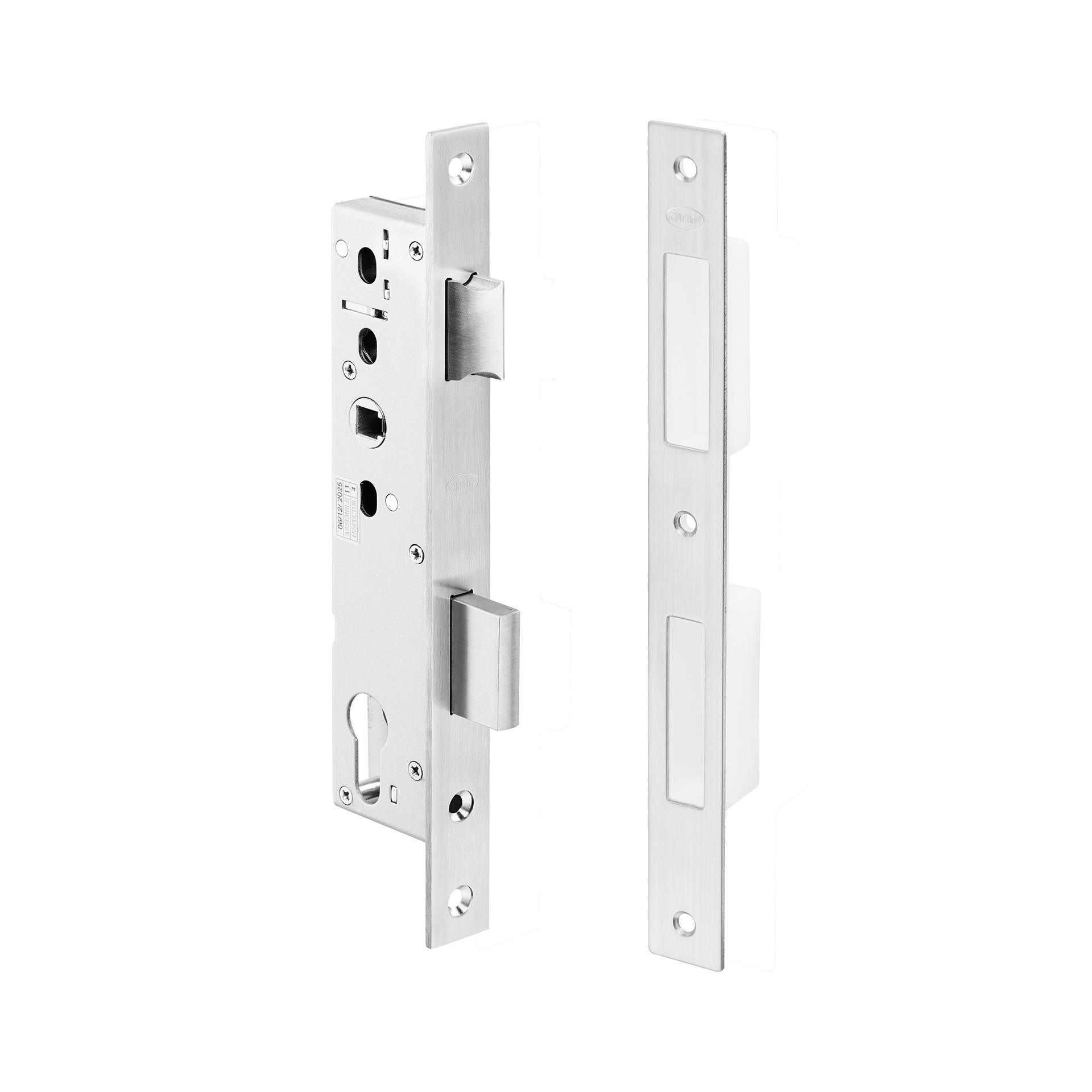

JNF narrow profile mortise lock - Center distance 92 mm - Backset 30 mm - Stainless steel satin

This JNF narrow profile mortise lock has been specially developed for doors with narrow aluminium and metal profiles. Thanks to the compact lock case, the lock is suitable for applications where only limited installation space is available.

The mortise lock is manufactured from EN 1.4301 (AISI 304) stainless steel and has a satin finish . The latch, deadbolt, and faceplate are also made of stainless steel. As a result, the lock has been developed for high resistance during intensive use and demanding applications in residential, commercial, and architectural projects.

The lock is suitable for a Euro profile cylinder and has a spindle distance of 92 mm and a backset of 30 mm . The reversible latch allows for use in different opening directions. Furthermore, the spindle is equipped with an internal spring that helps limit play between the door handle and the spindle.

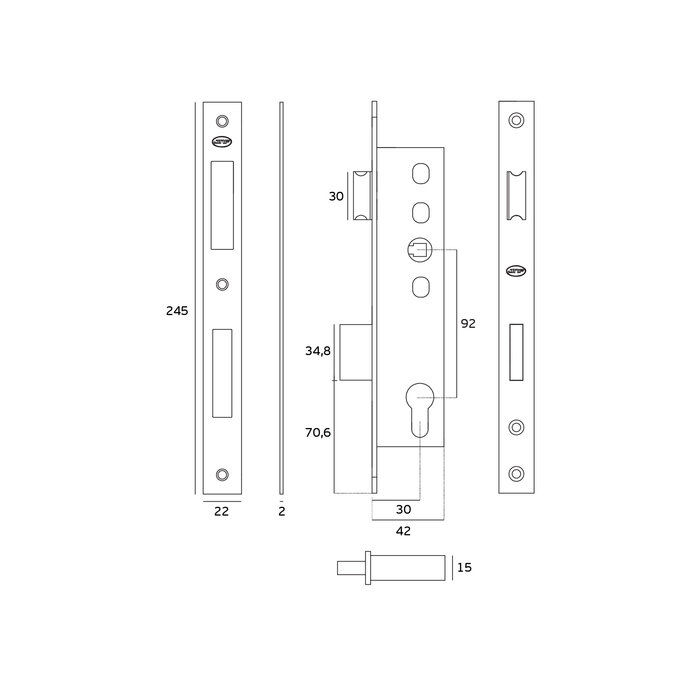

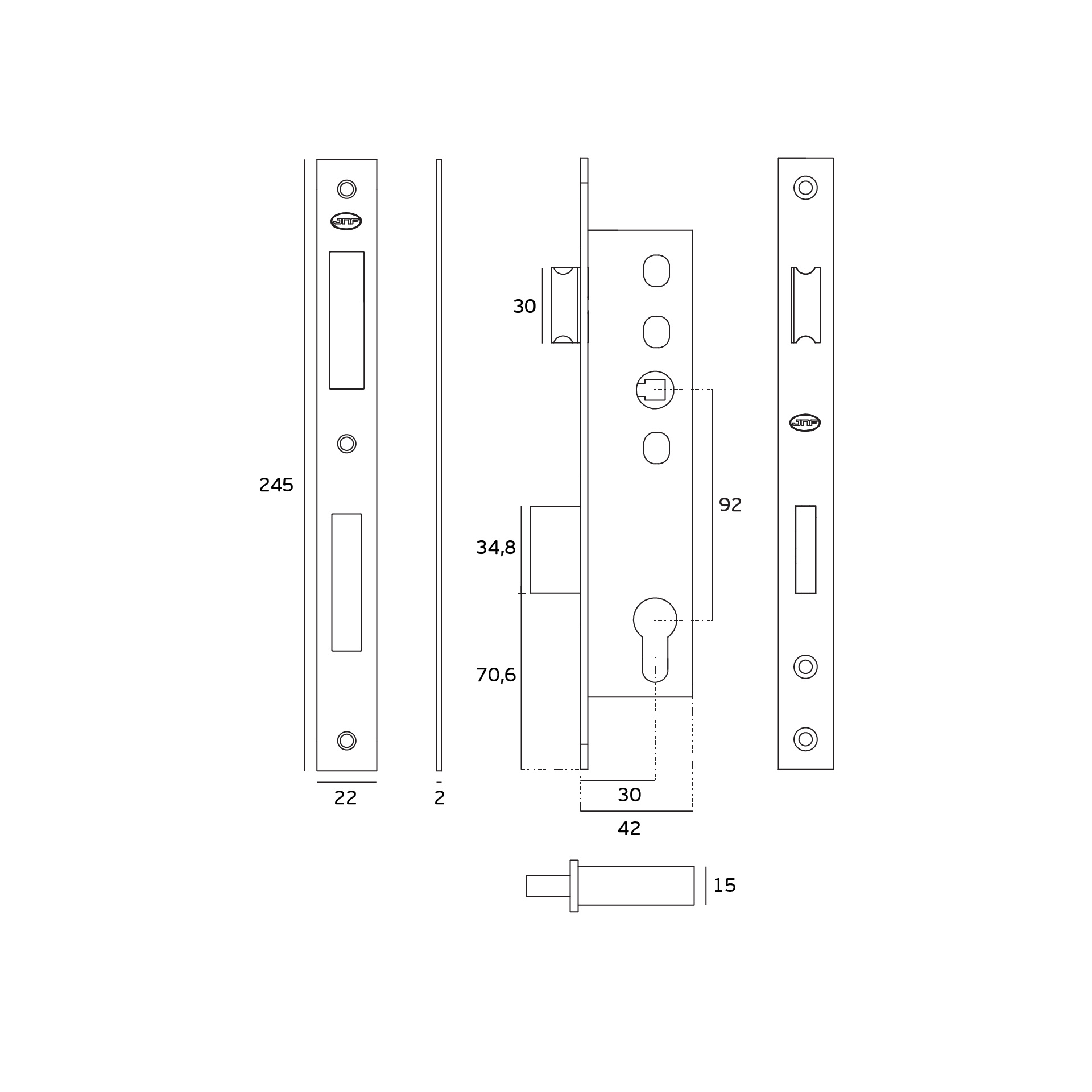

Technical specifications

Brand	JNF
Product type	Narrow profile mortise lock
Application	Narrow aluminium and metal door profiles
Suitable for	Euro profile cylinder
Axial distance	92 mm
Doornmaat	30 mm
Front cover	245 x 22 mm
Front plate thickness	2 mm
Lock case depth	42 mm
Material	EN 1.4301 (AISI 304) stainless steel
Finish	Satin stainless steel
Day lap	Reversible, stainless steel EN 1.4301
Night latch	Stainless steel EN 1.4301
Front cover	Stainless steel
Crank pin mechanism	With internal spring to limit play
Degree	Grade 3
Sales unit	Per piece
