JNF Architectural Hardware

JNF sliding door lock with square WC set and free/occupied indicator – White RAL 9016

Add to wishlist
€27,20 €32,91 Incl. tax per piece
- +
Delivered in: 1-2 Weeks
Europe-wide shipping
Money back guarantee
For private and professional customers
Become a business customer and take advantage of special purchase prices! Click here to request an account.
Description JNF mortise lock for sliding doors in White RAL 9016, complete with square WC lock, free/occupied indicator and matching strike plate
Article code: IN.20.940.W

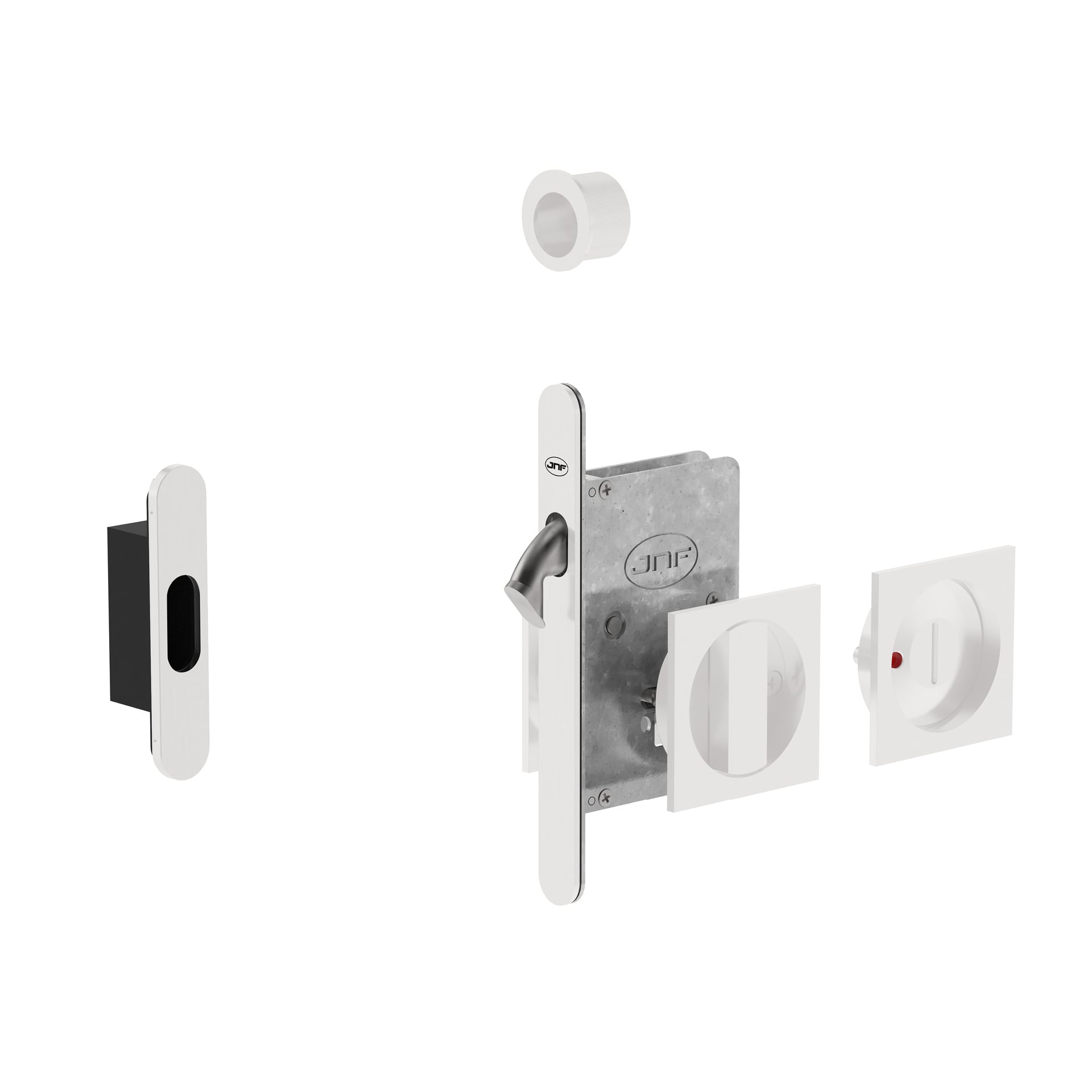

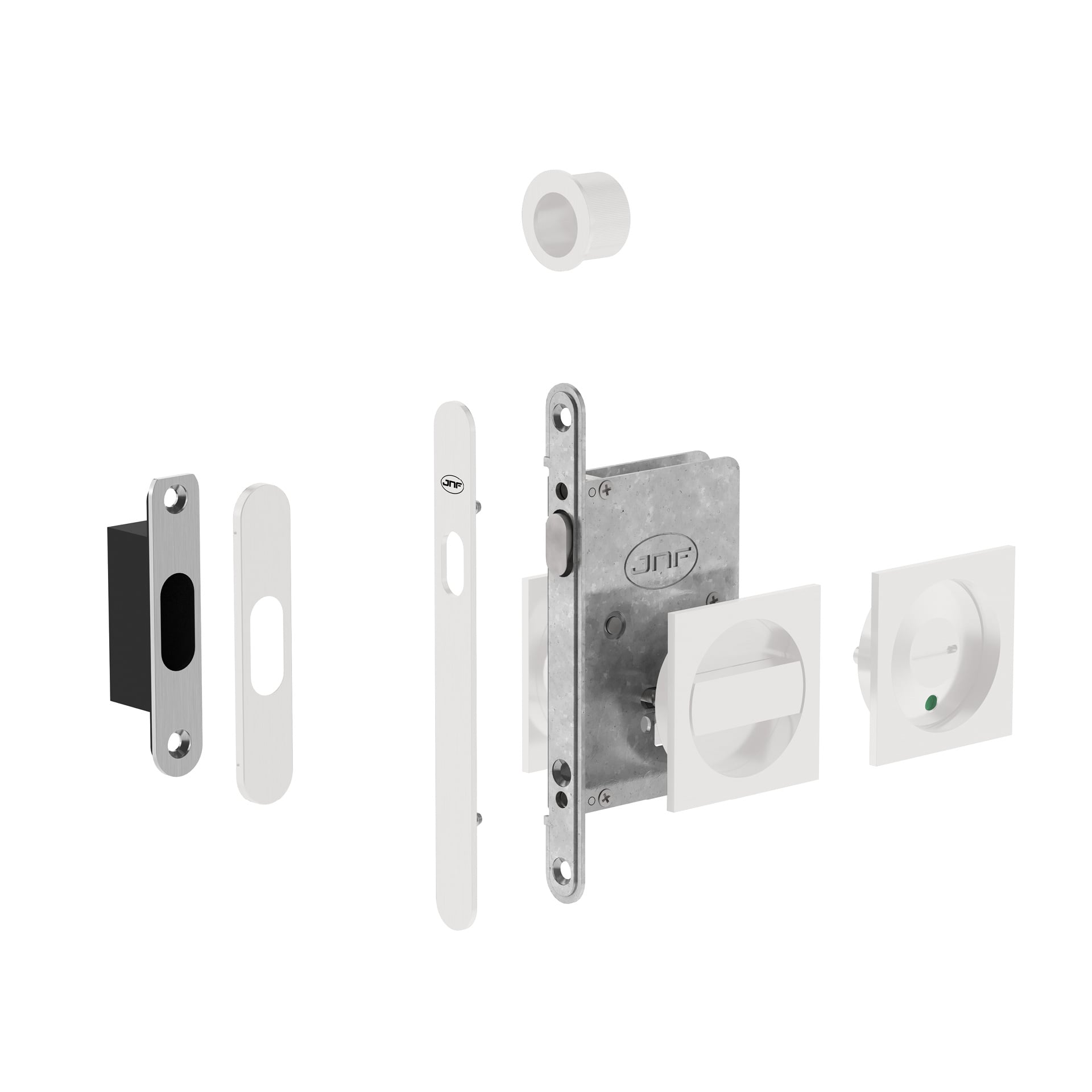

JNF sliding door lock with square WC set and free/occupied indicator – White RAL 9016

This JNF sliding door lock is a complete locking system for sliding doors and is combined with a square WC fitting with a free/occupied indicator . The lock is manufactured from EN 1.4301 (AISI 304) stainless steel and finished in White RAL 9016 .

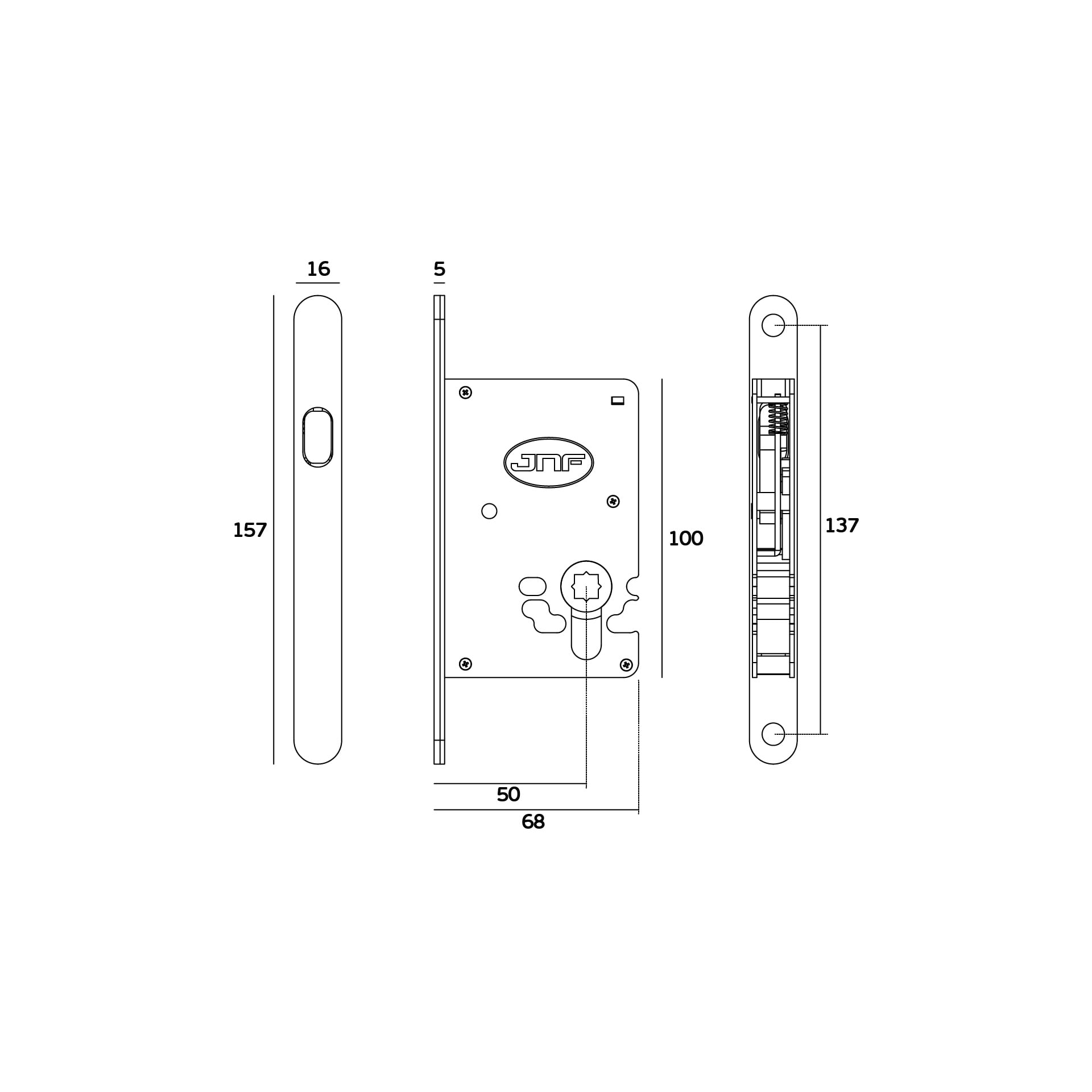

The mortise lock has a backset of 50 mm . The lock case has a total depth of 68 mm and the rounded faceplate measures 157 x 16 mm . Thanks to its compact design, the lock can be neatly installed in the sliding door.

The square WC set measures 60 x 60 mm and is equipped with a vacant/occupied indicator . The control for locking the sliding door is located on the inside. The round mounting base behind the square cover plate has a diameter of Ø54 mm . The matching strike plate measures 90 x 18 mm .

Technical specifications

Brand JNF
Product type Sliding door lock with toilet set
Application Sliding doors
Function WC/bathroom lock with free/occupied indicator
Material EN 1.4301 (AISI 304) stainless steel
Finish White RAL 9016
Doornmaat 50 mm
Total depth of lock case 68 mm
Lock case height 100 mm
Front plate dimensions 157 x 16 mm
Front plate thickness 5 mm
Front plate mounting distance 137 mm
Shaped toilet rosettes Square
Toilet rosette dimensions 60 x 60 mm
Diameter of rosette mounting base Ø54 mm
Mounting distance rosettes 38 mm
Thickness of outer rosette 3 mm
Total depth of inner rosette 12 mm
Vacant/occupied indicator Yes

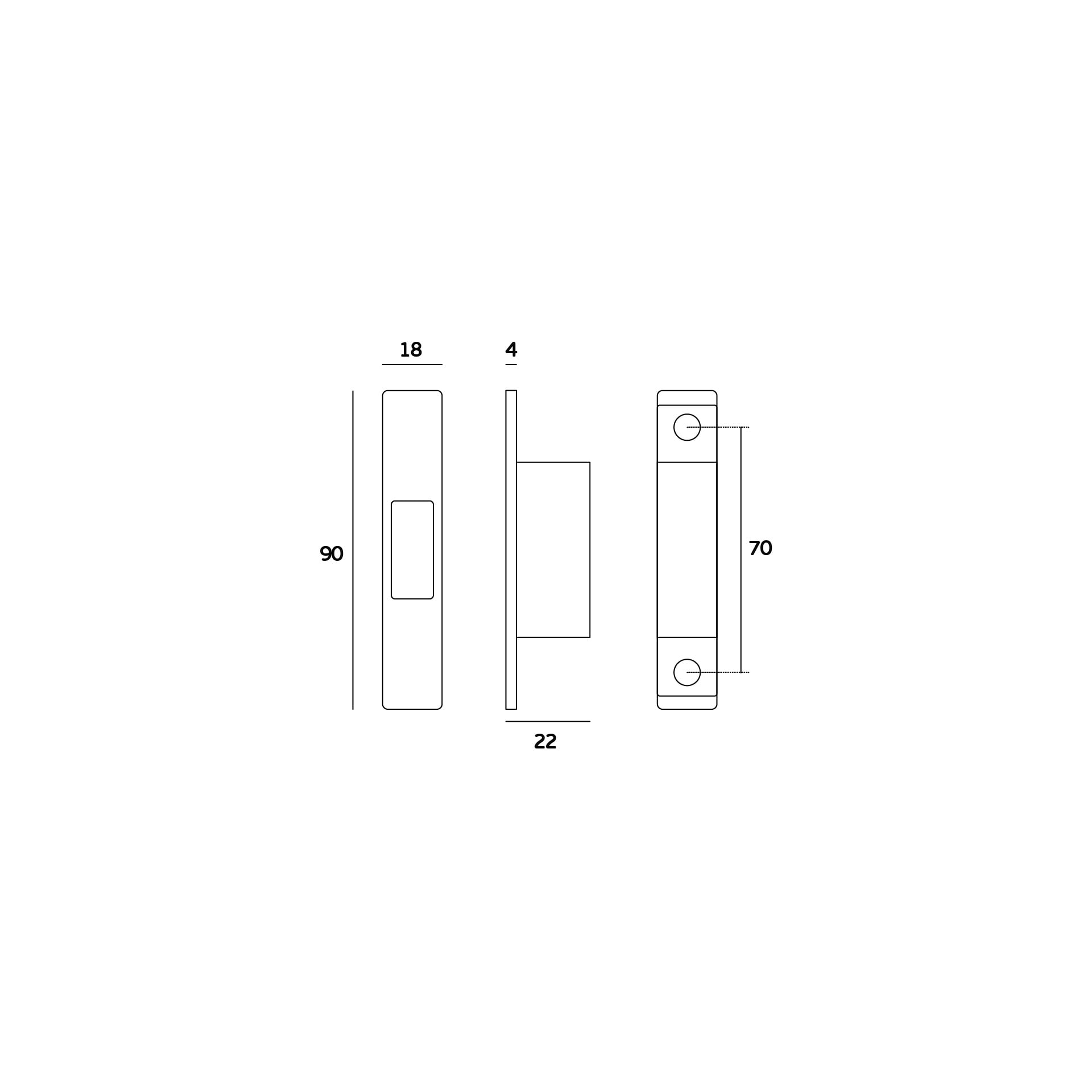

Strike plate dimensions 90 x 18 mm
Thickness of strike plate 4 mm
Mounting distance strike plate 70 mm
Installation depth of strike plate 22 mm
Sales unit Set
