Description
Pair of JNF Touch to Open door knobs Ø70 mm in satin stainless steel for the motorized Touch to Open system. Available in smooth or serrated finish.
Article code: IN.00.100.K
Pair of JNF Touch to Open door knobs Ø70 mm – Satin stainless steel

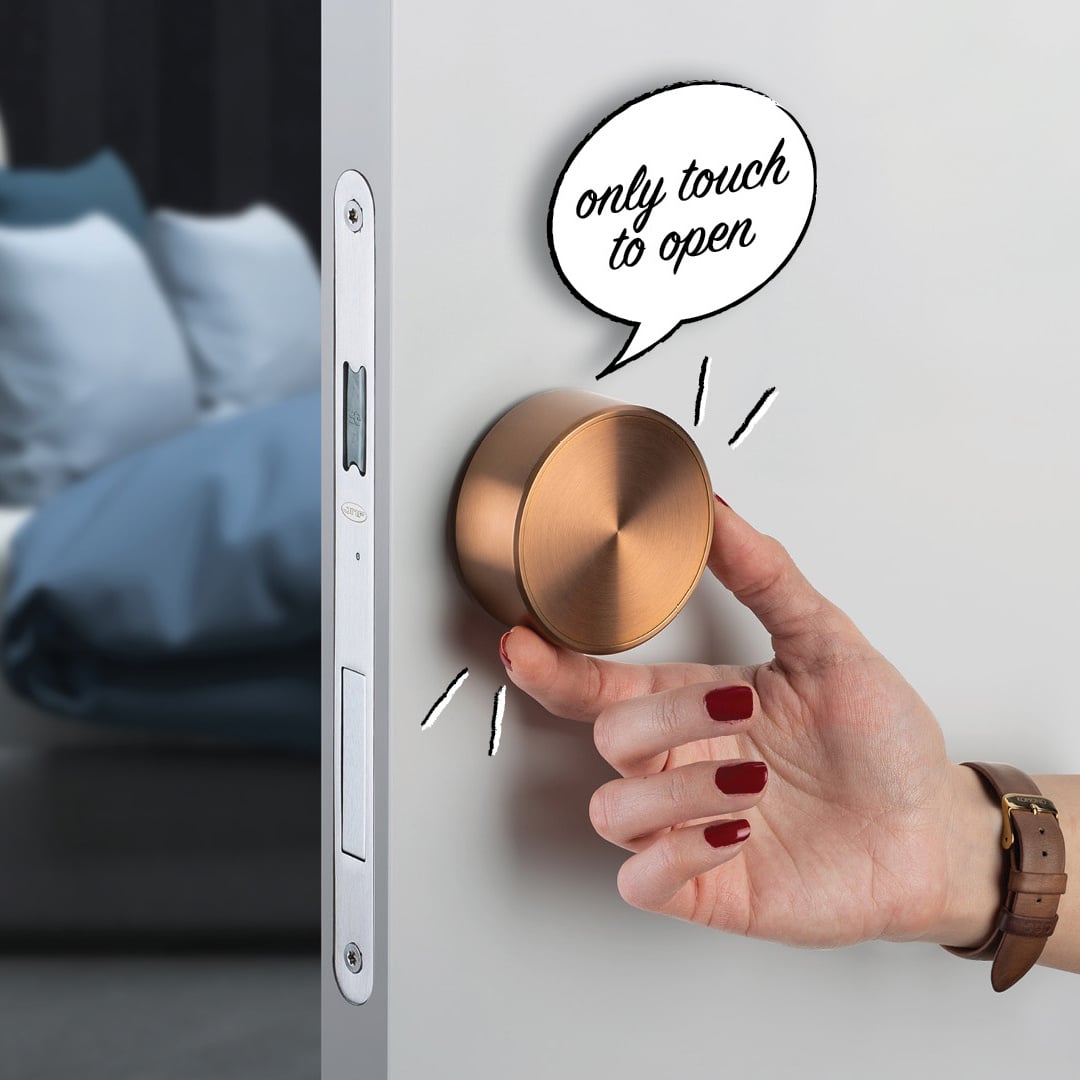

These JNF Touch to Open door knobs Ø70 mm have been specially developed for use with the motorized JNF Touch to Open system. By touching one of the door knobs with your hand, the connected motorized lock is activated and the magnetic latch is automatically retracted.

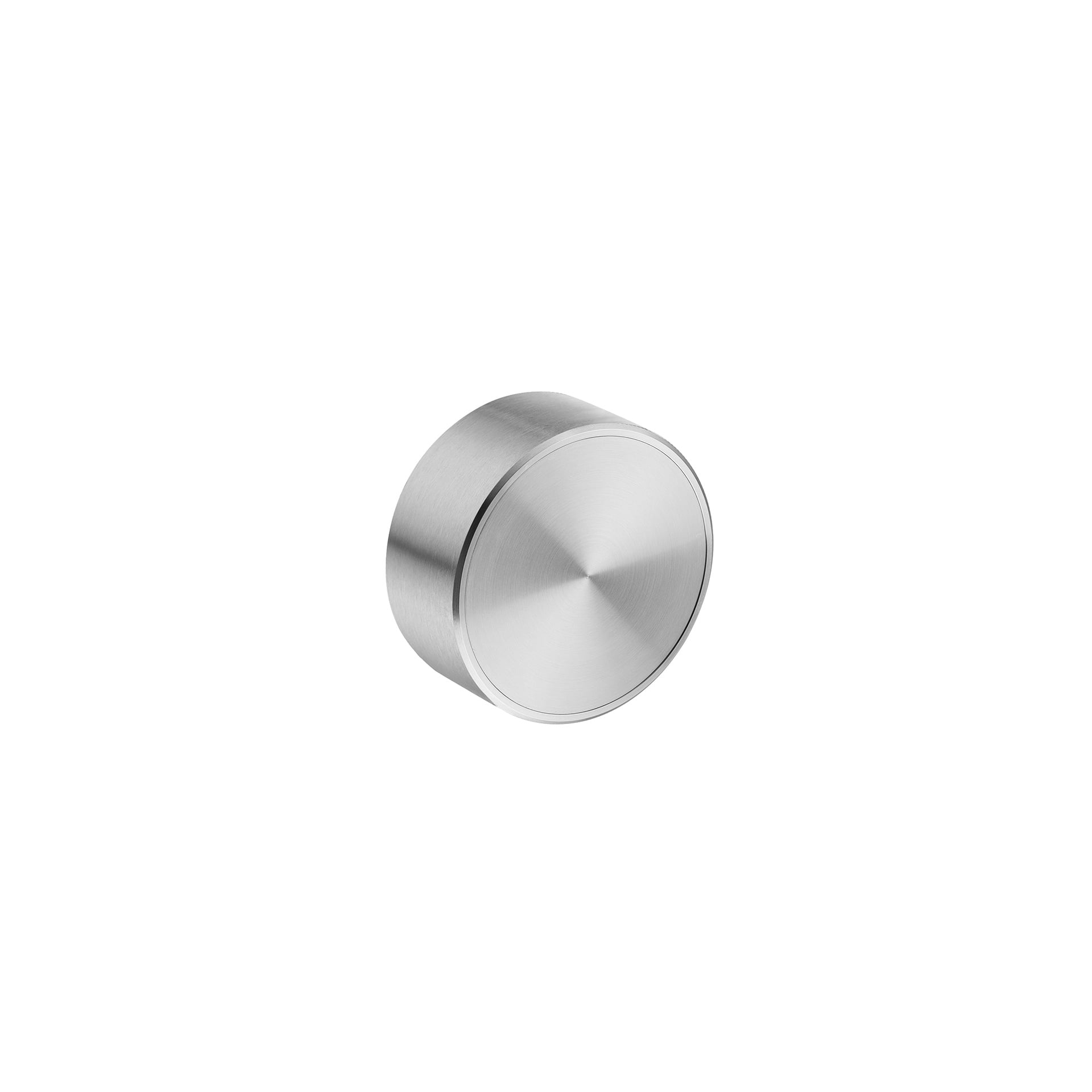

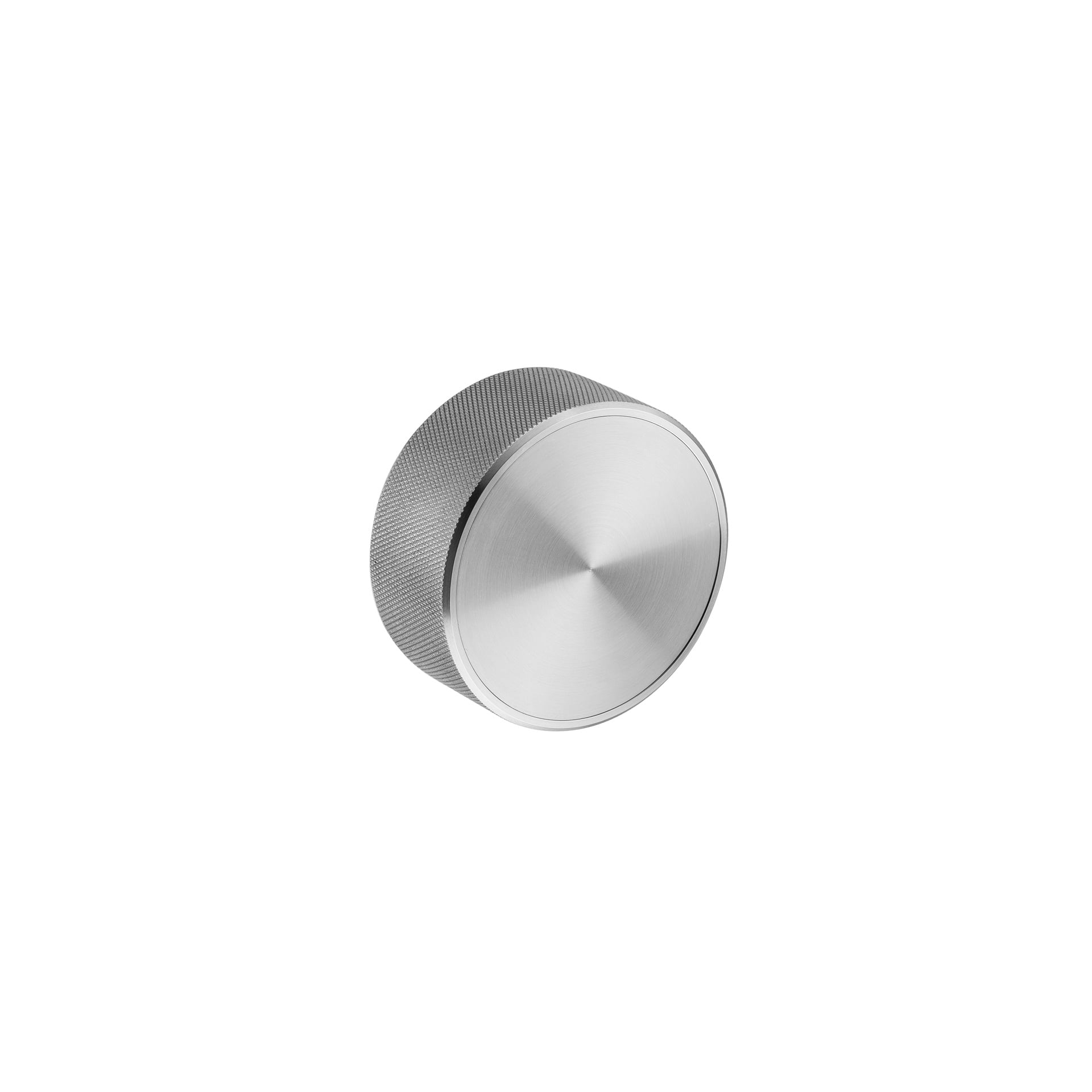

The doorknobs are supplied as a pair for both sides of the door and are available in two versions: smooth (IN.00.100.K) or serrated (IN.00.100.KN.K). Both versions have the same round shape and are made of satin stainless steel.

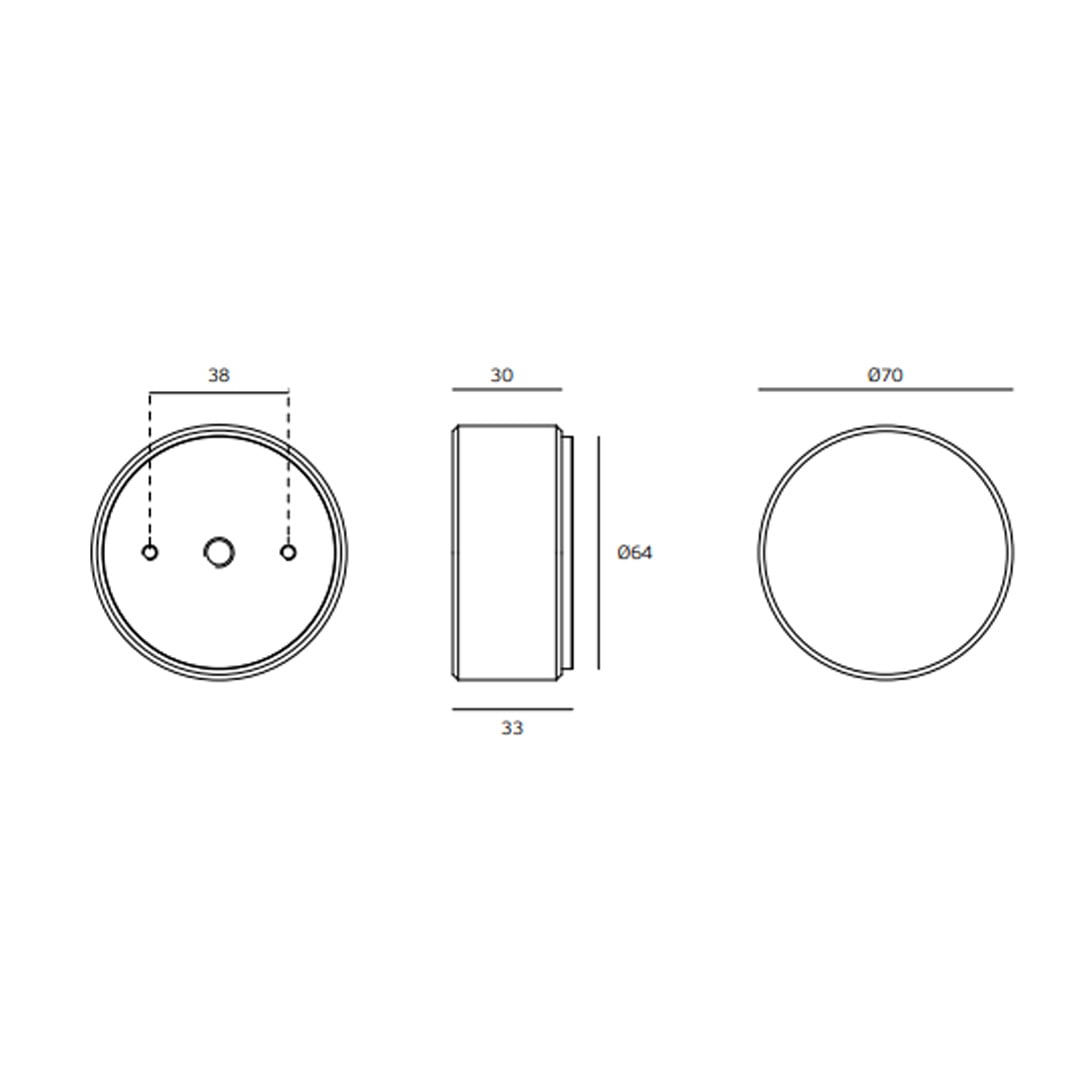

The knob has a total diameter of Ø70 mm and a total depth of 33 mm . The rear housing has a diameter of Ø64 mm. The mounting points have a center-to-center distance of 38 mm.
The set consists of 2 doorknobs, 1 spindle, and 2 break-off mounting screws . The knobs are mounted opposite each other on both sides of the door. According to the installation manual, a minimum door thickness of 40 mm is required.
The door knobs are manufactured from EN 1.4301 (AISI 304) stainless steel and have a satin finish. After installing the knobs, the connected Touch to Open lock must be calibrated.
Please note: the motorized JNF Touch to Open mortise lock is not included and must be ordered separately.
Versions
| Smooth | IN.00.100.K |
| serrated | IN.00.100.KN.K |
Technical specifications
| Brand | JNF Architectural Hardware |
| Product type | Pair of Touch to Open door knobs |
| System | JNF Touch to Open |
| Operation | Activation of the linked motorized lock by touch |
| Versions | Smooth or serrated |
| Knob diameter | Ø70 mm |
| Housing diameter | Ø64 mm |
| Total depth | 33 mm |
| Mounting distance | 38 mm center-to-center |
| Minimum door thickness | 40 mm |
| Material | EN 1.4301 (AISI 304) stainless steel |
| Finish | Satin stainless steel |
| Set contents | 2 doorknobs, 1 spindle and 2 breakable mounting screws |
| Sales unit | Per pair |
