JNF Architectural Hardware JNF FLAT recessed door handle with mortise lock – 120 x 120 mm – Pure Grain

JNF Architectural Hardware JNF FLAT recessed door handle with mortise lock – 120 x 120 mm – Pure Grain

JNF Architectural Hardware JNF FLAT recessed door handle with mortise lock – 120 x 120 mm – Pure Grain

JNF Architectural Hardware JNF FLAT recessed door handle with mortise lock – 120 x 120 mm – Pure Grain

JNF Architectural Hardware JNF FLAT recessed door handle with mortise lock – 120 x 120 mm – Pure Grain

JNF Architectural Hardware JNF FLAT recessed door handle with mortise lock – 120 x 120 mm – Pure Grain

JNF Architectural Hardware JNF FLAT recessed door handle with mortise lock – 120 x 120 mm – Pure Grain

JNF Architectural Hardware JNF FLAT recessed door handle with mortise lock – 120 x 120 mm – Pure Grain

JNF Architectural Hardware JNF FLAT recessed door handle with mortise lock – 120 x 120 mm – Pure Grain

JNF Architectural Hardware JNF FLAT recessed door handle with mortise lock – 120 x 120 mm – Pure Grain

JNF Architectural Hardware

JNF FLAT recessed door handle with mortise lock – 120 x 120 mm – Pure Grain

Add to wishlist

€175,45 €131,40 €158,99 Incl. tax Per pair

Free shipping Delivered in: 1-2 Weeks

Europe-wide shipping

Money back guarantee

For private and professional customers

Become a business customer and take advantage of special purchase prices! Click here to request an account.

Description JNF FLAT integrated mortise lock with virtually flush-mounted door handle of 120 x 120 mm. By pressing the handle, the pull element extends to open the door.

Article code: IN.20.225.PR

JNF FLAT recessed door handle with mortise lock – 120 x 120 mm – Pure Grain

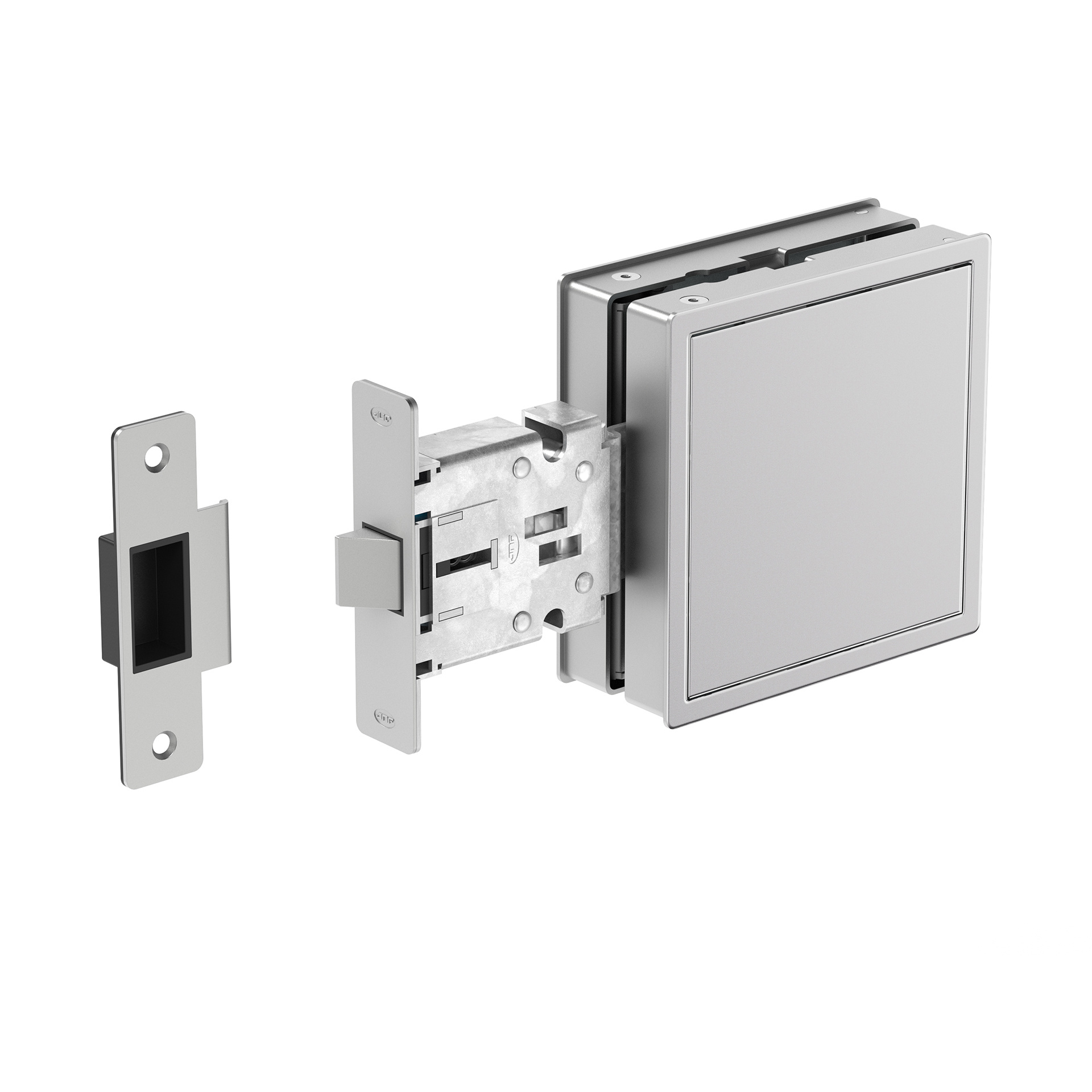

The JNF FLAT from the 200 Series combines a mortise lock with an almost completely recessed door handle. The 120 x 120 mm square handle lies nearly flush with the door leaf, ensuring a particularly sleek integration of the hardware into the door.

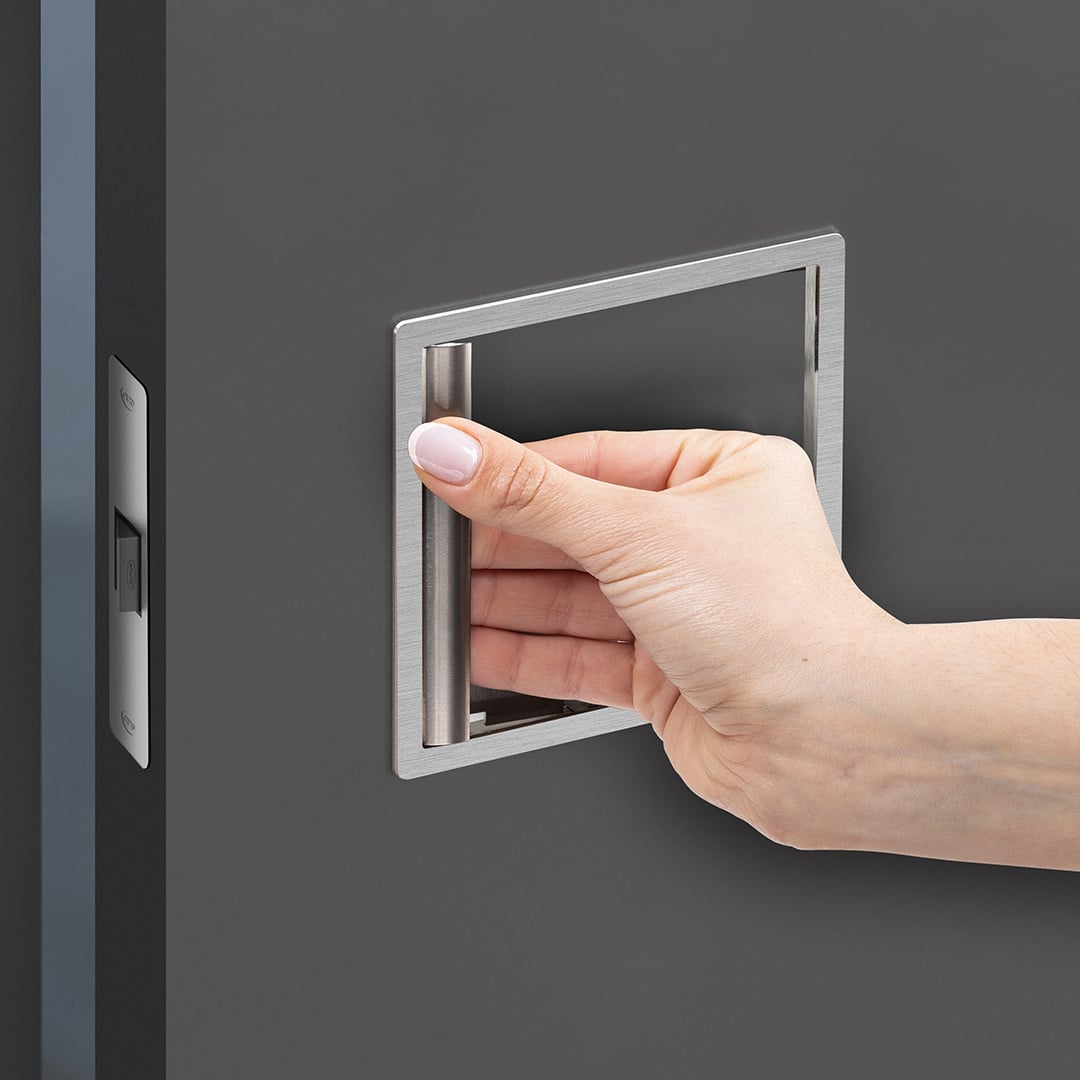

Operation is performed by pressing the recessed handle. This causes an element to extend that serves as a door handle , allowing the door to be pulled open. The mechanism is designed so that the built-in handle can move as far inward as possible while remaining comfortable to operate.

The FLAT lock features a silent and smoothly operating latch. JNF uses a special triple latch design for this, developed to open the door with minimal force and a fluid movement.

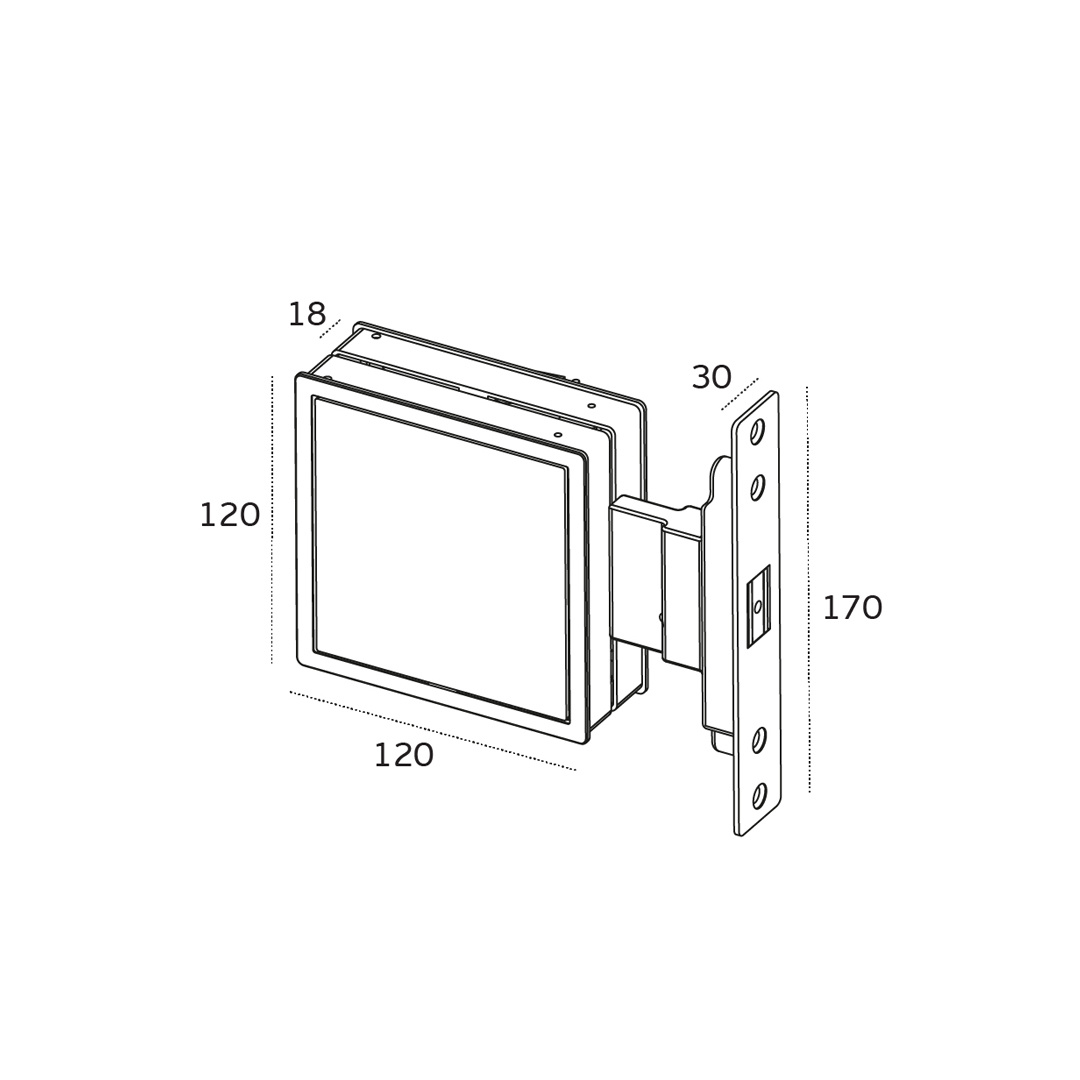

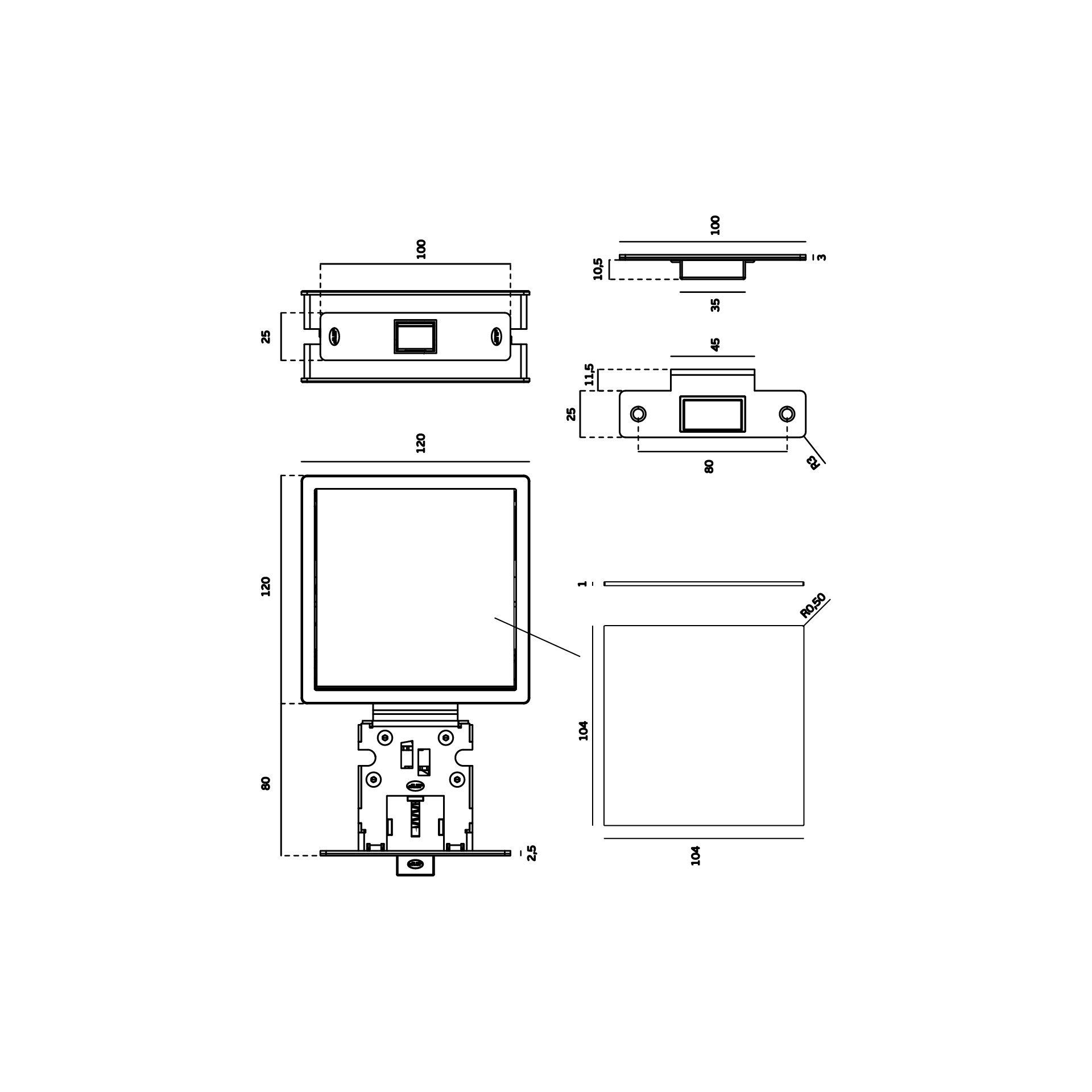

The visible handle measures 120 x 120 mm and has a depth of 18 mm. According to the technical drawing, the recess for the square section measures 104 x 104 mm. The lock faceplate measures 170 x 30 mm.

The system is manufactured from EN 1.4301 (AISI 304) stainless steel and finished in Pure Grain. The lock has a Grade 2 classification.

Technical specifications

Brand	JNF
Series	200 Series \| FLAT
Product type	Mortise lock with integrated recessed door handle
Control handle	Push-button operation with extendable pull element
Handle dimensions	120 x 120 mm
Depth grip	18 mm
Square section recess	104 x 104 mm
Front plate lock	170 x 30 mm
Closure	Silent, smoothly operating latch
Material	EN 1.4301 (AISI 304) stainless steel
Finish	Pure Grain
Classification	Grade 2
Sales unit	Per set
