JNF recessed door stopper for floor mounting – Satin stainless steel

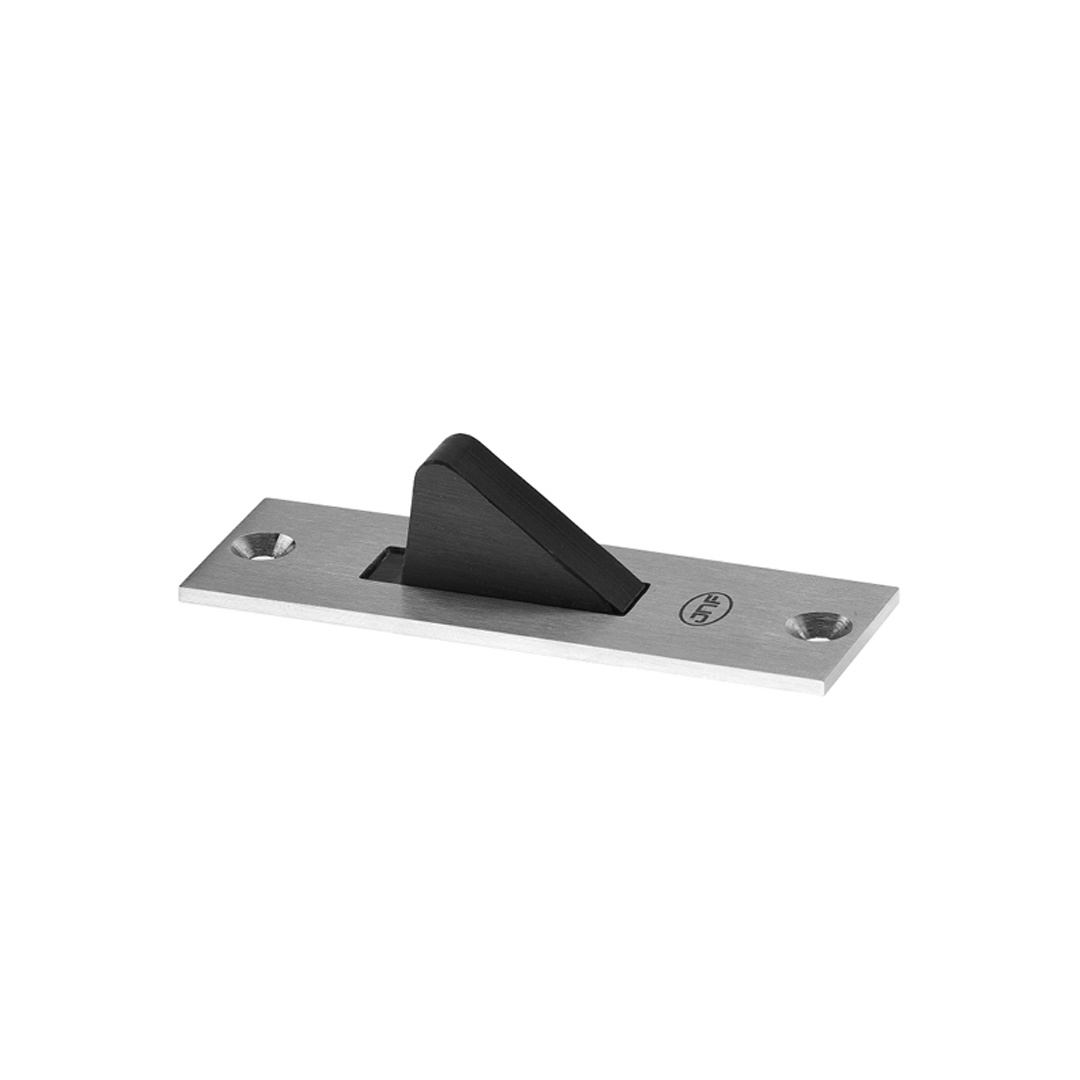

This JNF built-in door stopper is a compact solution for holding a door in the open position. The door stopper features a folding stop that can be pushed down by the moving door and then springs back up to hold the door in place.

The door stopper is designed for recessed floor mounting . The mechanism is located beneath the mounting plate and must be concealed in a recess in the floor. This ensures that the rectangular mounting plate remains neatly at floor level.

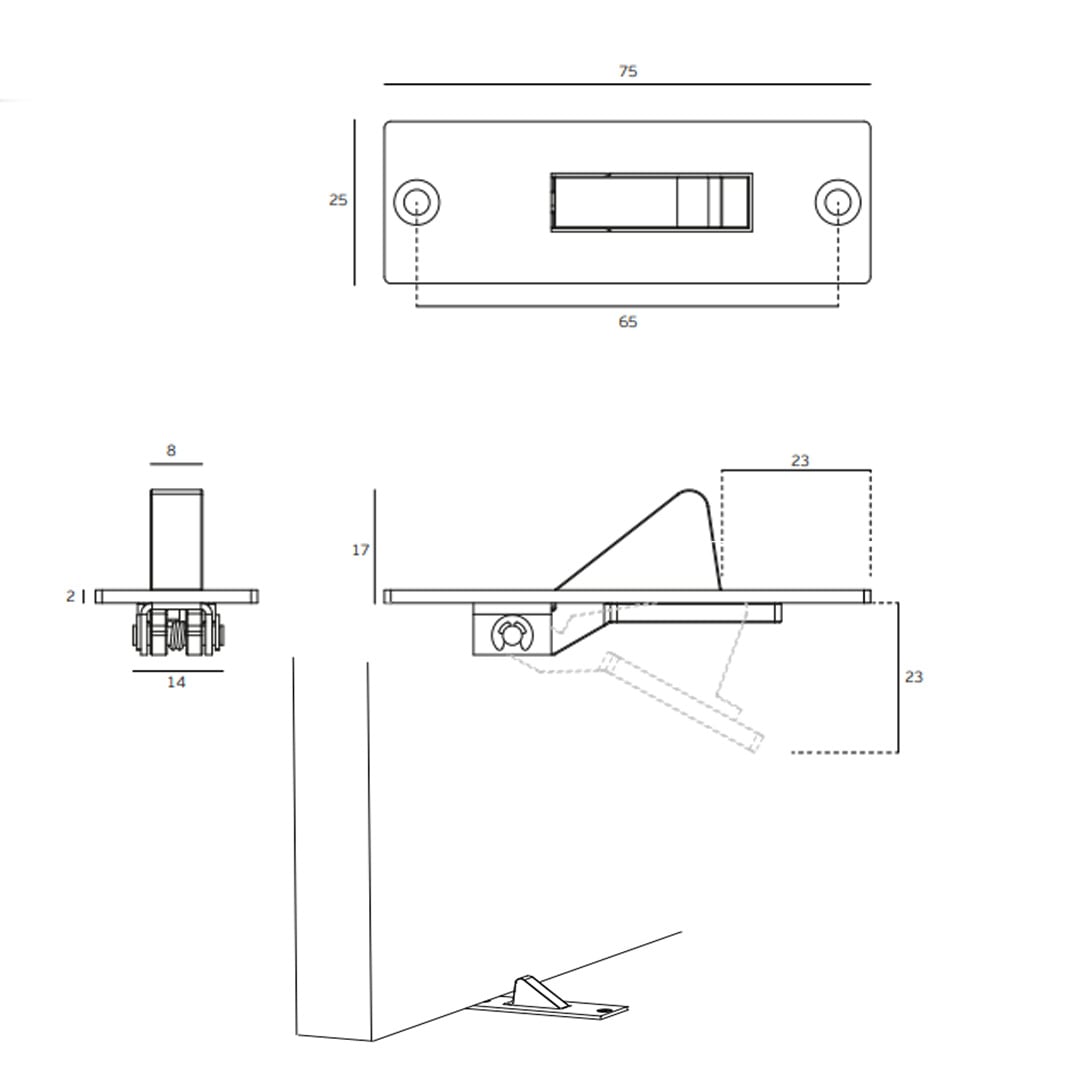

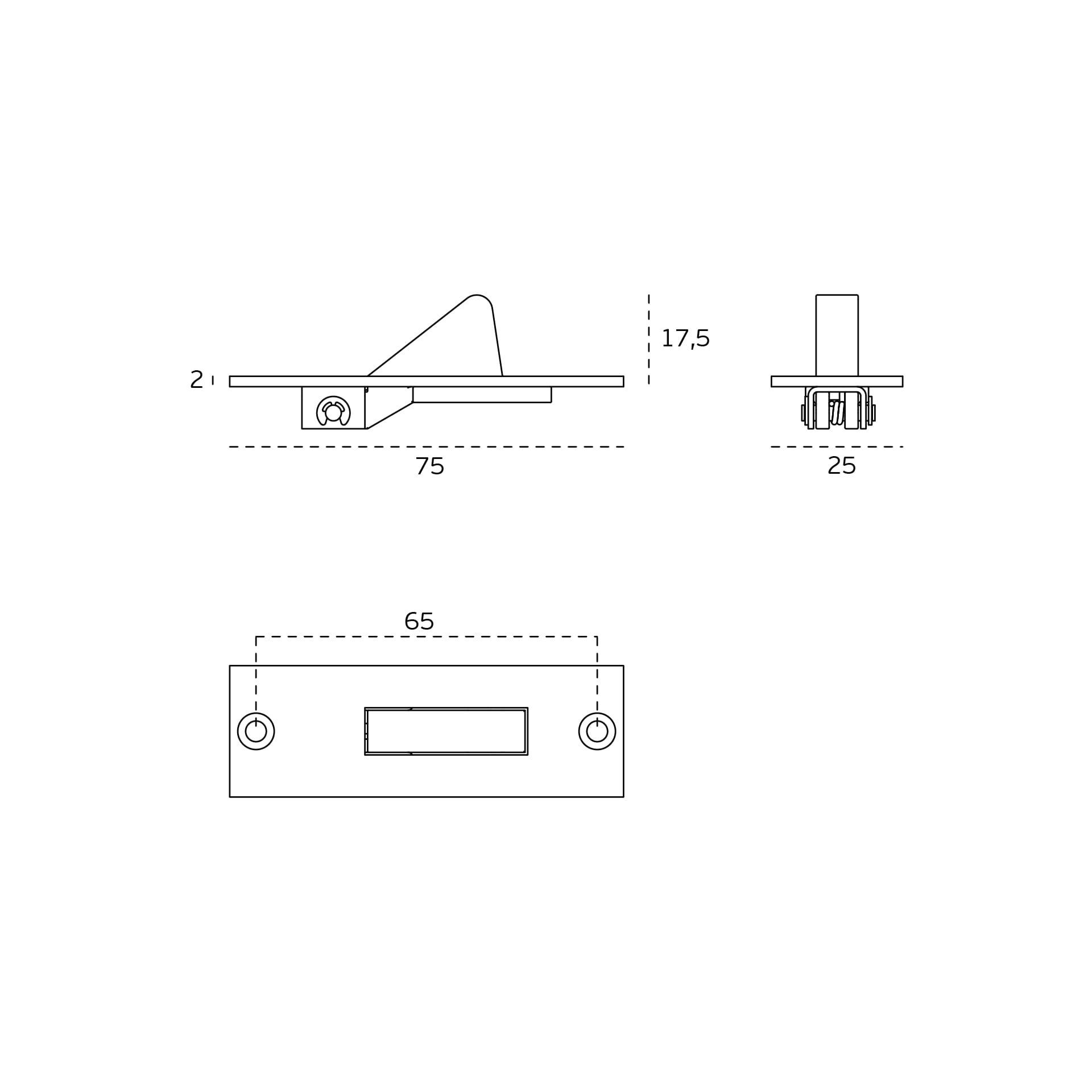

The mounting plate measures 75 x 25 mm and is 2 mm thick. The distance between the mounting holes is 65 mm. The upright stop has a height of approximately 17 mm above the mounting plate. According to the technical drawing, an installation depth of approximately 23 mm must be taken into account under the mounting plate.

Miguel Vasconcelos ' design combines a compact form factor with practical functionality. The door stopper is manufactured from stainless steel EN 1.4301 (AISI 304) and features a matte, finely brushed satin finish. The hinged stop is finished in black.

The door stopper is supplied individually, including two mounting screws and two plugs.

Technical specifications

Set contents

• JNF built-in door stopper
• 2 mounting screws of 3.5 x 30 mm
• 2 plugs
