JNF ALL IN WC lock set with door handles for glass doors 8–12 mm – Gold PVD

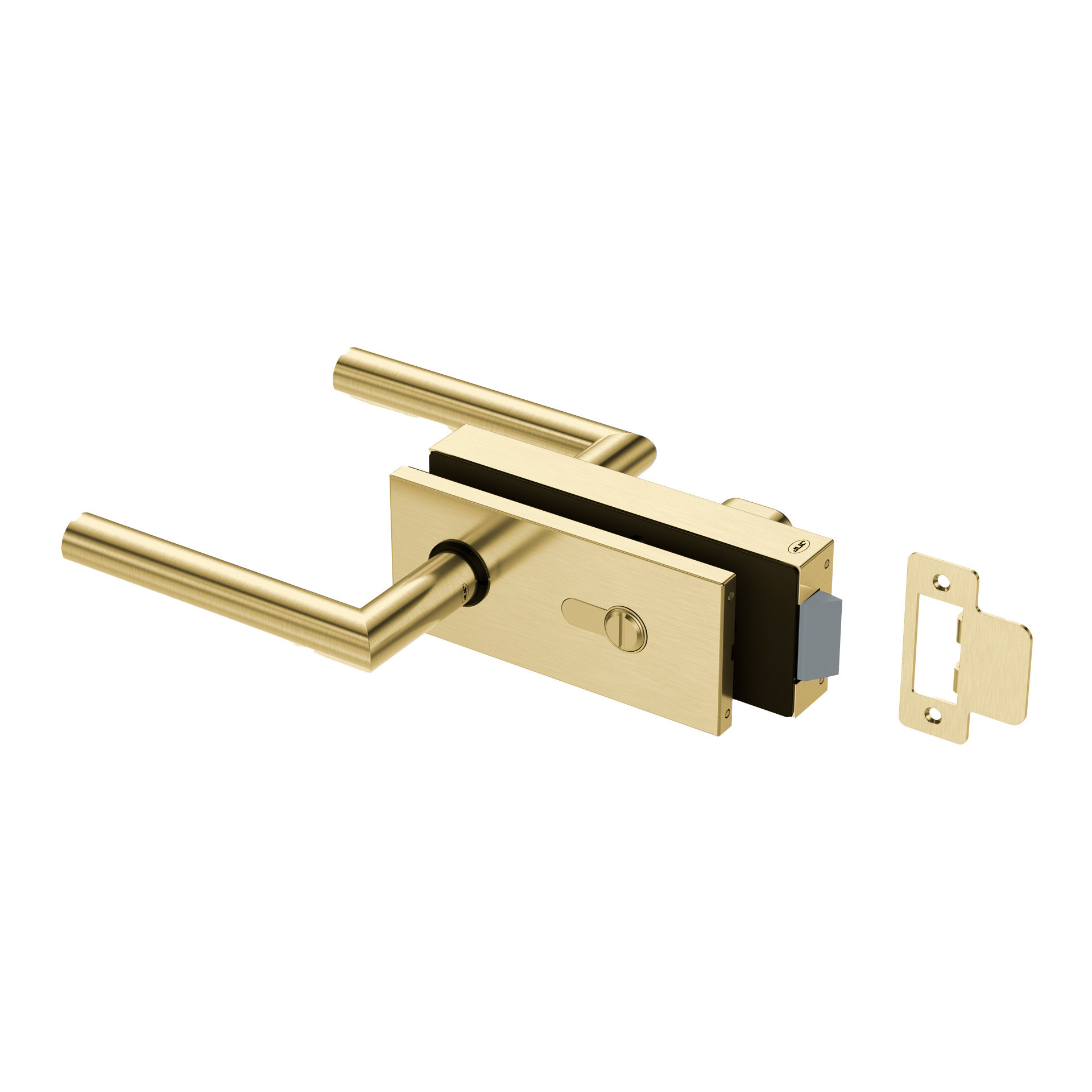

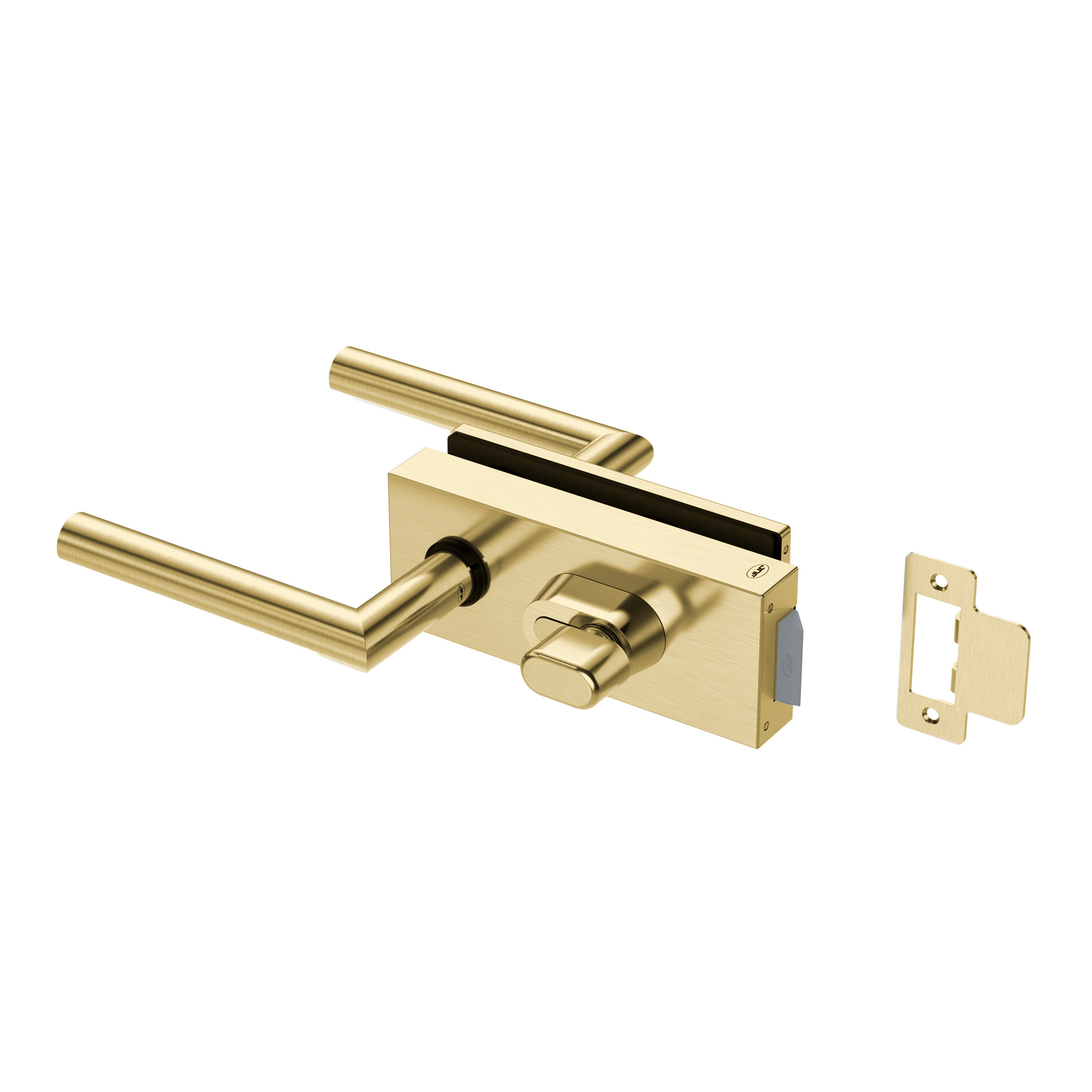

The JNF ALL IN WC lock set is a complete WC lock set for glass doors with a glass thickness of 8 to 12 mm . The set includes not only the glass door lock, but also the matching door handles, cylinder, knob, and strike plate. As a result, everything together forms one complete solution for a glass WC or bathroom door.

The door is locked from the inside with the supplied rotary knob. An emergency release is provided on the outside, so that the door can also be unlocked from the outside if necessary.

The set comes with the JNF door handles and an adjustable and reversible strike plate . This allows the strike plate to be adapted to the mounting and opening direction of the door.

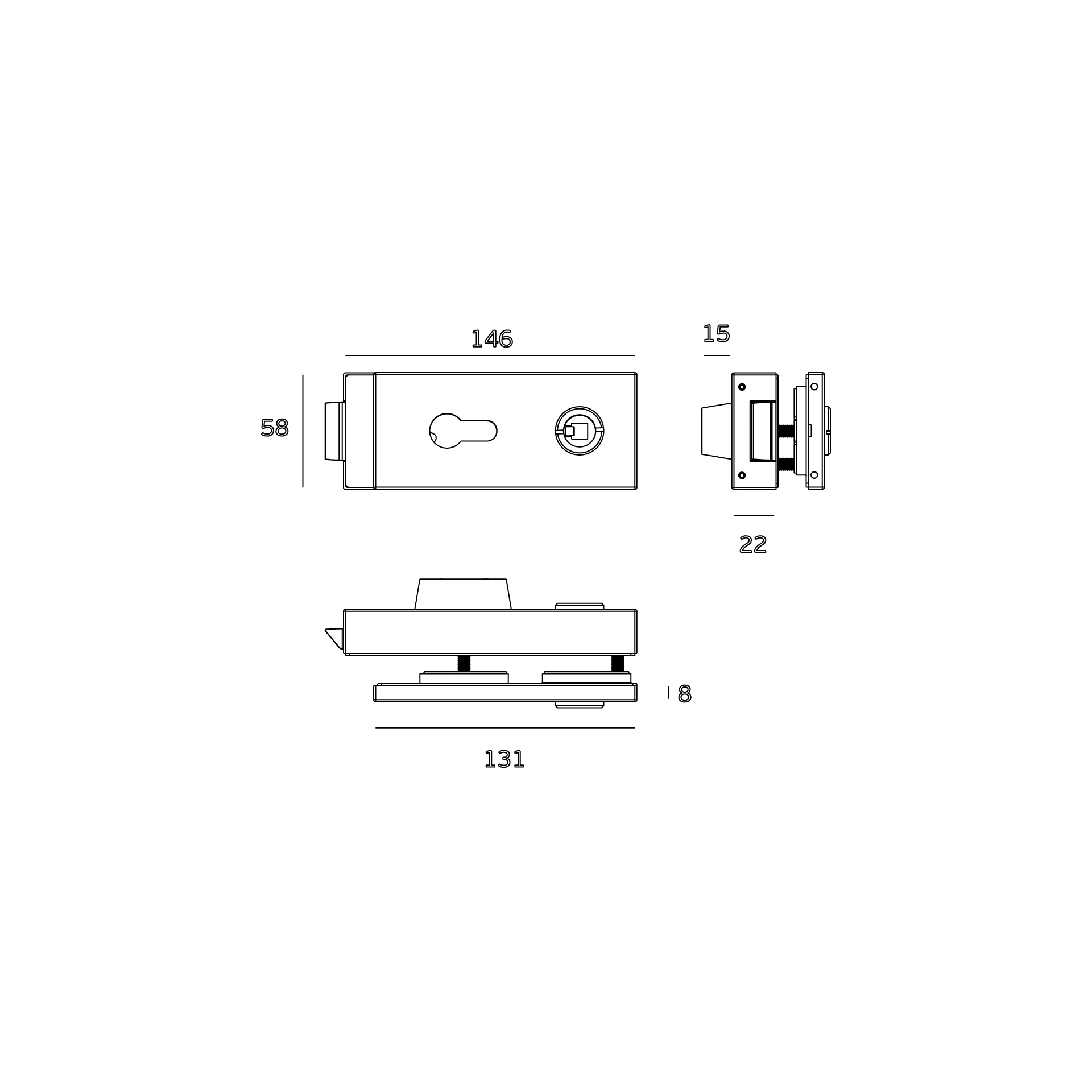

The lock housing measures 146 x 58 mm . According to the technical drawing, the thickness of the lock case is 15 mm and the total construction is 22 mm. The visible cover plate has a thickness of 8 mm.

The fittings are manufactured from EN 1.4301 (AISI 304) stainless steel and finished in PVD titanium gold . The set has a Grade 2 classification.

Complete set for glass toilet and bathroom doors

• JNF door handles
• Cylinder
• Rotary knob
• Adjustable and reversible strike plate
• WC lock for glass door
• Emergency release on the outside

Technical specifications
