Back JNF ALL IN WC lock set with door handles for glass doors 8–12 mm – Satin stainless steel
JNF Architectural Hardware JNF ALL IN WC lock set with door handles for glass doors 8–12 mm – Satin stainless steel JNF Architectural Hardware JNF ALL IN WC lock set with door handles for glass doors 8–12 mm – Satin stainless steel JNF Architectural Hardware JNF ALL IN WC lock set with door handles for glass doors 8–12 mm – Satin stainless steel JNF Architectural Hardware JNF ALL IN WC lock set with door handles for glass doors 8–12 mm – Satin stainless steel
JNF Architectural Hardware

JNF ALL IN WC lock set with door handles for glass doors 8–12 mm – Satin stainless steel

0 Review(s)
Add to wishlist
€150,00 €109,52 €132,52 Incl. tax Per pair
Free shipping
- +
Delivered in: 10-12 Weeks
Europe-wide shipping
Money back guarantee
For private and professional customers
Become a business customer and take advantage of special purchase prices! Click here to request an account.
Description Complete JNF ALL IN WC lock set with door handles for 8–12 mm glass doors in satin stainless steel. Includes cylinder, turn knob, emergency release, and adjustable/reversible strike plate.
Article code: IN20361K

JNF ALL IN WC lock set with door handles for glass doors 8–12 mm – Satin stainless steel

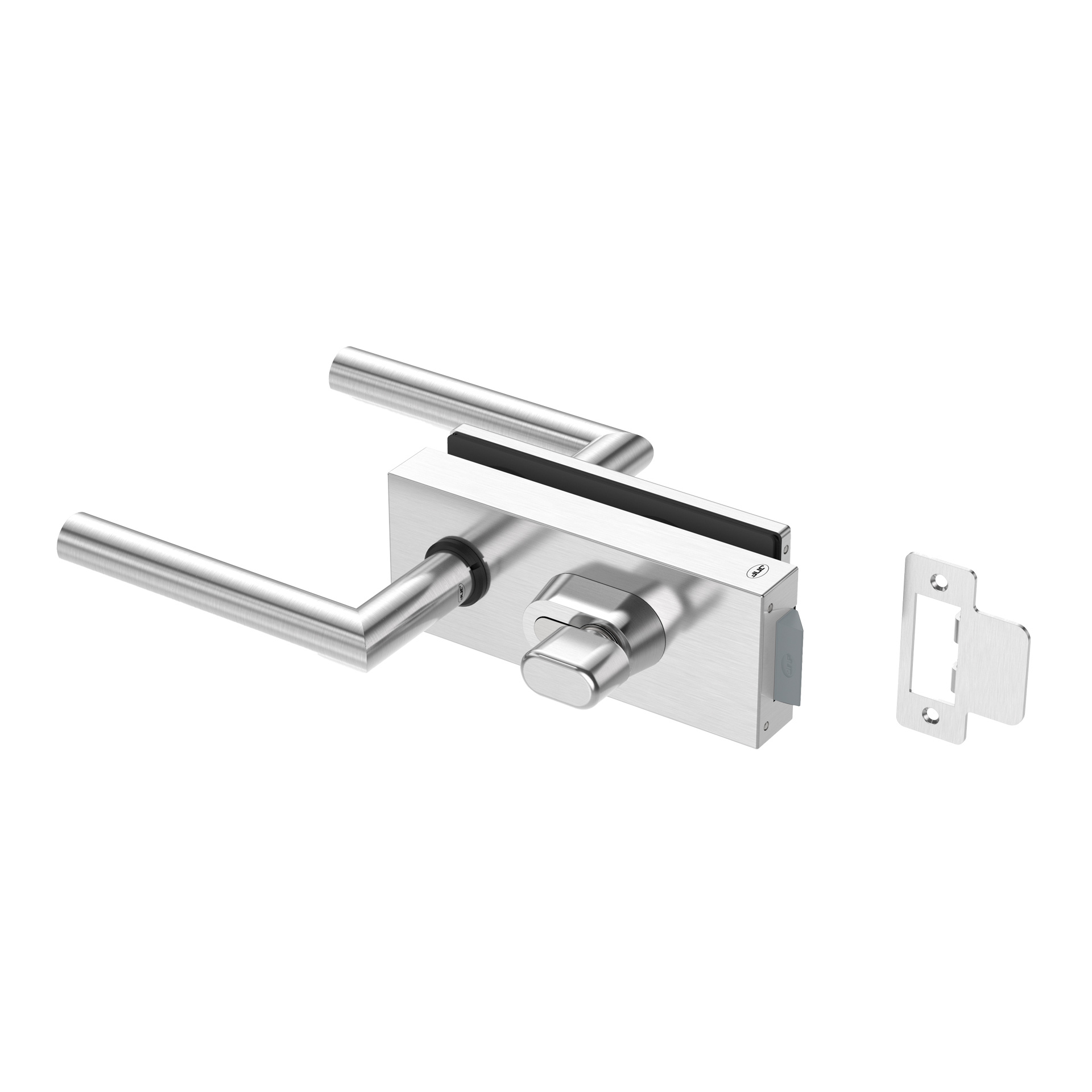

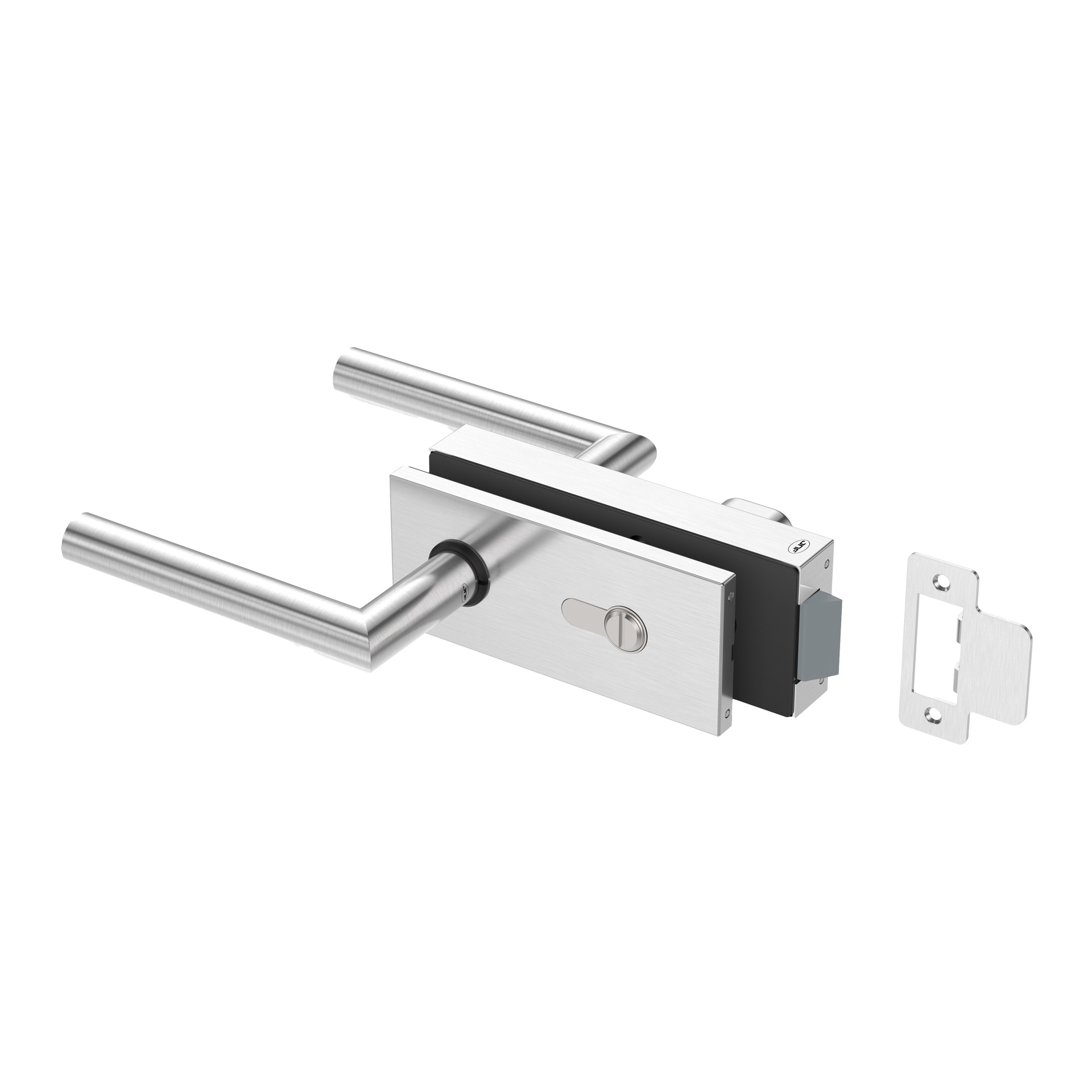

The JNF ALL IN IN.20.361.K is a complete WC lock set for glass doors with a glass thickness of 8 to 12 mm . The set includes not only the glass door lock, but also the matching door handles, cylinder, knob, and strike plate. As a result, everything together forms one complete solution for a glass WC or bathroom door.

The door is locked from the inside with the supplied rotary knob. An emergency release is provided on the outside, so that the door can also be unlocked from the outside if necessary.

The set comes with the JNF IN.00.030.SR door handles and an adjustable and reversible strike plate . This allows the strike plate to be adapted to the mounting and opening direction of the door.

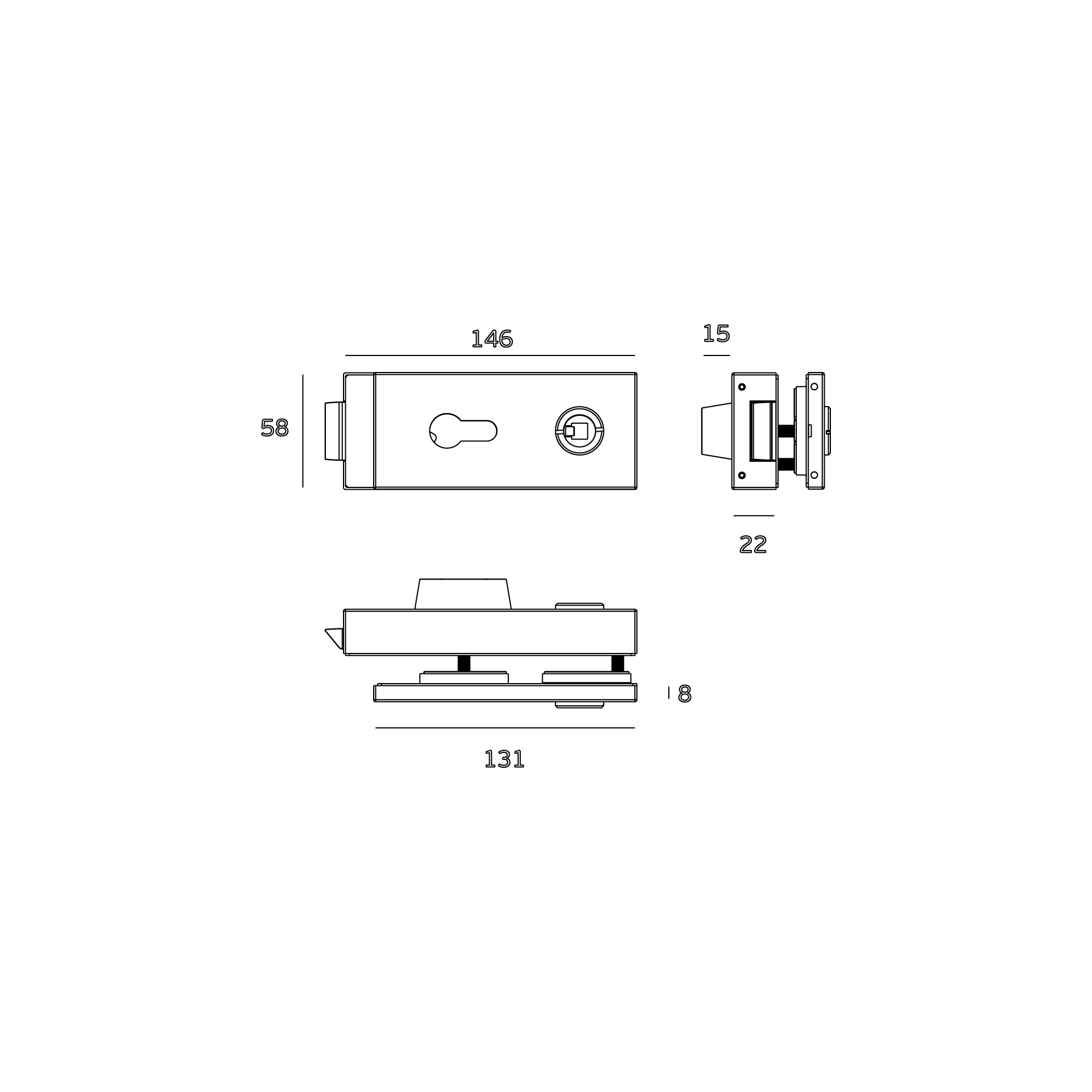

The lock housing measures 146 x 58 mm . According to the technical drawing, the thickness of the lock case is 15 mm and the total construction is 22 mm. The visible cover plate has a thickness of 8 mm.

The fittings are manufactured from EN 1.4301 (AISI 304) stainless steel and finished in satin stainless steel . The set has a Grade 2 classification.

Complete set for glass toilet and bathroom doors

  • JNF door handles IN.00.030.SR
  • Cylinder IN.19.S11.F.30.30.SB
  • Rotary knob IN.19.B7
  • Adjustable and reversible strike plate IN.20.364
  • WC lock for glass door
  • Emergency release on the outside

Technical specifications

Brand JNF Architectural Hardware
Series ALL IN
Product type Complete toilet lock set with door handles for glass doors
Application Glass toilet and bathroom doors
Function toilet/bathroom lock
Glass thickness 8–12 mm
Lock housing dimensions 146 x 58 mm
Lock case thickness 15 mm
Total structure 22 mm
Thickness of cover plate 8 mm
Internal locking mechanism Rotary knob
Emergency release Yes, on the outside
Striker plate Adjustable and reversible
Material EN 1.4301 (AISI 304) stainless steel
Finish Satin stainless steel
Classification Grade 2
Sales unit Per set
