Description

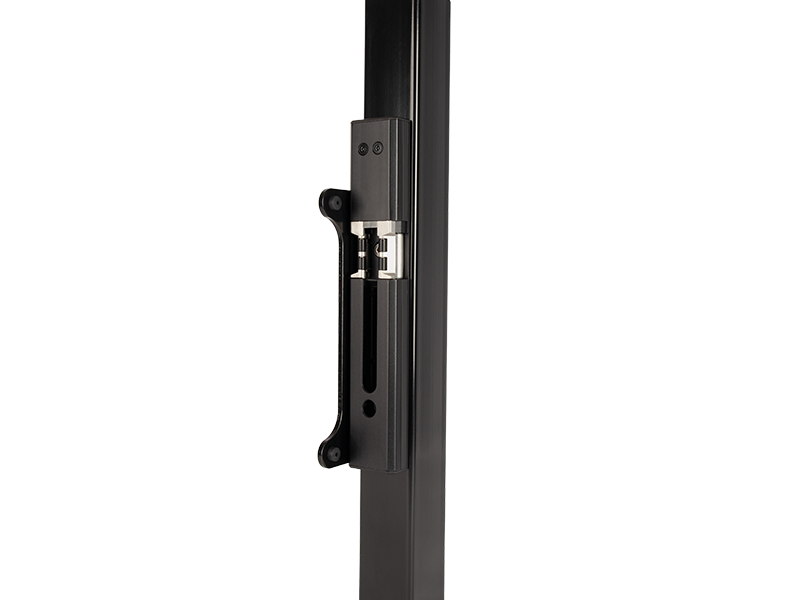

Locinox electric strike MODULEC-SF suitable for built-in locks forty-fifty and sixtylock
Article code: DSP00011177
Introducing our easy-to-mount electric strike, specially designed for mounting on mortise locks, complete with a discreet stop plate.
The patented Quick-Fix mounting system guarantees quick installation, without the need for welding or drilling. The housing is black anodized, ensuring a rust-free and scratch-resistant experience for many years. This striker can be connected to both 12V - 24V and AC/DC power supplies. The Modulec-SF is available in two variants: E (Emissa - Normally Closed) and R (Ruptura - Normally Open) and in a black and aluminum version.
Choose your color and closed or open variant in the scrolling menu at the top right.

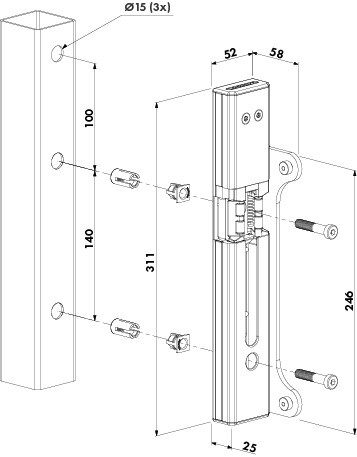

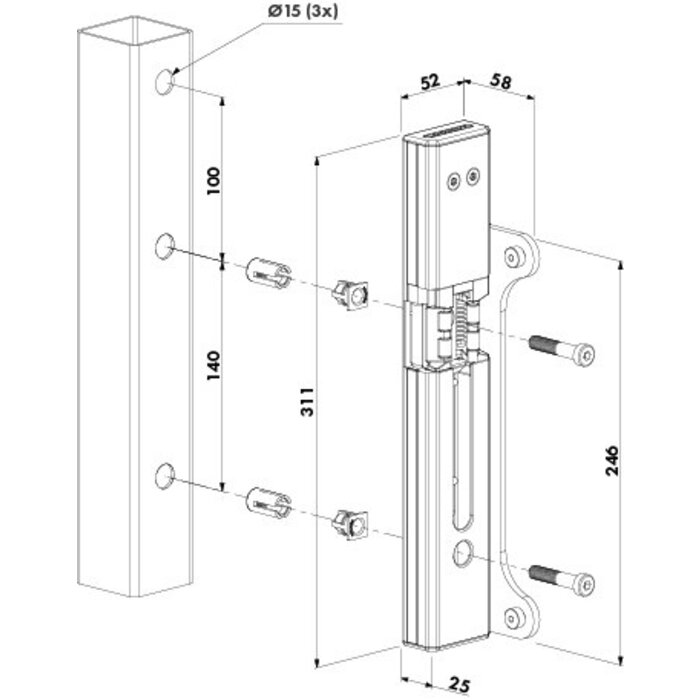

You will find all dimensions on the attached drawing.
Read the specific features below:
- Tested on 500,000 movements
- Simple and fast installation with Quick-Fix
- Resistance to pressure on the day pin: 300 kg
- Simple left and right conversion
- Extremely corrosion-resistant: black anodized aluminum housing
- Adjustable for (square) gate profile 40-60 mm
- Voltage: 12V-24V AC/DC
- Consumption: 12V - 1.25A / 24V - 0.62A
- Power: 15W
- Available in two colours: RAL 9005 & ALUM
