Mounting set Series A for single-sided door handles on wooden doors
The Series A Mounting Set has been developed for mounting single-sided door handles on wooden doors . With this, a door handle can be securely attached to the inside or outside of a wooden door.
The set is suitable for applications where only one door handle is mounted, such as on front doors, back doors, gates, and other wooden doors. The mounting ensures a stable and neat installation.

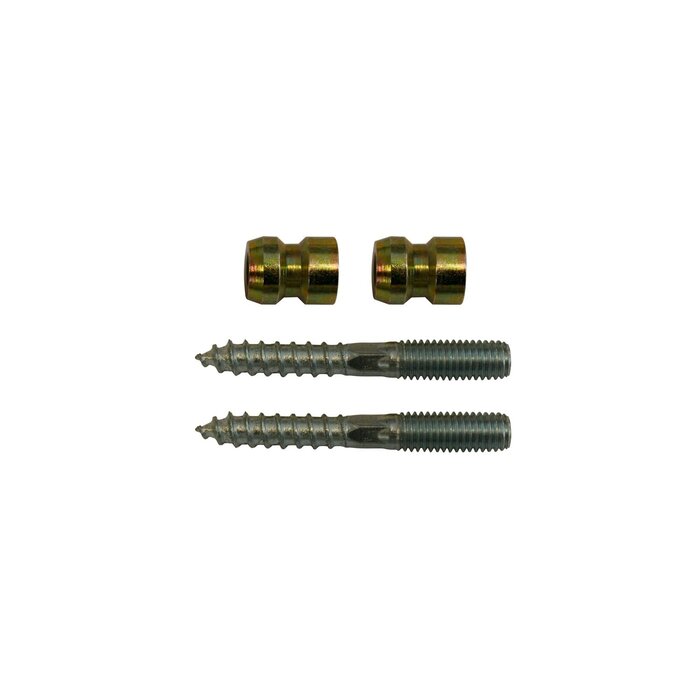

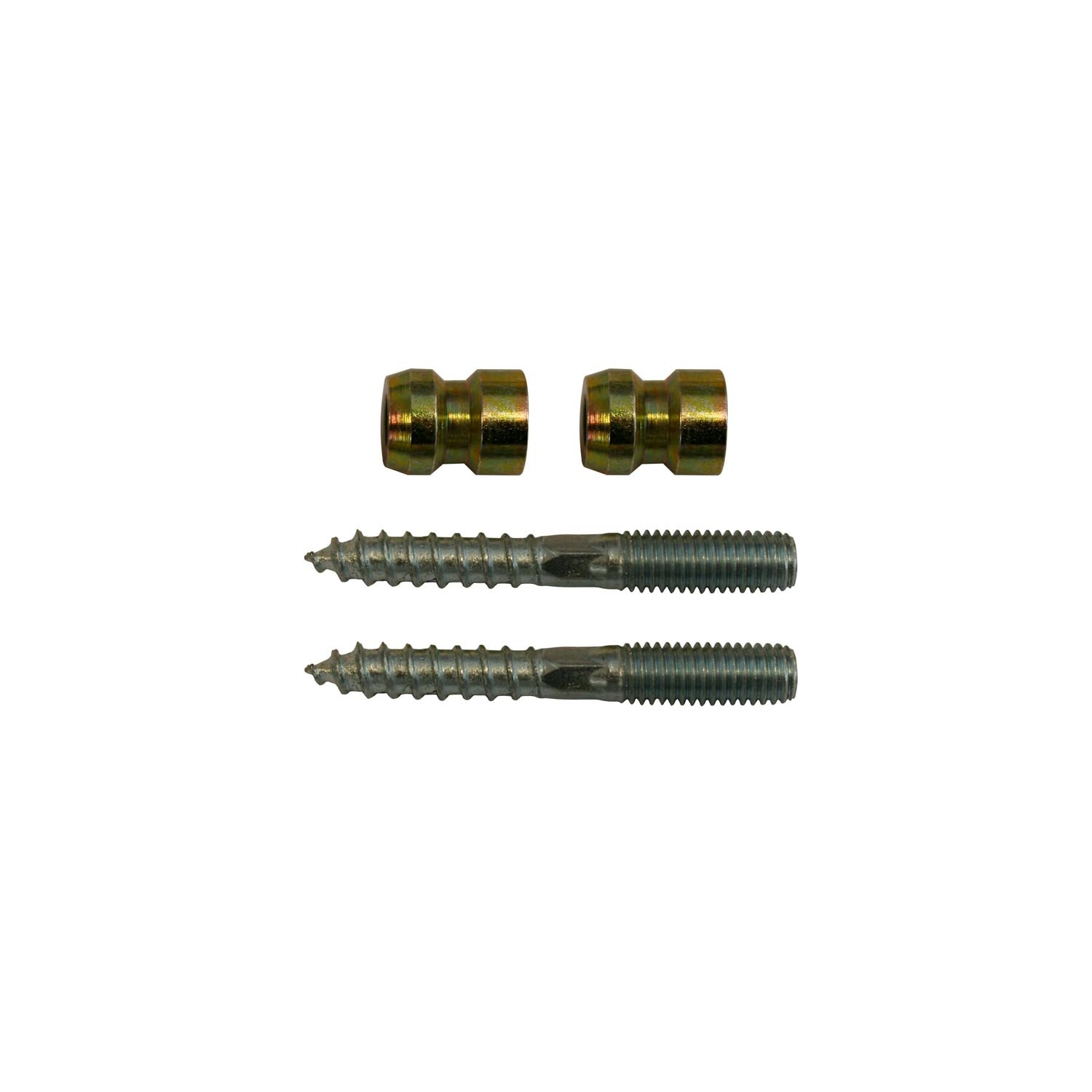

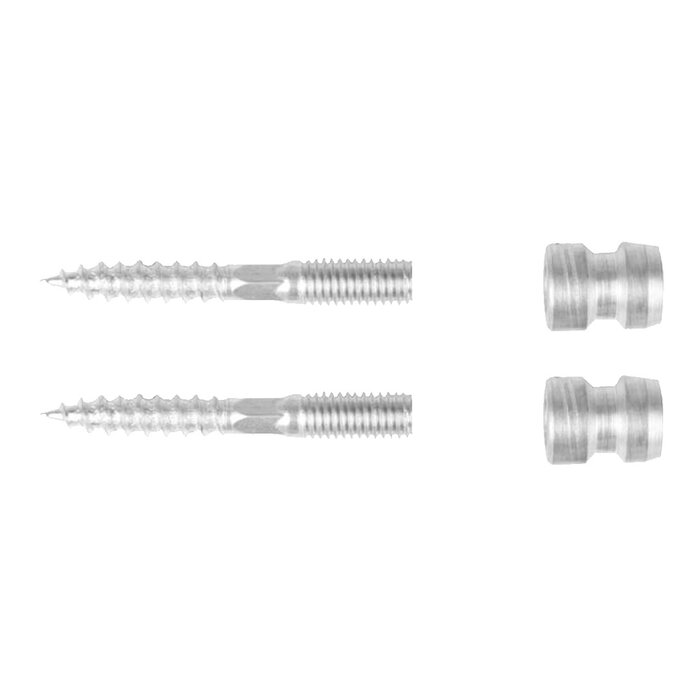

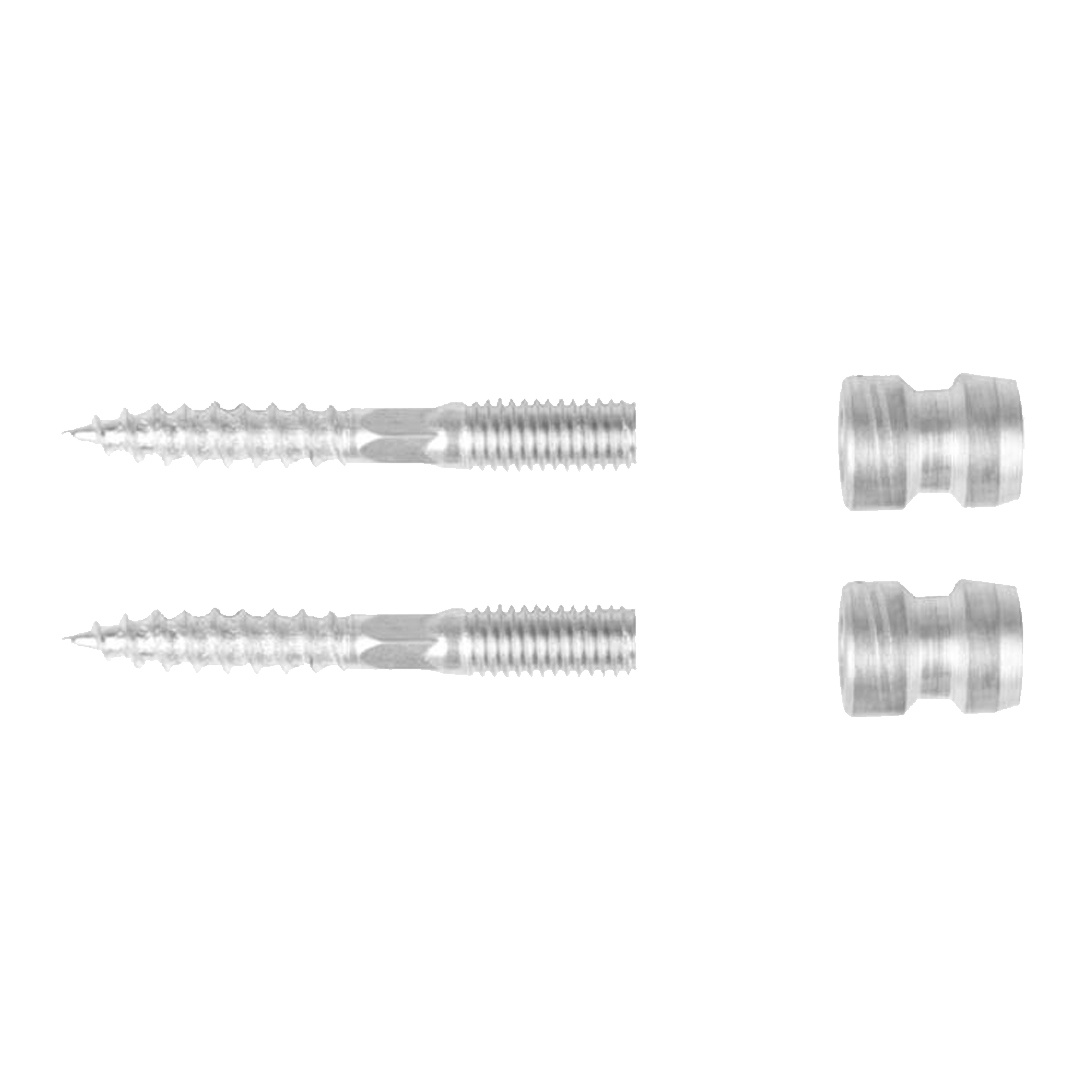

The mounting set includes an M8 stud screw with a length of 60 mm . A diabolo with a diameter of 13 mm is screwed onto this stud screw. This combination forms the connection for the single-sided mounting of the door handle.
Technical specifications
| Product type | Mounting kit |
| Execution | Serie A |
| Application | Single-sided door handles |
| Suitable for | Wooden doors |
| Assembly | Single-sided mounting |
| Stock screw | M8 |
| Length of stud screw | 60 mm |
| Diabolo diameter | 13 mm |
| Diabolo attachment | Screws onto the M8 stud bolt |
| Delivery | Per set |
