Description
Narrow shield safety fitting equipped with 2 x a PHL door handle with a PZ axle size of 72, 92 or 110 mm
Article code: 8539
This extra narrow security fitting fits on any door, even on narrow profiles.
Thanks to the standard dimensions of the axle size (72mm-92mm-110mm), your current fittings can be replaced without any problems.
This model is equipped with a narrow shield of 250x30mm and available with a PZ axle size of 72, 92 or 110mm. The desired axle size (72, 92 or 110mm) can be selected above in the scroll menu.

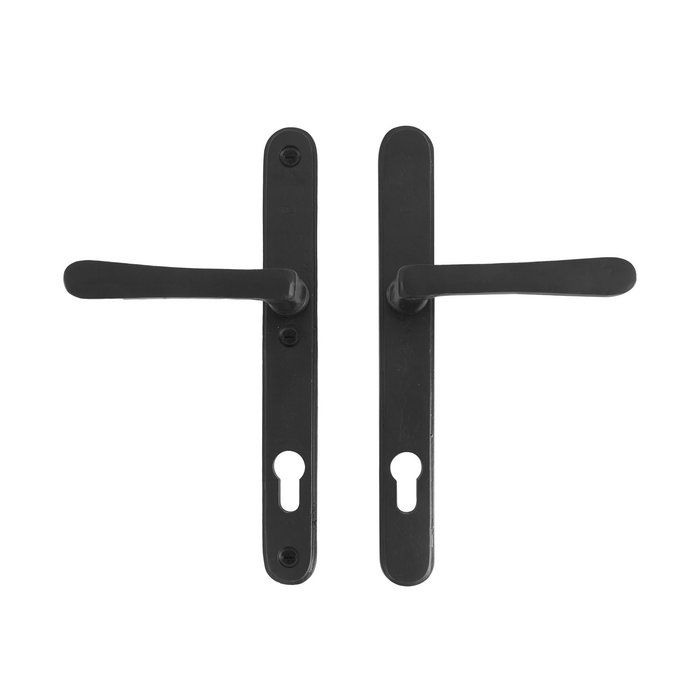

The safety fitting in aged iron is fitted with an L-shaped Pure® PHL door handle on both sides.
These black safety fittings are not spring-loaded and are supplied with mounting materials. The country safety fittings are suitable for three-point locks.
| Interior style | Countryside - Rustic - Robust |
| Material | Aged iron (VO) |
| Colour | Black |
| Material lower rosette | |
| Shield size | 250x30 mm |
| Thickness Shield | 7mm |
| Suitable for outdoor use | Yes |
| Feathered | No |
| Suitable for door thickness | 38-43 mm |
| Pin door handle | 8x8 mm |
| Pen toilet set | NVT |
| Distance between mounting holes | 217 mm |
| Mounting material | Included |
