Description

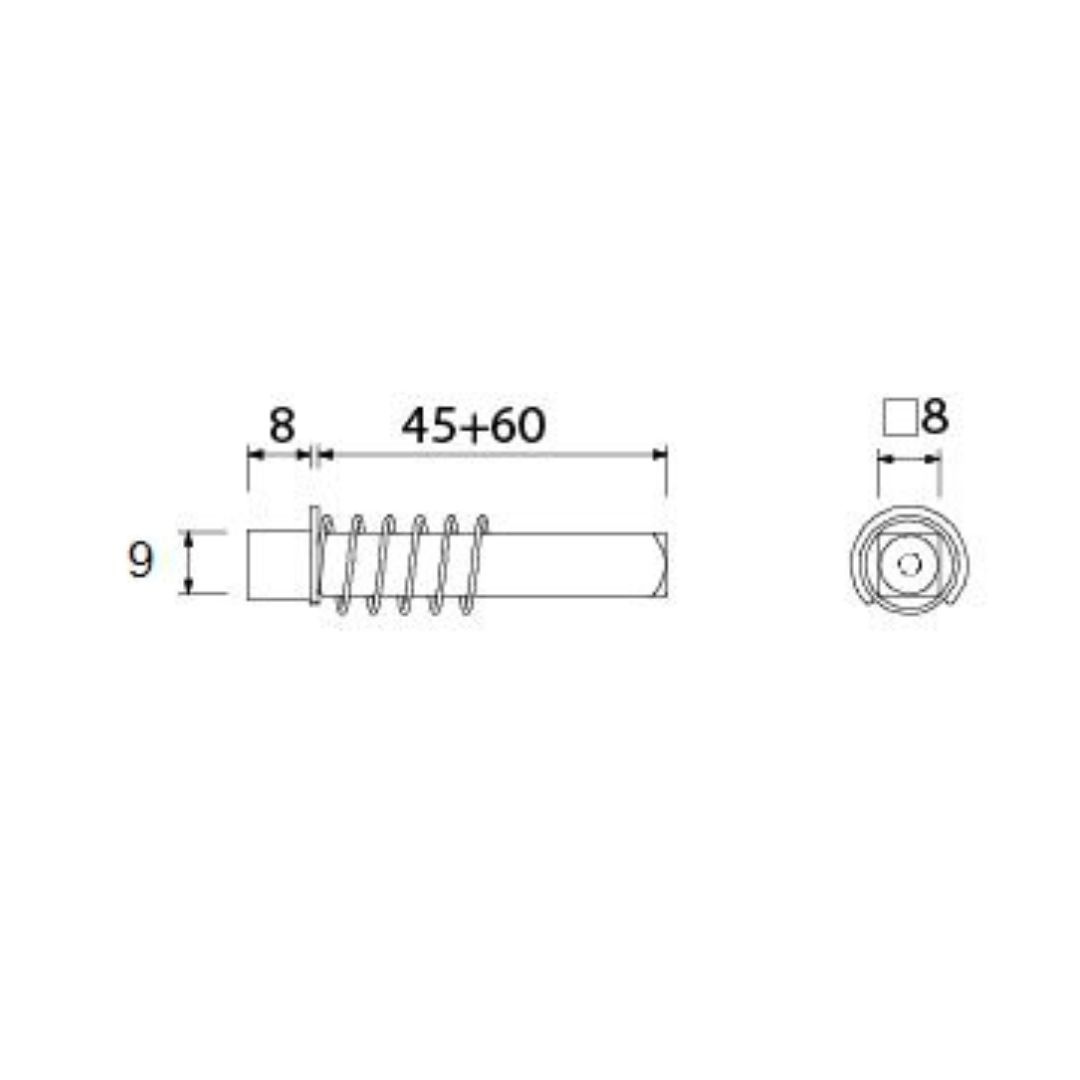

Single-sided adapter pin 8–9 mm DD for panic locks. Available for door thickness: 38-42 mm or 53-57 mm
Article code: 0170.999.0105

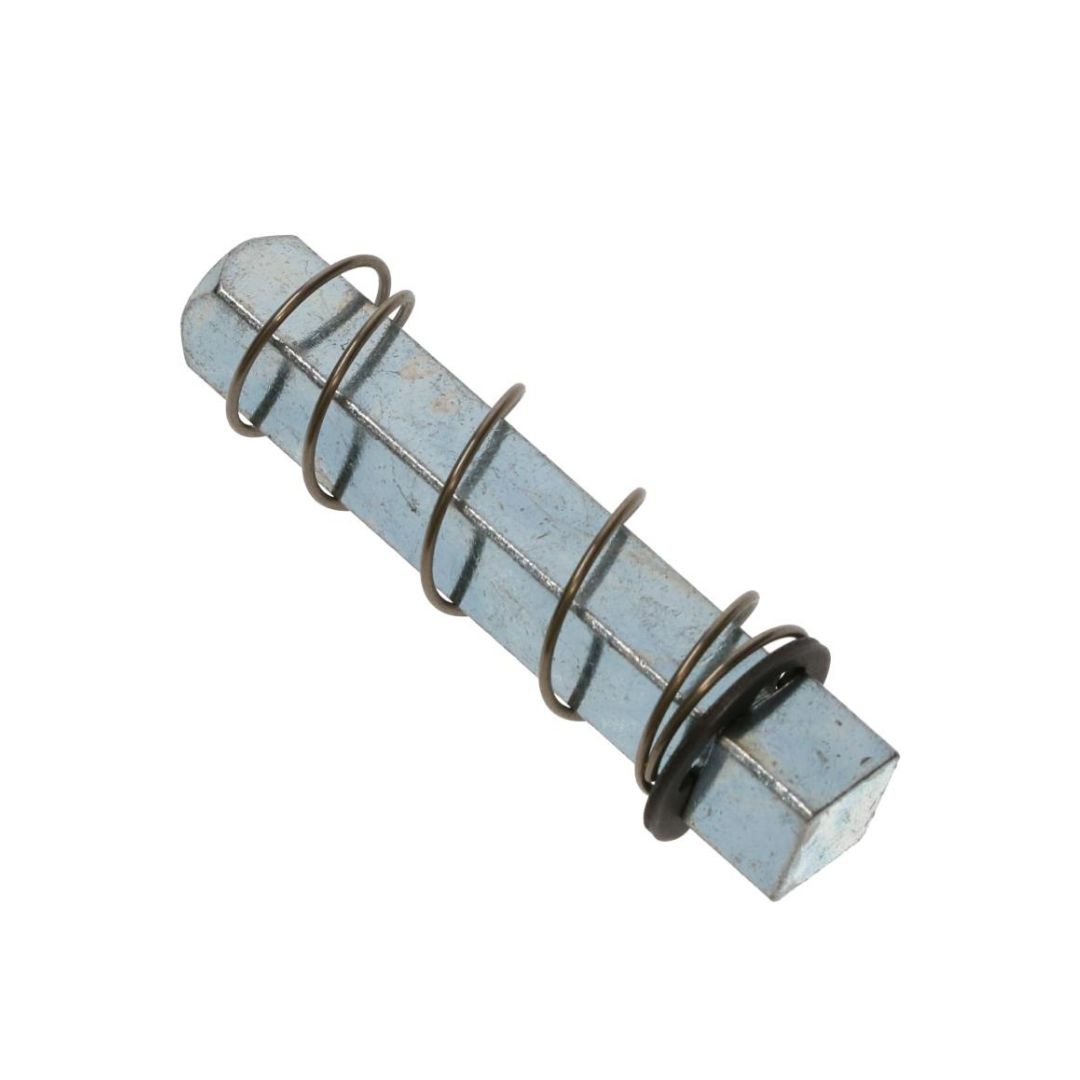

This single-sided adapter spindle 8–9 mm DD from AMI is designed for use with panic locks . The spindle makes it possible to combine an 8 mm door handle on one side with a 9 mm socket in the lock, which is often required for panic hardware with specific handle and lock combinations.
The adapter spindle is suitable for door handles mounted on a backplate that are lock-tight or rot-spring lock-tight . This type of spindle is used when a standard square spindle is insufficient and is essential for the correct, safe, and reliable installation of panic hardware.
This adapter pin is available in multiple variants, matched to the door thickness.
| Material | Steel |
| Variants (door thickness) | 38 – 42 mm or 53 – 57 mm |
| Suitable for | Standard interior doors and project doors with panic hardware |
| Thicker doors such as fire and escape doors | |
| Square size | 8 – 9 mm (DD) |
| Execution | Single-sided |
| Assembly | Door handles mounted on backplate |
| Suitable for crutches | Lockable and spring-loaded lockable door handles |
| Function | Connects an 8 mm door handle to a 9 mm lock pickup |
