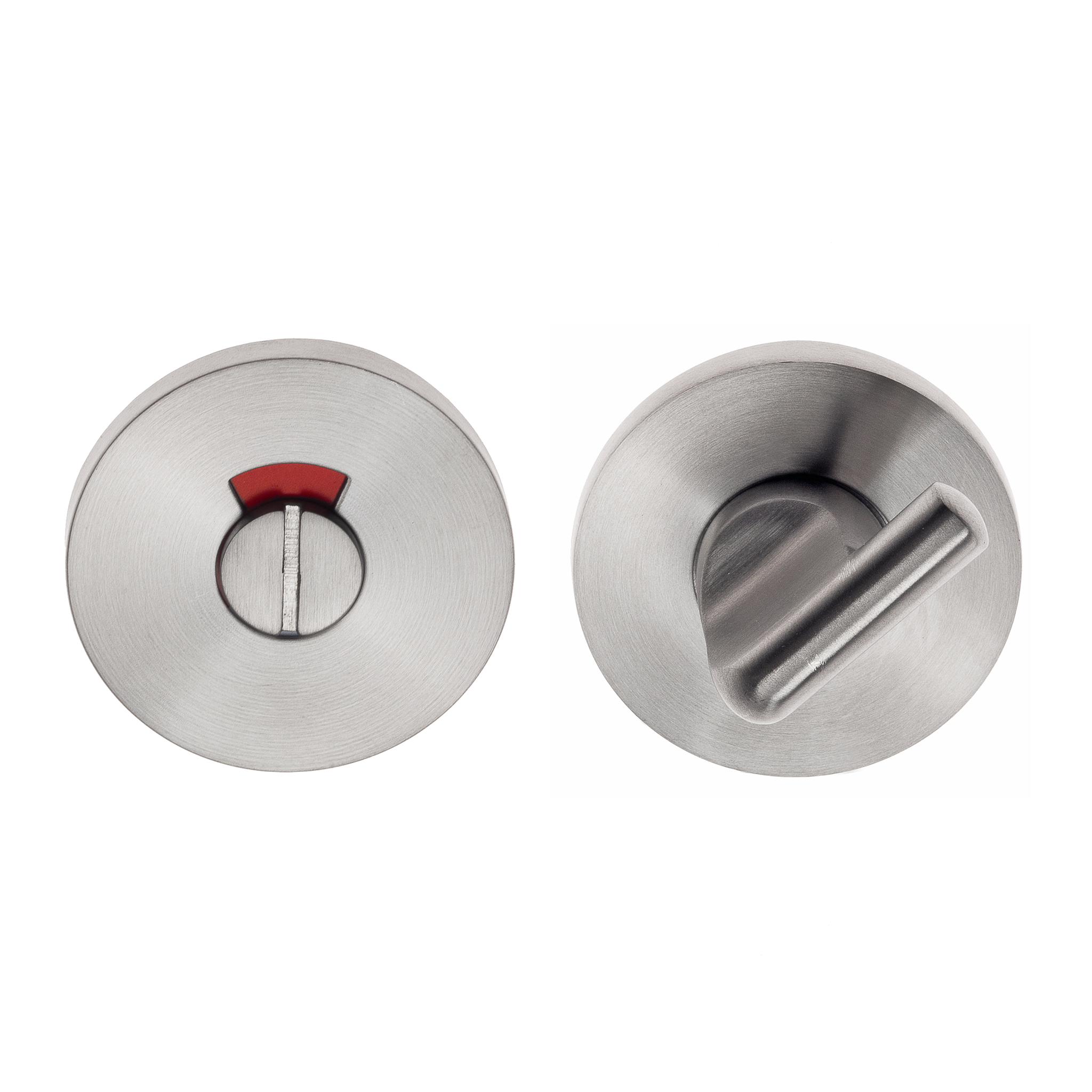

Toilet set with knob – Ø53 mm – Finely brushed stainless steel
This toilet set is made of finely brushed AISI 304 stainless steel and features a standard knob for locking and unlocking a toilet or bathroom door.

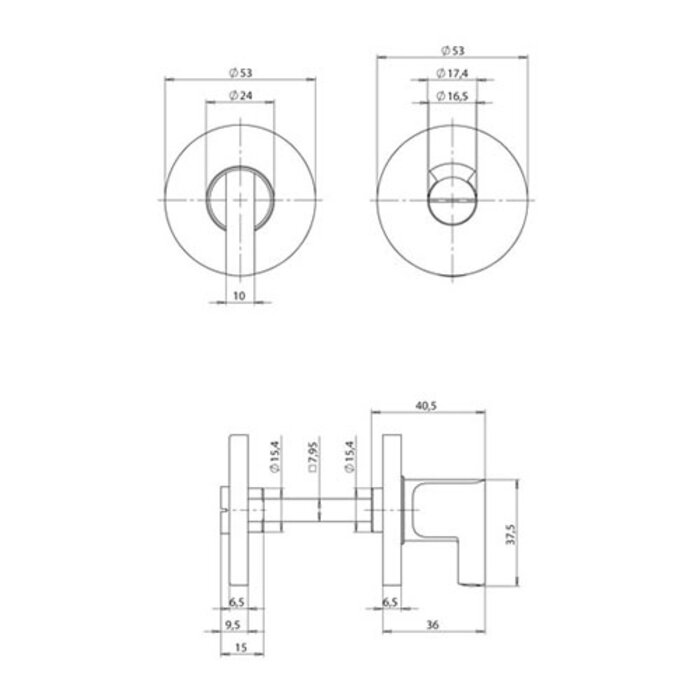

The round rosettes have a diameter of 53 mm and are only 6 mm thick . The control knob has a length of 37 mm and operates with an 8 mm square spindle.
The fitting is equipped with a vacant/occupied indicator . The fixing is concealed after installation as the cover rosettes are pressed onto the stainless steel substructure.
The substructure is also manufactured from AISI 304 stainless steel and features two hexagonal screw holes. The fitting is supplied without lugs, and the necessary mounting kit is included.
Technical specifications
| Product type | toilet set |
| Operation | Standard button |
| Button length | 37 mm |
| Free/occupied indicator | Yes |
| Form | Around |
| Rosette diameter | 53 mm |
| Rosette thickness | 6 mm |
| Material | Stainless steel AISI 304 |
| Finish | Finely brushed stainless steel |
| Substructure | Stainless steel AISI 304 |
| Square marker | 8 mm |
| Confirmation | Invisible |
| Mounting method | M4 sleeve screws or wood screws |
| Cams | Without cams |
| Mounting kit | Included |
| Sales unit | Per piece |
