Description

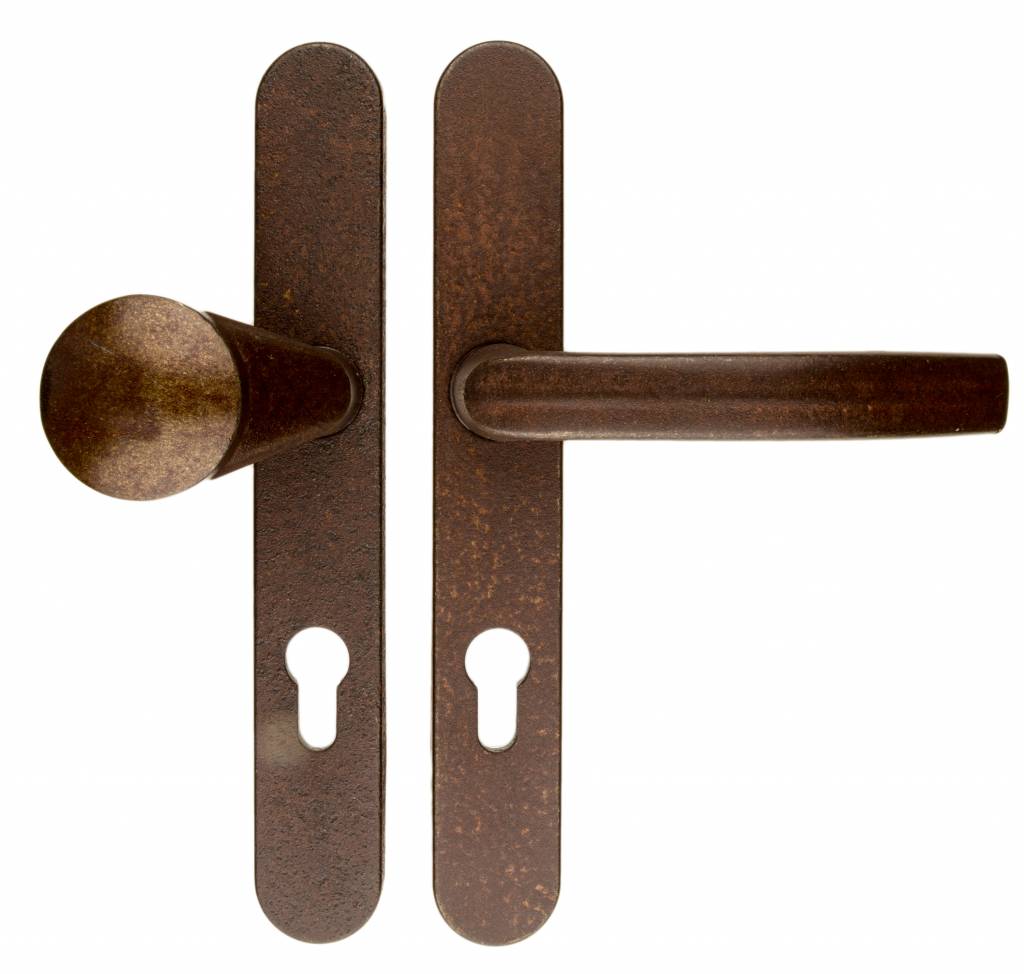

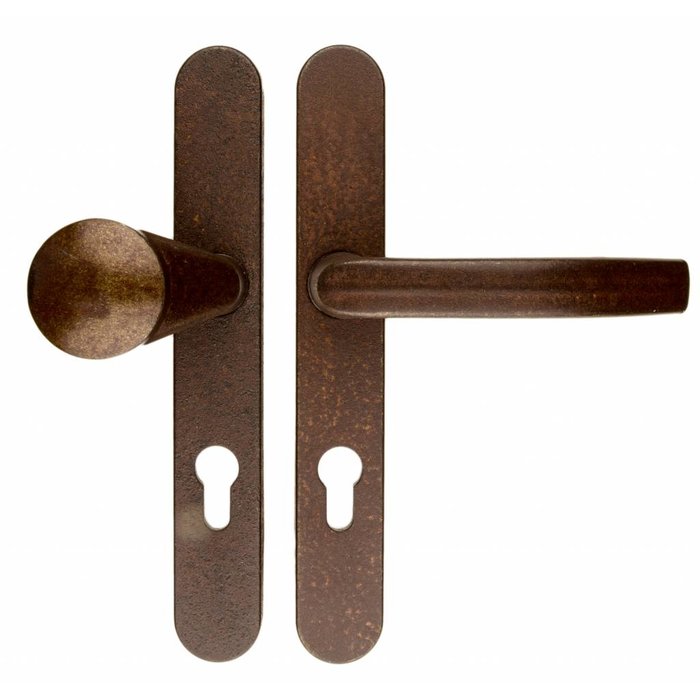

Rust-colored safety fitting in handle + top version with lock size 72 or 92 mm
Article code: 1217071
These safety fittings have a rust-colored finish.
This set has a crank on one side and a fixed top on the other side.
The lock size of these safety fittings is 72 or 92 mm. Make your choice in the scroll menu at the top right.

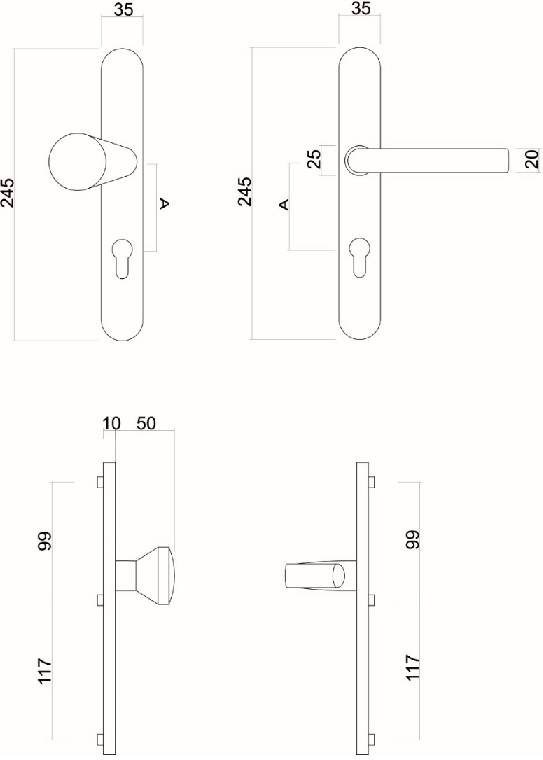

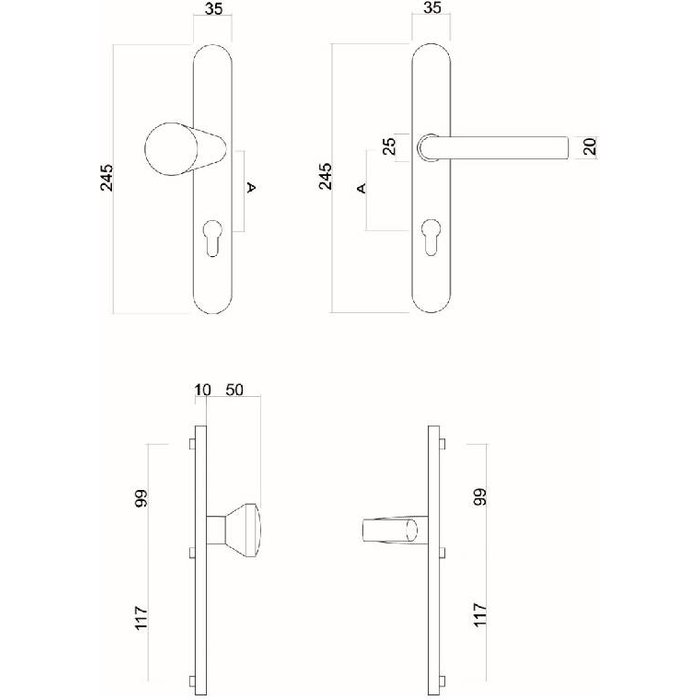

The lock size (A) is the distance from the center of the handle to the center of the cylinder.
This complete set has an invisible mounting and is supplied with mounting materials.
2 pins are included (120 mm and 135 mm, 8x8mm), so that the safety fitting can be used for all door types.
| Interior style | Country - Rustic - Classic |
| Material | Stainless steel |
| Colour | Rust (natural - brown) |
| Material lower rosette | Plastic |
| Shield size | 245x35xmm |
| Thickness Shield | 10mm |
| Suitable for outdoor use | Yes |
| Feathered | Yes, double, down and up |
| Suitable for door thickness | 38-43 mm |
| Pin door handle | 8x8 mm |
| Pen toilet set | 6x6mm with reducing sleeve 6<8 mm |
| Distance between mounting holes | 217 mm |
| Mounting material | Included |
