Description
Magnetic lock for cylinder with rounded front plate, axle size of 85 mm and a 50 mm spine in white with counter plate
Article code: 1191101
Please note: mounting screws are not included and are not available in white. We recommend the stainless steel screw set, which you can find in the related products.

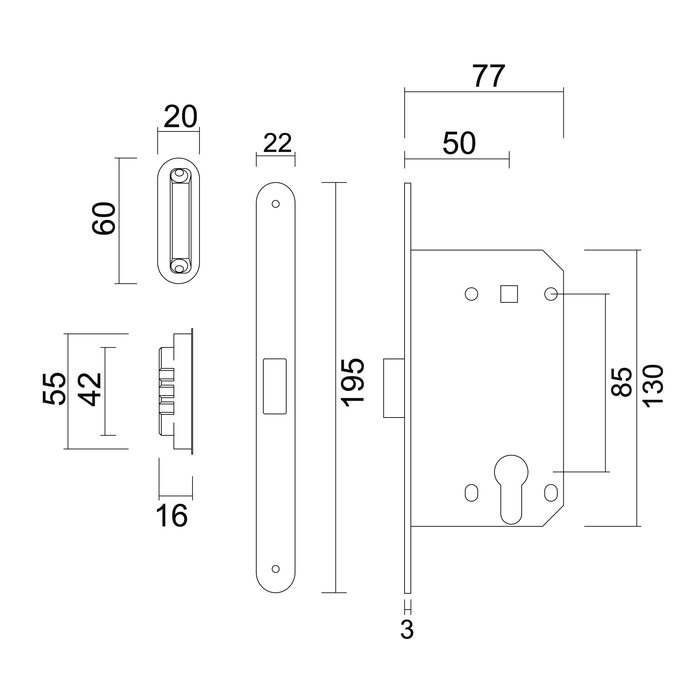

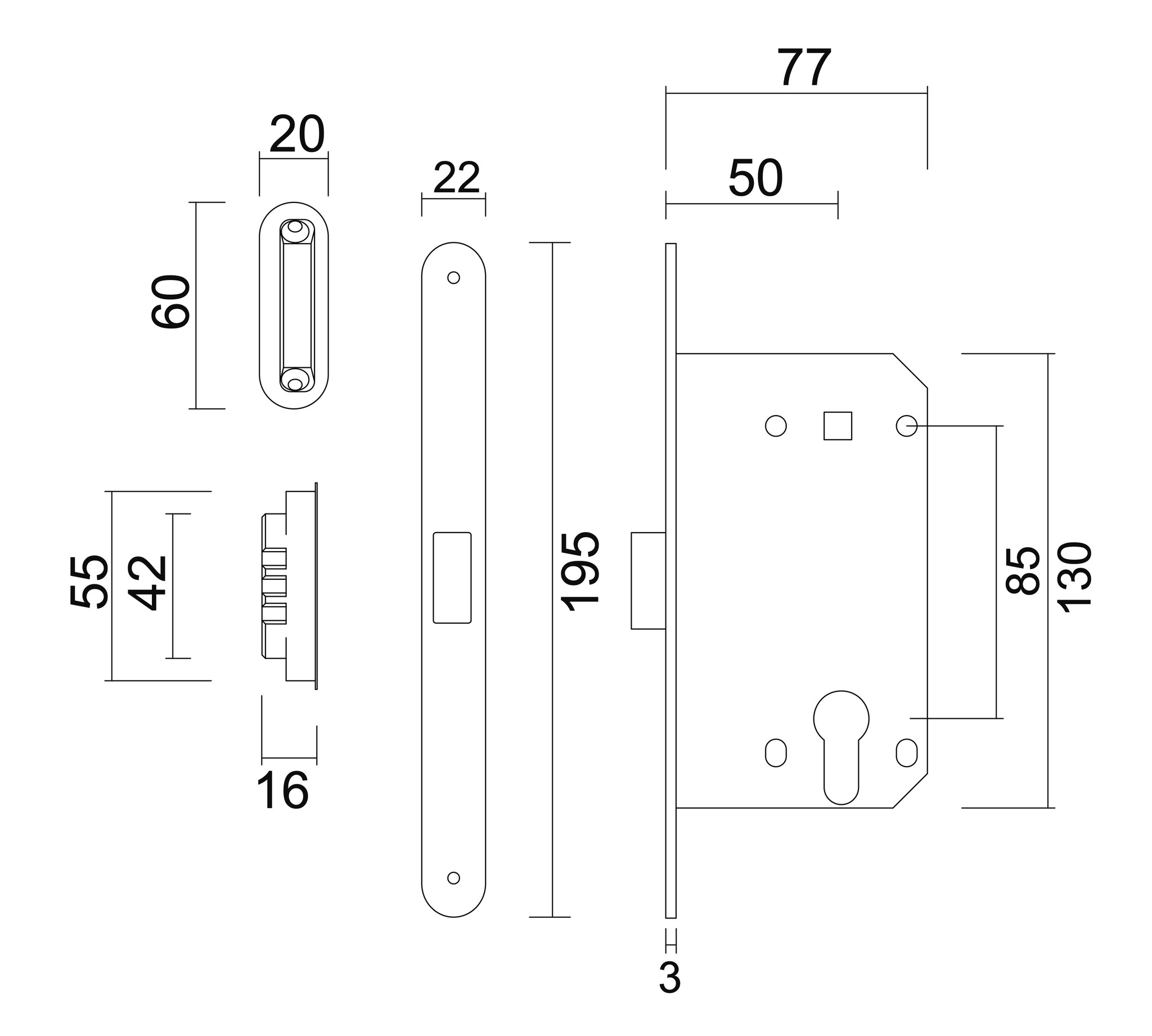

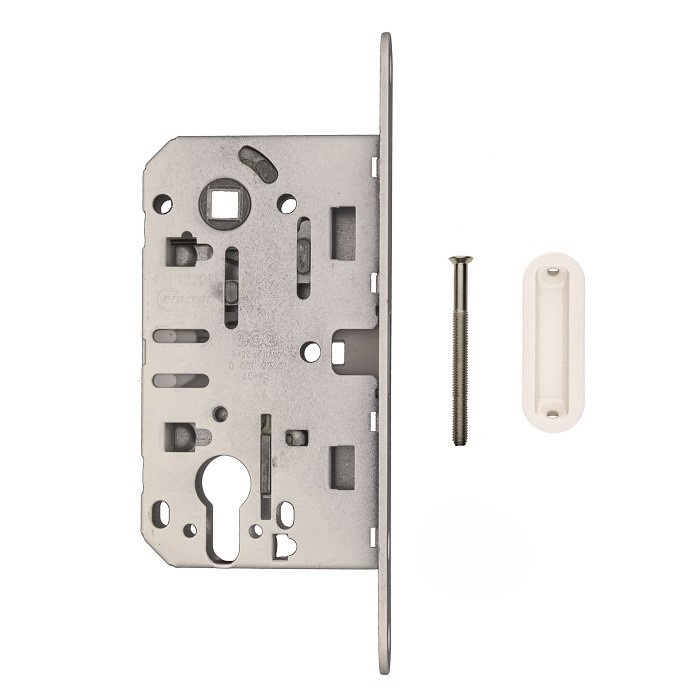

This AGB magnetic lock with cylinder opening has a white front plate 22 mm wide and 195 mm high. The axle is 85 mm and the backset is 50 mm.
Magnetic locks have the advantage of no protruding latch bolt, preventing the door from getting caught when the door is open. If your hands are full, you can close the door without having to turn the handle.
This white magnetic lock can be used for both left- and right-turning doors and is supplied with a counterplate.
| base | brass |
| unit | piece |
| colour | white |
| front panel dimensions | 195x22 mm |
| cylinder axle size | 85 mm |
| thorn size | 50 mm |
| crank hole opening | 8x8 mm |
| mounting material | not included |
