Description

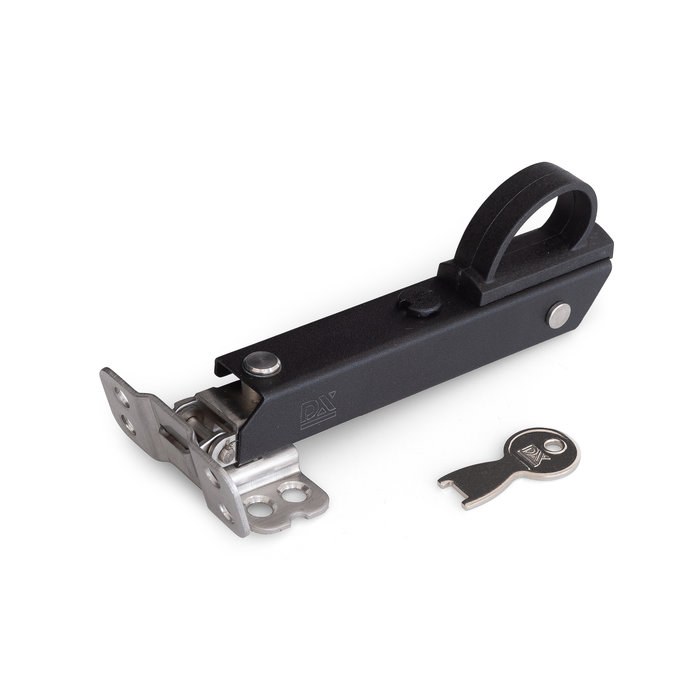

Short black retractable window stay with a total length of only 140 mm and a stainless steel interior SKG**
Article code: 0218.104.0409
People often try to break in through the skylight, which is the small window above a window or door. Often this is ajar or locked in a very simple way.
Secure your skylight with the retractable SKG** DX window stay. This can be used with outward flap and top-hung windows
Solution?
Secure the skylight with a DX window stay that can be turned away SKG** and always close your windows and doors when you leave the door!
Application Advice

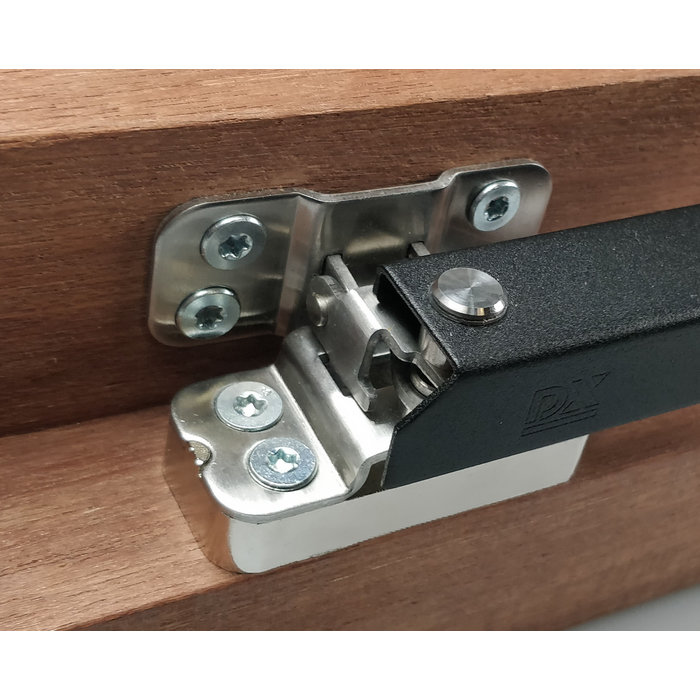

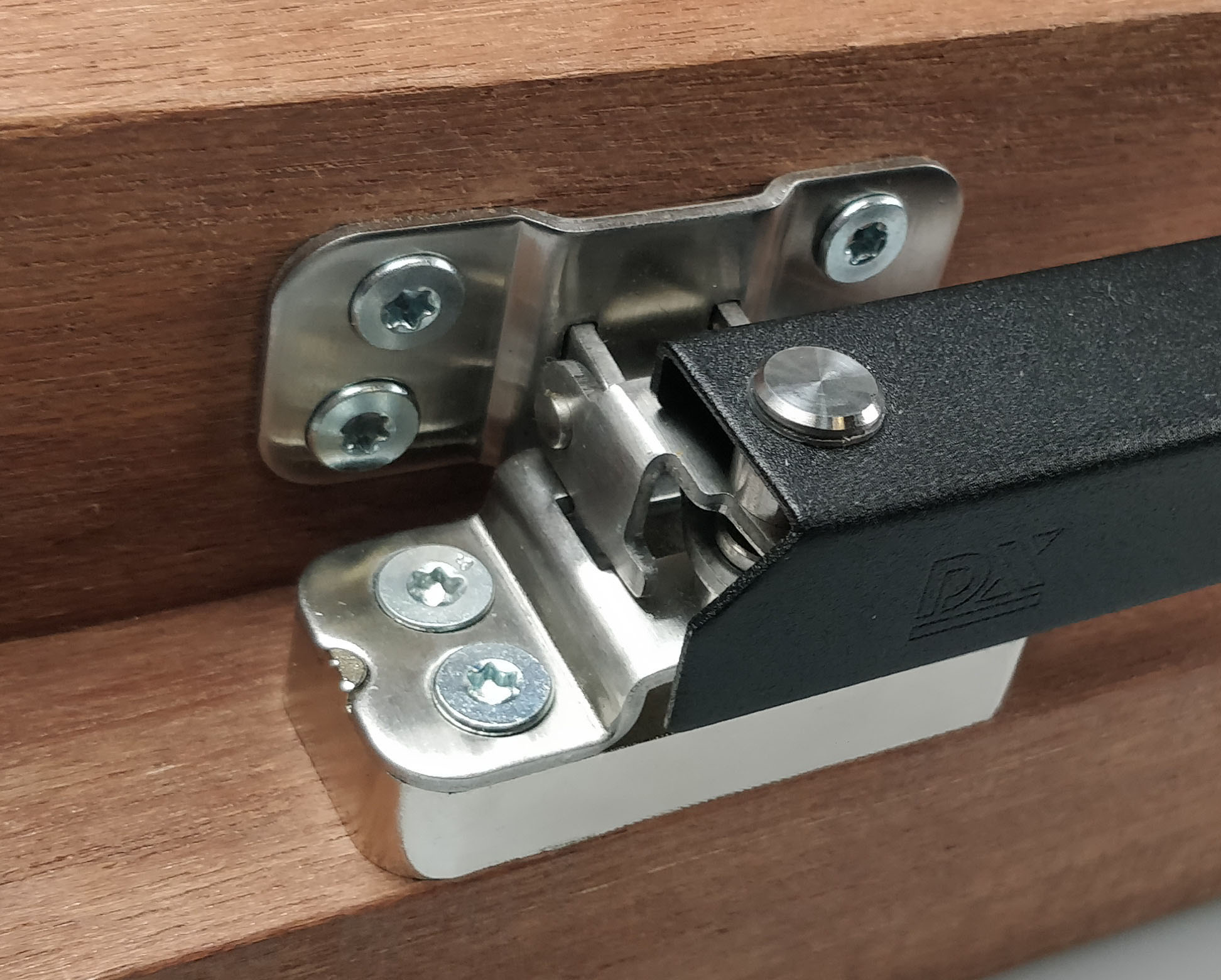

The minimum required opening space of this swing-away window stay SKG** is only 135 mm. This makes this model the shortest swing-away window stay available on the market. An additional advantage of this short model is that the window stay can also be perfectly used in combination with a barrier bar. In addition, the window stay can be used on narrow frames from a frame depth of 32 mm.
For a window width of 1 meter or more, it is recommended to use two DX swing-away window stays SKG**.
| Standardization | SKG**® |
| Minimum window width | 235mm |
| Maximum window width | 1,5 meters (advice is from 1 M 2 pieces) |

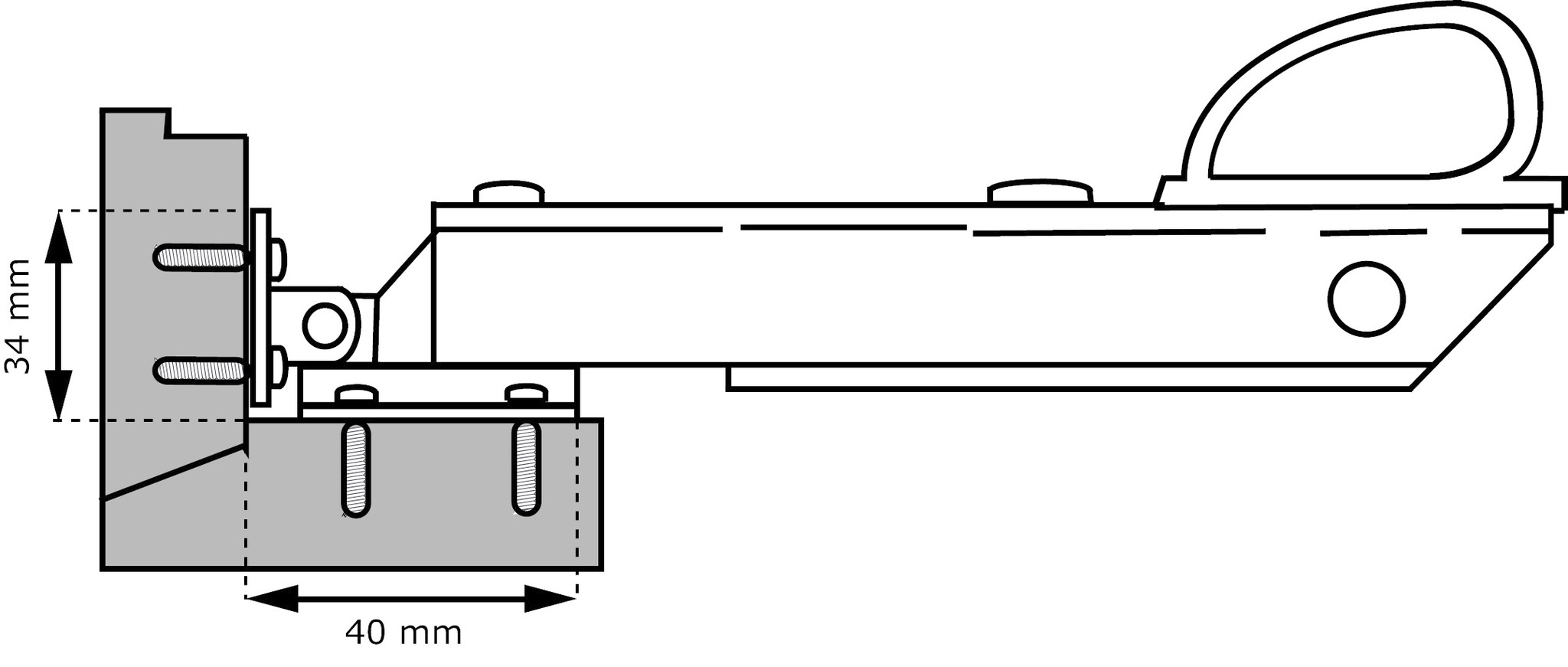

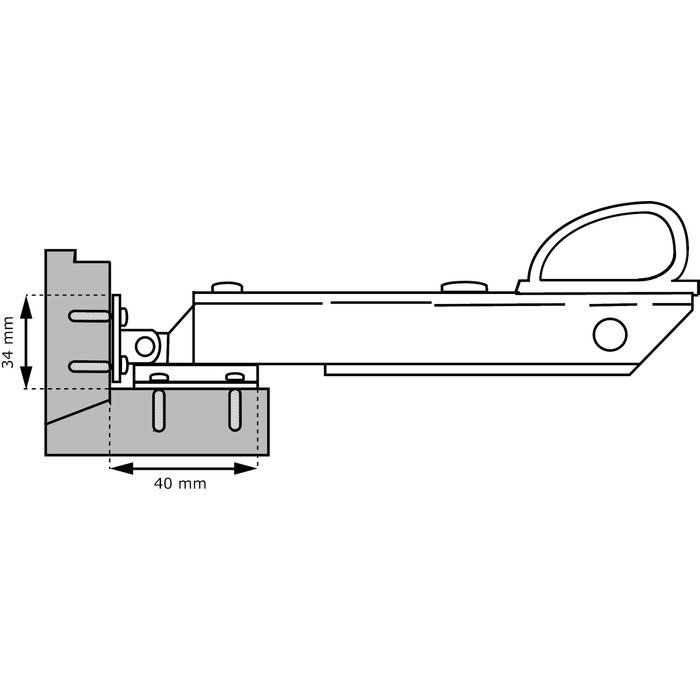

| Minimum window timber width | 34mm |
| Minimum frame timber depth | 32mm |
| Minimum window height | 135mm |
| Maximum window height | 1 meter |
| Accessory | 1 key (RUZ-W-300 ACC) |
|
Recommended Micrometer
|
4.0 x 40mm |
|
Assembly instruction
|
Including |
|
Material
|
Zamac/stainless steel |
|
Finish
|
Stainless steel finish/hammered black |
