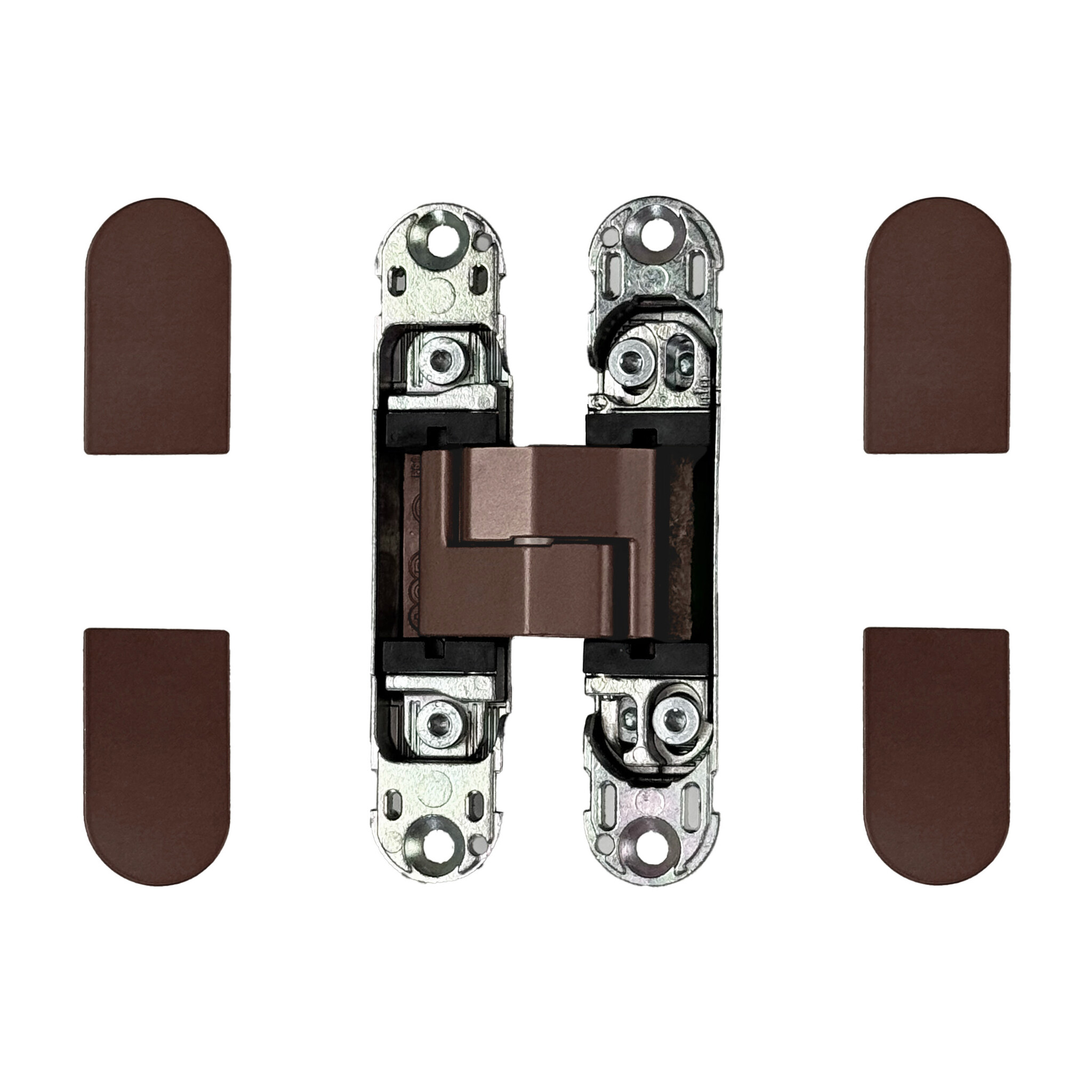

The AGB Eclipse 3.2 invisible 3D hinge in matte bronze is a high-quality and aesthetic solution for interior doors. Thanks to the fully concealed design, the hinge is invisible when the door is closed, creating a sleek and minimalist look.
This hinge has been specially developed for modern interior doors and offers a perfect combination of design and functionality. The cover caps conceal all fixings and adjustment points, ensuring the door design is fully preserved, even when the door is open.
The hinge is 3D adjustable, which means it can be adjusted in three directions (height, depth, and laterally). This allows the door to be perfectly aligned, even after installation or during intensive use.
Thanks to the sturdy construction, this hinge has a load capacity of approximately 20 kg per hinge (±40 kg with 2 hinges and up to ±60 kg with 3 hinges), depending on the application.
The matte bronze finish creates a warm, dark brown look that perfectly complements contemporary door hardware and interiors.
Please note: Screws are not included.
| Brand | HDD |
| Type | Invisible hinge / concealed hinge |
| Model | Eclipse 3.2 |
| Application | Interior doors |
| Adjustability | 3D (height, depth, lateral) |
| Opening angle | Up to approx. 180° |
| Load capacity | ±40 kg (2 hinges) |
| Material | Zamak / metal |
| Finish | Matte bronze |
| Assembly | Recessed (door and frame) |
| Inclusive | Hinge and cover caps |
| Exclusive | Screws |
