Description

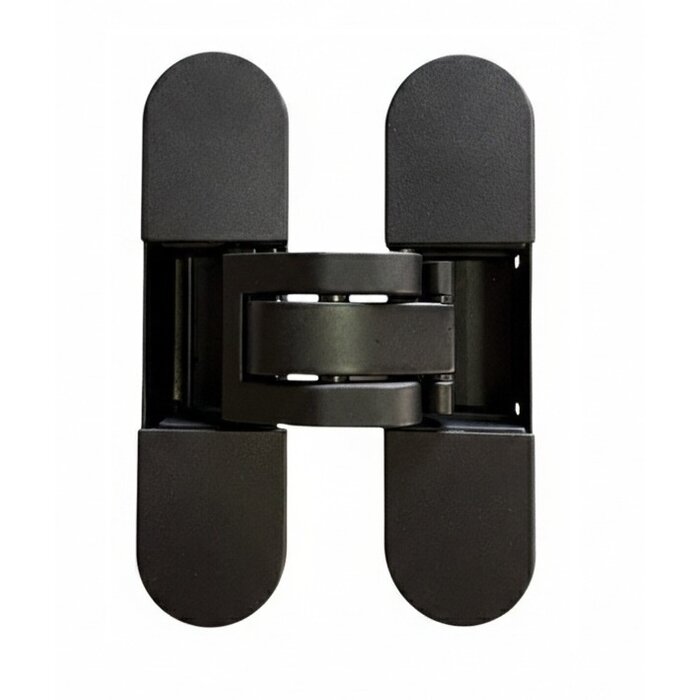

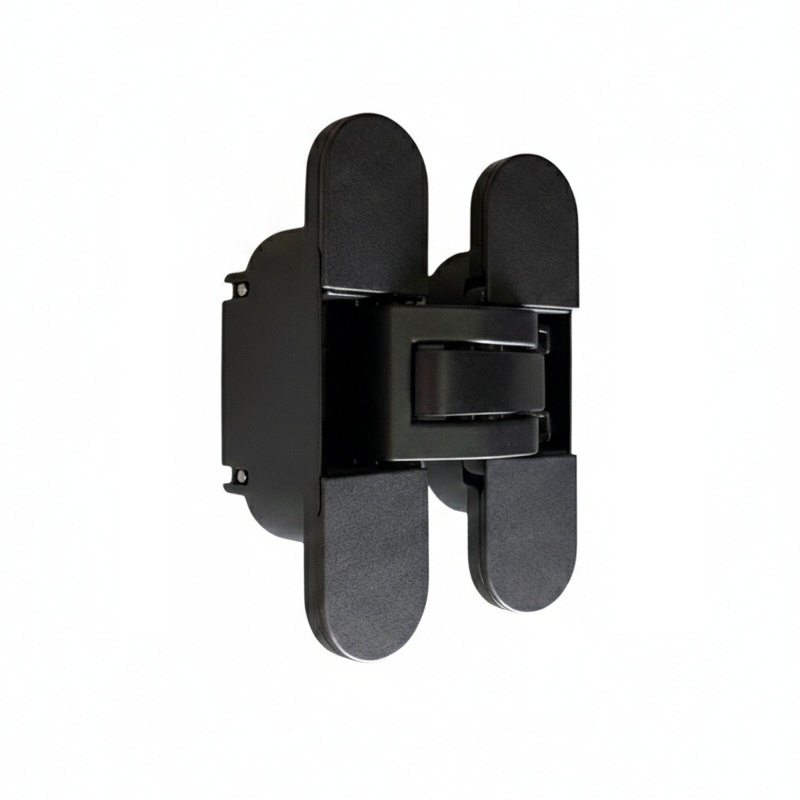

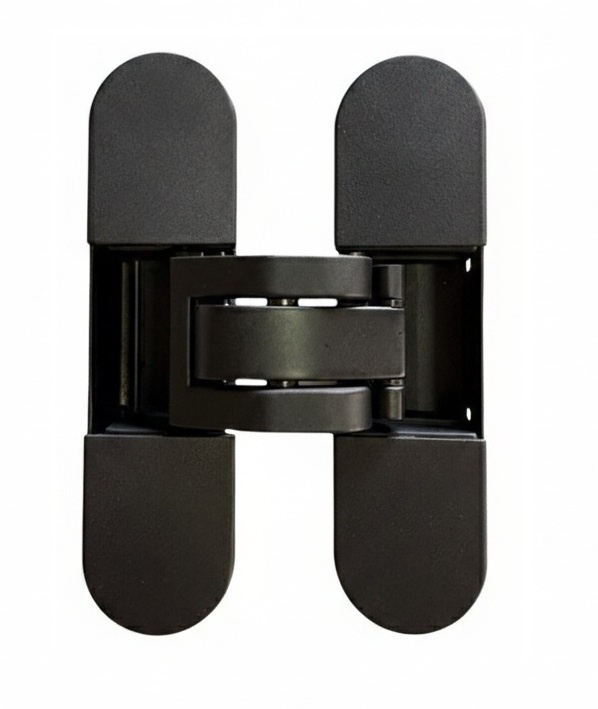

Black concealed hinges, 3D adjustable - 111x29mm - ideal for larger projects
Article code: DS-111x29-ZW
These black concealed hinges, also known as hidden hinges, are comparable in size to the Argenta Medium and KUBICA K6700 concealed hinges.
These invisible 3D hinges have the following dimensions: 111x29mm and have a load capacity of 80kg when using 2 concealed hinges.
These black concealed hinges are suitable for wooden, steel, and aluminum doors, both left- and right-turning doors, as well as fire-resistant doors.

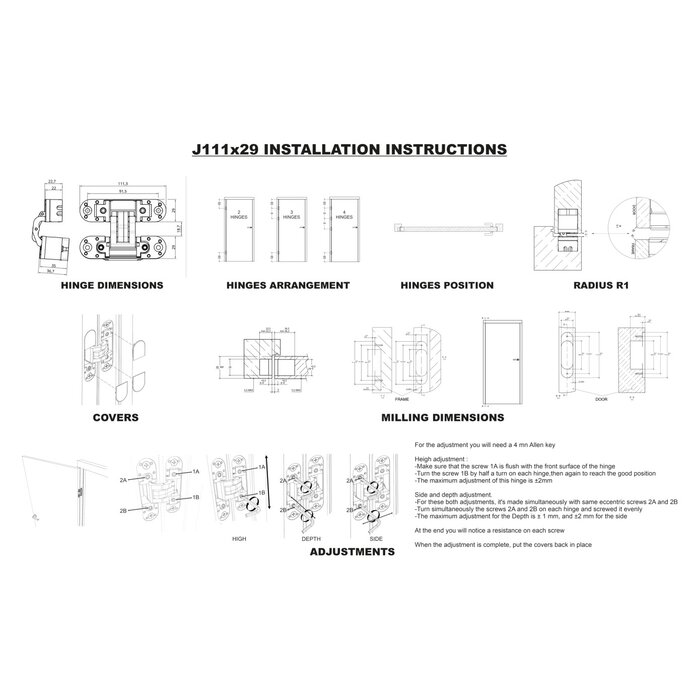

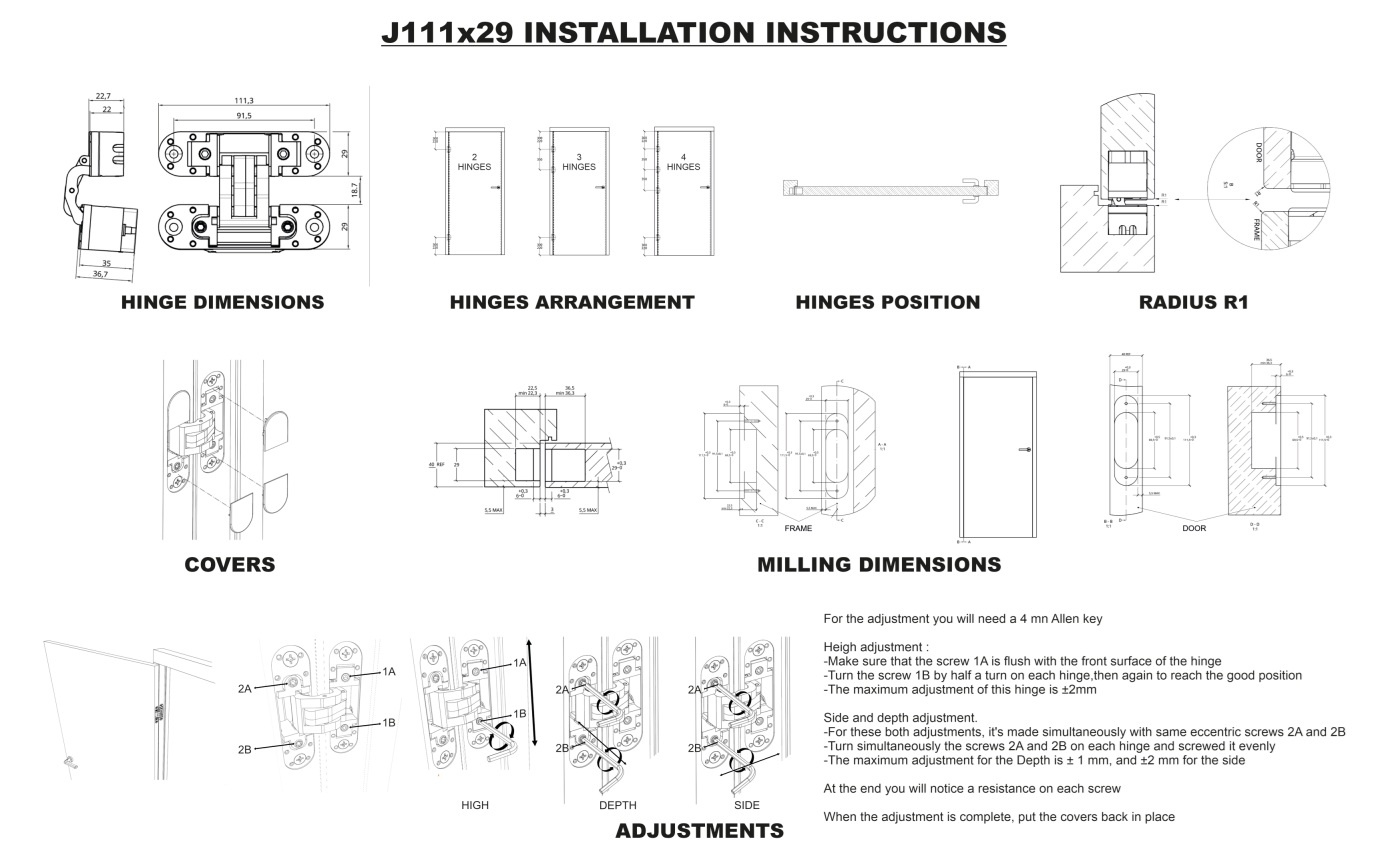

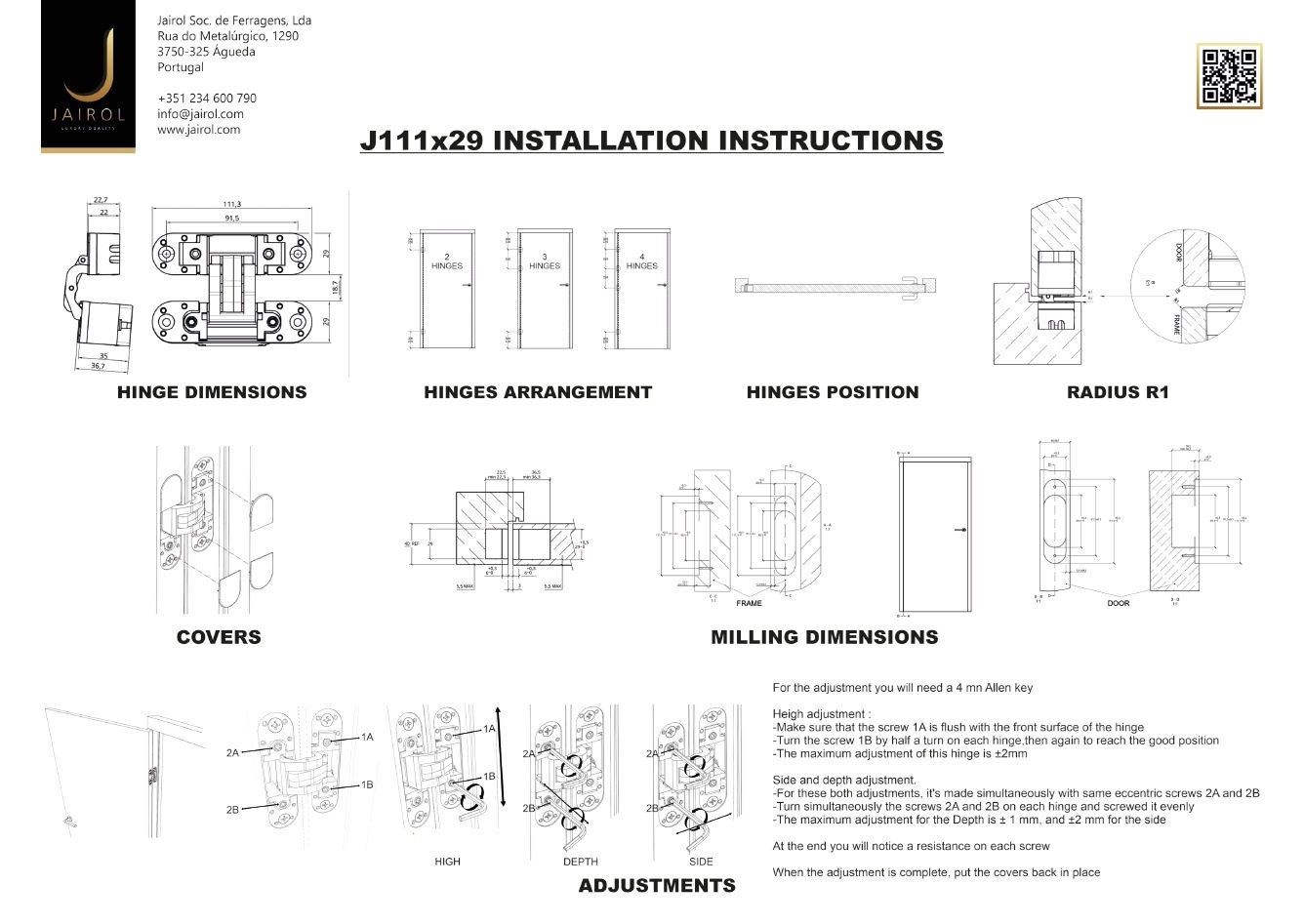

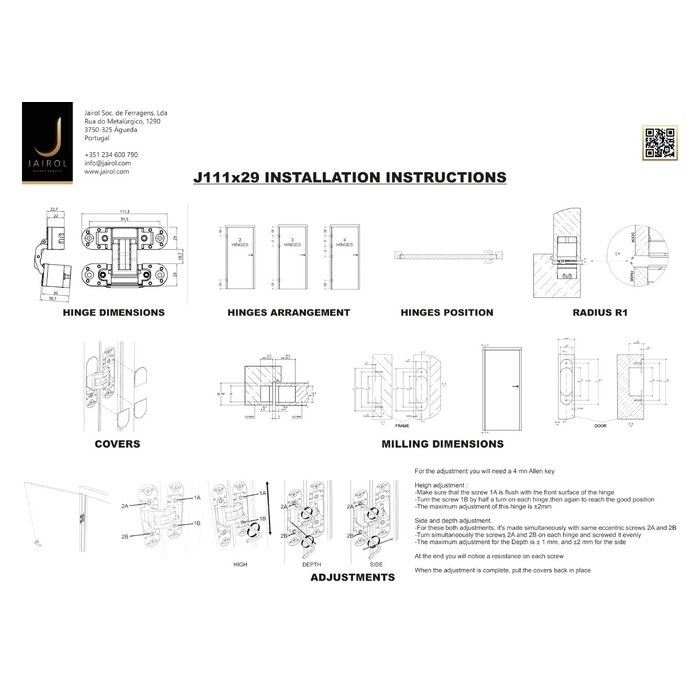

The invisible hinges are 3D adjustable (+/- 2mm side, +/- 2mm height and +/- 1mm in depth)
These concealed hinges are very attractive due to their competitive price-quality ratio. Do you often have larger projects? Then take advantage of our volume discounts.
Would you like invisible hinges but don't have a routing template?
Below, under related products, you'll find an iron insert plate for these concealed hinges, which fit the 247WOOD 'FIS basic' router template holder.

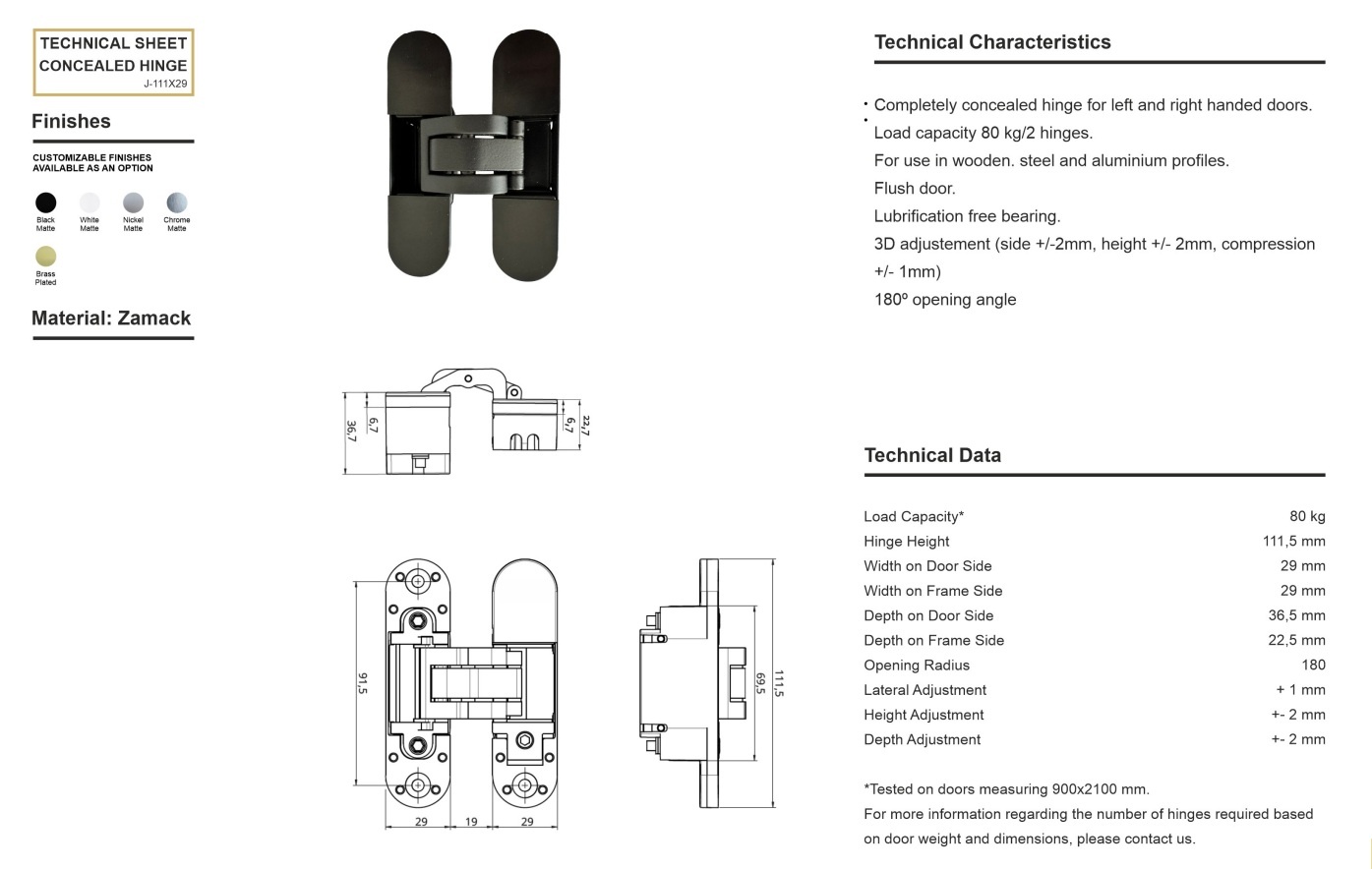

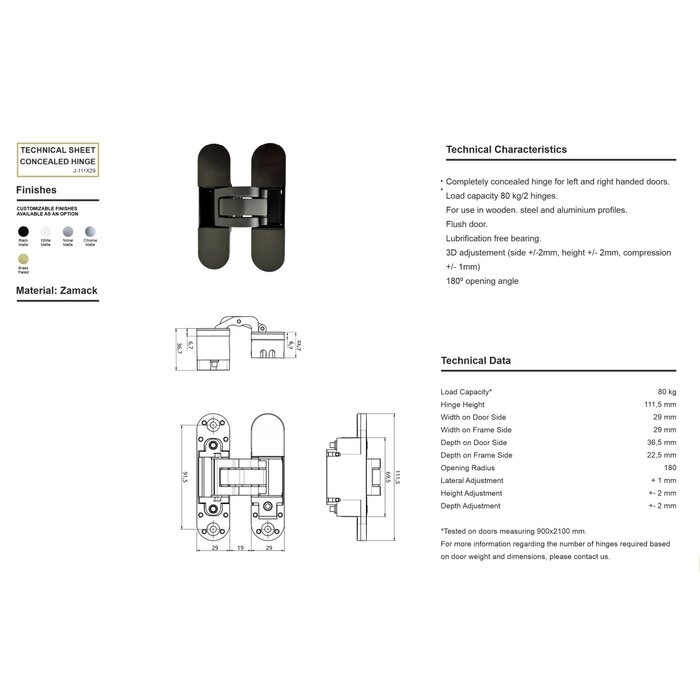

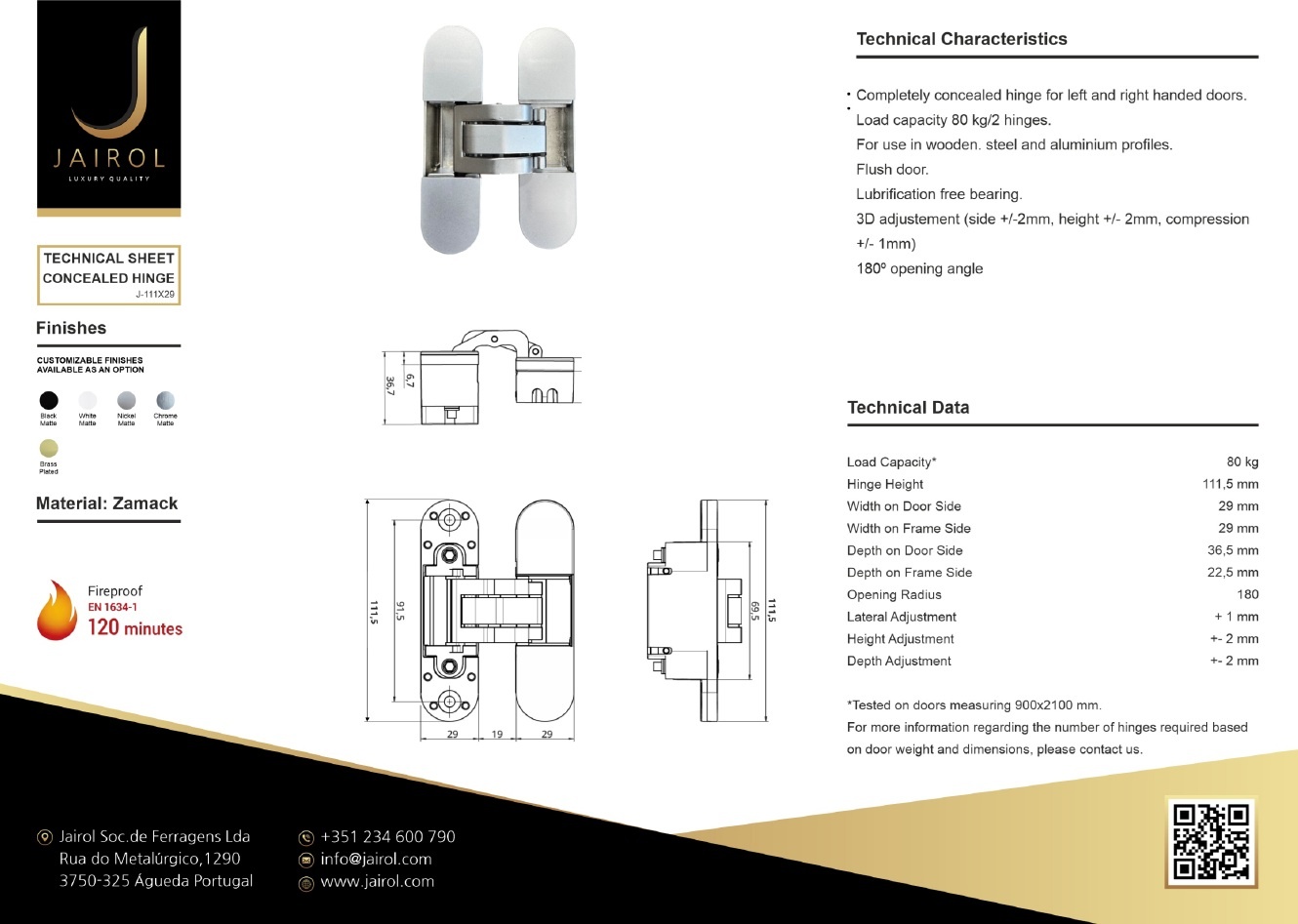

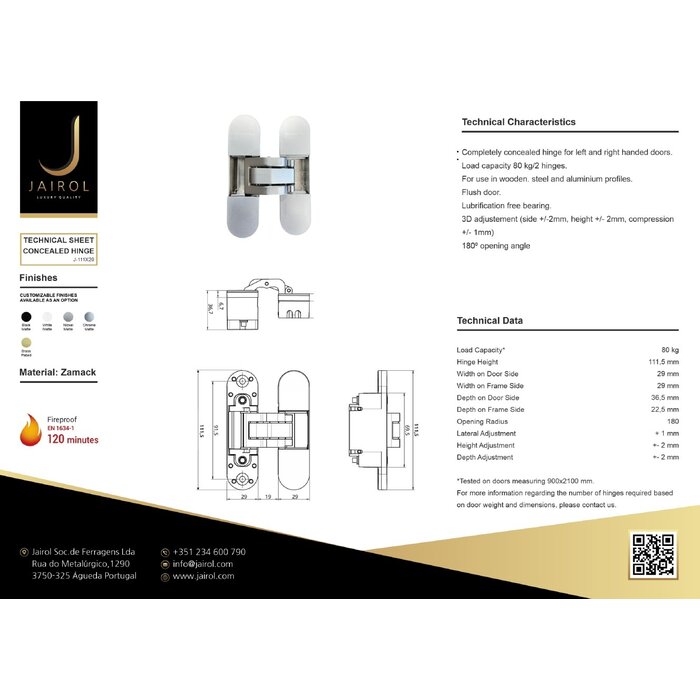

Features:

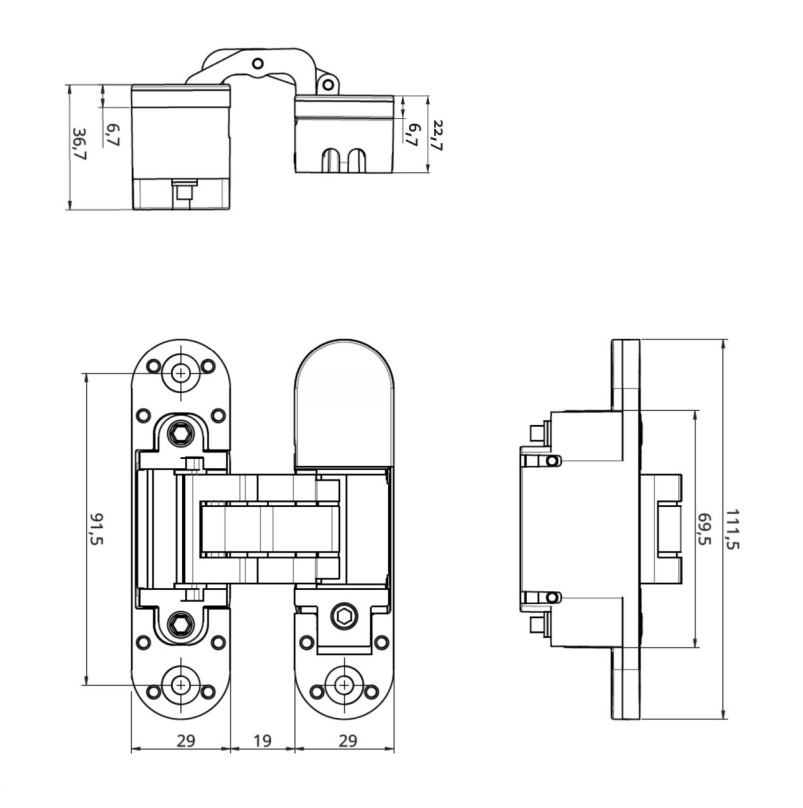

| Max weight (with 2 hinges) | 80 kg |
| hinge height | 111.5 mm |
| width at door side | 29 mm |
| width on style side | 29 mm |
| Depth at door side | 36.5 mm |
| depth on style side | 22.5 mm |
| opening range | 180° |
| depth adjustment | + 1 mm |
| height adjustment | +- 2 mm |
| side adjustment | +- 2 mm |
| fire resistant | yes, 120 min |
| Colour | Matte black |
| material | zamac |
| accessories | supplied including cover caps, excluding screws |
