These black 3D hinges are from the Italian company Otlav, which have been known for their hinges for years.
The black 3D hinges are available in 23mm and 30mm widths. This model is the 23mm version.

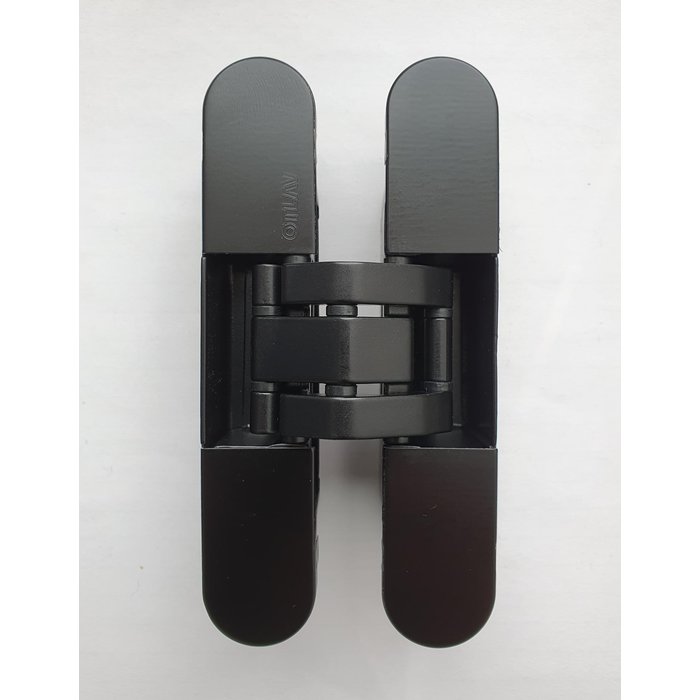

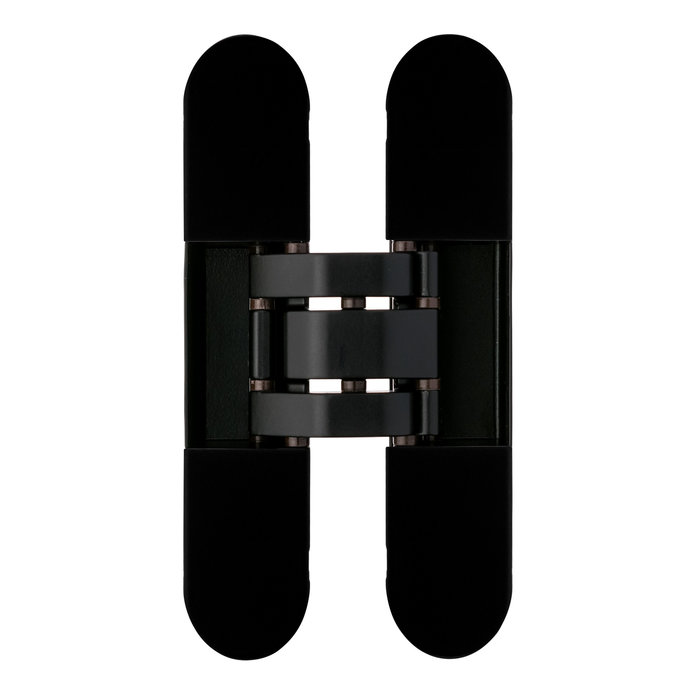

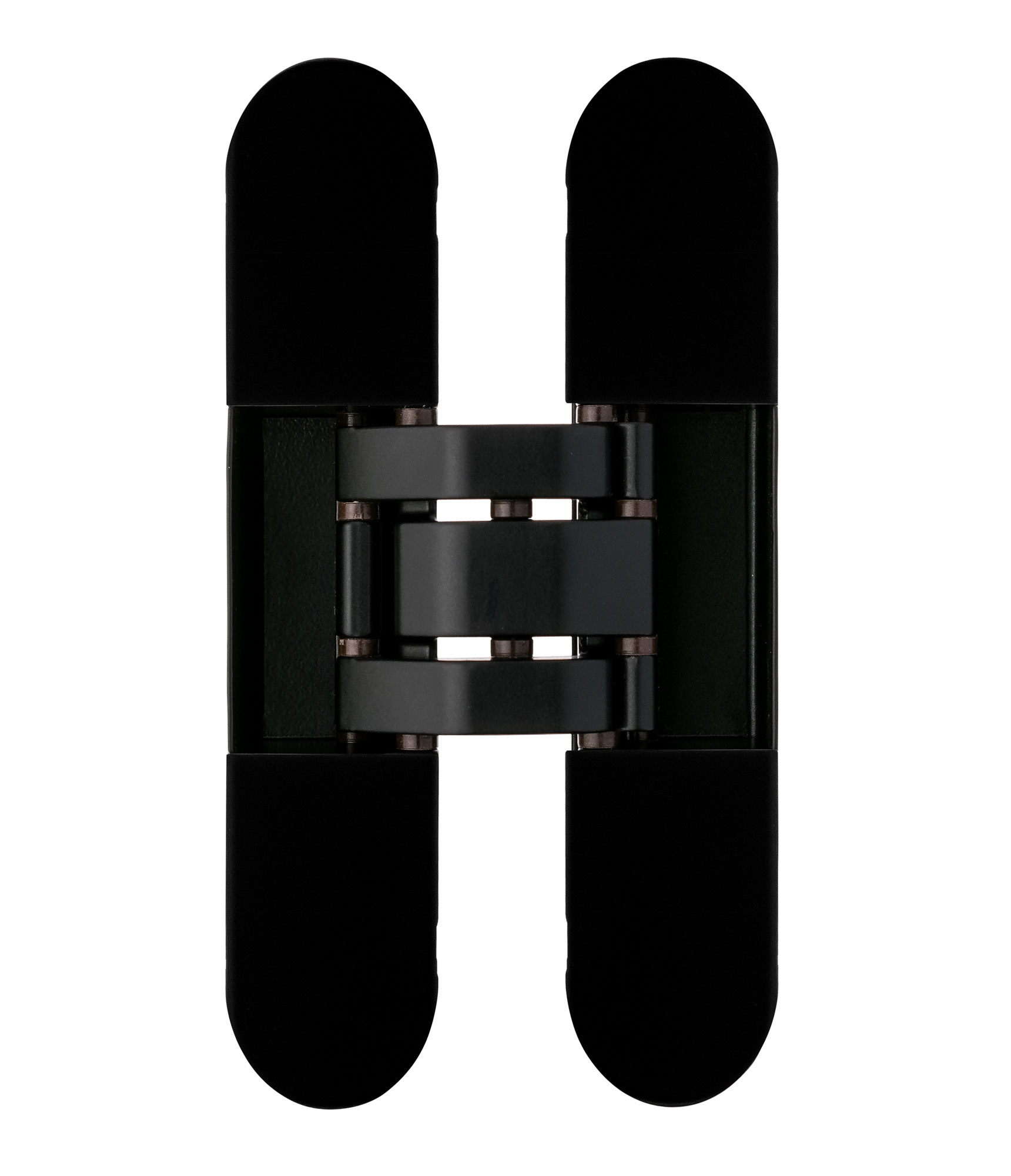

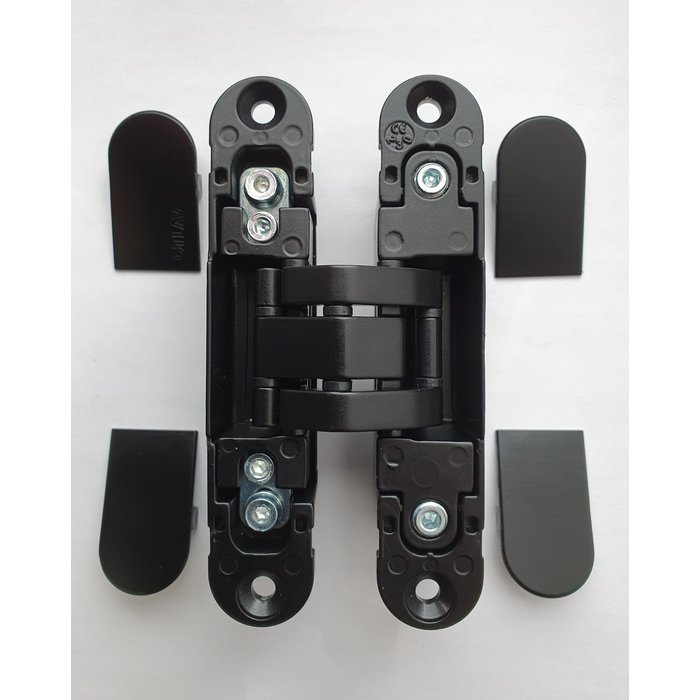

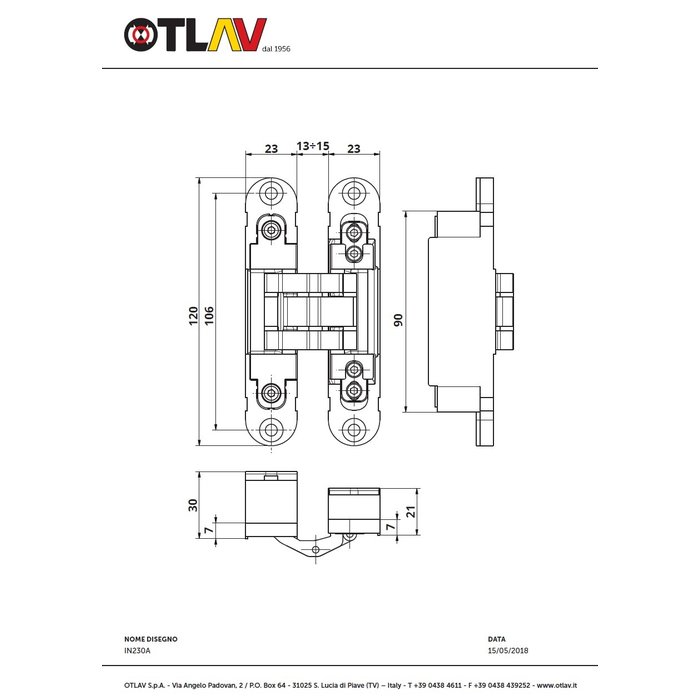

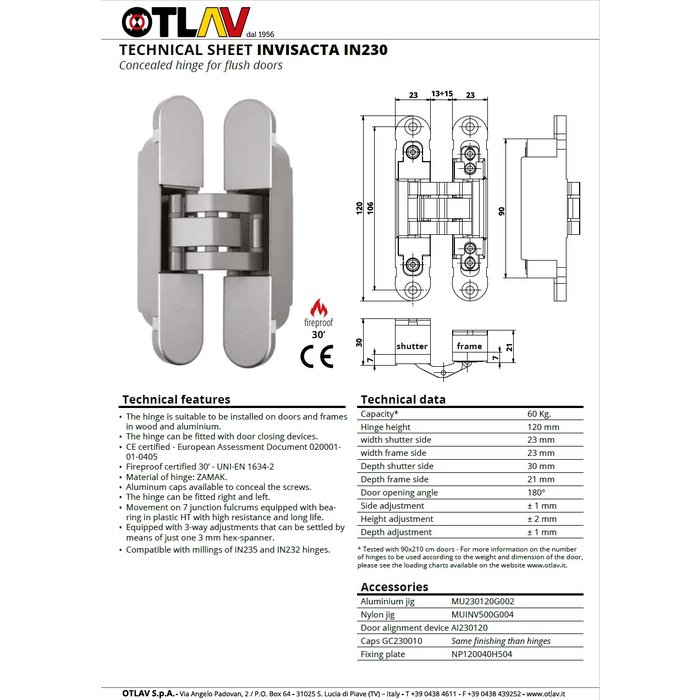

These black invisible hinges have a height of 120mm, a width of 23mm and are finished in a beautiful full matte black. They are delivered including 4 black aluminum caps which cover the screws nicely. These 4 cover caps fit well over the hinges and also stay in place. The whole forms a beautifully finished black 3D hinge.
The advantage of this model are the metal caps compared to the comparable model Eclipse 3 from AGB, which are supplied with plastic caps. The advantage of the wider model from Otlav (30x120mm, IN300120) is that the wider model can be used on both the left and the right.
These black blind Otlav Invisacta IN230120 hinges have a load capacity of 60kg. This bearing capacity is when using 2 hinges. They are also fire resistant for 30 minutes.
These hinges can open 180° and can be adjusted in 3D (±1mm sideways - ±2mm height - ±1mm depth).
The basis of these black 3D hinges consists of Zamak. They are supplied individually without screws and including 4 cover caps.

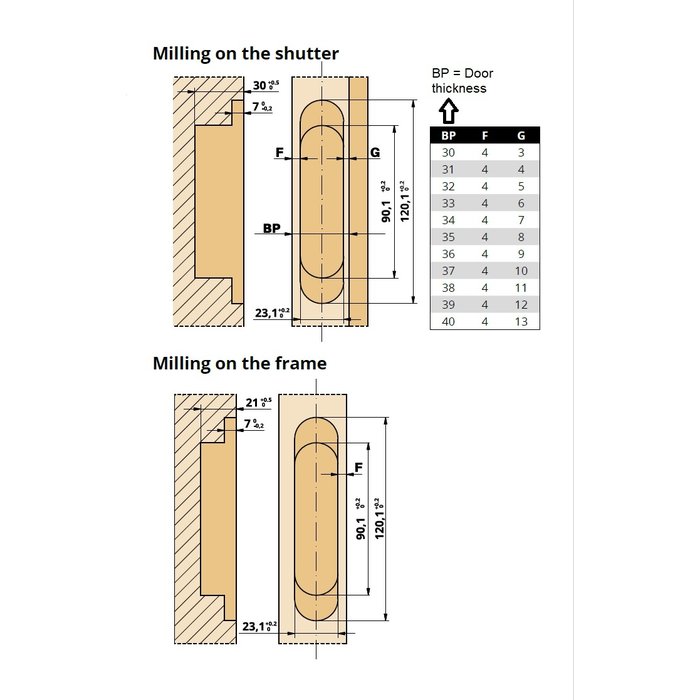

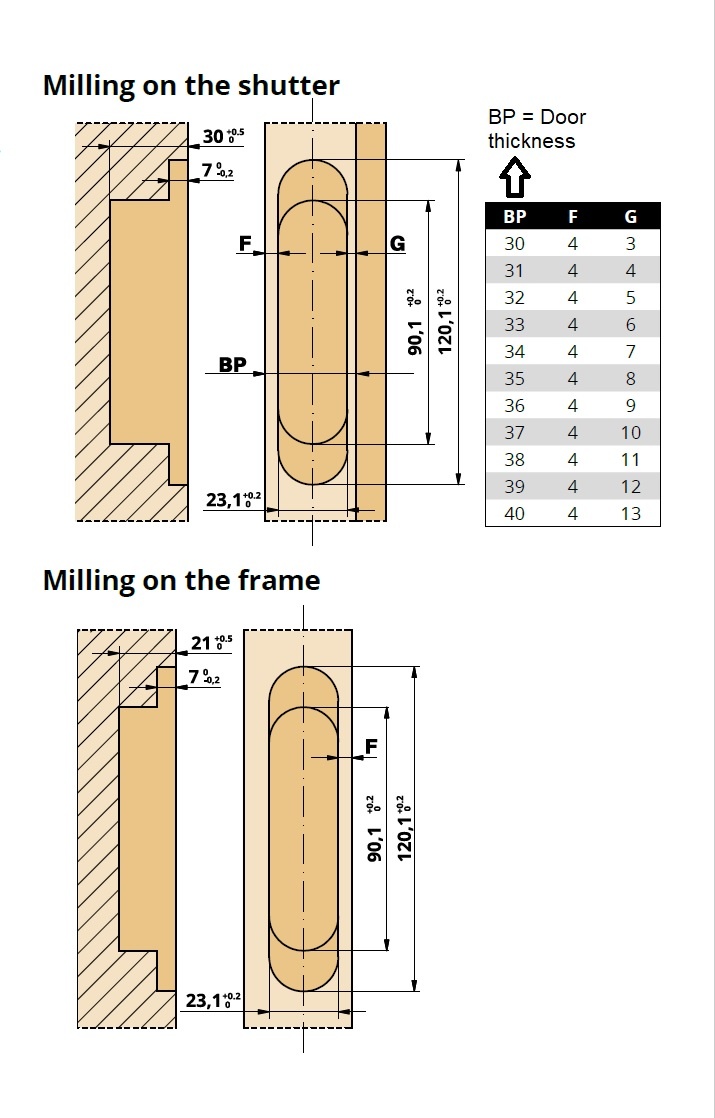

Need a jig? Below you can find a corresponding Nylon milling jig under related products.
