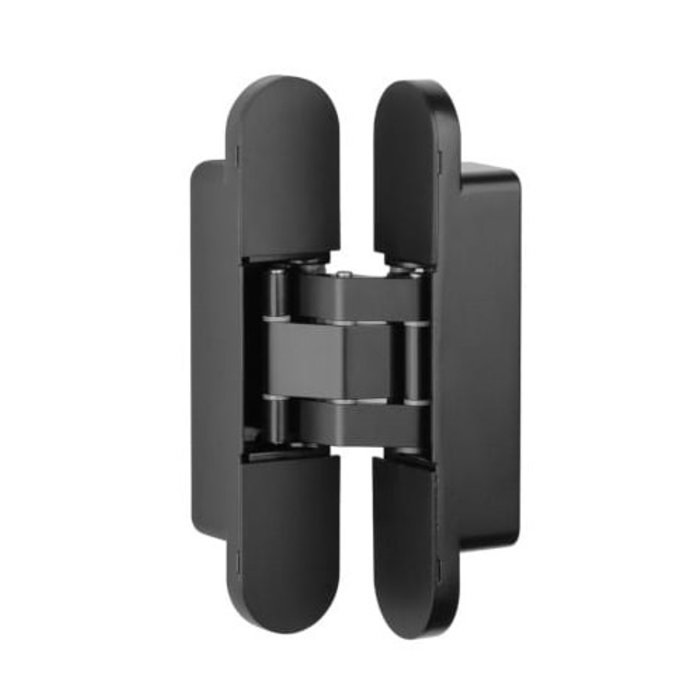

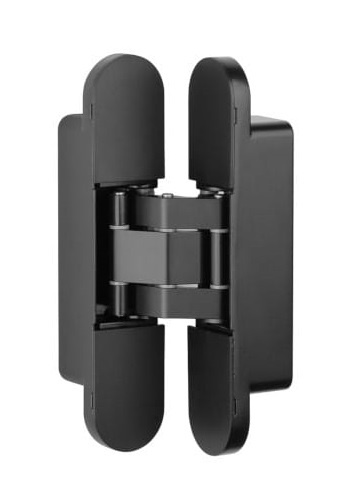

Invisible 3D Hinge matt black - 28 x135mm - 3D adjustable

These matte black 3D hinges have a size of 135x28mm and are suitable for interior doors with a door thickness of 38 to 55 mm.

They can handle a weight of 60 kg (when using 2 hinges) and are adjustable in 3 directions (left/right, top/bottom and front/back).

The 3D hinges are supplied with 4 plastic covers in a matte black finish and 4 screws (5x30mm).

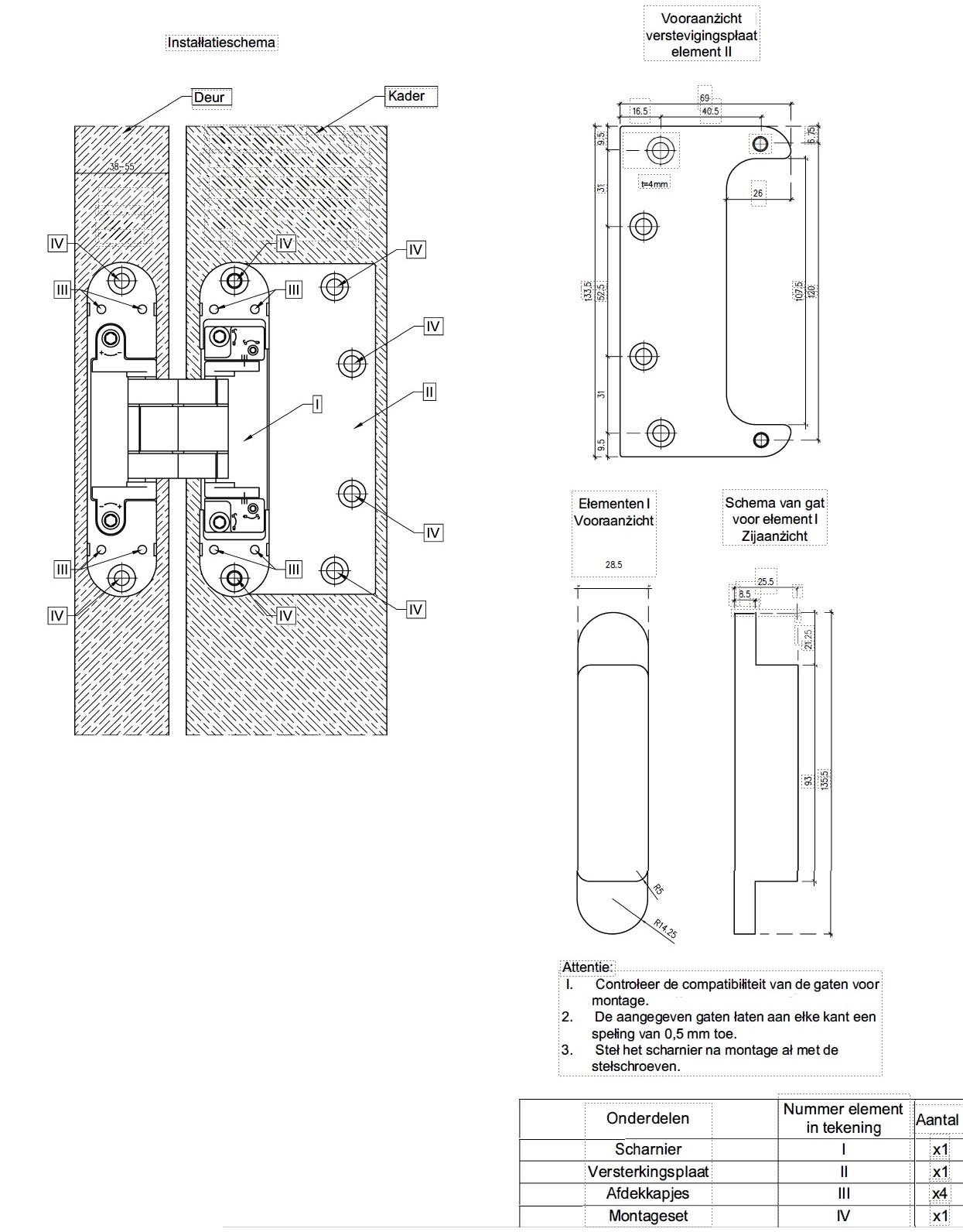

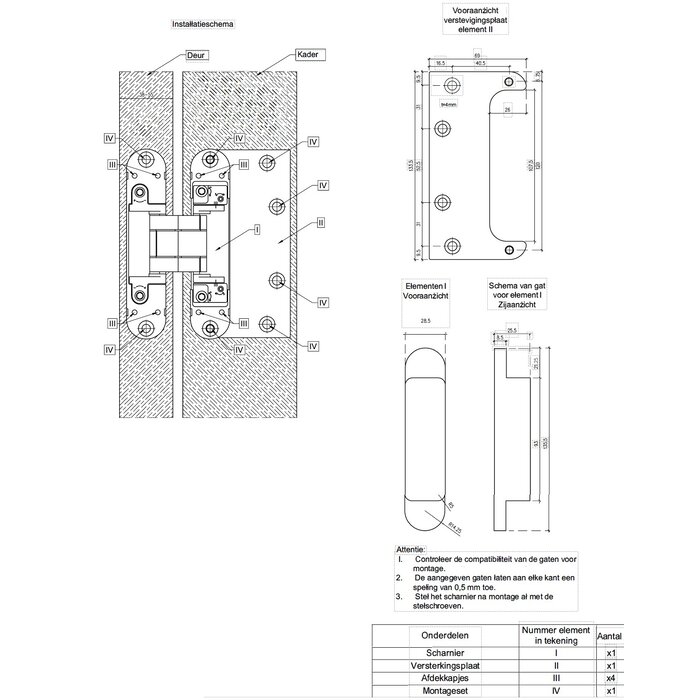

For an even firmer mounting you can use a reinforcement plate (see related products).

Do you need a milling template for these 3D hinges? Then use the insert irons in combination with the FIS basic milling jig from 247WOOD (see related products).

Characteristics:

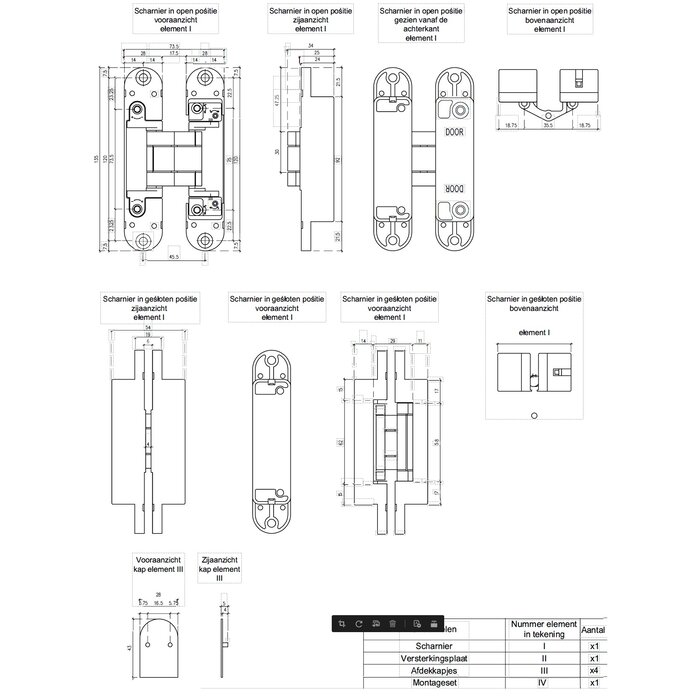

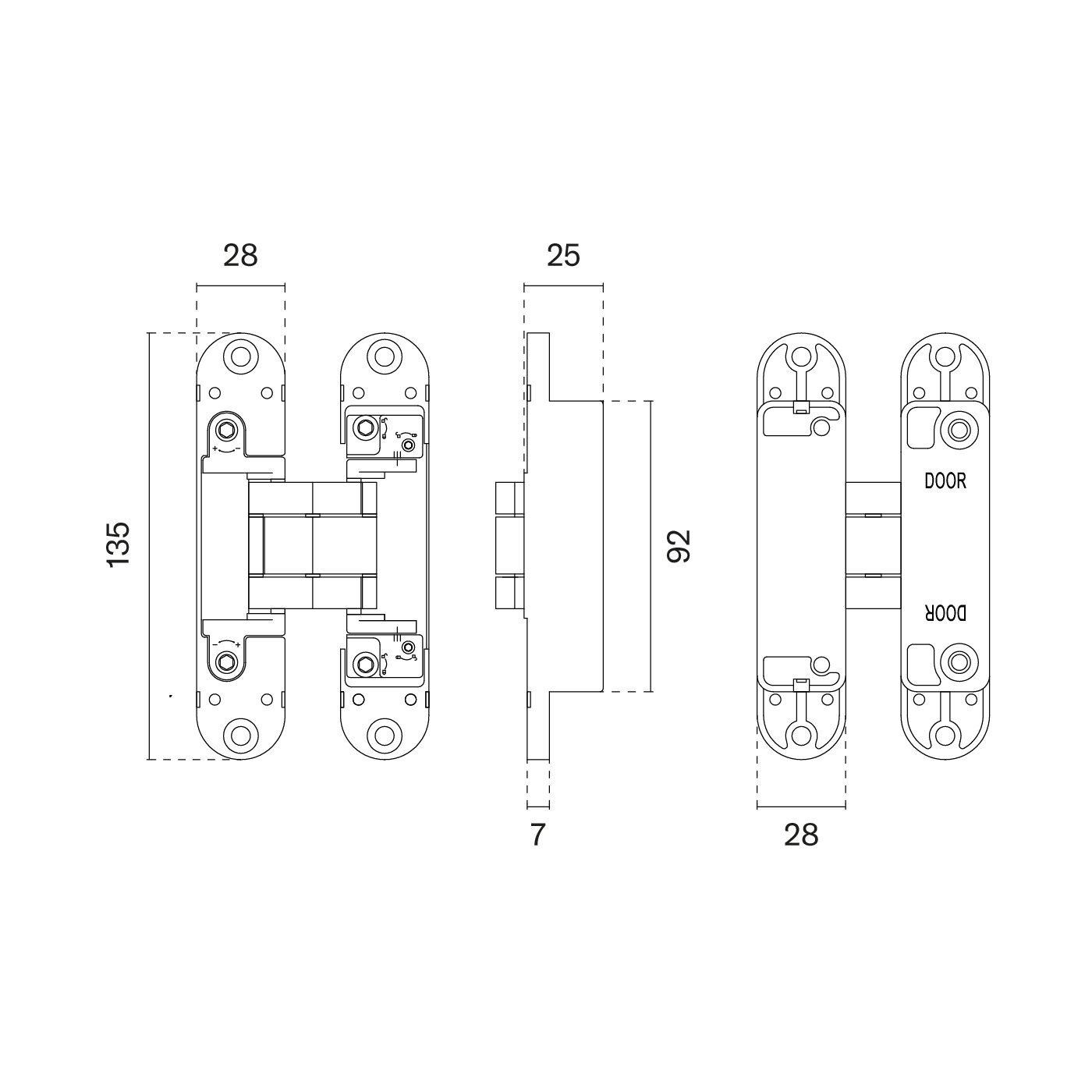

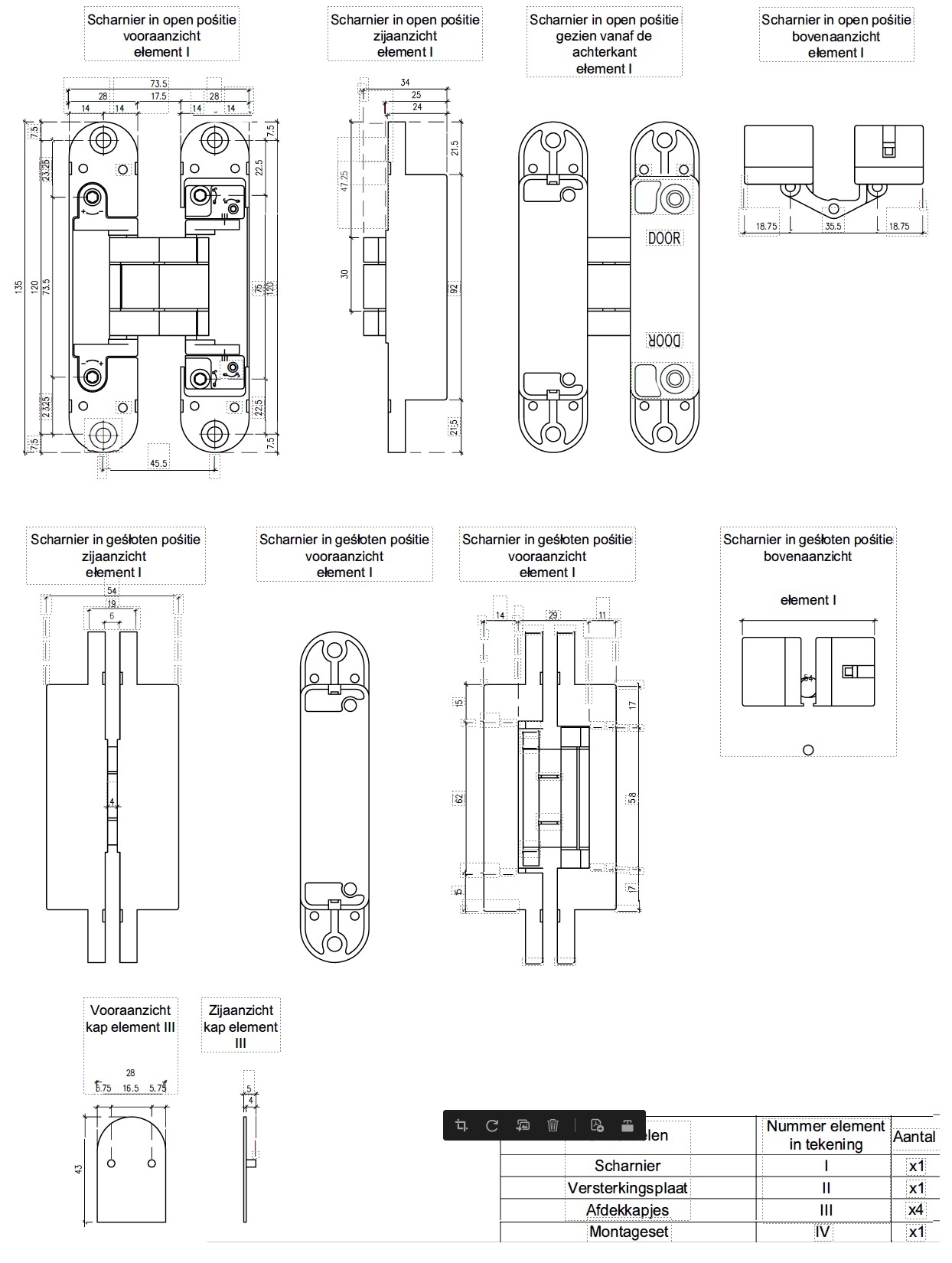

• dimensions: 135x28 mm
• color: matte black
• maximum door weight (with 2 hinges): 60 kg
• suitable for interior doors with a door thickness of 38 to 55 mm
• maximum door dimensions: 90x210 cm
• adjustment range up/down: +/- 2.5mm
• adjustment range left/right: +/- 2mm
• adjustment range front/rear: +/- 1mm
• including 4 matt black cover caps
• including 4 screws (5x30mm)
