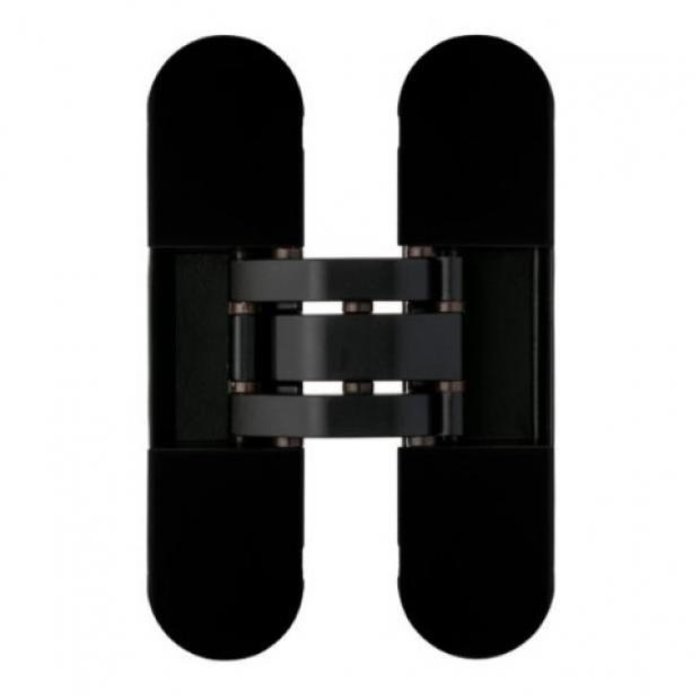

Black invisible 3D hinge - 120x30mm - Otlav Invisacta IN300120 - 60kg/2

These black 3D hinges are from the Italian company Otlav, which has been known for its hinges for years.

The matte gold 3D hinges are available in 23mm and 30mm widths. This model is the 30mm version.

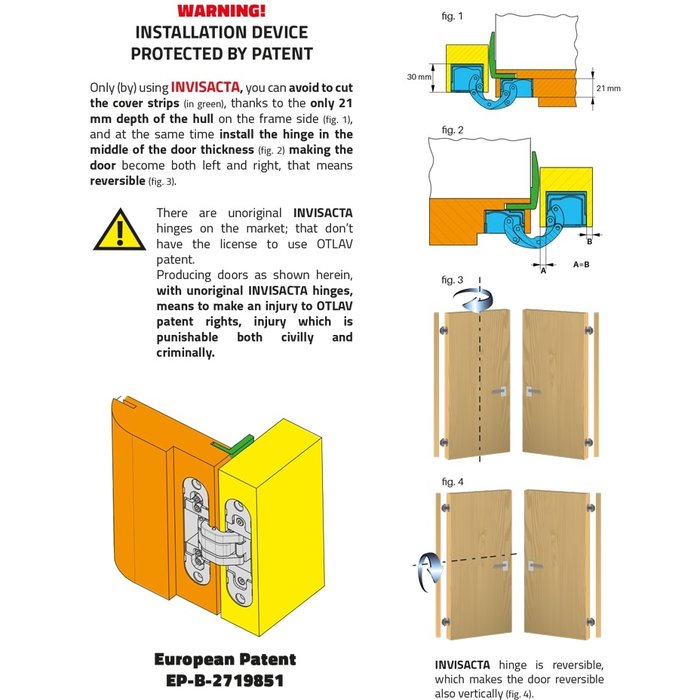

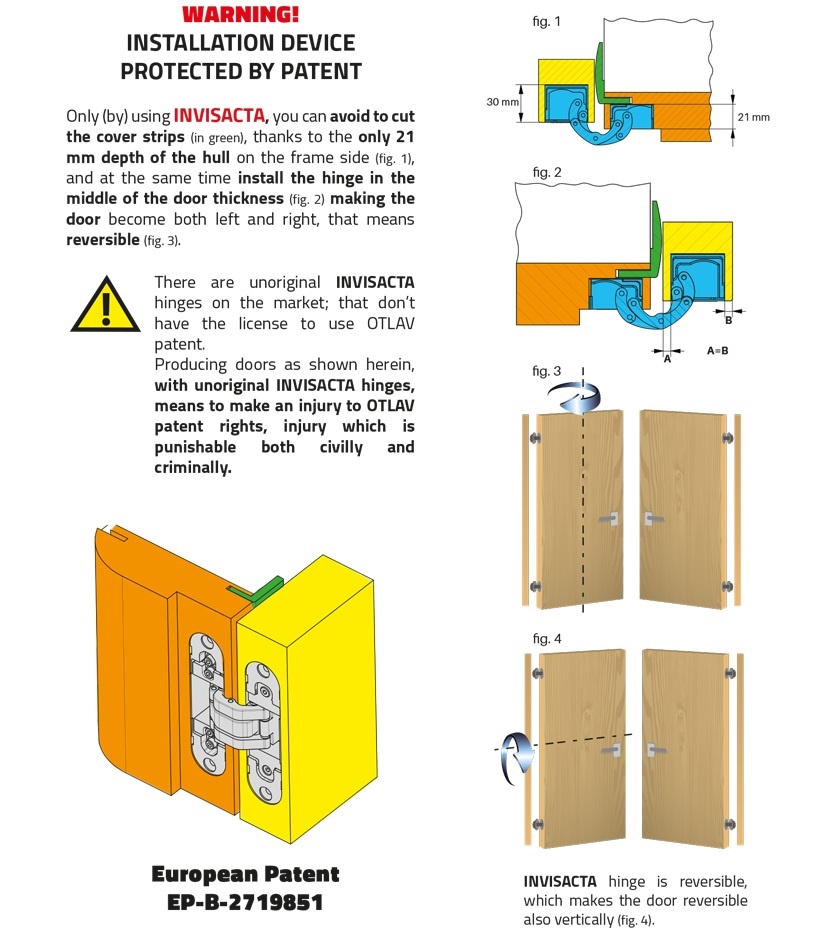

These 30x120mm 3D hinges are unique and patented , allowing you to mill them perfectly in the center thanks to their 30mm width. This means you can easily distinguish between left- and right-hand doors.

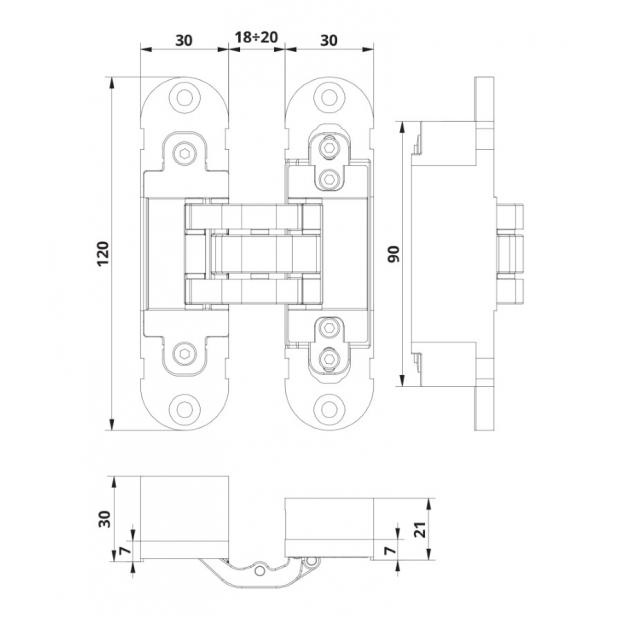

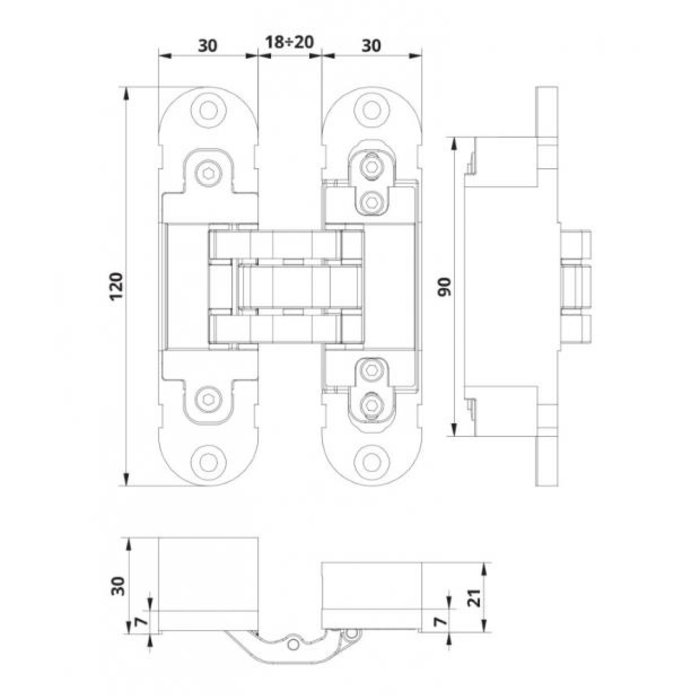

These black concealed hinges are 120mm high, 30mm wide, and feature a beautiful solid black finish. They come with four matte black cover caps. These four cover caps fit snugly over the hinges and stay in place. The result is a beautifully finished black 3D hinge.

The advantage of Otlav 3D hinges is the metal cover caps compared to comparable plastic cover caps.

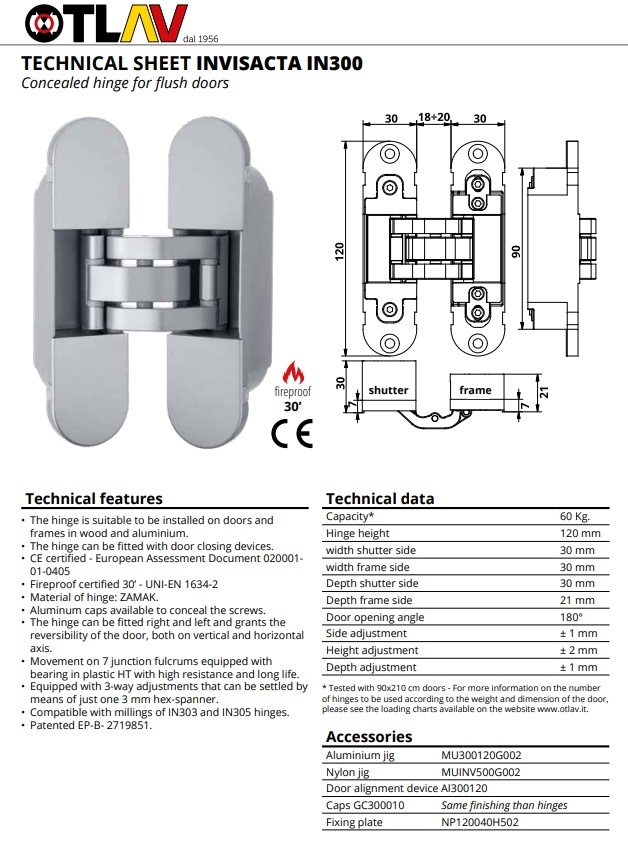

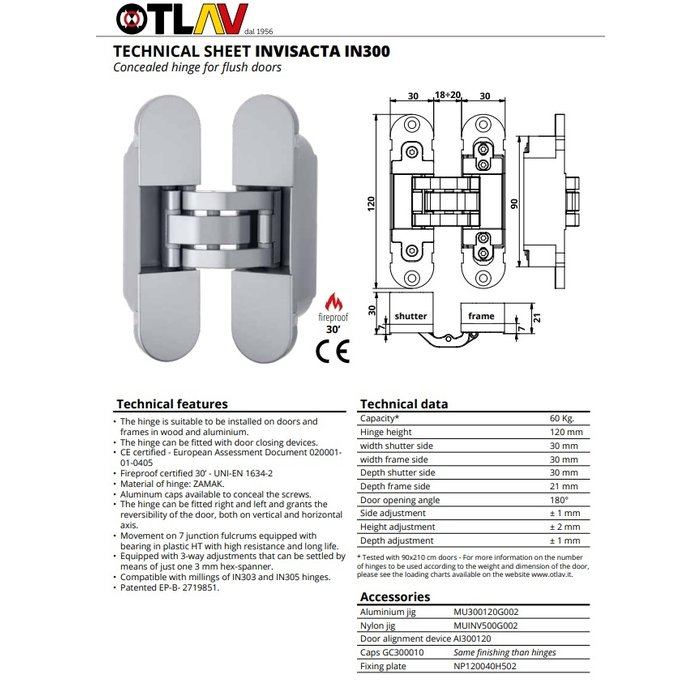

These black concealed Otlav Invisacta IN300120 hinges have a load capacity of 60kg. This capacity is achieved with two hinges. They are also fire-resistant for 30 minutes.

These 3D hinges can open 180° and can be adjusted in 3D (±1mm laterally - ±2mm height - ± 1mm depth).

The base of these black 3D hinges is made of Zamak. They are supplied individually without screws and include four cover caps.

Need a milling template? You can find a matching Nylon milling template below under related products.
