White invisible 3D hinge Otlav Invisacta IN230120 - 23x120mm - 60kg

These white 3D hinges are from the Italian company Otlav, which has been known for its hinges for years.

The white 3D hinges are available with a width of 23mm and 30mm. This model is the 23mm version.

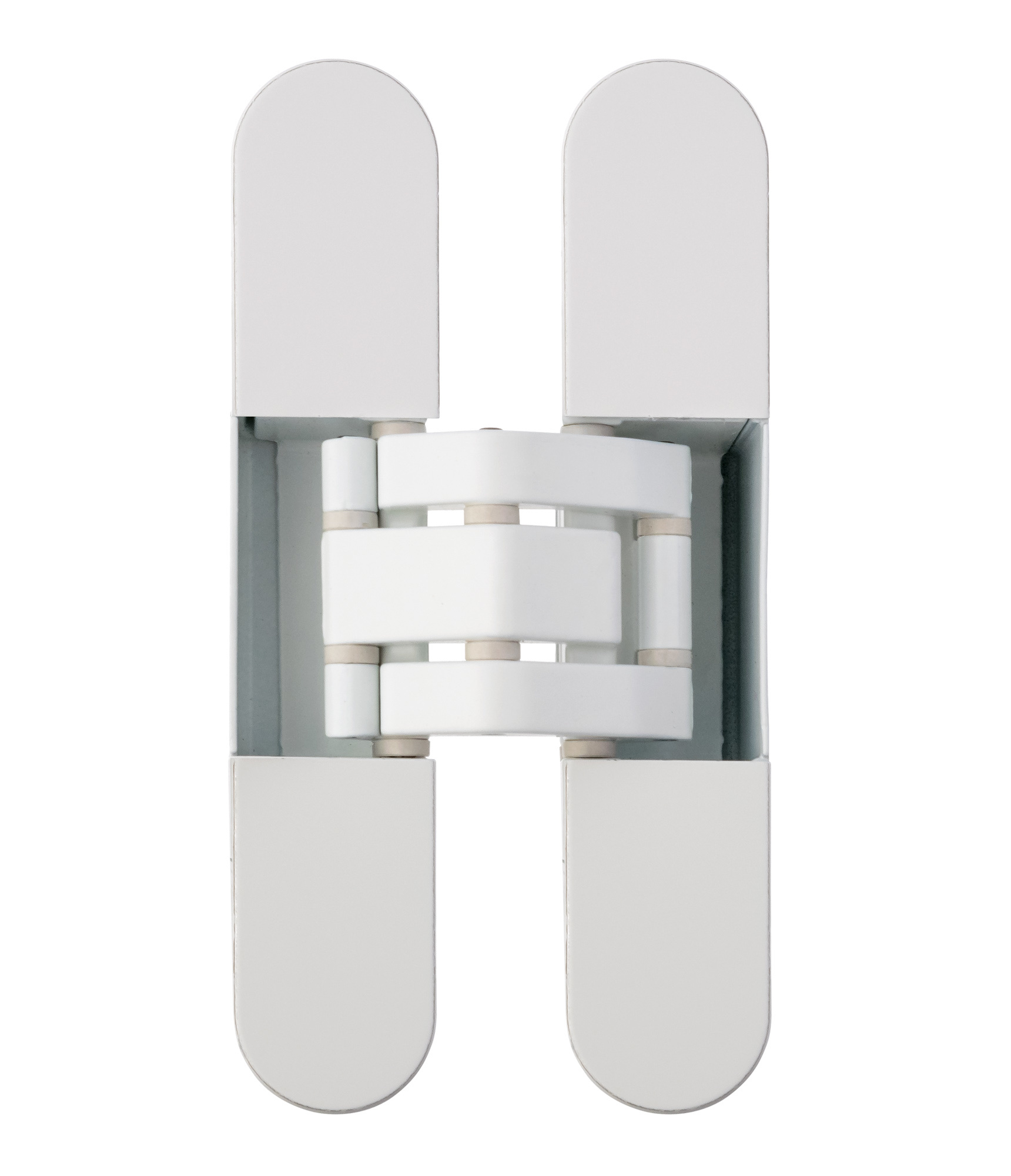

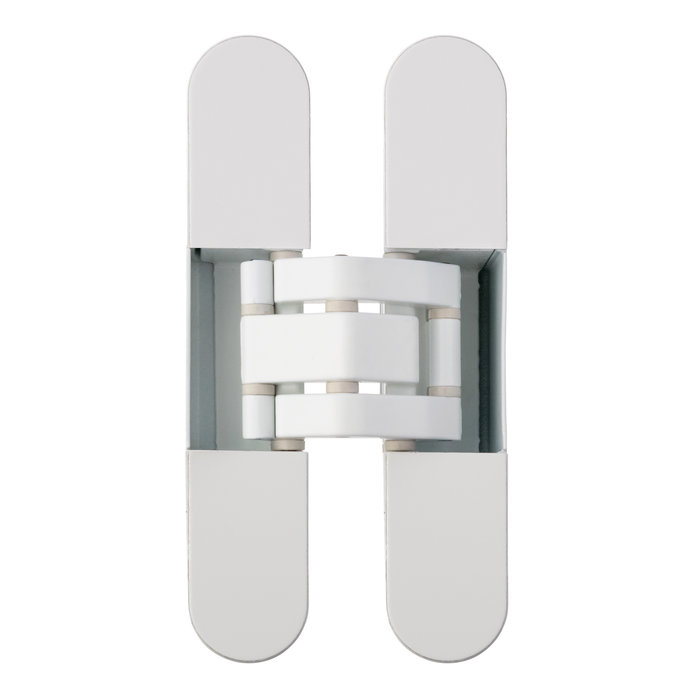

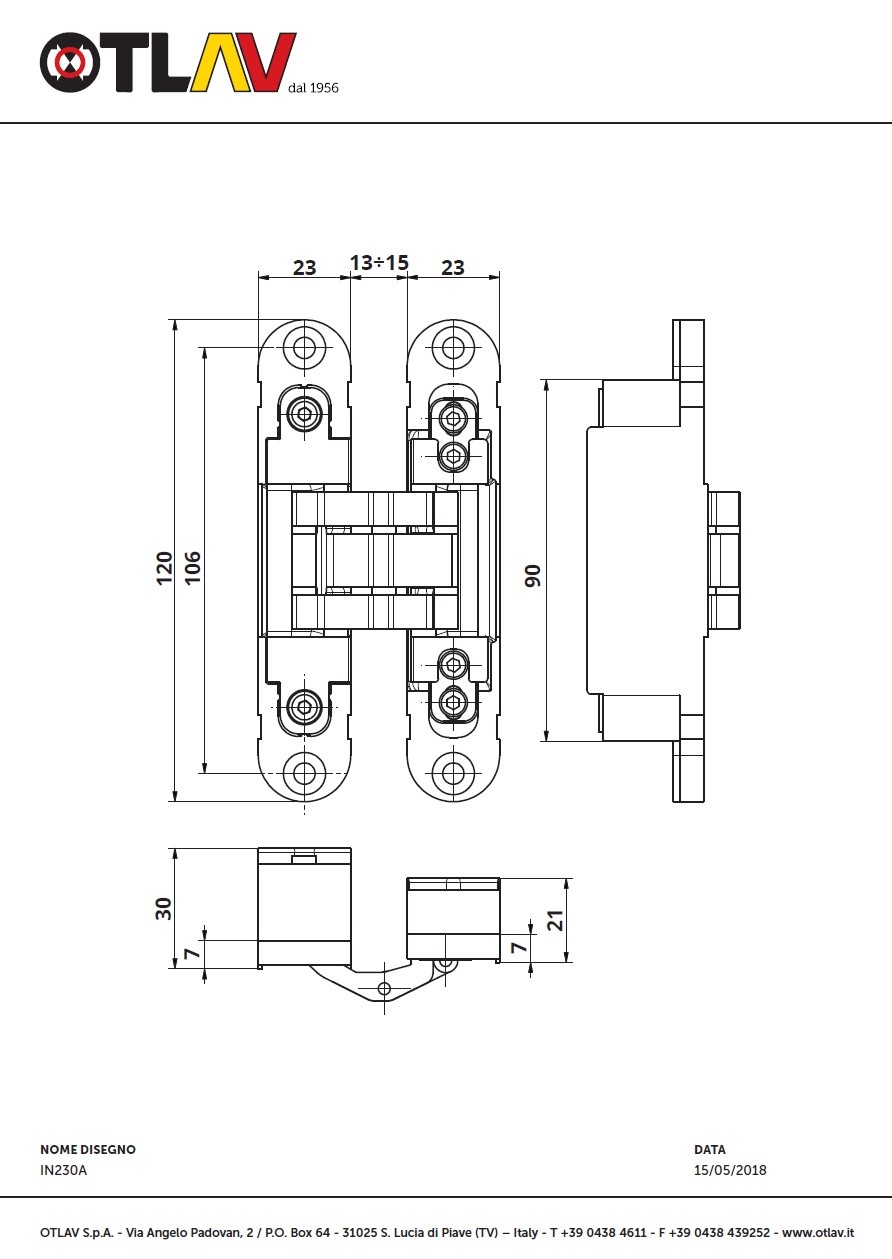

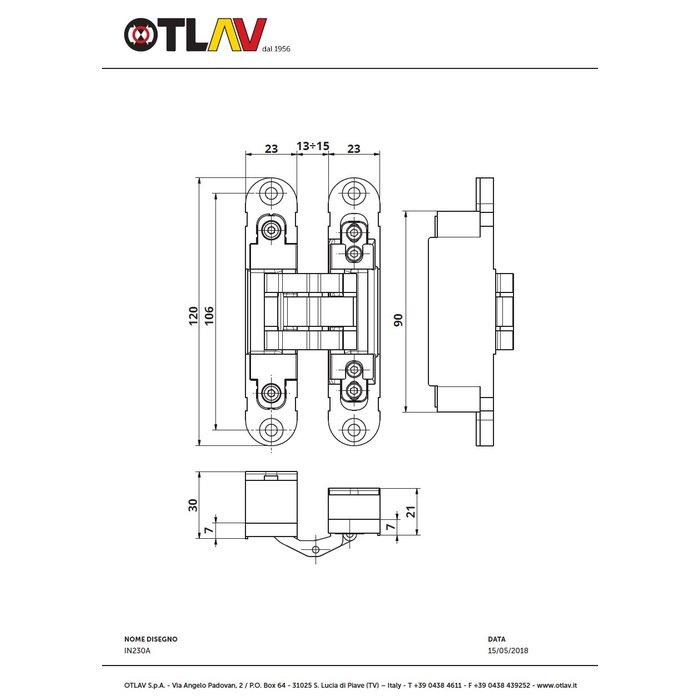

These white invisible hinges have a height of 120mm, a width of 23mm, and a beautiful, fully matte white finish. They are supplied including 4 white aluminium metal cover caps that neatly conceal the screws. These 4 cover caps fit very nicely over the hinges and stay securely in place. As a result, the whole forms a beautifully finished matte white 3D hinge.

The advantage of this model is the metal end caps compared to the similar AGB Eclipse 3 model, which comes with plastic end caps. The advantage of the wider Otlav model (30x120mm, IN300120) is that the wider ones can be used on both the left and the right.

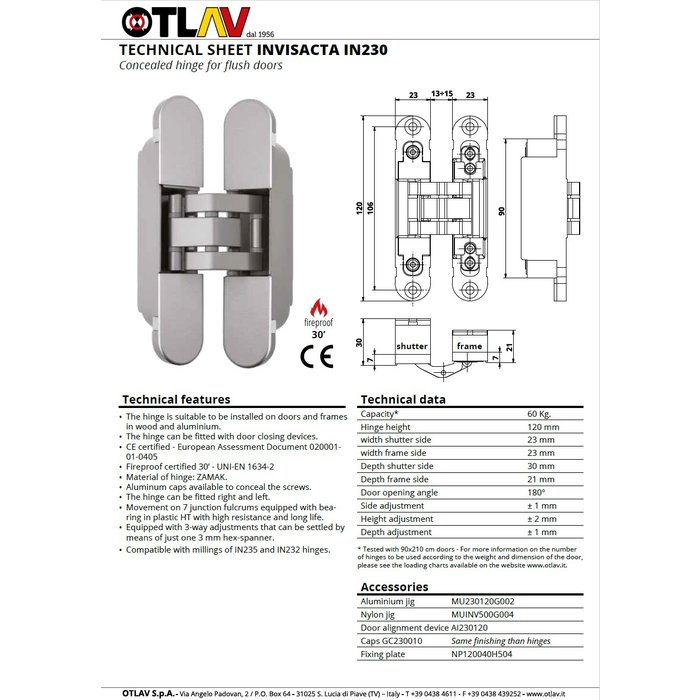

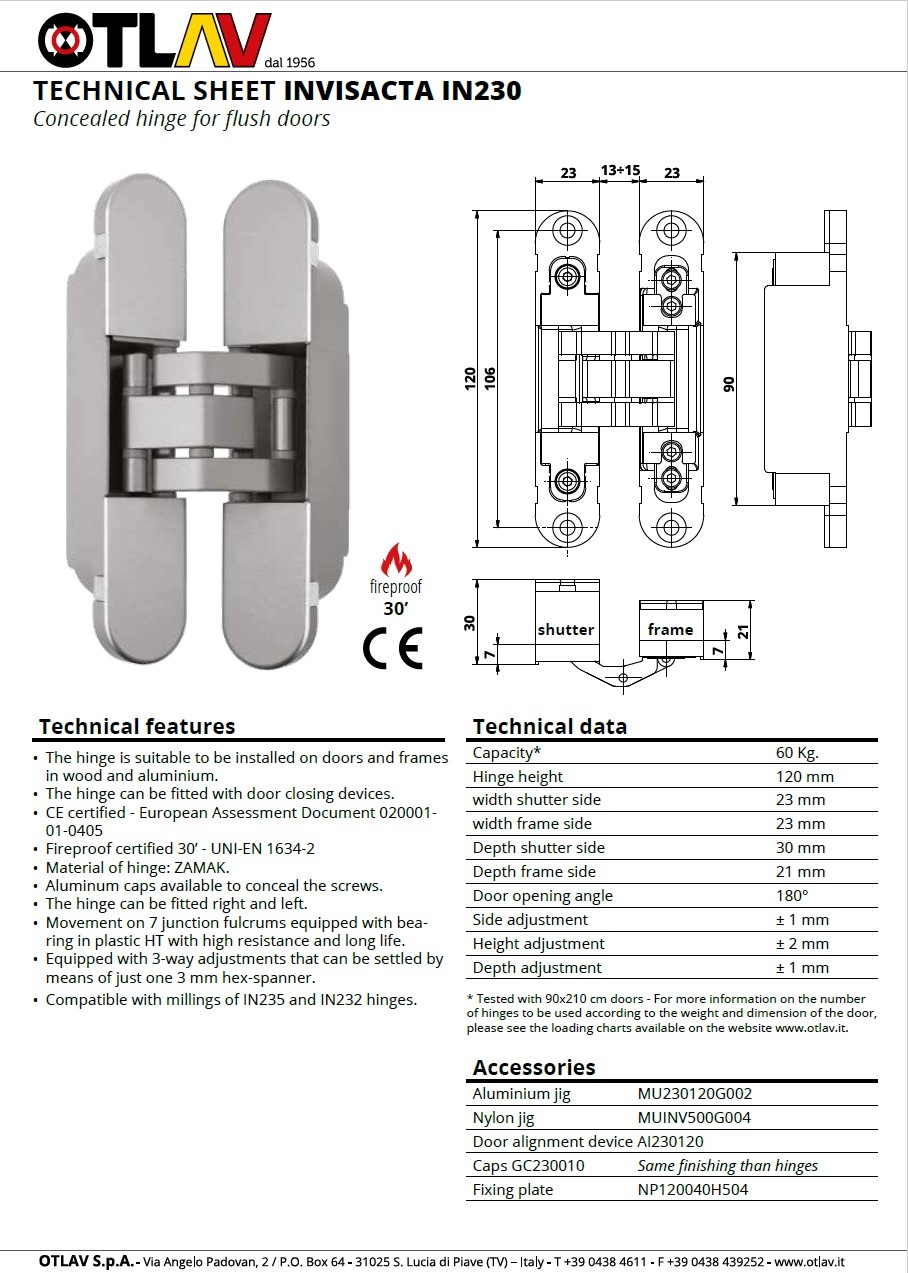

These white concealed Otlav Invisacta IN230120 hinges have a load capacity of 60 kg. This load capacity is based on the use of 2 hinges. They are also fire-resistant for 30 minutes.

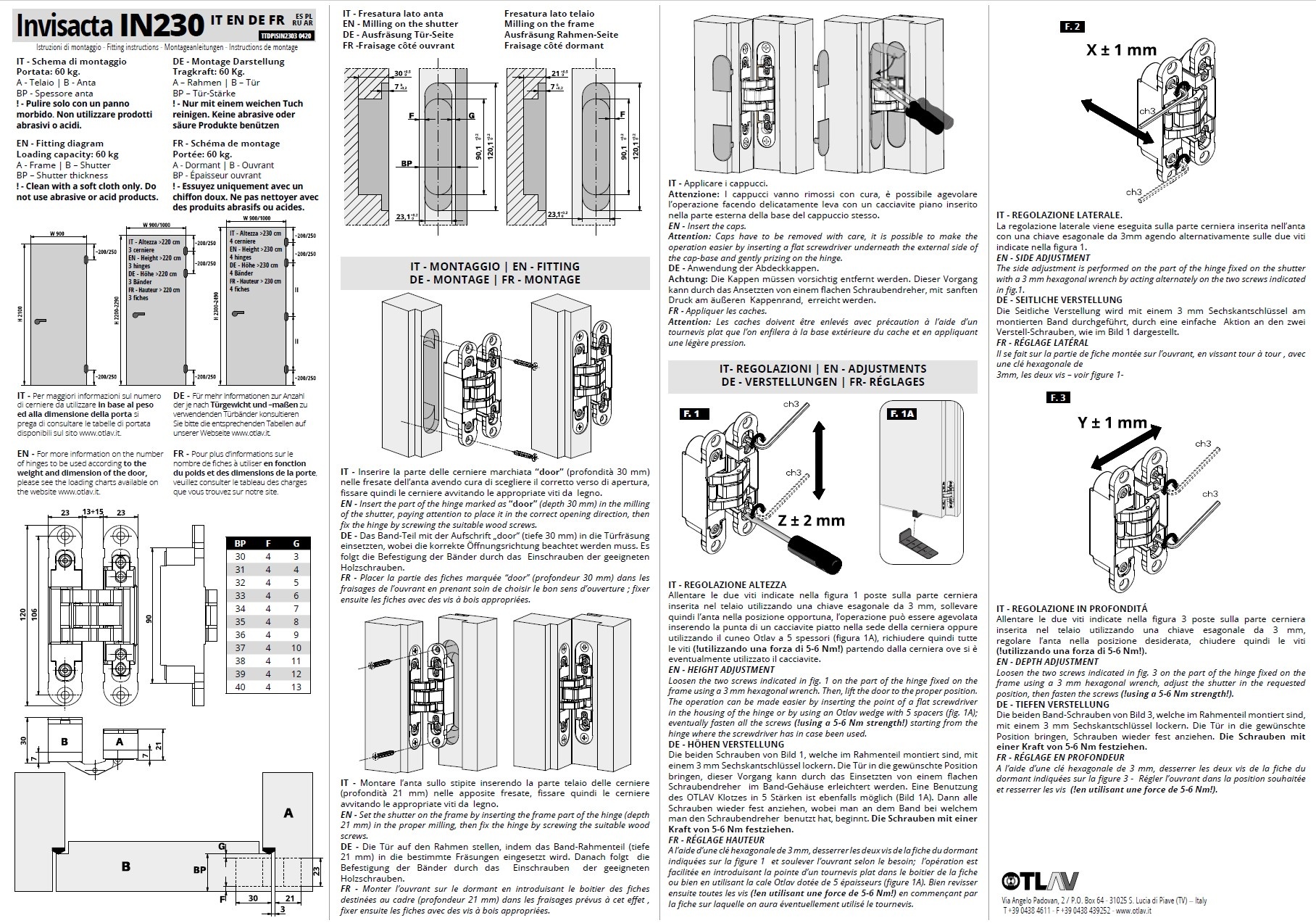

The hinges can open 180° and can be adjusted in 3D (±1mm laterally - ±2mm height - ±1mm depth).

The base of these white 3D hinges is made of Zamak. They are supplied individually without screws and include 4 cover caps.

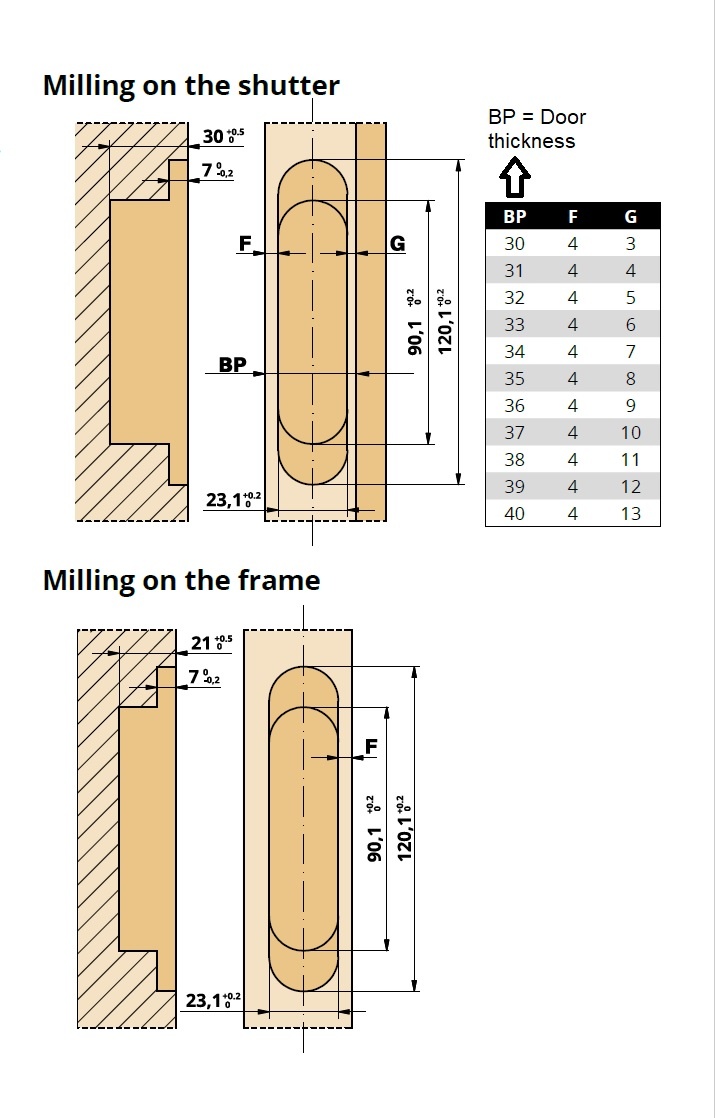

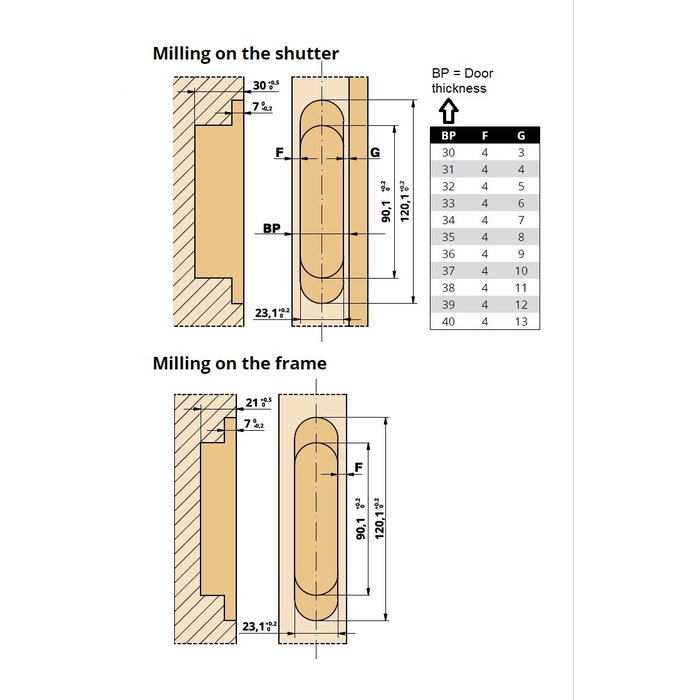

Need a routing template? You can find a matching nylon routing template below under related products.
