Black lock 25x60mm with mandrel 57mm
View product
|
Black lock with front plate 25x60mm and mandrel 57mm



Black lock with front plate 25x60mm and mandrel 57mm

- Article code ZTLKA76HD BL
-
Description

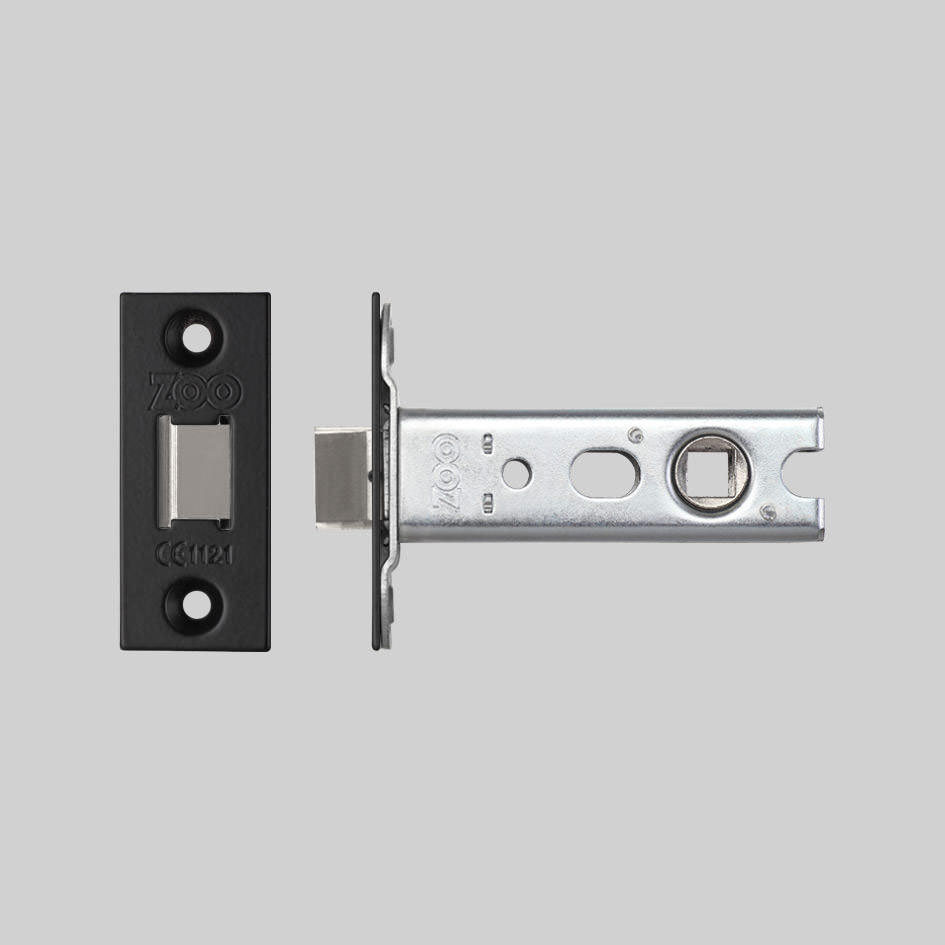

This black lock is particularly easy to install due to its small size.

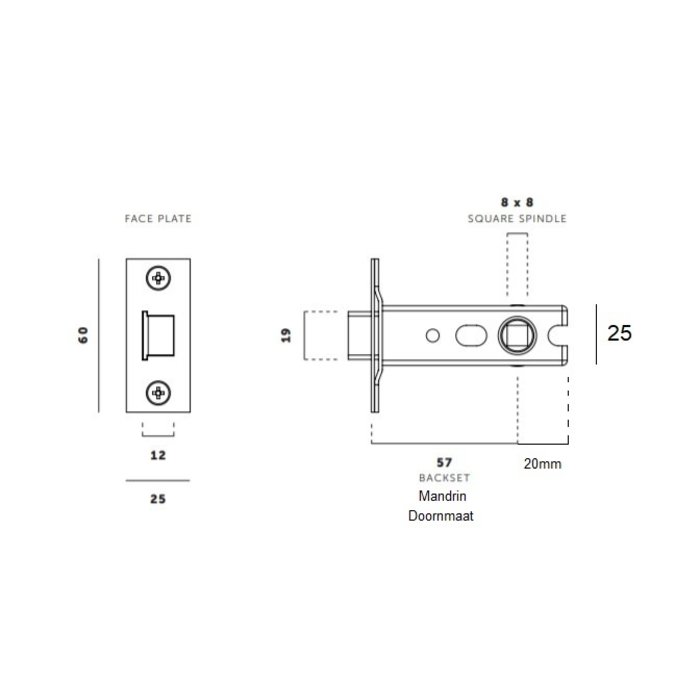

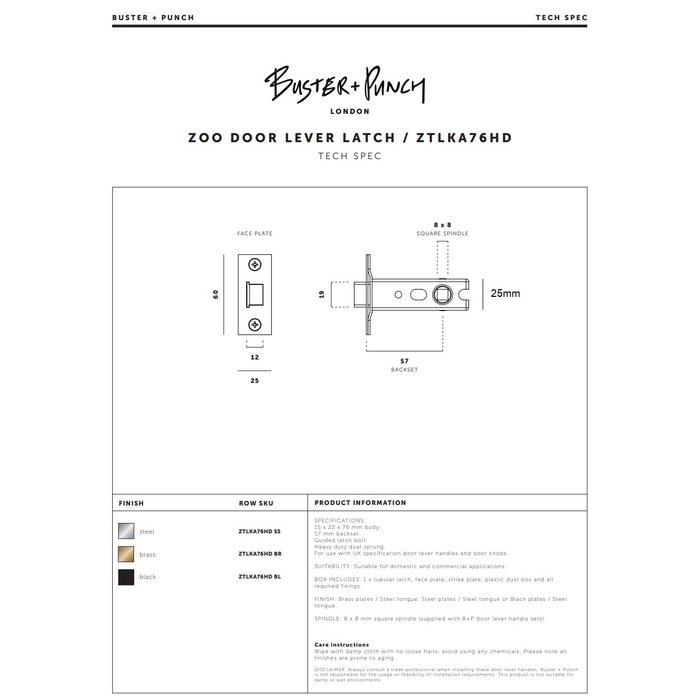

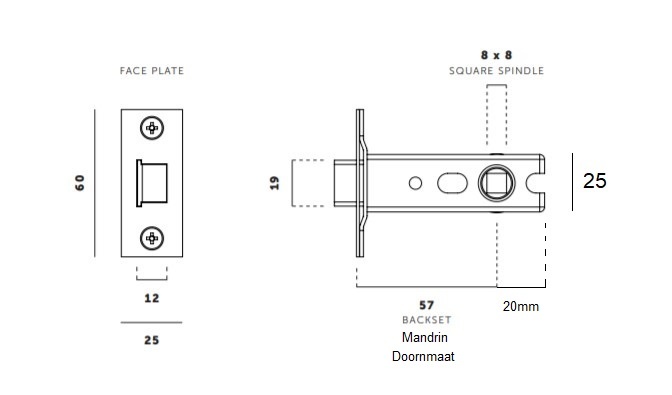

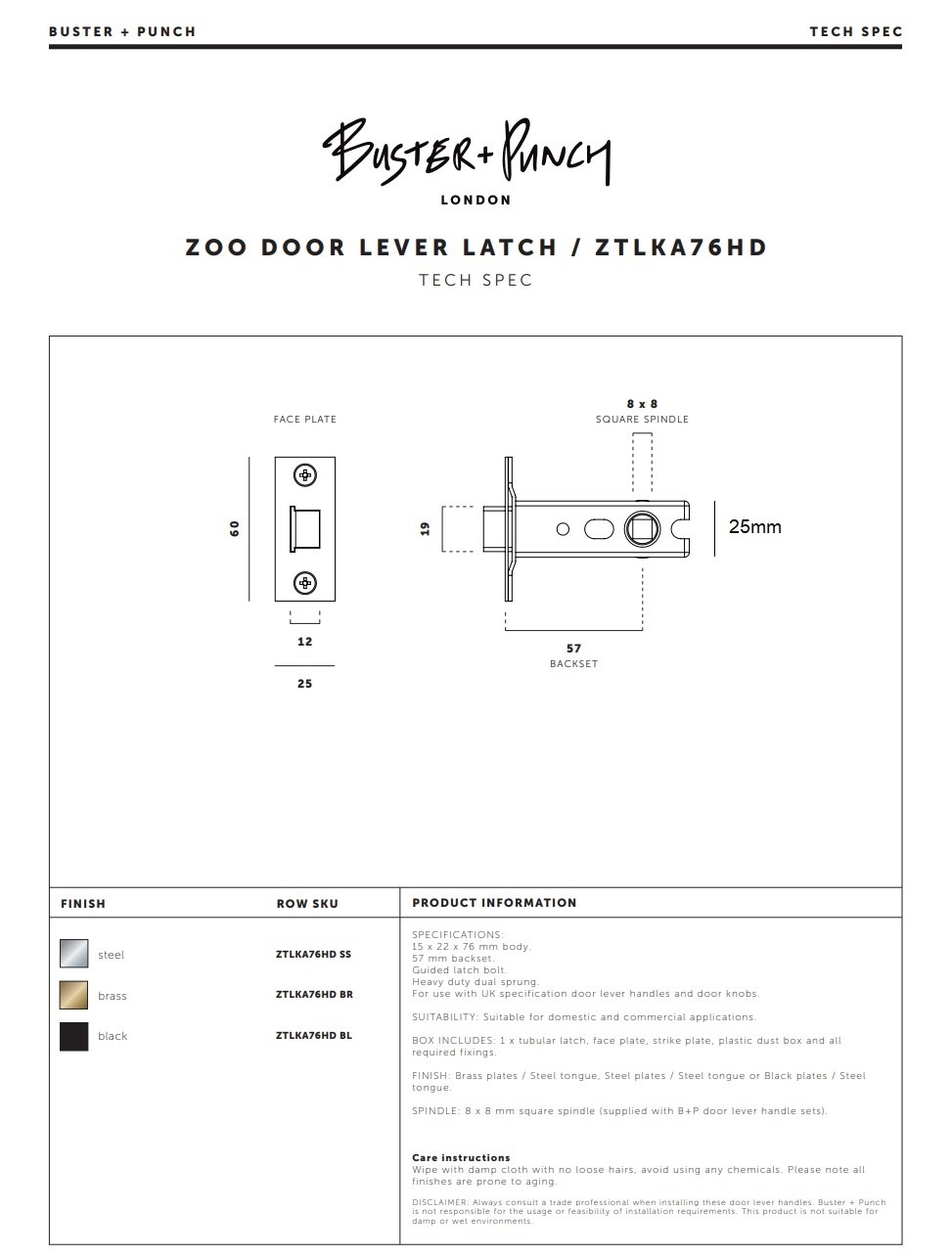

The straight front plate is 25x60mm (width x height) and the total installation depth of the lock itself is 25x80mm. (height x depth).
This makes the black lock very interesting for doors where the lock hole still has to be provided. Because only a space of 25x80mm has to be milled, this saves a lot of space and time. In addition, only a small part of the lock in the door is visible, which provides a minimalist look.
This black lock can be used both left and right and is spring loaded.
The pin hole has an opening of 8x8mm and the diameter is 57mm.
The black lock is supplied per piece including screws and matching striker plate and striker bowl.
The lock is available in 3 colors: black, brass and stainless steel. This version is the black version.
-
This black lock is particularly easy to install due to its small size.
The straight front plate is 25x60mm (width x height) and the total installation depth of the lock itself is 25x80mm. (height x depth).
This makes the black lock very interesting for doors where the lock hole still has to be provided. Because only a space of 25x80mm has to be milled, this saves a lot of space and time. In addition, only a small part of the lock in the door is visible, which provides a minimalist look.
This black lock can be used both left and right and is spring loaded.
The pin hole has an opening of 8x8mm and the diameter is 57mm.
The black lock is supplied per piece including screws and matching striker plate and striker bowl.
The lock is available in 3 colors: black, brass and stainless steel. This version is the black version.
