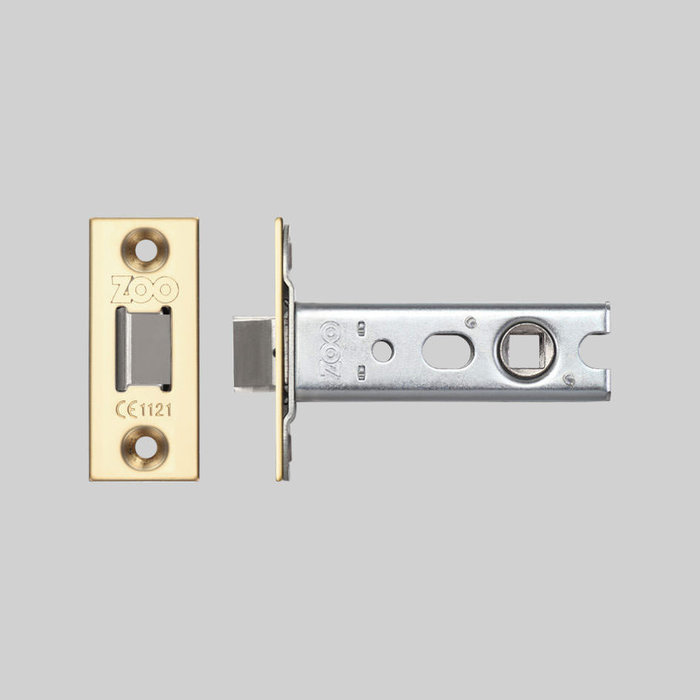

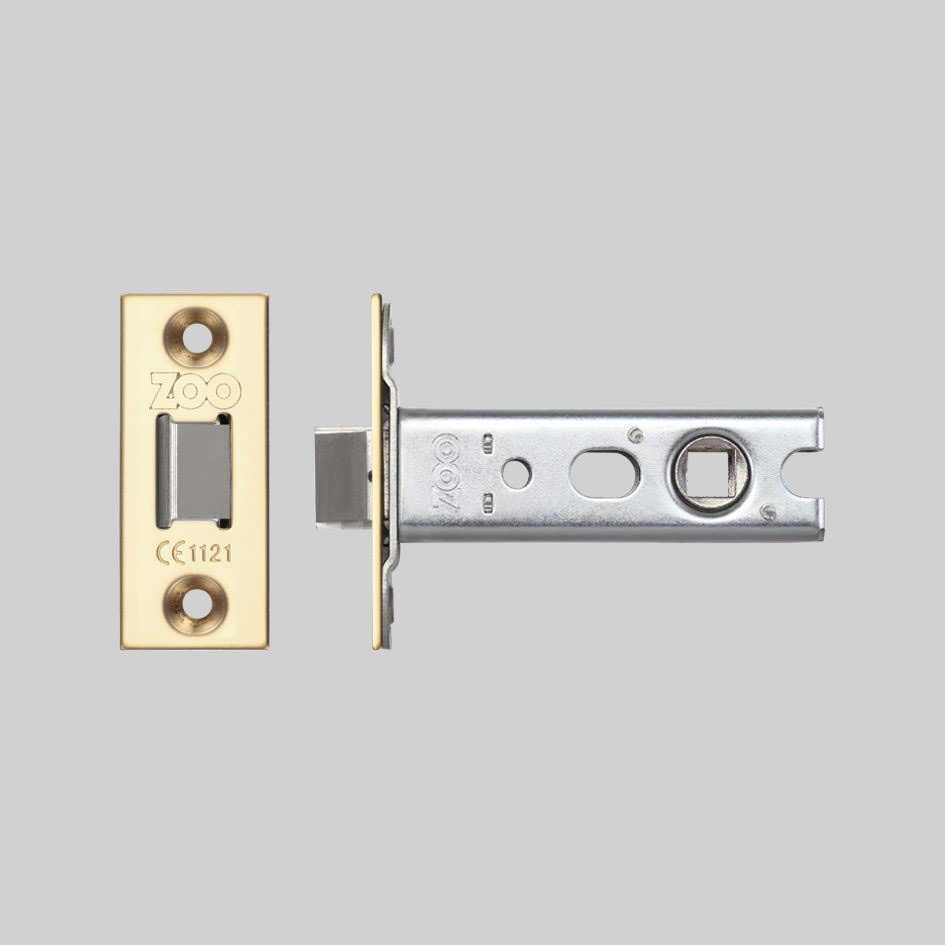

This small lock is particularly easy to install due to its small size.

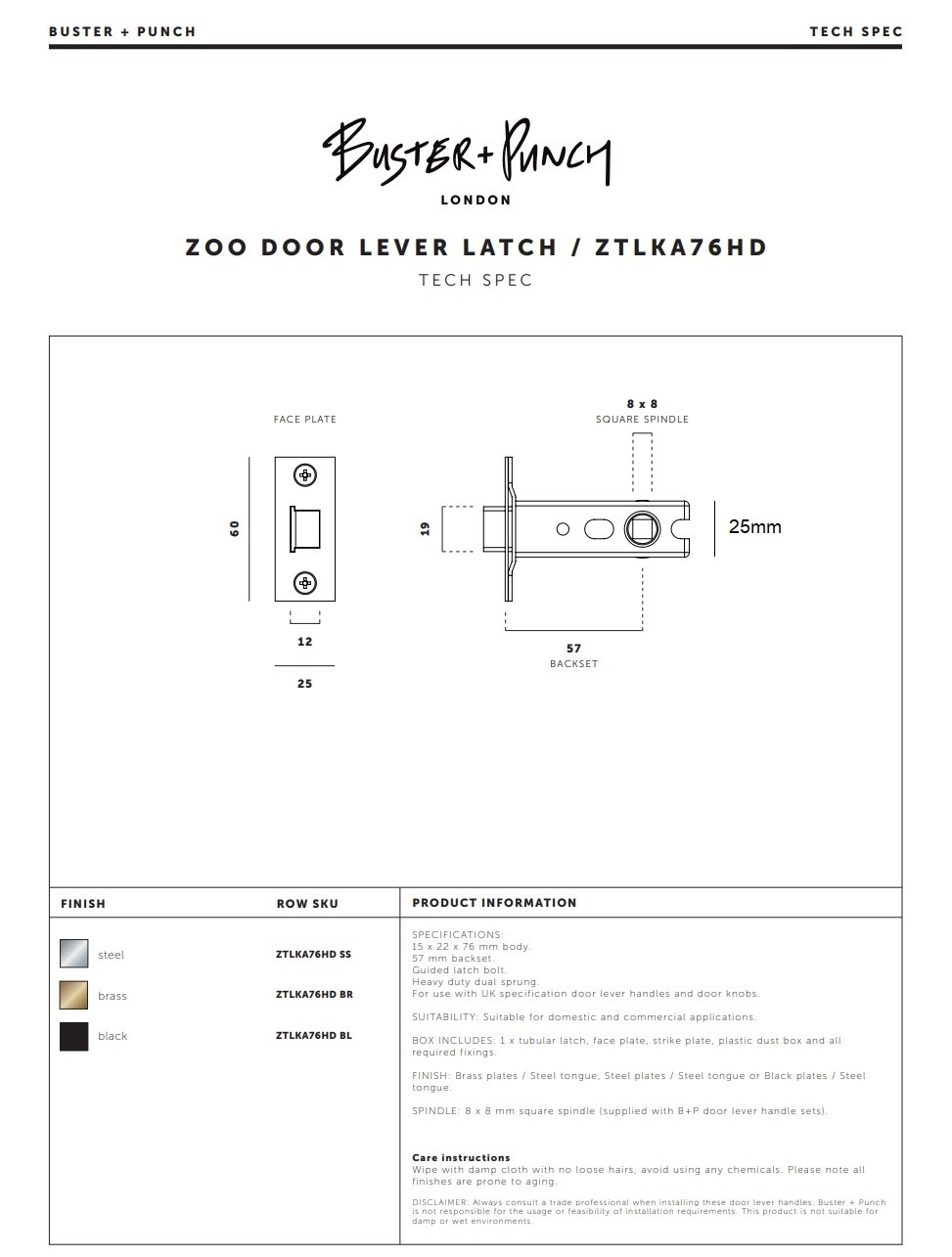

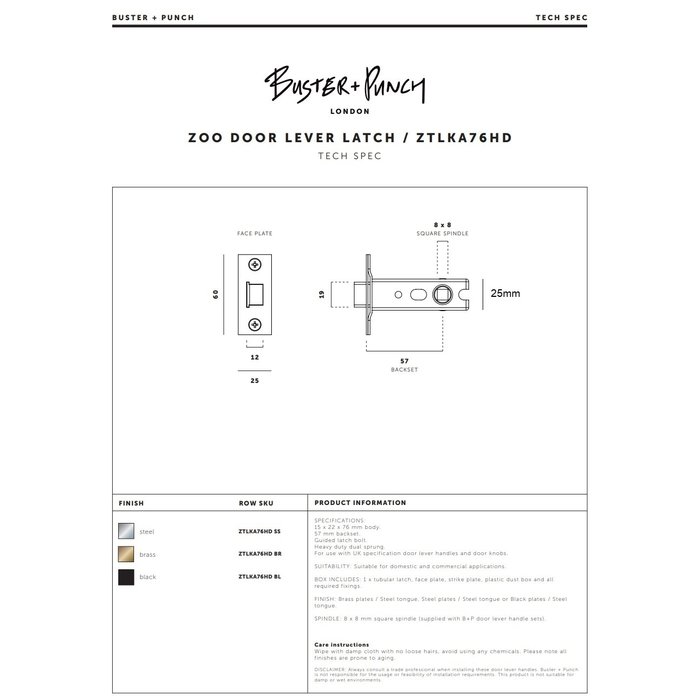

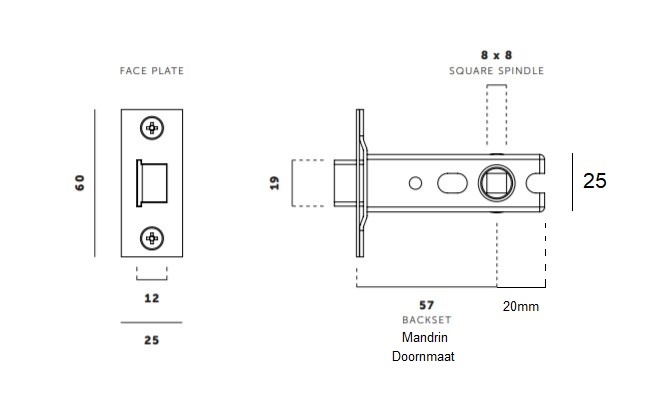

The straight brass front plate is 25x60mm (width x height) and the total installation depth of the lock itself is 25x80mm. (height x depth).

This makes the small lock very interesting for doors where the lock hole still has to be provided. Because only a space of 25x80mm has to be milled, this saves a lot of space and time. In addition, only a small part of the lock in the door is visible, which provides a minimalist look.

This small lock can be used both left and right and is spring loaded.

The pin hole has an opening of 8x8mm and the diameter is 57mm.

The brass lock is supplied per piece including screws and matching striker plate and striker bowl.

The lock is available in 3 colors: black, brass and stainless steel. This version is the brass version.
