Description

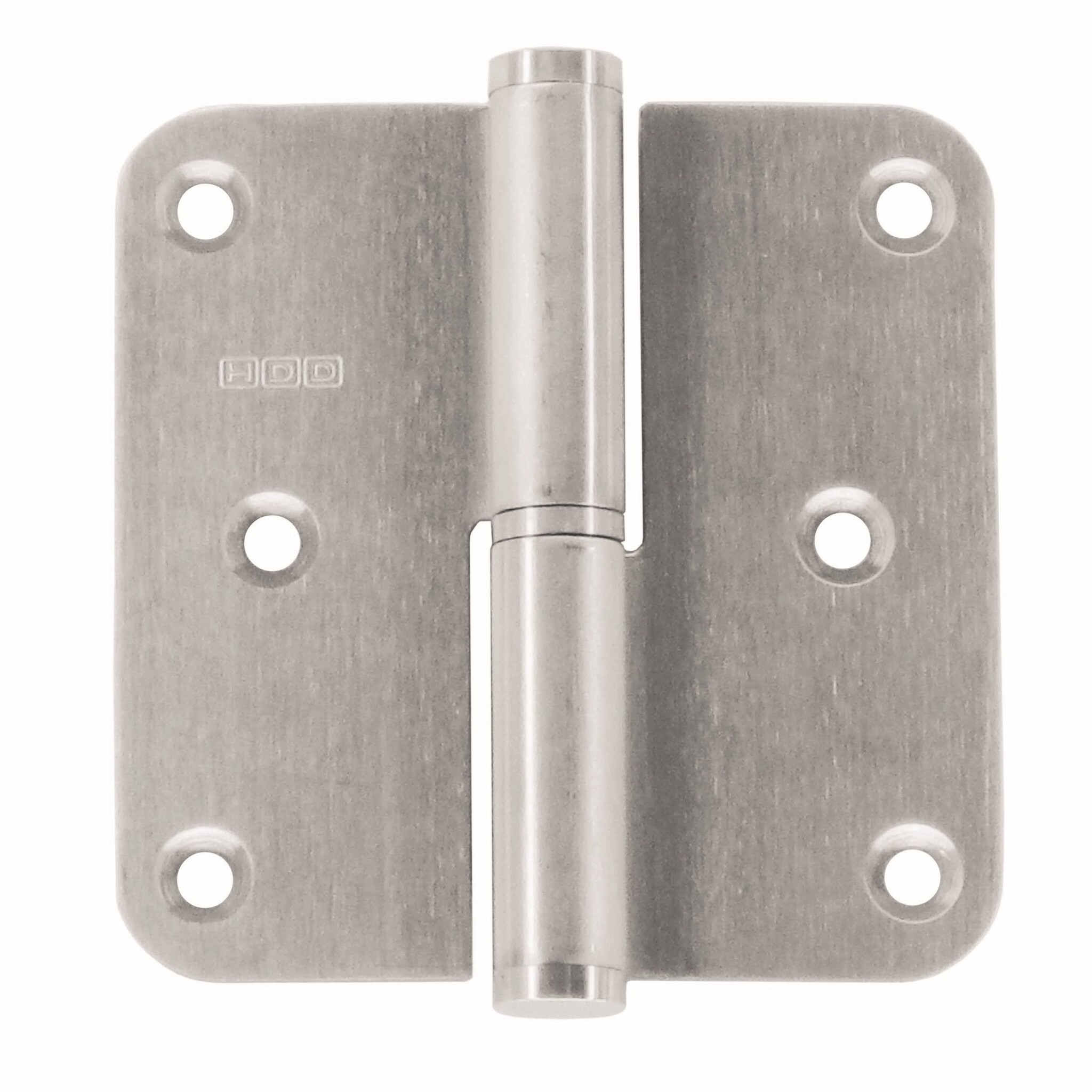

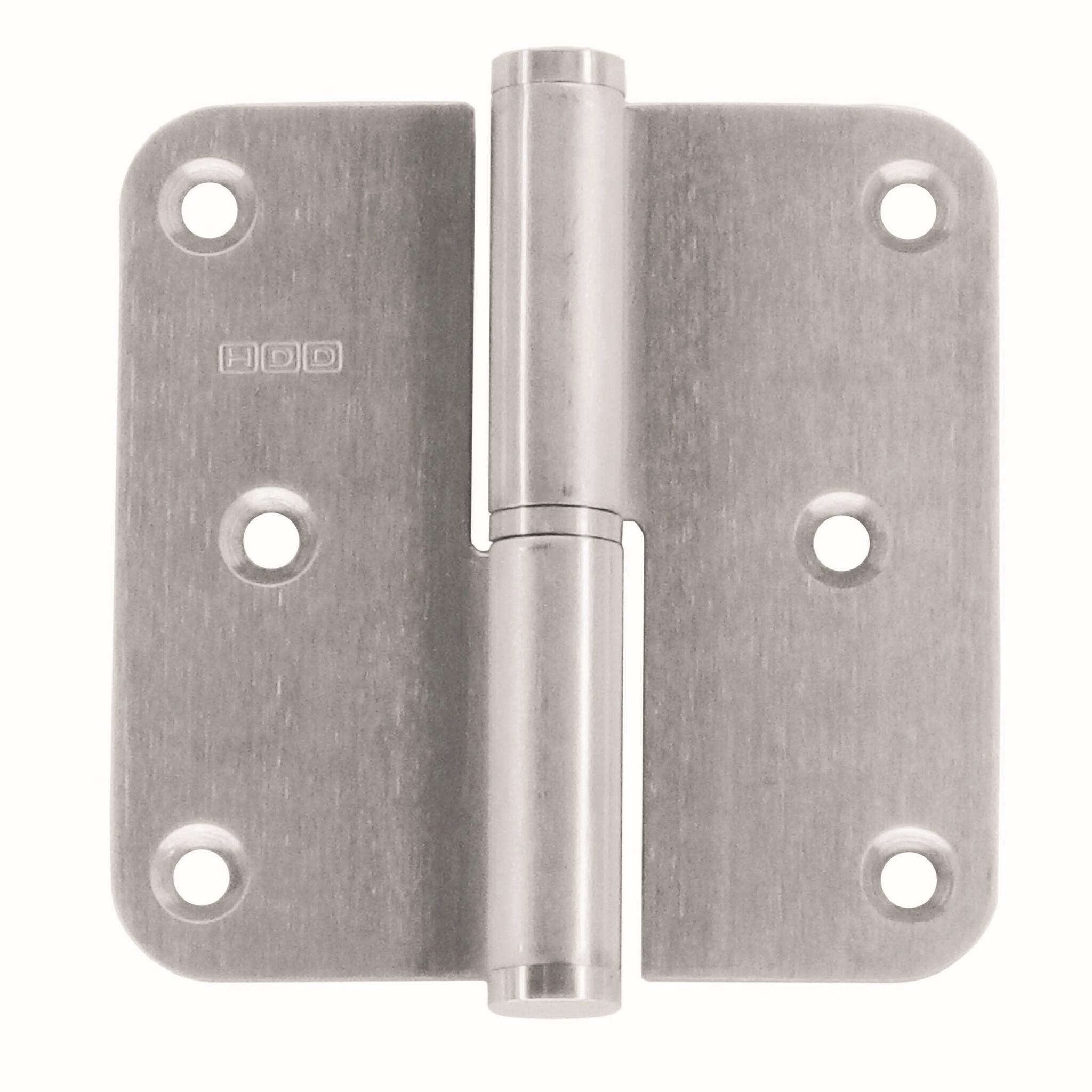

Stainless steel butt hinge AISI 304 80x80x2.5mm from HDD available in 2 variants: DIN right - Belgian left or DIN left - Belgian right
Article code: 1013004

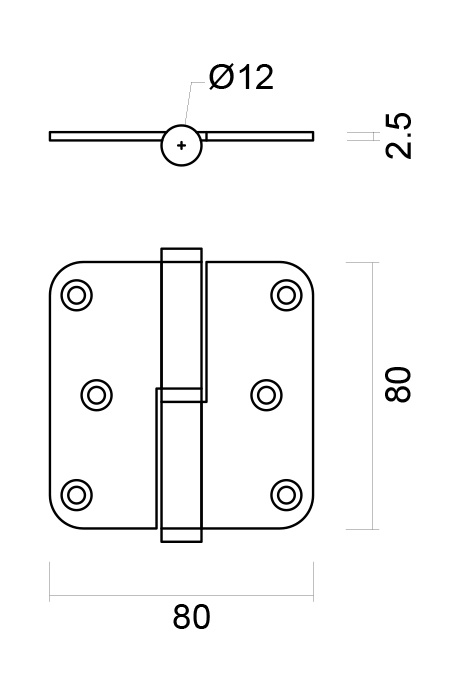

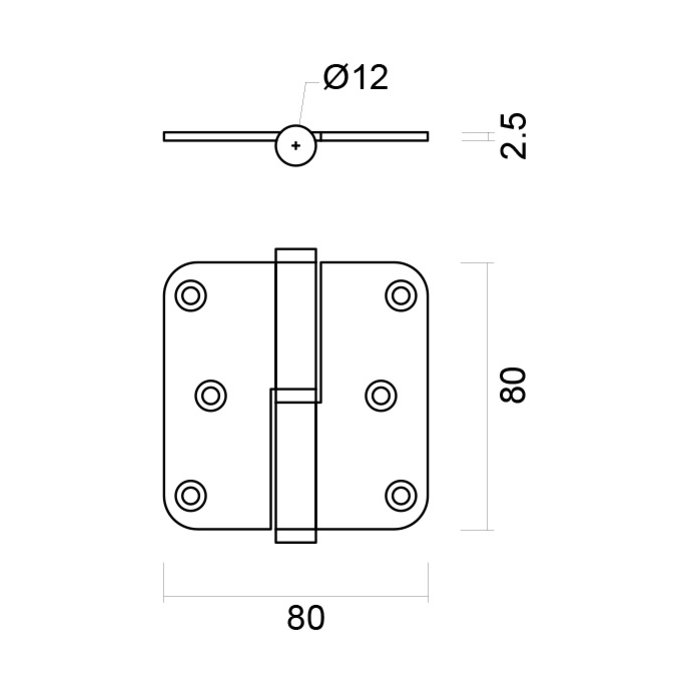

These stainless steel hinges have the following dimensions: 80x80x2.5 mm and feature the rust-resistant AISI 304 quality, making them suitable for exterior doors as well. 80x80x2.5 mm is a dimension commonly used in Belgium.
These hinges have rounded corners and are supplied individually without screws.
The load capacity of 1 hinge is 20 kg and they have a fire resistance of 60 min.( RF60)
In the scroll menu at the top right, select a left DIN hinge (Belgian right) or a right DIN hinge (Belgian left).

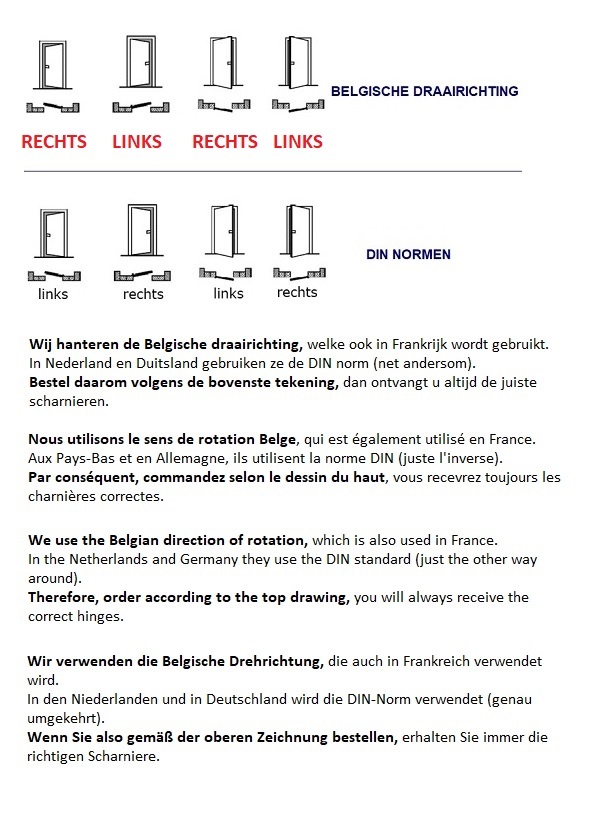

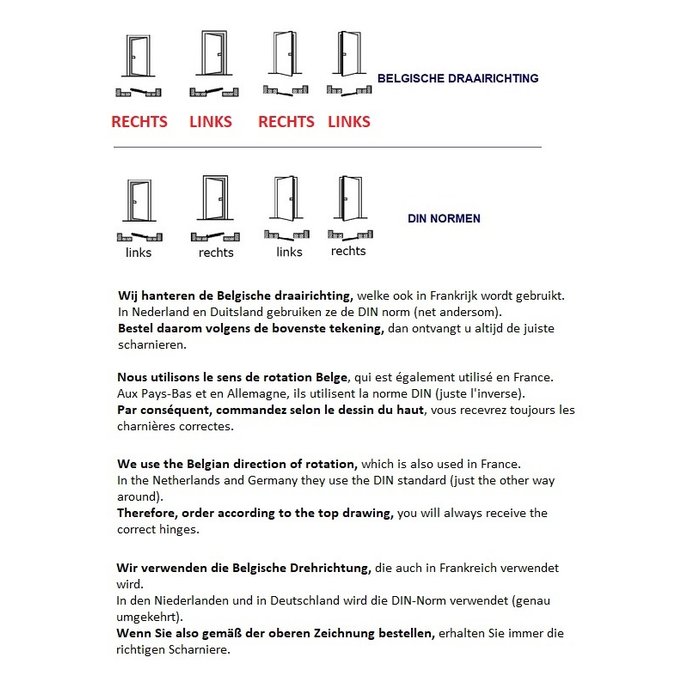

PLEASE NOTE: Belgium uses a different direction of rotation than the DIN standard. Therefore, please order exclusively using the attached drawing. This ensures you always receive the correct hinges.
