Description

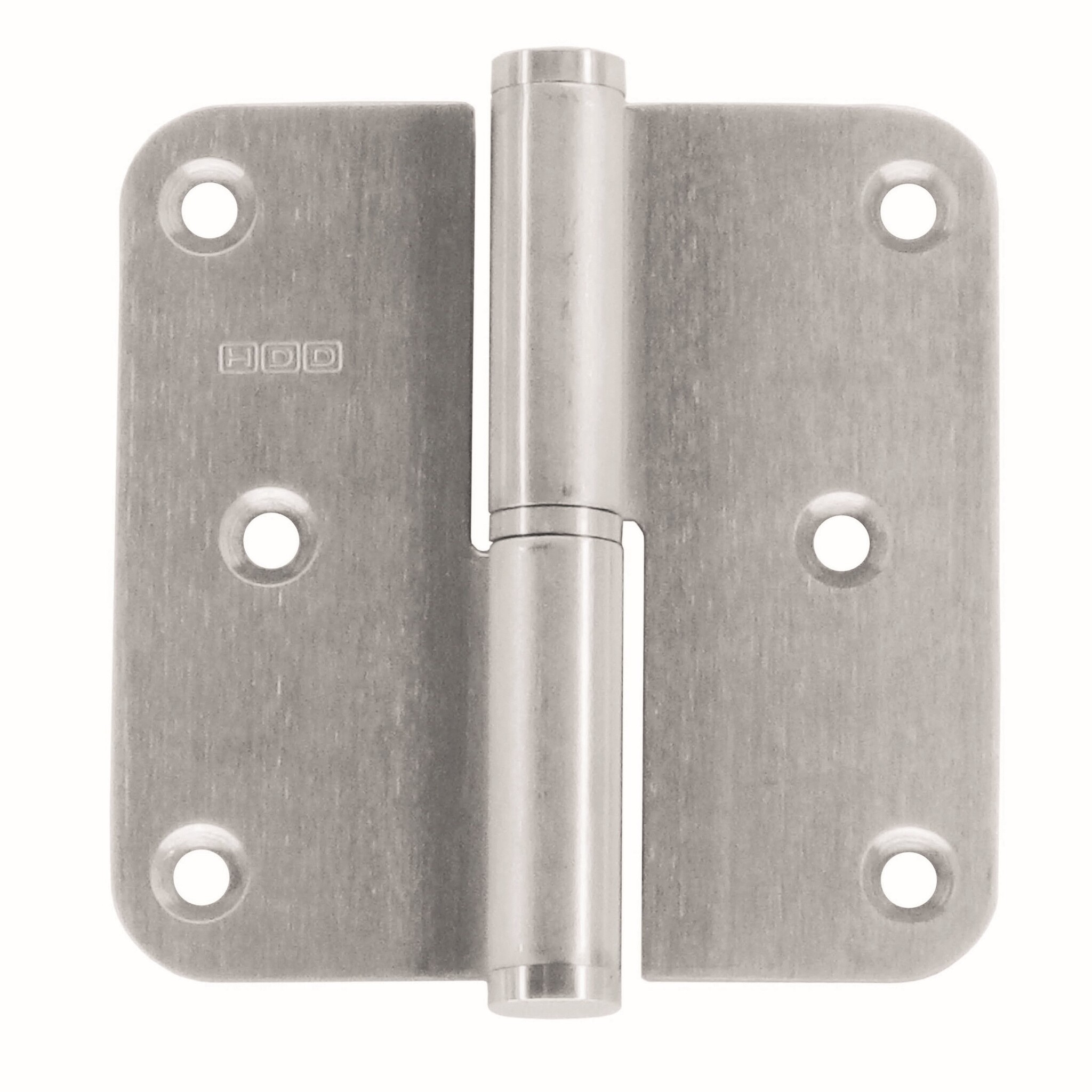

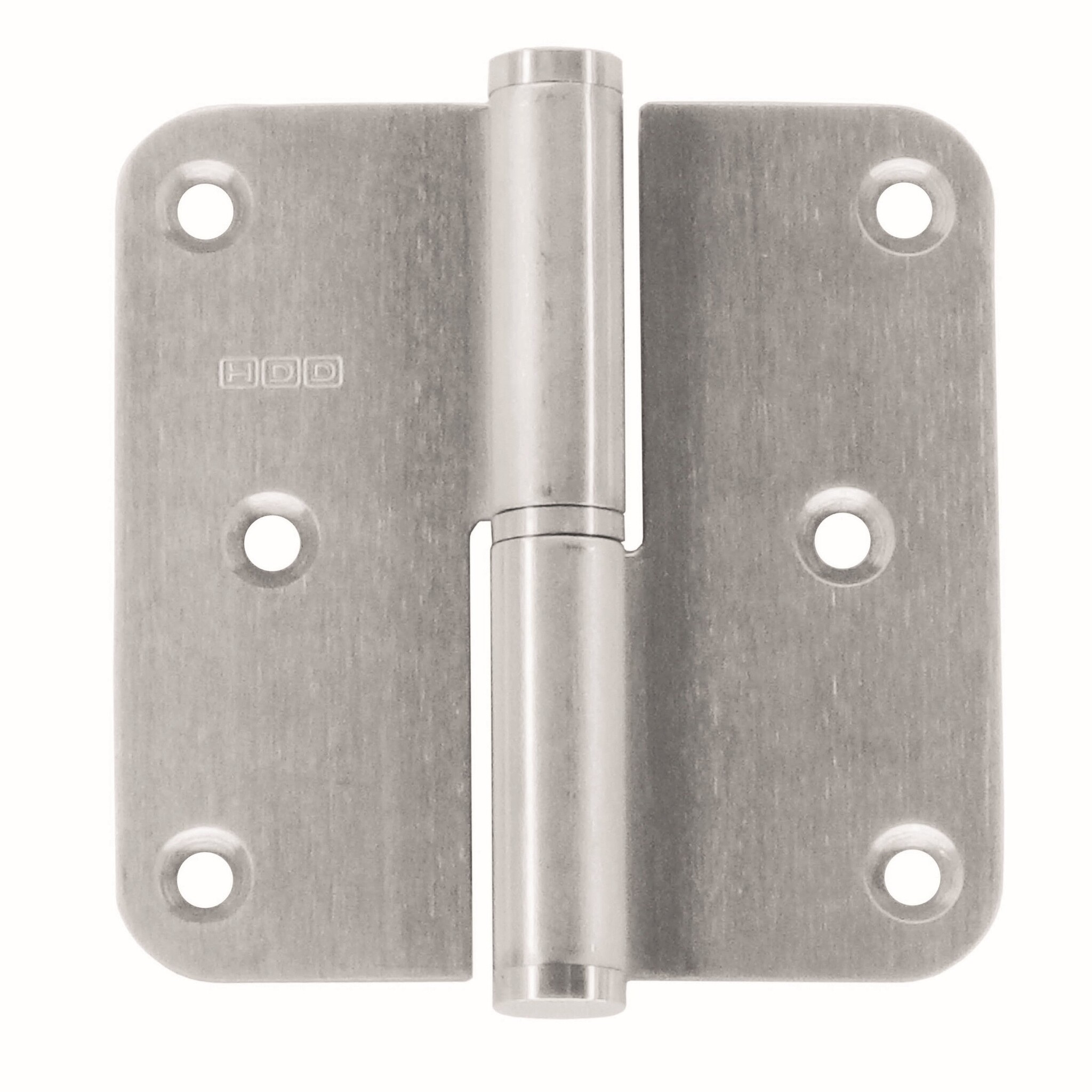

Hinge 80x80x2.5mm with a lighter stainless steel alloy AISI 201 available in 2 variants: DIN right - Belgian left or DIN left - Belgian right
Article code: 1192004

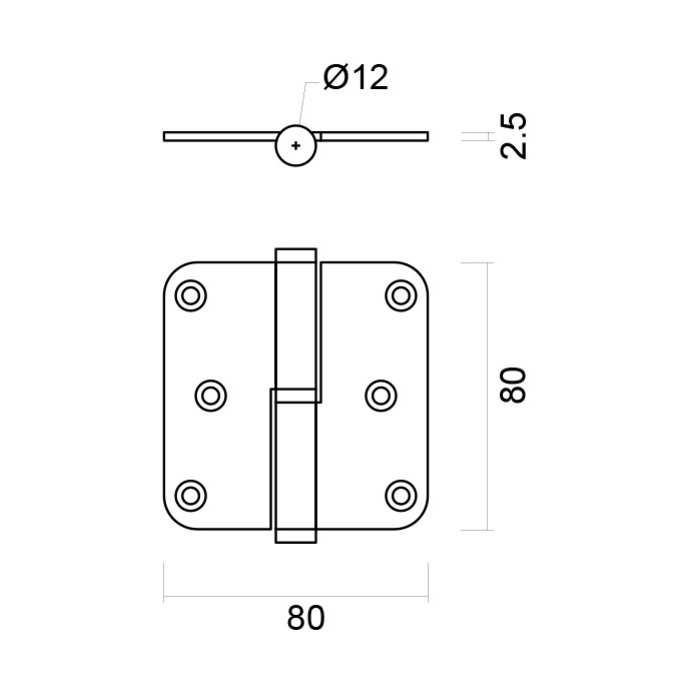

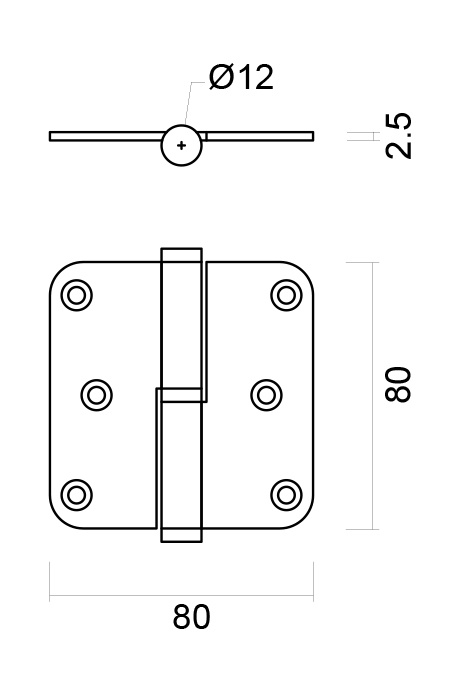

These hinges have the following dimensions: 80x80x2.5 mm. The stainless steel content of this hinge is slightly lower.
These hinges have rounded corners and are supplied individually without screws. The load capacity of one hinge is 20 kg and they have a fire resistance of 60 min. (RF60)
In the scroll menu at the top right, select a left DIN hinge (Belgian right) or a right DIN hinge (Belgian left).

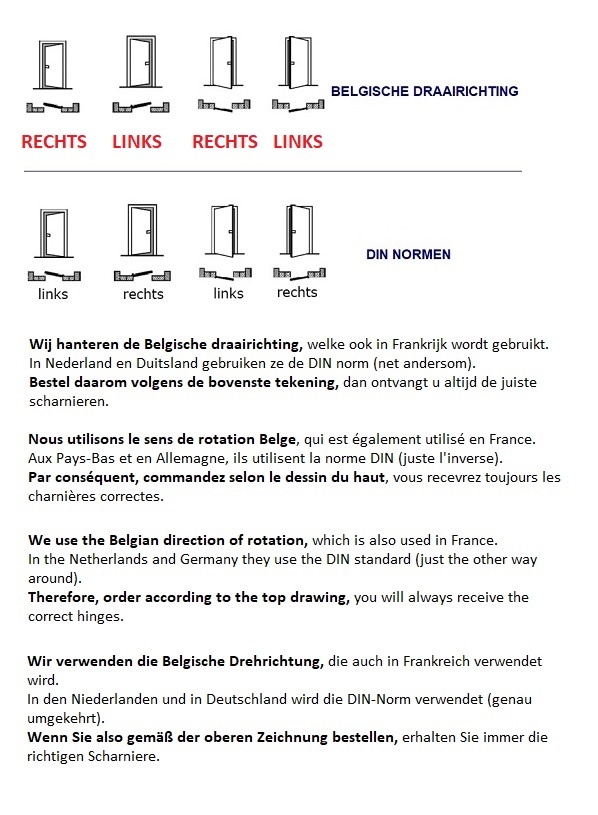

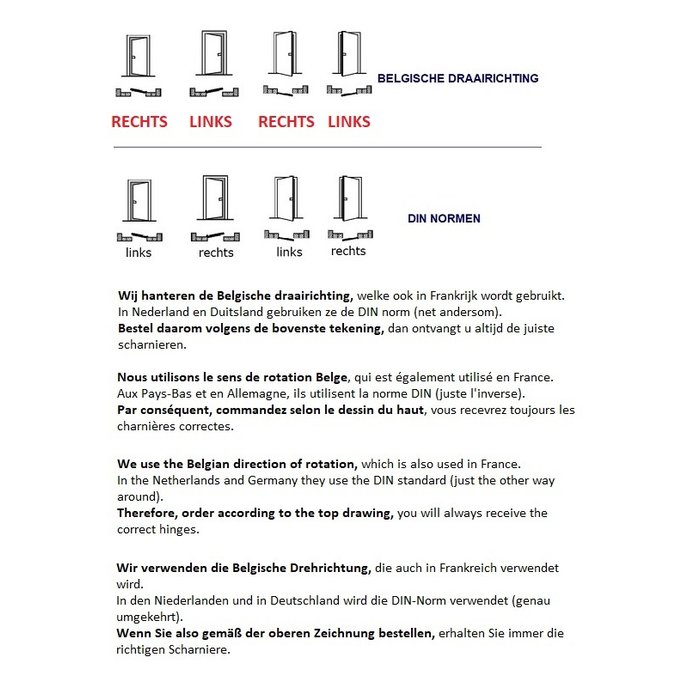

PLEASE NOTE: Belgium uses a different direction of rotation than the DIN standard. Therefore, please order exclusively using the attached drawing. This ensures you always receive the correct hinges.
