Description
Compact Locinox 24V DC power supply for DIN rail mounting, suitable for electronic Locinox products
Article code: DSP00048521

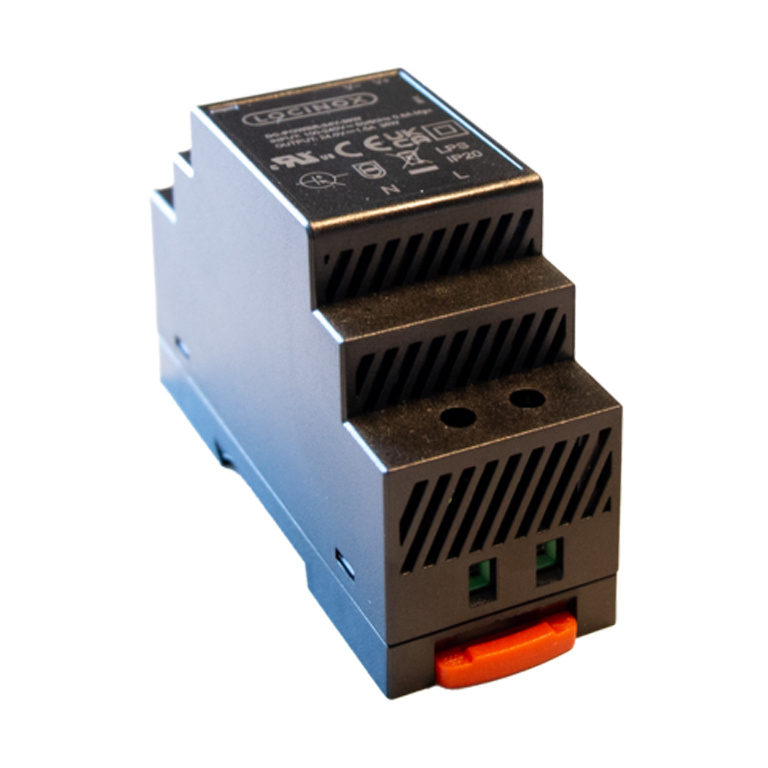

Locinox DC-POWER-24V-30W power supply 24V DC – DIN rail
The Locinox DC-POWER-24V-30W is a compact power supply for providing standalone electronic Locinox products with a stable 24V DC power supply . Thanks to its compact design and DIN rail mounting, the power supply can be easily integrated into a suitable housing or control cabinet.
The power supply supports a universal input voltage of 100 to 240V AC (50/60 Hz) and delivers an output voltage of 24V DC with a maximum output current of 1.5 A. The maximum output power is 36 W.
For reliable operation, the power supply is equipped with built-in protection against short circuits, overloads, and overvoltage . Thanks to its compact dimensions of only 90 x 35 x 58 mm, the power supply fits into the compact Locinox PB-1 Powerbox, among others.
Technical specifications
| Brand | Locinox |
| Model | DC-POWER-24V-30W |
| Product type | Power supply |
| Assembly | DIN rail |
| Input voltage | 100-240 V AC, 50/60 Hz |
| Input current | 0.9 A at 110 V AC / 0.5 A at 220 V AC |
| Output voltage | 24 V DC |
| Output current | Max. 1.5 A |
| Output power | Max. 36 W |
| IP protection rating | IP20 |
| Insulation class | Class II |
| Security | Short circuit, overload and overvoltage |

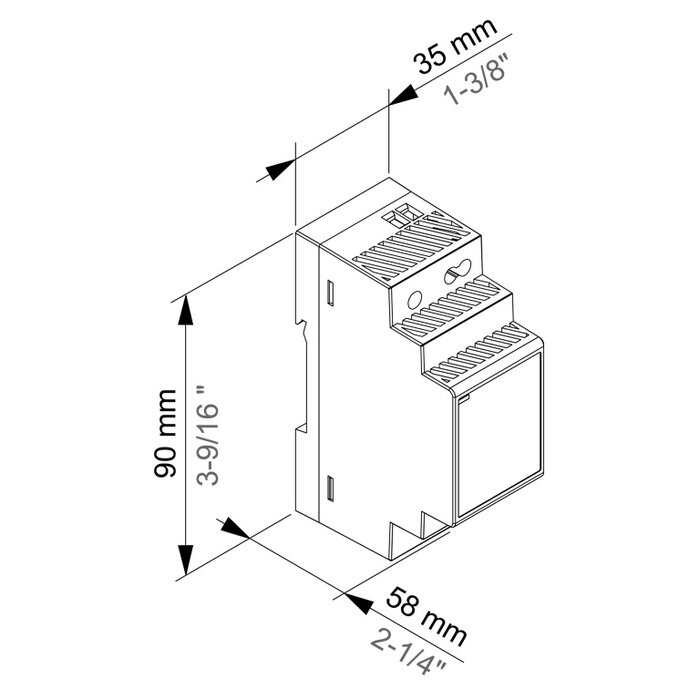

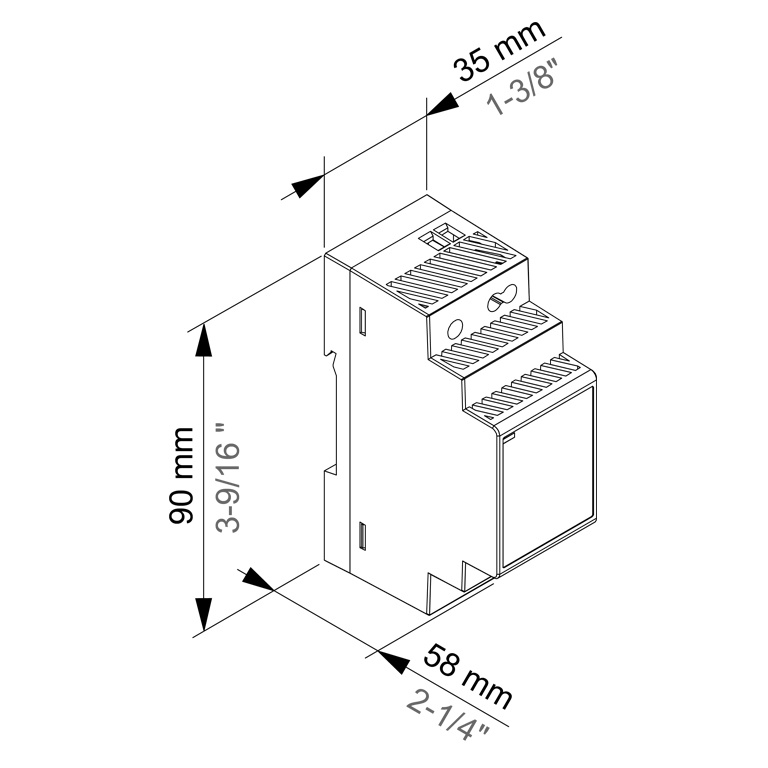

| Dimensions (L x W x H) | 90 x 35 x 58 mm |
| Cable included | No |
