Description

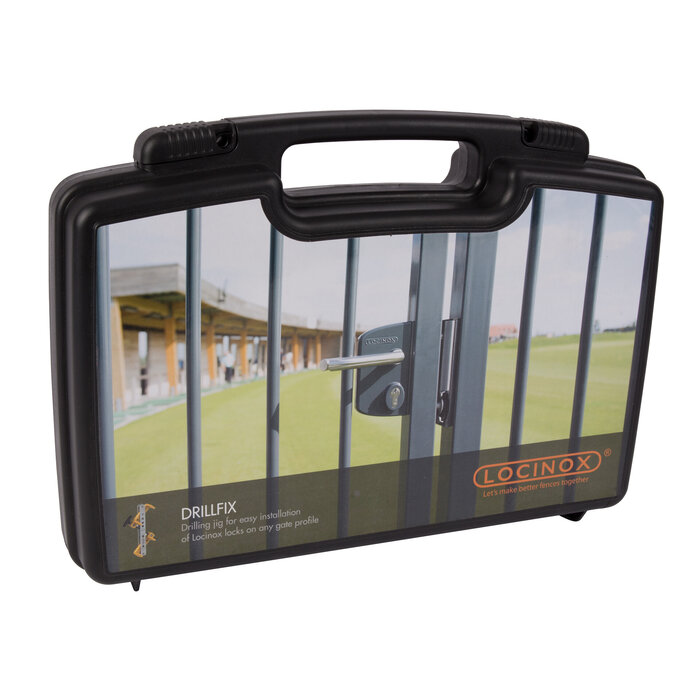

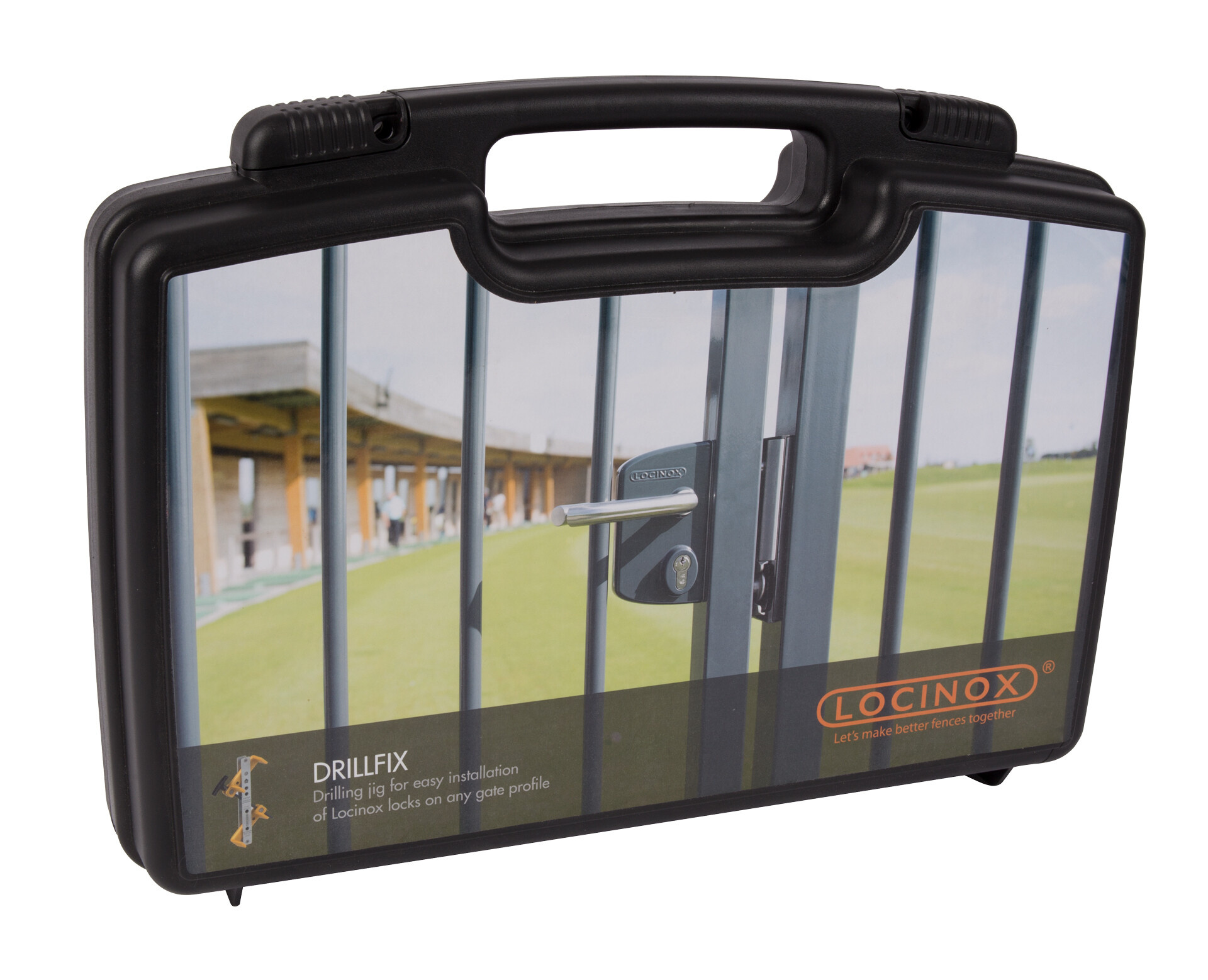

DRILLFIX tool case with drilling gauge for Locinox surface-mounted gate locks and matching keepers
Article code: DSP00007023
The handy all-in-one case is designed for accurately drilling holes for Locinox gate locks and associated keepers.

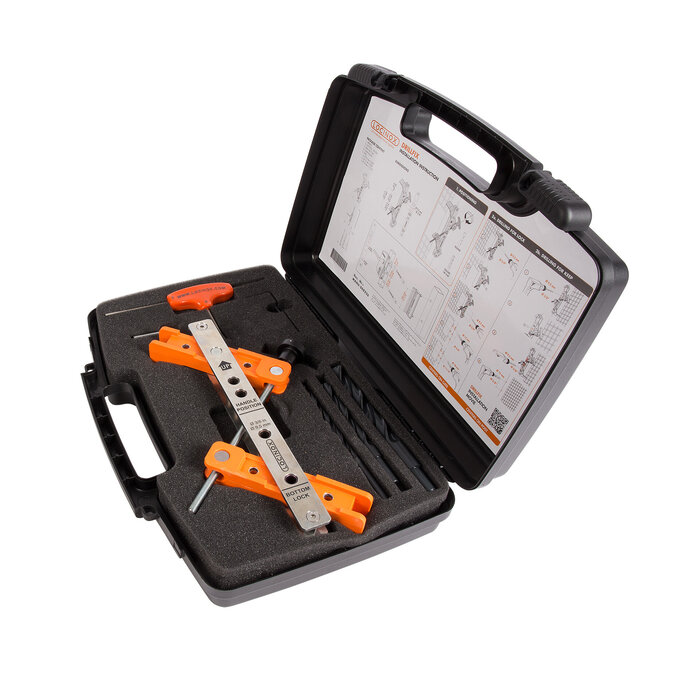

The case contains a drilling template that clamps firmly on both round and rectangular profiles, which ensures perfect alignment of the holes to be drilled. In addition, the case contains all the necessary accessories for quick installation and adjustment, making the entire process efficient.
Whether installing new locks or replacing existing ones, this set offers everything needed to get the job done quickly and accurately.
Download the installation instructions here.
Read the specific features below.
- Tool case with auto-centering drill gauge for quick installation of Locinox surface-mounted gate locks and keepers

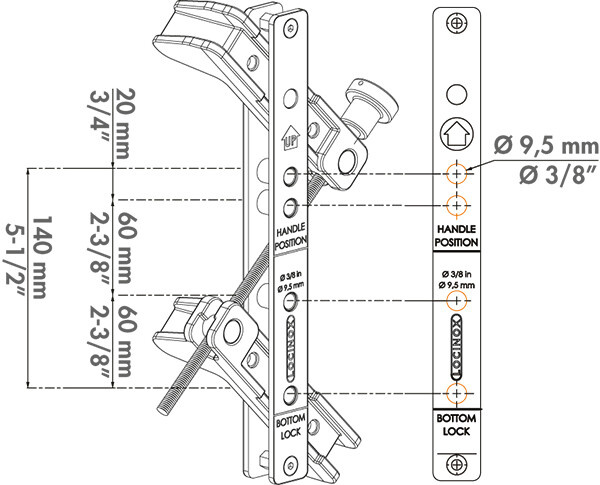

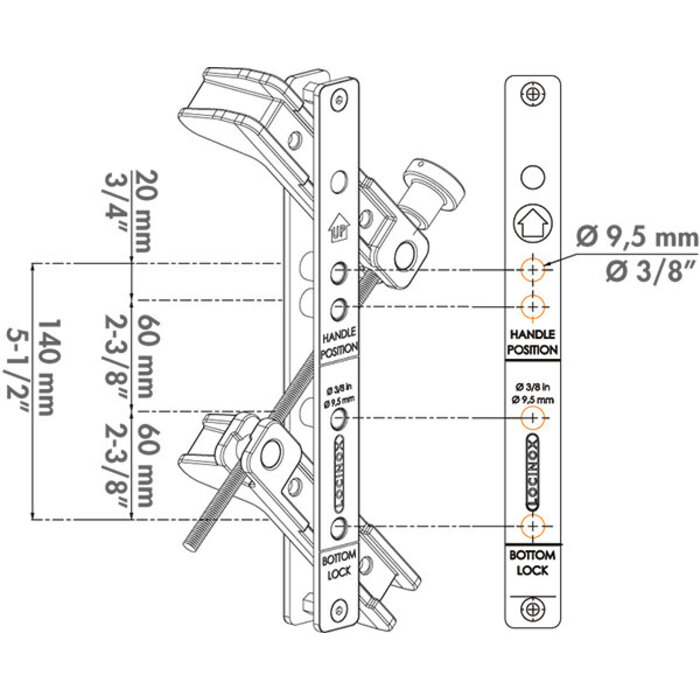

- Drilling caliber is suitable for round, square and rectangular profiles from 30 to 76 mm
- Includes 3 drill heads (Ø9.5 mm, Ø15 mm, Ø18 mm)
- Installation of Locinox surface-mounted gate locks and keepers in 4 simple steps
- Includes Locitool LA
- Includes Allen Key and positioning pin
