Locinox multifunctional mortise lock with 40mm pin - for profiles from 60 mm

Discover the ideal mortise lock for residential applications!

This high-quality lock features a 100% stainless steel mechanism and a compact 40 mm backset. Thanks to the 10 mm adjustable pin, it fits perfectly in various installations. The patented internal mechanism offers exceptional flexibility with two locking options via the cylinder: on the bolt and/or levers.

Combine it with a mechanical strike for optimum security. For applications with electric strikes, a setting with free bolt and blocked handles is possible. This guarantees reliable operation in every situation. Installation is quick and easy with the self-drilling screws in a rectangular recess.

suitable for metal, aluminium, wooden and PVC profiles from 60 mm. A perfect choice for those who want to combine durability, ease of use and security in one smart lock.

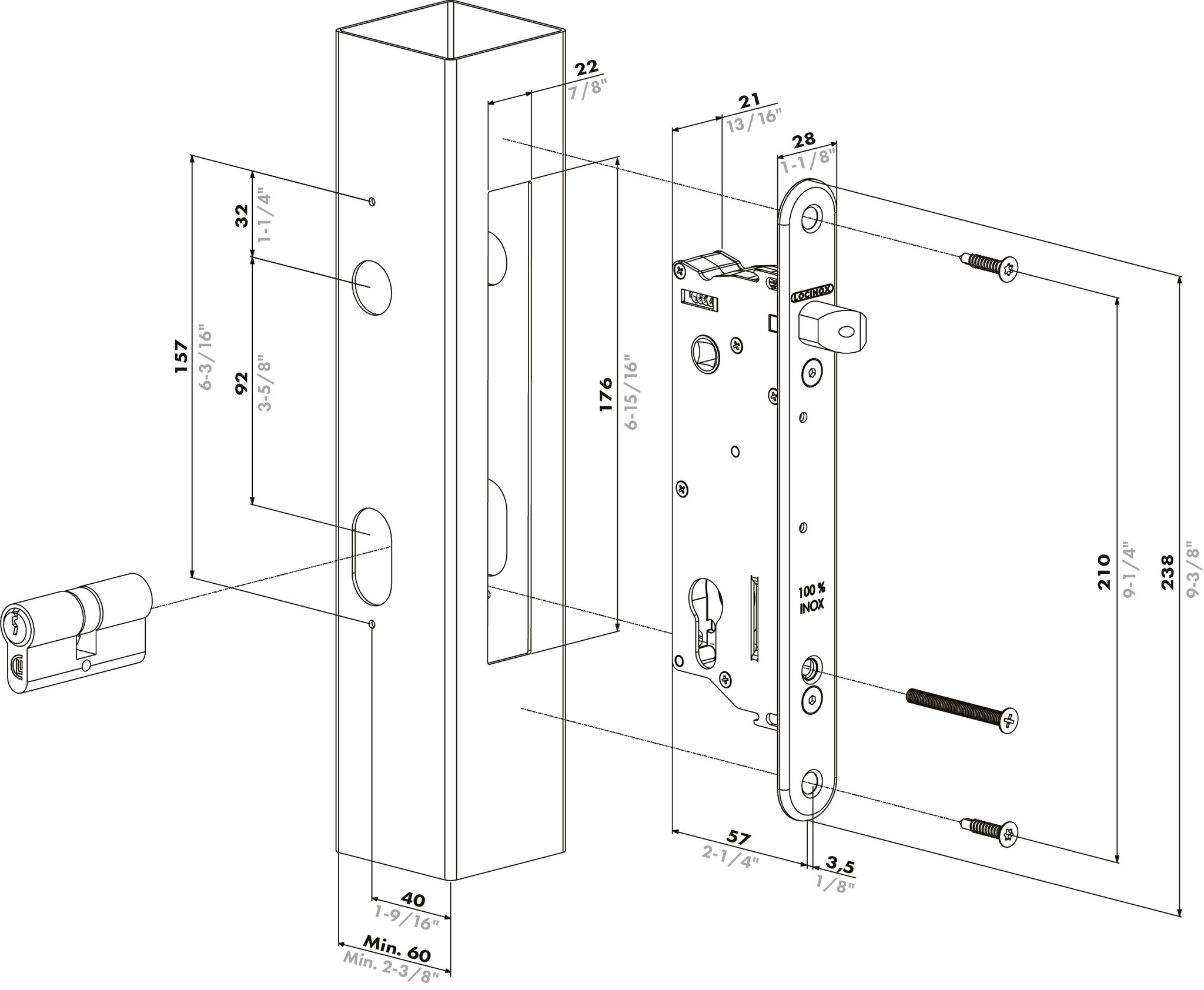

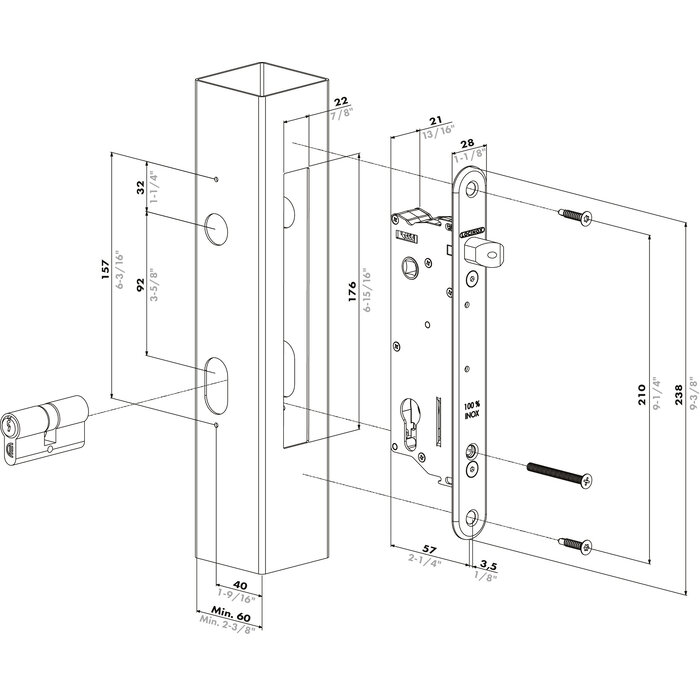

You can find all dimensions on the attached drawing. See also the installation video.

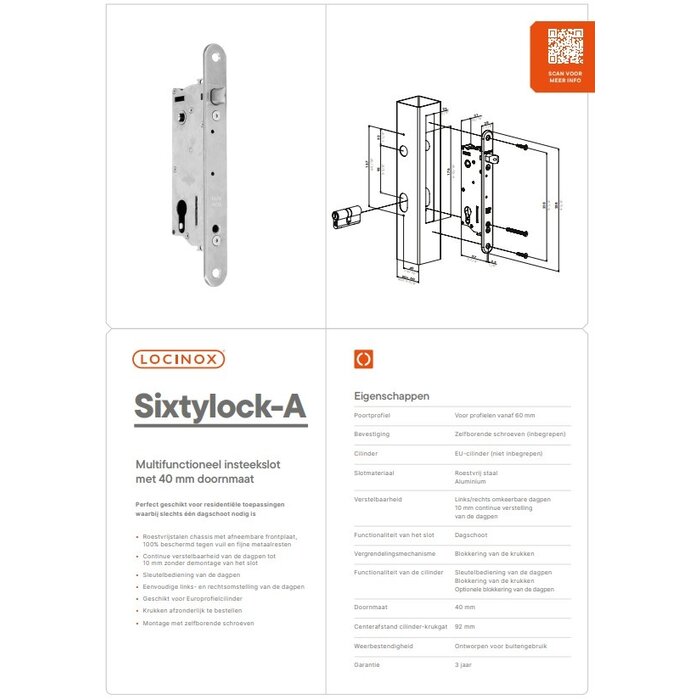

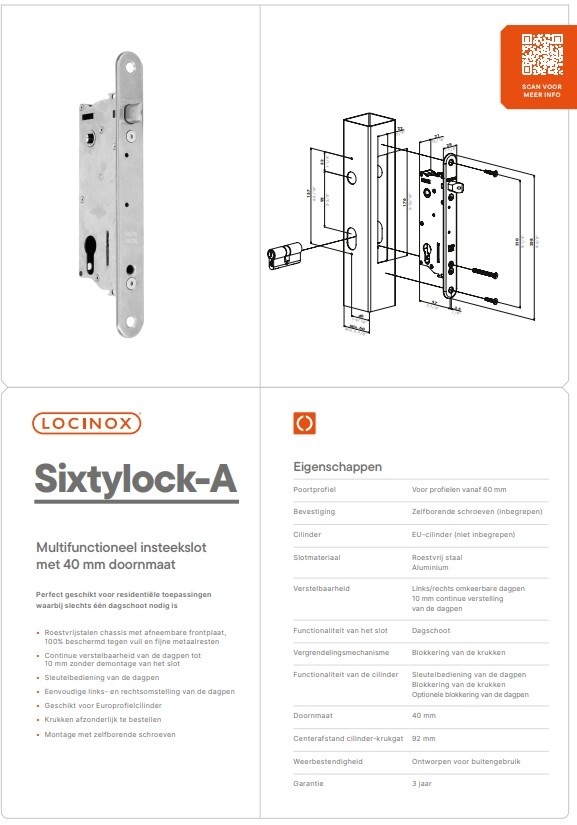

Download the manual here.

Read the specific features below:

• Thorn size 40 mm, for mounting in profiles from 60 mm depth
• Continuous adjustability of the day pin up to 10 mm without disassembling the lock
• Key operation of the day pen
• Easy left and right conversion of the day pin
• Suitable for Euro profile cylinder
• Simple, safe and quick mounting with self-drilling screws
• Center distance between the cylinder and the crank hole: 92 mm
• Crutches can be ordered separately
• Stainless steel chassis with removable front panel, 100% protected against dirt and fine metal residues
• Combination with electric strike: handles locked, pin free
• Combination with mechanical striker: handles and pin locked
