Description

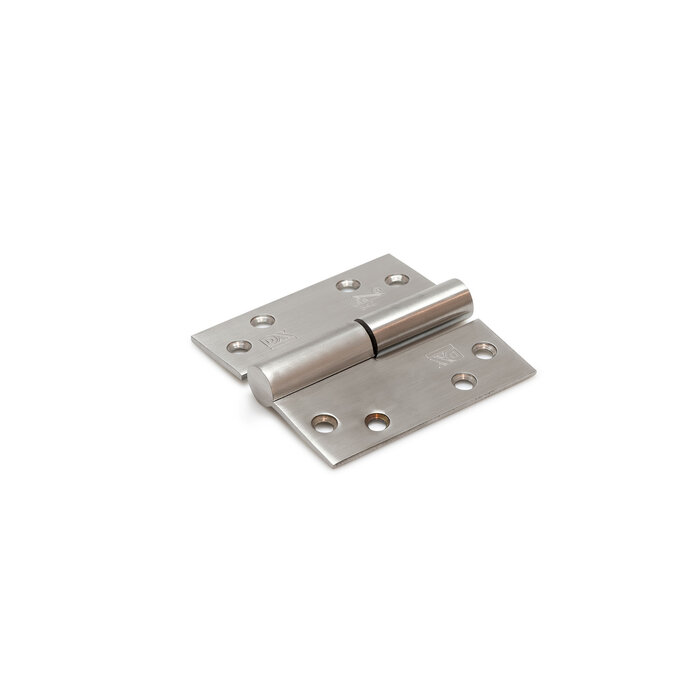

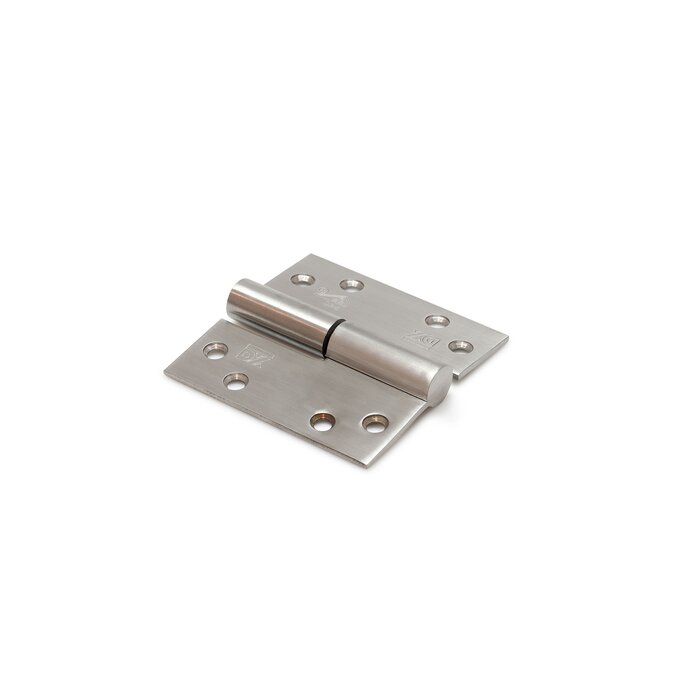

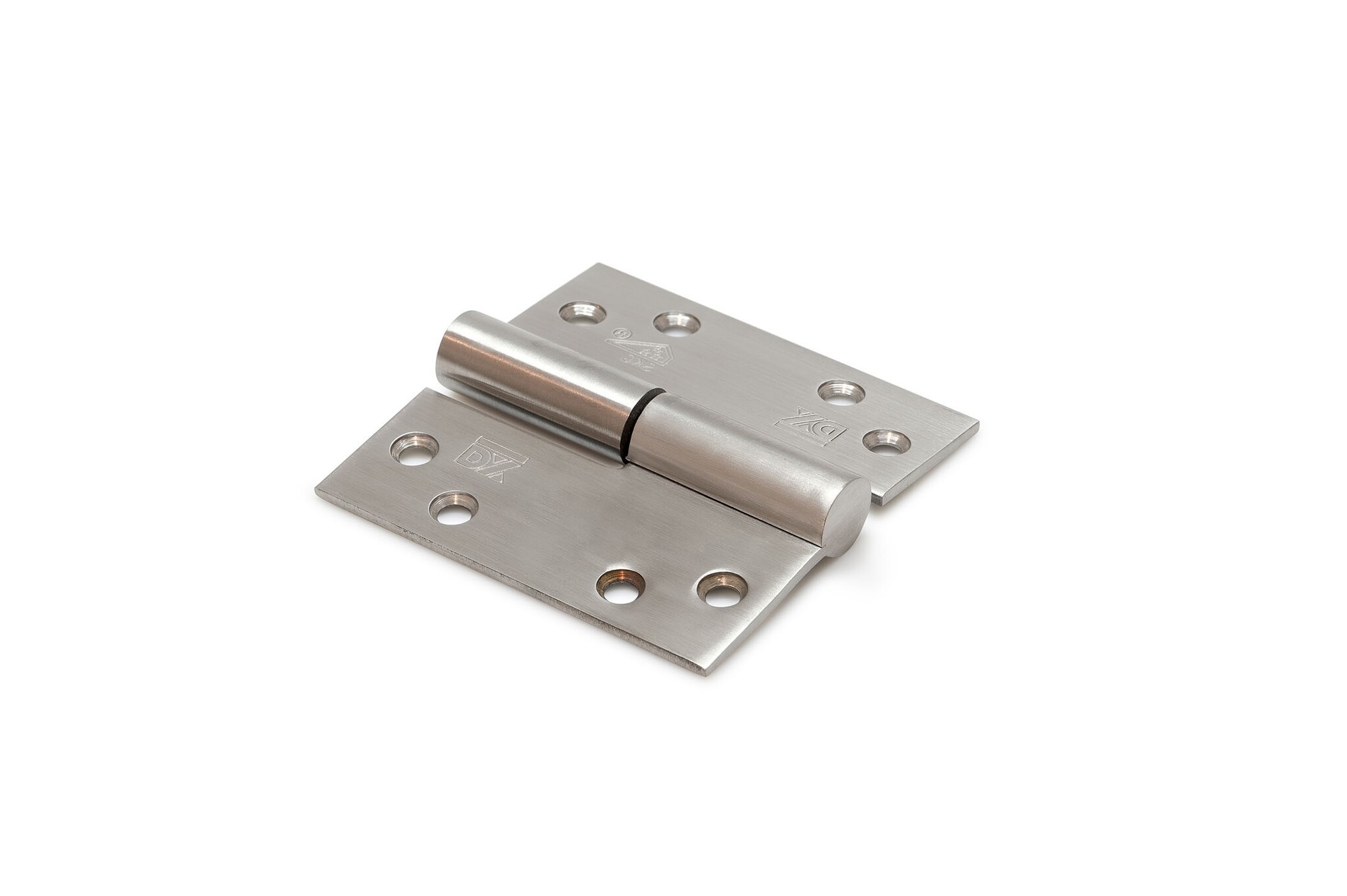

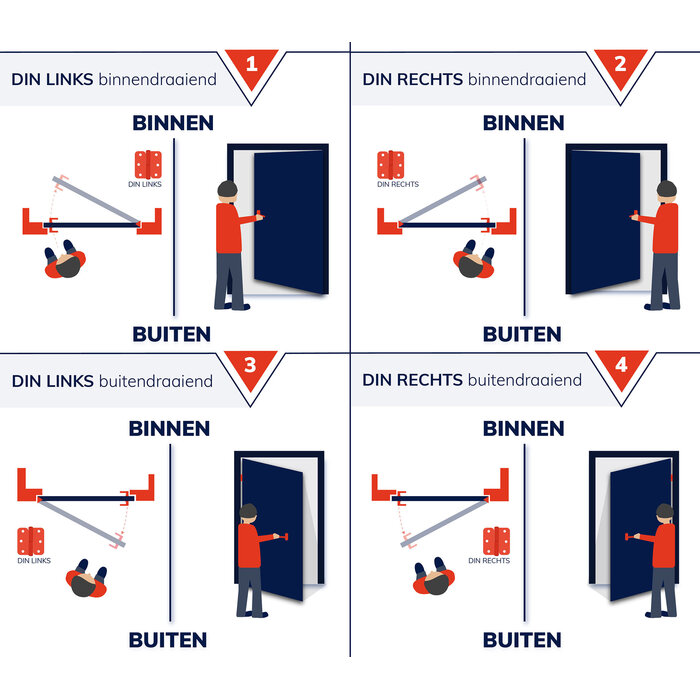

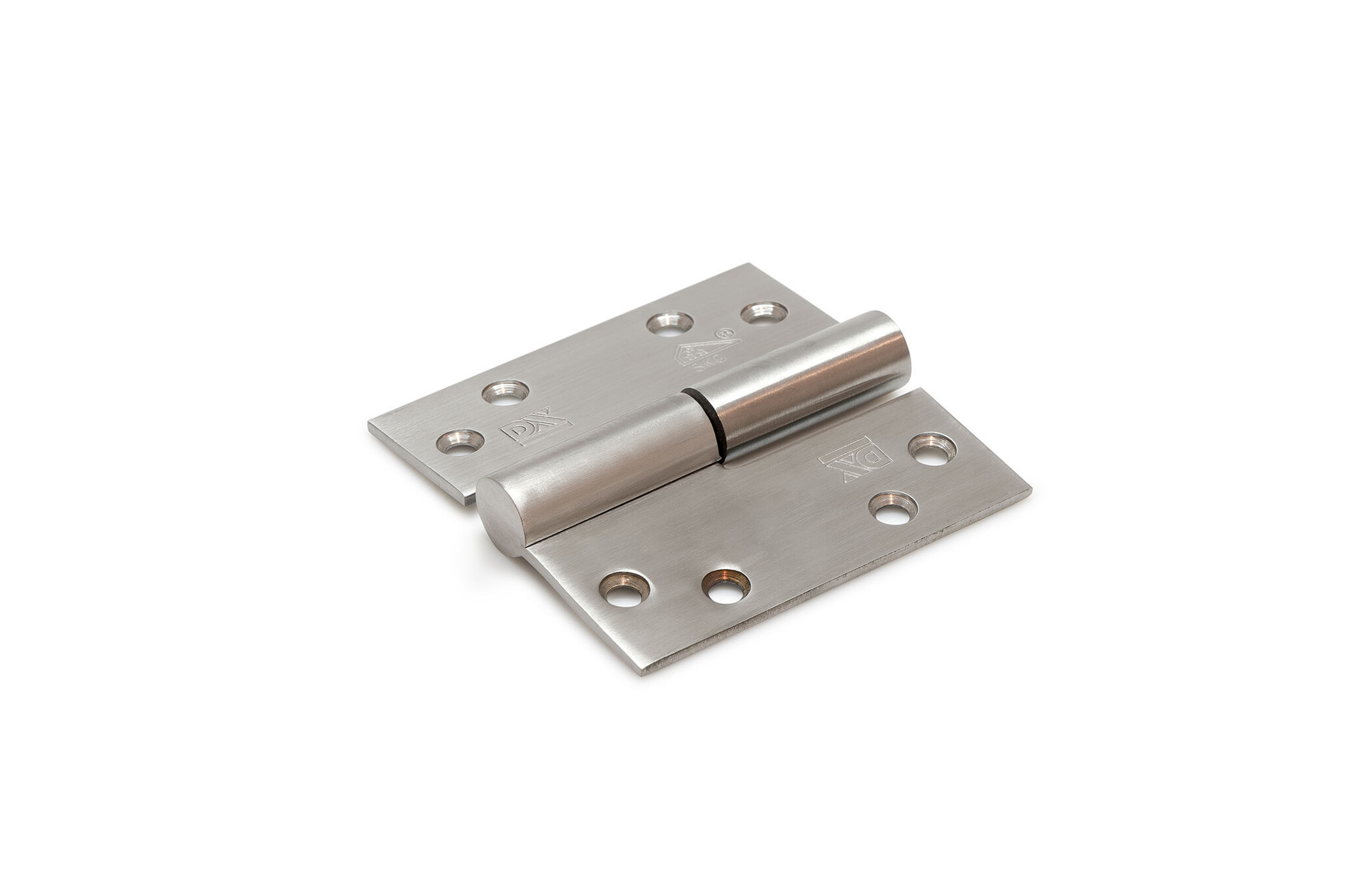

Stainless steel hinge with straight corners 89x89 mm SKG*** DIN left (Belgian right)
Article code: 6837.133.8989
This stainless steel ball joint is SKG*** approved and made entirely of 304 stainless steel. This makes these products very suitable for exterior doors.
This hinge is supplied per piece, excluding mounting material .
| Material | Stainless steel 304 |
| Finish | Brushed stainless steel |
| Finishing corner | Right angles |
| Recommended screw size | 4.5 x 45 mm (not included) |
| Standardization | SKG*** |
| Certification | CE |

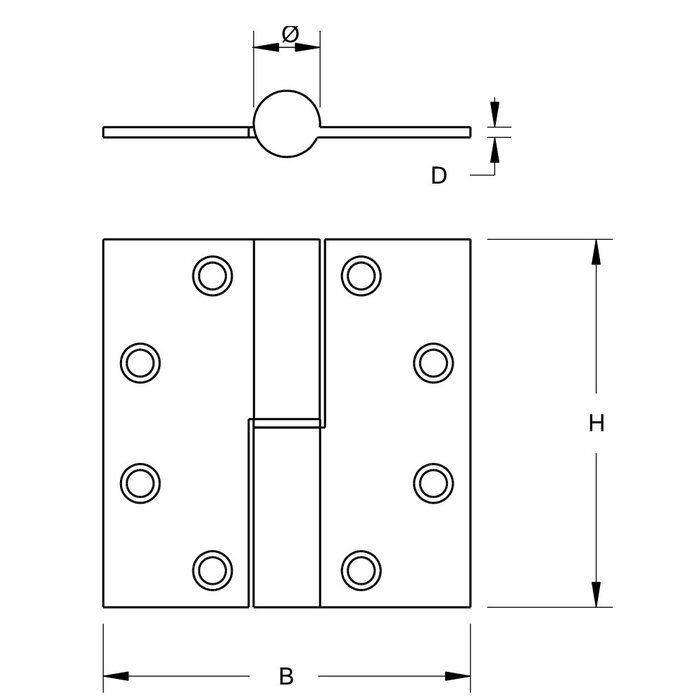

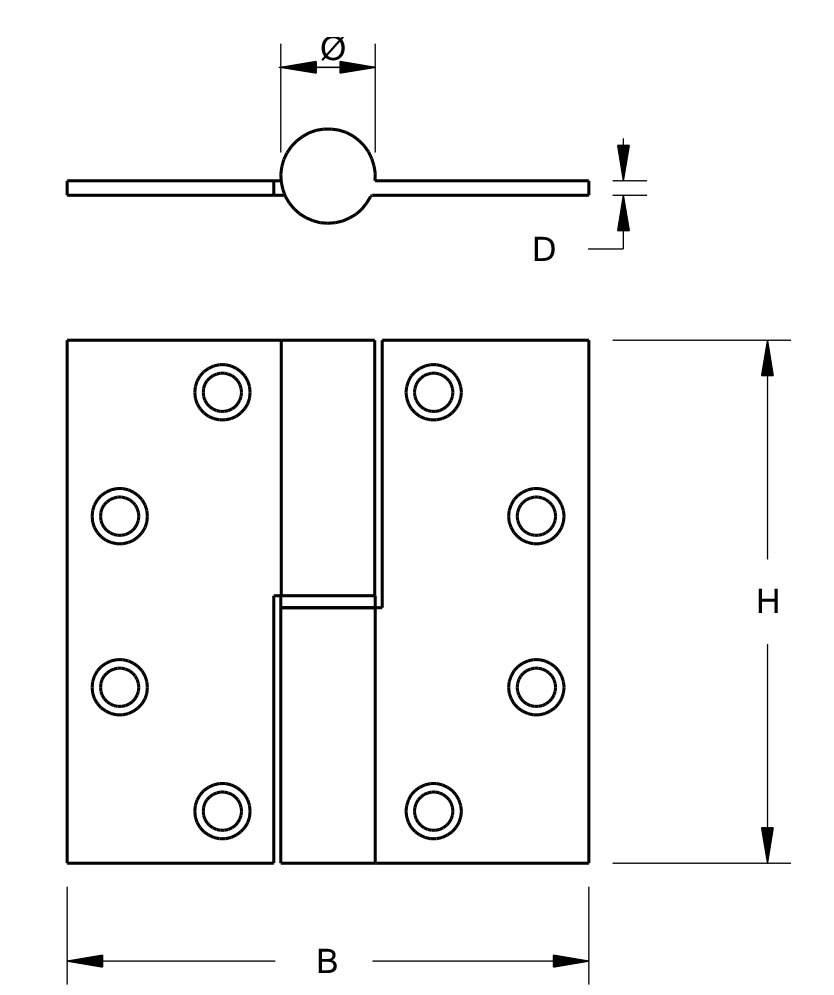

H (mm) |
89 |
B (mm) |
89 |
D (mm) |
3.0 |
Ø (mm) |
16 |
| Load capacity per 3 (Kg) | 95 |
| Load capacity per 4 (Kg) | 120 |
| Button design | fully closed flat knot |
| Mounting material | Not included |
