Description

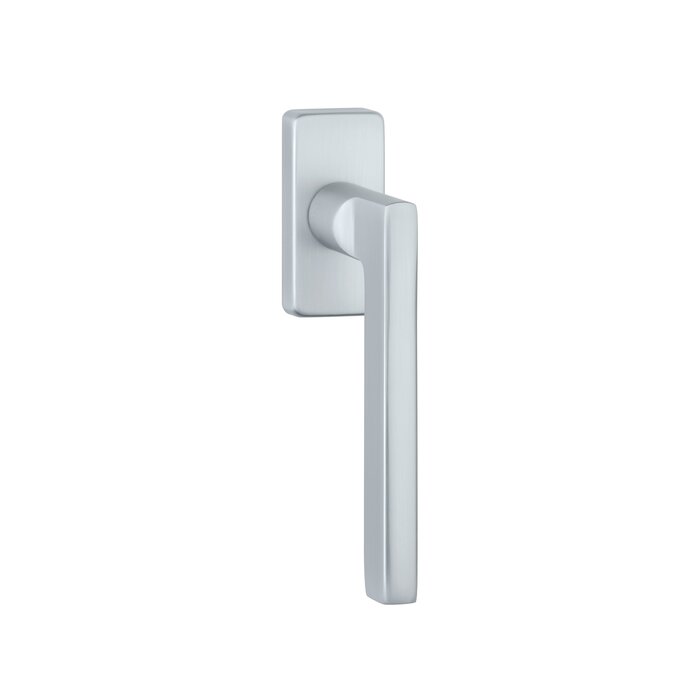

Window handle SIRA on a rectangular rosette with a tight grip in matt chrome by STILE
Article code: ST O SIRA Q PSC-L
The matt Chrome window handle 'SIRA' from STILE is available in a tilt-turn version. The window handle has a tight grip of 19.4 x 11 mm that smoothly transitions to a round connection on the rosette.
These window handles have aluminum as a basis, after which they are finished with a beautiful matte Chrome anodized coating.

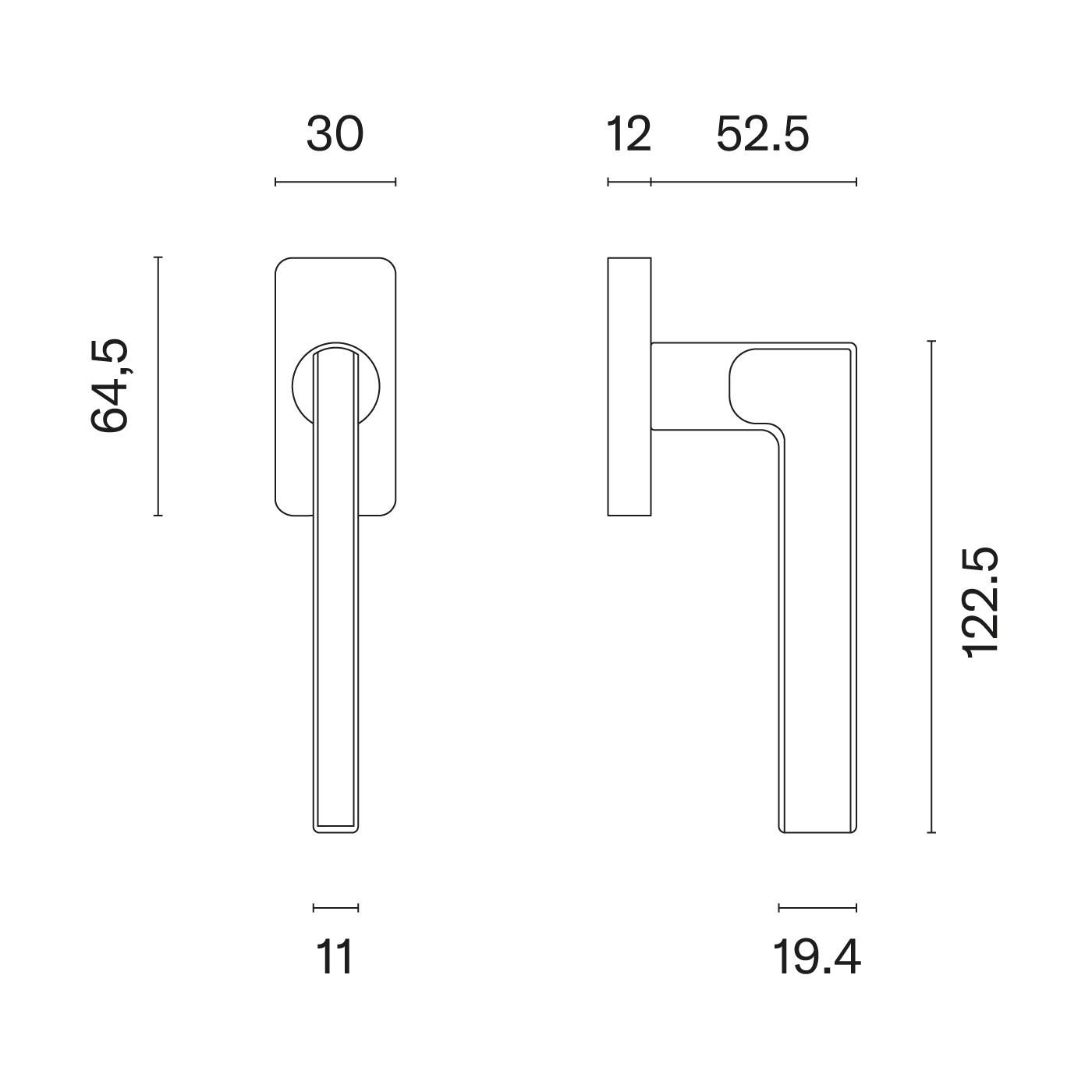

The handle stands on a rectangular rosette of 64.5x30x12 mm.
This matte Chrome window handle is supplied per piece including mounting materials and a pin of 7x7x35 mm. The mounting holes are spaced 43 mm apart
Combine the matt window handles with the matching SIRA door handles from STILE and create a beautiful result.
Above in the scroll menu you can choose between a left or right window handle.
Both window handles rotate 360°. The only difference is the location of the STILE logo.
With a left window handle, the logo is on the left and you open the window handle from the left, with a right window handle, the logo is on the right and you open the window handle from the right.
| base | aluminium |
| performance | turn-tilt function |
| colour | matte chrome |
| dimensions rosette | 64.5x30x12mm |
| depth | 52.5mm |
| drilling distance | 43mm |
| marker | 7x7x35mm |
| handle dimensions | 19.4x11mm |
| mounting material | 2 bolts M5 x 40 mm included |
