Otlav Invisacta IN570 invisible hinge 3D matte black

The Otlav Invisacta IN570 invisible hinge in matte black combines high-quality engineering with a sleek, minimalist design. Thanks to the fully concealed mounting, the hinge remains invisible when the door is closed, ensuring a modern and stylish finish for interior doors.

This 3D adjustable hinge was specially developed for doors with a recessed door frame and allows the use of wall plates . This makes it ideal for modern interior applications where clean lines and a seamless finish are central.

The hinge is suitable for doors with a thickness of 40 mm and 44 mm and allows installation with seals up to 6 mm. Additionally, the system enables the construction of extra-thick door frames and wall panels up to 18 mm.

The housing is manufactured from zamak with an aluminium interior, ensuring a strong and durable construction. The matte black powder coating gives the hinge a modern look that pairs perfectly with contemporary interiors and black door accessories.

Thanks to the 7 hinge joints, the Invisacta IN570 offers minimal friction, smooth movement, and increased load capacity. Plastic bushings prevent direct contact between the load-bearing parts and ensure quieter and more durable operation.

The hinge is fully 3-dimensionally adjustable with a single Allen key, without the use of the mounting screws during adjustment. Furthermore, the adjustment screws are neatly concealed behind cover caps for a sleek finish.

The hinge is reversible and can be used on either the left or the right when mounted centrally in the door leaf.

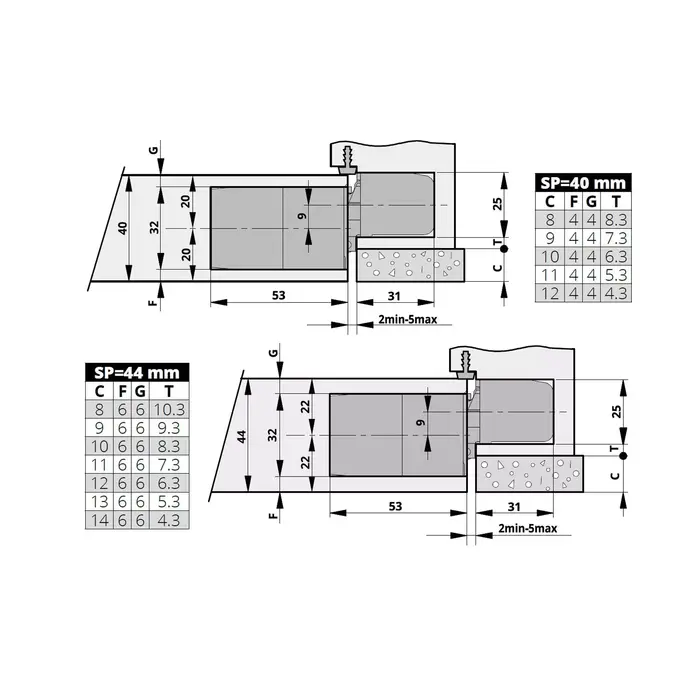

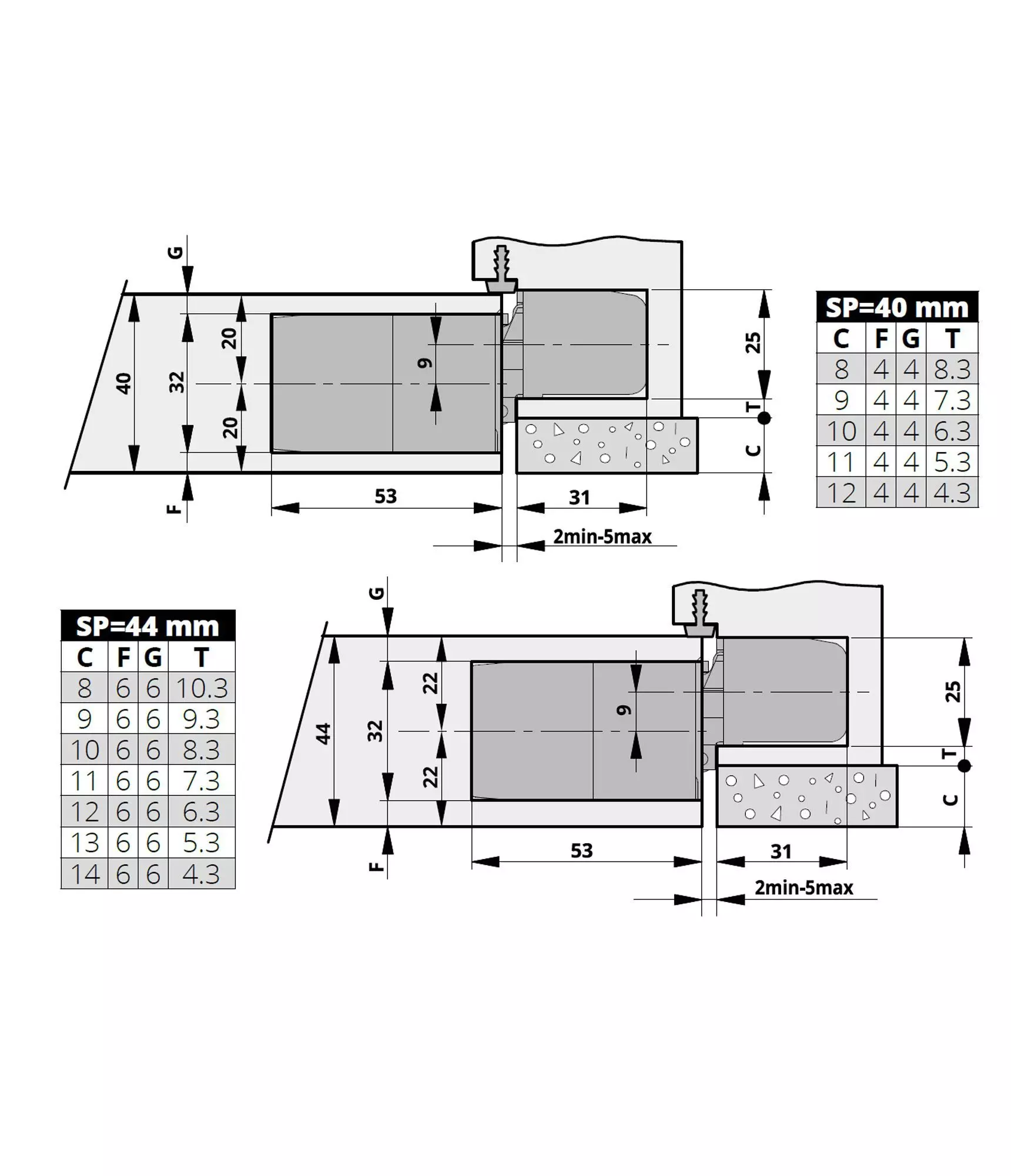

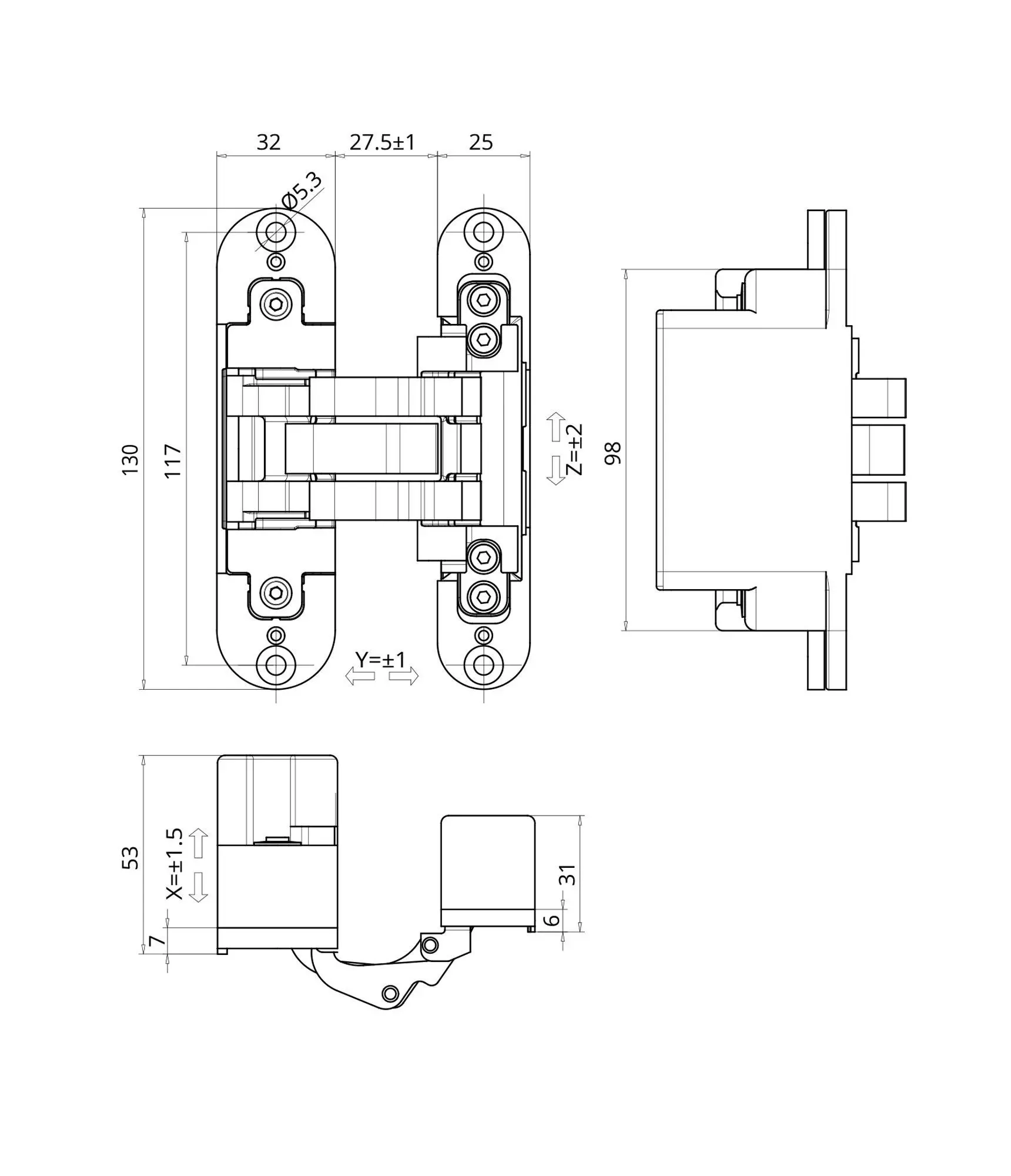

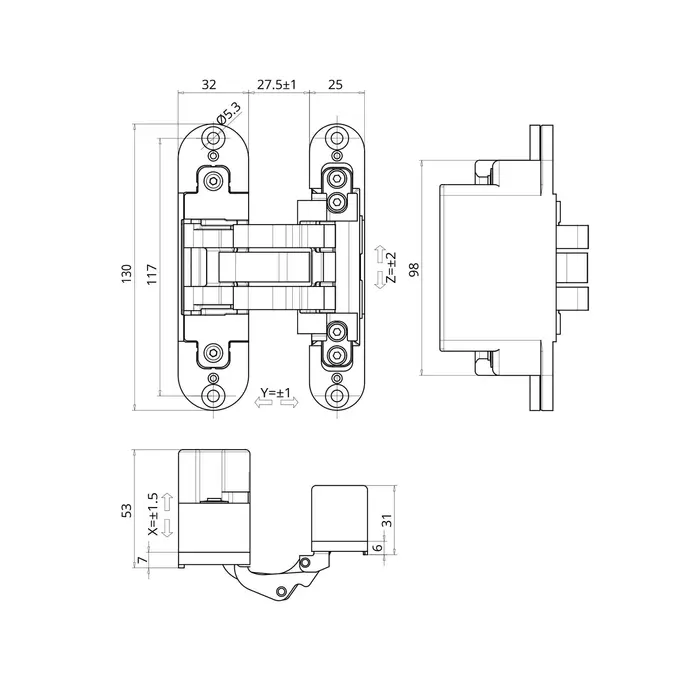

Technical drawing

Load capacity IN570

Instructions IN570
