Description

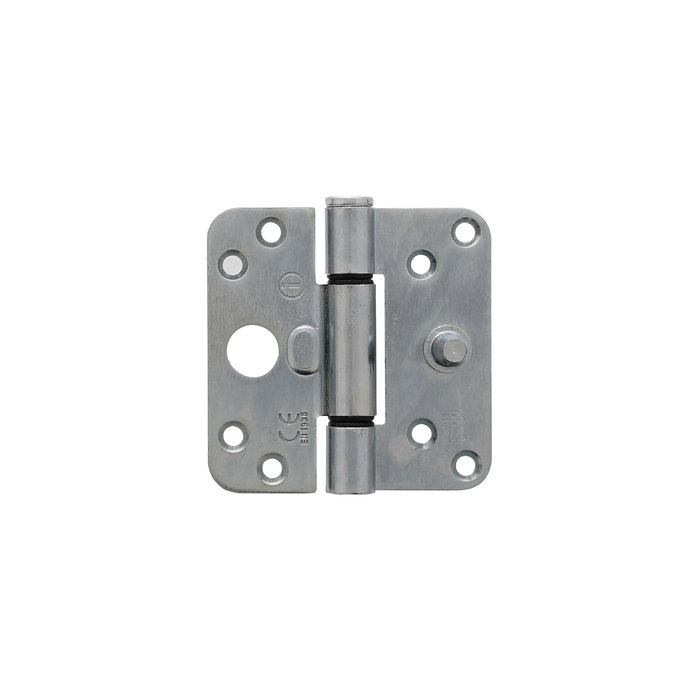

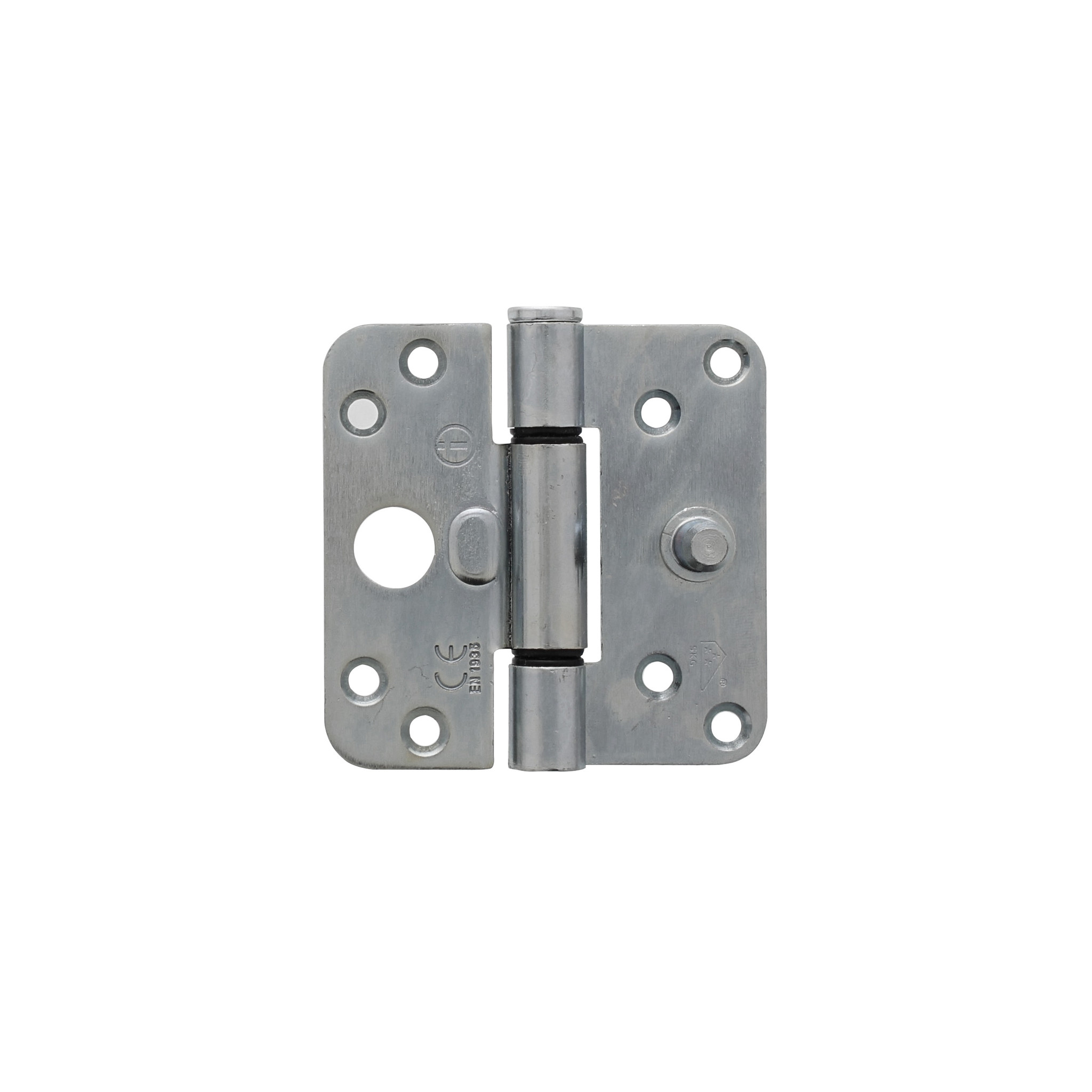

Intersteel Plain bearing hinge SKG3 89 x 89 x 3 mm DIN right/left galvanized
Article code: 0098.462565
This plain bearing hinge is made of steel and is subsequently galvanized.
The hinge has rounded corners and a button through. This means that the knot (the pivot point of the hinge) is placed off-centre, so that cutting/milling for the knot in the frame is not necessary.

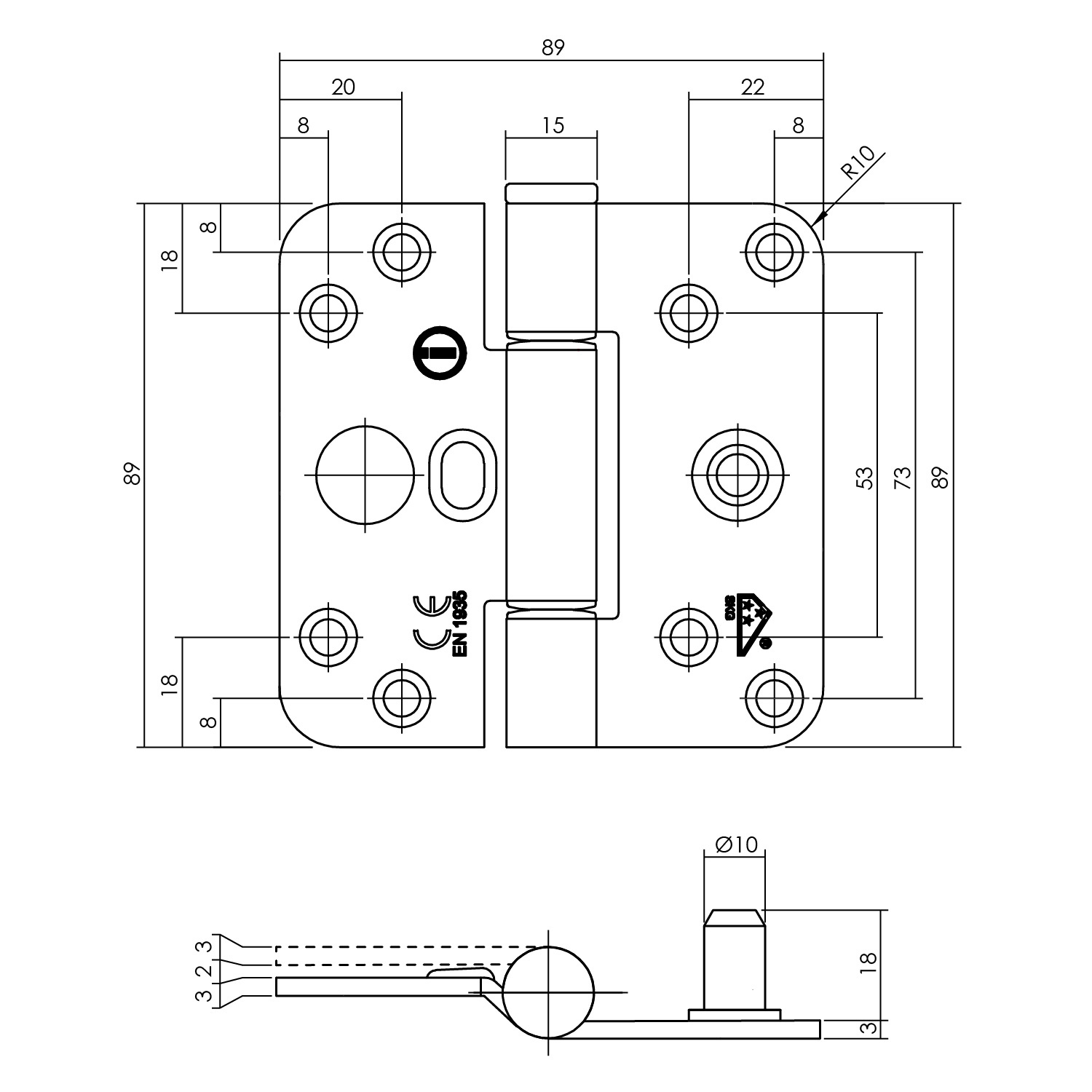

In addition, the plain bearing hinge is maintenance-free, due to the self-lubricating properties of the plastic plain bearing. The hinge can be used on both right-hand and left-hand doors, because you can remove the pin. The plain bearing hinge is 89 mm high, 89 mm wide when unfolded and has 3 mm thick blades.
This product is equipped with a thief pin and SKG*** approved, which means that it is extra heavy burglar-resistant hinges and locks. The hinge is also provided with a CE mark and certified according to the European Norm EN1935:2002+AC:2003 and falls into hinge class 13 and user class 4.
This hinge can be used on the left or right and is supplied individually without mounting material.
